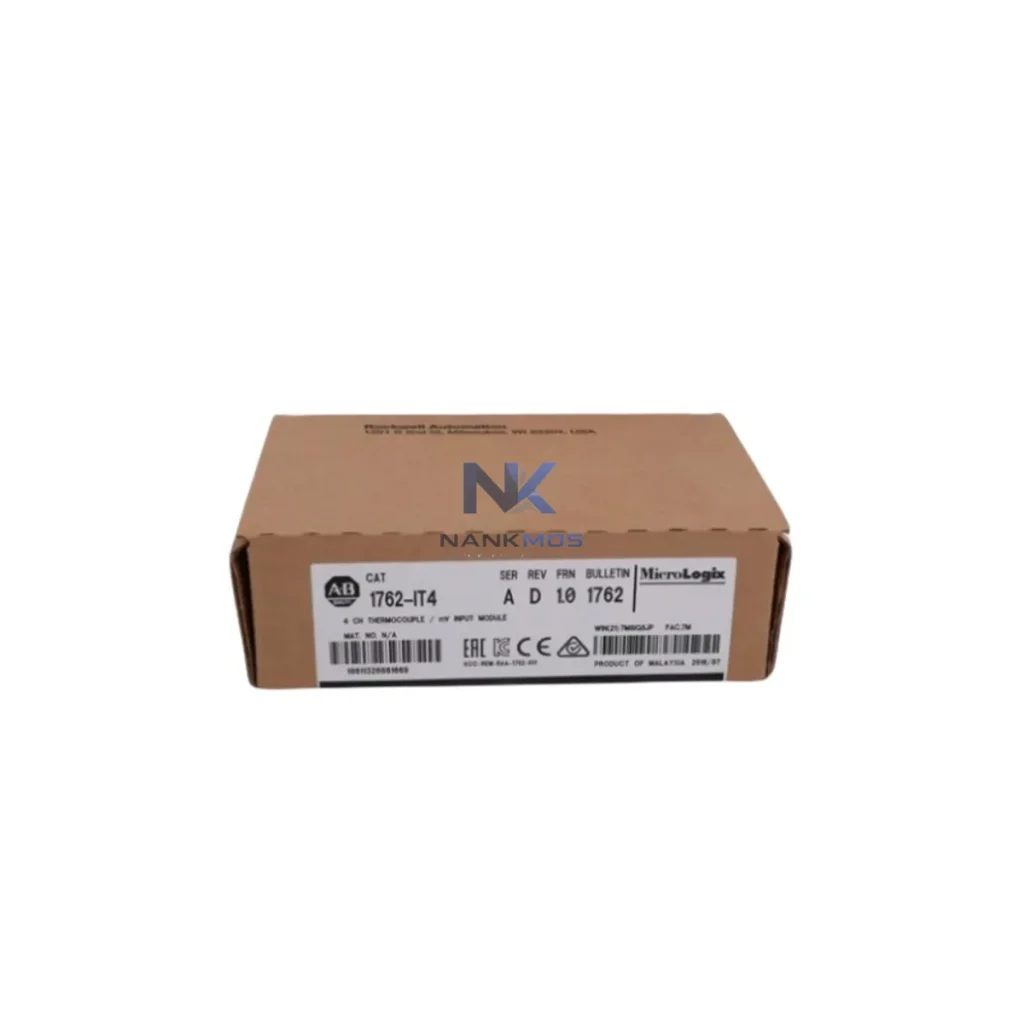

Allen-Bradley 1762-IT4 PLC Thermocouple Input Module

Product Details

1762-IT4 Product Description

The Allen-Bradley 1762-IT4 is a 4-channel thermocouple and millivolt input module engineered for seamless integration within the MicroLogix 1200 and MicroLogix 1400 control platforms. As a dedicated analog input expansion module within the 1762 I/O series, the 1762-IT4 delivers high-resolution temperature measurement directly into the MicroLogix scan cycle, enabling real-time process feedback across demanding industrial environments. Its role within a complete automation architecture extends far beyond standalone temperature acquisition — it functions as a precision sensing node that anchors the thermal monitoring layer of a distributed control system, ensuring signal integrity, scan-cycle synchronization, and long-term measurement stability across the full control hierarchy.

Designed for engineers who require system-matched I/O expansion without compromising architectural consistency, the 1762-IT4 supports J, K, E, T, R, S, B, N, and C thermocouple types alongside millivolt input ranges, making it adaptable to a wide spectrum of process temperature applications. Its cold junction compensation and open-circuit detection capabilities reduce diagnostic overhead and improve fault response time — critical attributes in continuous process environments where undetected sensor failures can cascade into production losses.

The 1762-IT4 achieves its full engineering value when deployed as part of a coherent MicroLogix-based automation platform. In a typical MicroLogix 1400 system, the controller CPU — such as the 1766-L32BWA or 1766-L32BWAA — serves as the central processing node, executing ladder logic and managing all expansion I/O modules connected via the 1762 expansion bus. The 1762-IT4 occupies a dedicated slot in this expansion chain, delivering thermocouple data directly into the controller's data table for real-time PID loop execution or alarm threshold monitoring.

At the power layer, the 1762-OW8 relay output module and 1762-IQ8 discrete input module are commonly deployed alongside the 1762-IT4 to form a complete mixed I/O configuration — handling both digital field signals and analog temperature inputs within a single compact rack. For applications requiring analog voltage or current output to drive control valves or variable-speed drives, the 1762-OF4 analog output module integrates directly into the same expansion bus, enabling closed-loop temperature control without additional signal conditioning hardware.

Communication architecture in MicroLogix deployments typically leverages the onboard RS-232 / RS-485 ports of the MicroLogix 1400 for Modbus RTU or DF1 protocol connectivity, while Ethernet-based supervisory integration is achieved through the 1761-NET-ENI Ethernet interface or the 1763-NC01 serial communications module. These communication layers allow the 1762-IT4's temperature data to be surfaced to SCADA systems, historian platforms, or HMI panels such as the PanelView Component C600 or PanelView Plus 600, providing operators with real-time thermal trend visualization and alarm management.

For installations requiring signal isolation between field-level thermocouple circuits and the control bus — particularly in high-noise environments such as motor control centers or variable frequency drive panels — external signal isolators or thermocouple transmitters (converting TC signals to 4–20 mA) may be inserted upstream of the 1762-IT4's mV input range, preserving measurement accuracy and protecting the module from ground loop interference. This architecture is especially relevant in petrochemical, power generation, and heavy manufacturing environments where electrical noise is a persistent challenge.

Redundancy considerations for MicroLogix-based systems typically involve hot-standby controller pairs or dual-path communication configurations. While the MicroLogix platform does not natively support controller-level redundancy in the same manner as ControlLogix, system designers often implement redundant power supplies — such as the 1606-XLP95E power supply — and redundant communication paths to maximize uptime. The 1762-IT4's open-circuit detection and per-channel diagnostics contribute to this resilience by enabling the controller to identify and isolate failed thermocouple circuits without halting the entire scan cycle.

Manufacturing & Discrete Production Lines: In automotive assembly, plastics injection molding, and food processing lines, the 1762-IT4 monitors mold temperatures, oven zones, and heat-sealing elements. Its integration with MicroLogix PID instructions enables precise temperature regulation, reducing scrap rates and improving product consistency across high-throughput production cycles.

Power Generation & Electrical Utilities: Transformer winding temperature monitoring, generator bearing temperature surveillance, and switchgear thermal management are common applications in power utility environments. The 1762-IT4's support for high-temperature thermocouple types (R, S, B) makes it suitable for monitoring critical electrical assets where thermal runaway detection is a safety requirement.

Petrochemical & Process Industries: Reactor temperature profiling, distillation column monitoring, and heat exchanger control in oil refining and chemical processing plants rely on accurate, multi-channel thermocouple acquisition. The 1762-IT4's differential input architecture and cold junction compensation ensure measurement accuracy even in environments with significant ambient temperature variation.

Water & Wastewater Treatment: Pump motor temperature monitoring, UV disinfection system thermal management, and sludge digester temperature control are representative applications in municipal water infrastructure. The module's compact form factor and DIN rail mounting simplify integration into existing MicroLogix-based SCADA architectures at pump stations and treatment facilities.

Mining, Metallurgy & Heavy Industry: Furnace temperature control, conveyor drive motor thermal protection, and kiln zone monitoring in cement, steel, and mineral processing plants demand robust, high-accuracy temperature input modules. The 1762-IT4's industrial-grade operating range and per-channel open-circuit detection support continuous operation in harsh, high-vibration environments.

Packaging & Material Handling: Heat-shrink tunnel temperature control, hot-melt adhesive system monitoring, and conveyor motor thermal protection in packaging lines benefit from the 1762-IT4's fast scan integration with MicroLogix ladder logic, enabling rapid response to temperature deviations that could compromise package integrity or line throughput.

Q1: How many 1762-IT4 modules can be connected to a single MicroLogix 1400 controller, and are there any slot or power limitations? The MicroLogix 1400 supports up to 7 expansion I/O modules on the 1762 expansion bus. Each 1762-IT4 consumes 85 mA at 5 VDC from the controller's internal bus. The total current budget for all expansion modules must not exceed the controller's specified expansion bus current capacity (typically 1.0 A at 5 VDC for MicroLogix 1400). In practice, a system with multiple analog modules — including 1762-IT4, 1762-OF4, and 1762-IF4 — should be carefully budgeted to ensure the combined current draw remains within specification. Consulting the MicroLogix 1400 Installation Instructions (Publication 1766-IN001) is recommended for detailed power budgeting.

Q2: Is the 1762-IT4 compatible with both MicroLogix 1200 and MicroLogix 1400, and are there any firmware or programming software requirements? Yes, the 1762-IT4 is compatible with both MicroLogix 1200 (Series C or later) and MicroLogix 1400 controllers. Programming and configuration are performed using RSLogix 500 or Studio 5000 Logix Designer (for legacy compatibility mode). The module is automatically recognized by RSLogix 500 when added to the I/O configuration tree, and channel-level configuration — including thermocouple type selection, filter frequency, and open-circuit response — is performed via the module's configuration file (IIN/IOUT data structure). No additional firmware updates are required for standard thermocouple types.

Q3: What warranty and supply chain support does NANKMOS provide for the 1762-IT4, and how is pre-shipment quality ensured? NANKMOS provides a 12-Month Warranty on all 1762-IT4 units supplied, covering functional defects under normal operating conditions. Every unit undergoes pre-shipment functional testing to verify channel integrity, cold junction compensation accuracy, and bus communication before dispatch. NANKMOS maintains dedicated inventory of MicroLogix 1762 series modules to support rapid replacement requirements, minimizing production downtime for maintenance and emergency procurement scenarios. For volume orders, scheduled delivery programs and consignment stock arrangements are available. Contact [email protected] or +86 18359268345 for supply chain and warranty inquiries.
