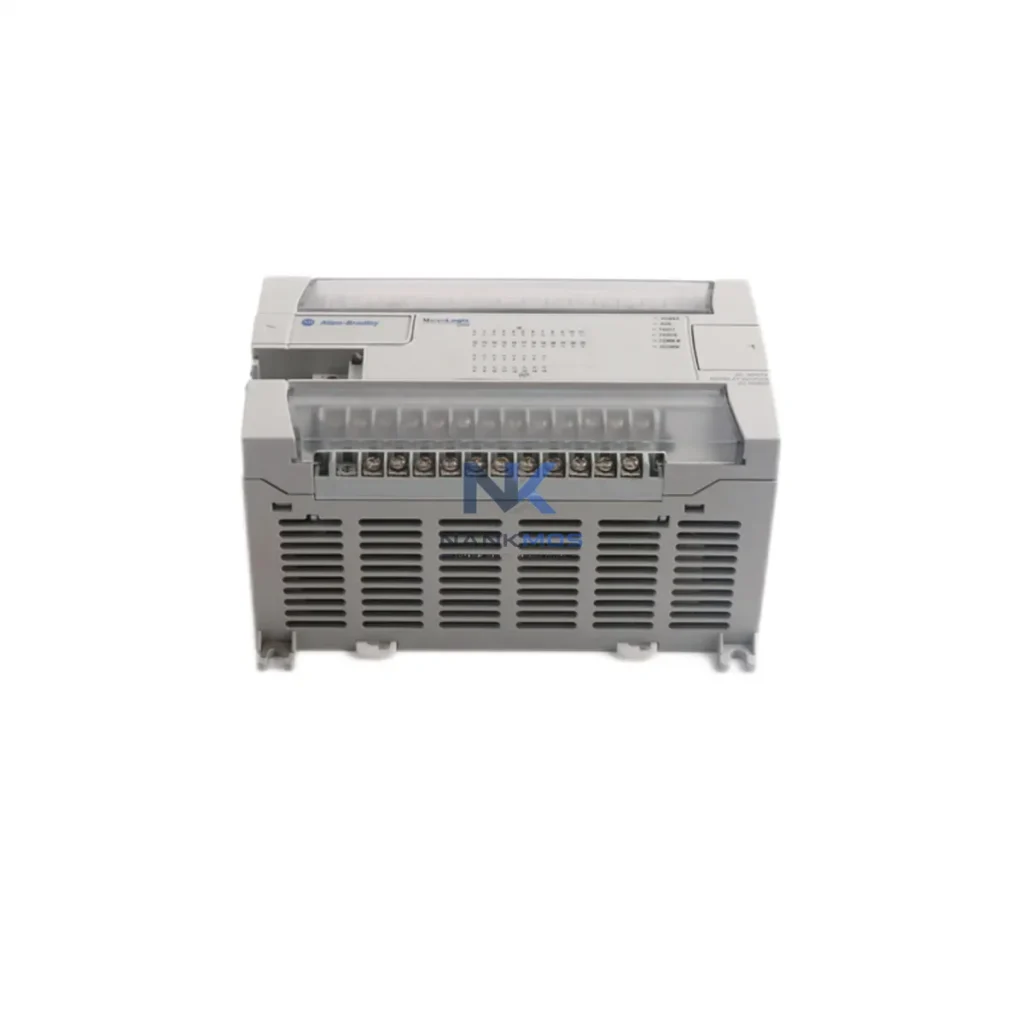

Allen-Bradley 1762-L24AWA PLC Controller

Product Details

1762-L24AWA Product Description

The Allen-Bradley 1762-L24AWA is a MicroLogix 1200 series programmable logic controller engineered for reliable industrial network communication and smart factory data integration. With native DH-485 and RS-232 protocol support, this controller serves as a critical node in the plant-floor data chain — bridging field-level devices, remote I/O modules, HMI panels, SCADA systems, and upper-level MES platforms into a unified, transparent automation network. Designed for demanding industrial environments, the 1762-L24AWA delivers deterministic control, multi-protocol gateway capability, and a compact 24 I/O architecture that scales efficiently across discrete manufacturing, process control, and building automation applications.

Every unit shipped by NANKMOS undergoes pre-shipment functional verification, ensuring protocol handshake integrity, I/O channel continuity, and communication port stability before dispatch. Backed by a 12-Month Warranty and supported by in-stock global inventory, the 1762-L24AWA is available for immediate deployment in new installations, system expansions, and emergency replacement scenarios.

In a smart factory architecture, the 1762-L24AWA functions as the central control and communication hub for a distributed automation cell. At the field level, sensors — including photoelectric, proximity, and temperature transmitters — feed discrete and analog signals directly into the controller's 14 digital input channels. The onboard RS-232 port, configured for DF1 Full Duplex or Modbus RTU, enables direct peer-to-peer communication with variable frequency drives such as the PowerFlex 40 or PowerFlex 400 series, allowing the PLC to issue speed references, read drive fault registers, and log operational data in real time.

Upstream, the DH-485 network port connects the 1762-L24AWA to a multi-node plant-floor bus. On this bus, PanelView 300 or PanelView 550 HMI terminals provide operator visualization and alarm acknowledgment, while additional MicroLogix 1100 or MicroLogix 1400 controllers share process data across production zones. The 1762 expansion I/O modules — including the 1762-IQ16 digital input module and 1762-OW16 relay output module — extend the controller's reach to additional field devices without requiring a separate rack or backplane, keeping the installation footprint compact.

For SCADA integration, an ANC-100e or 1761-NET-AIC network interface converter bridges the DH-485 segment to an Ethernet-based supervisory layer, where RSView32 or FactoryTalk View SE collects tag data, generates trend logs, and distributes alarm notifications to maintenance teams. At the edge, an industrial gateway such as the ProSoft Technology MVI56-MCM or a Moxa MGate MB3180 can translate Modbus RTU data from the RS-232 port into MQTT or OPC-UA streams, feeding cloud-based analytics platforms and digital twin environments. This end-to-end data path — from sensor signal through PLC logic, across the DH-485 network, through the protocol gateway, and into the SCADA/MES layer — forms the backbone of a transparent, data-driven smart factory.

Power integrity across this network is maintained by industrial DIN-rail power supplies delivering stable 24V DC to I/O modules and communication converters, ensuring that transient load changes on the AC supply do not disrupt network timing or data frame integrity. The 1762-L24AWA's deterministic scan cycle, combined with the low-latency DH-485 token-passing protocol, guarantees that control response times remain within the millisecond range even as the network scales to its maximum 32-node capacity.

Many legacy and mid-scale automation sites face persistent challenges: protocol fragmentation between older RS-232 devices and newer Ethernet-based systems, data silos that prevent production visibility across shifts, and the inability to perform remote diagnostics without dispatching on-site engineers. The 1762-L24AWA directly addresses these pain points through its dual-port communication architecture.

Its RS-232 channel supports ASCII protocol mode, enabling direct integration with barcode readers, weigh scales, and serial printers that do not speak standard PLC protocols — eliminating the need for intermediate converters in many applications. The DH-485 port provides a structured, multi-drop network that consolidates data from multiple controllers into a single supervisory connection point, breaking down the data silos that typically exist between independently operated machine cells.

For remote monitoring and diagnostics, the 1762-L24AWA's program memory supports fault routine logic that automatically logs error codes, timestamps, and I/O states to data files. When paired with a FactoryTalk Remote Access gateway or a cellular RTU, maintenance engineers can interrogate these fault logs, modify setpoints, and force I/O states from off-site locations — reducing mean time to repair and minimizing unplanned downtime. Production line transparency is further enhanced through HMI trend displays that visualize cycle counts, output rates, and alarm histories, giving supervisors the real-time operational intelligence needed to optimize throughput and schedule predictive maintenance. As production demands grow, the modular 1762 I/O expansion architecture allows the system to scale incrementally, adding analog input modules, thermocouple modules, or high-speed counter modules without redesigning the control panel or replacing the base controller.

Q1: What is the communication latency on the DH-485 network when the 1762-L24AWA is connected to multiple nodes? The DH-485 token-passing protocol delivers deterministic, low-latency communication with typical node-to-node response times in the 5–20 ms range at the default 19.2 Kbps baud rate. Latency scales predictably with node count; a fully loaded 32-node network remains within acceptable bounds for most discrete control and HMI update applications. For time-critical applications, reducing the active node count or increasing baud rate to 57.6 Kbps further tightens response windows.

Q2: Is the 1762-L24AWA compatible with Modbus RTU devices on the RS-232 port? Yes. The RS-232 channel (Channel 0) supports DF1 Full Duplex, DF1 Half Duplex Master/Slave, DH-485 (via AIC+), ASCII, and Modbus RTU Master protocols through MSG instruction configuration in RSLogix 500 or Studio 5000 Logix Designer. This makes the controller directly interoperable with Modbus-enabled drives, meters, and sensors without requiring an external protocol converter in most topologies.

Q3: How does NANKMOS verify network stability before shipping the 1762-L24AWA? Each unit undergoes a structured pre-shipment test protocol that includes power-on self-test verification, communication port loopback testing on both RS-232 and DH-485 channels, I/O channel continuity checks across all 24 points, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not dispatched. This process ensures that every 1762-L24AWA arrives ready for immediate installation and network commissioning.

Q4: What does the 12-Month Warranty cover, and how is it handled for international orders? The NANKMOS 12-Month Warranty covers hardware defects, communication port failures, and I/O channel malfunctions arising under normal operating conditions. For international orders, warranty claims are processed through NANKMOS's global support channel at [email protected]. Replacement units are dispatched from verified stock, and return logistics coordination is provided to minimize system downtime. The warranty period begins from the confirmed shipment date.
