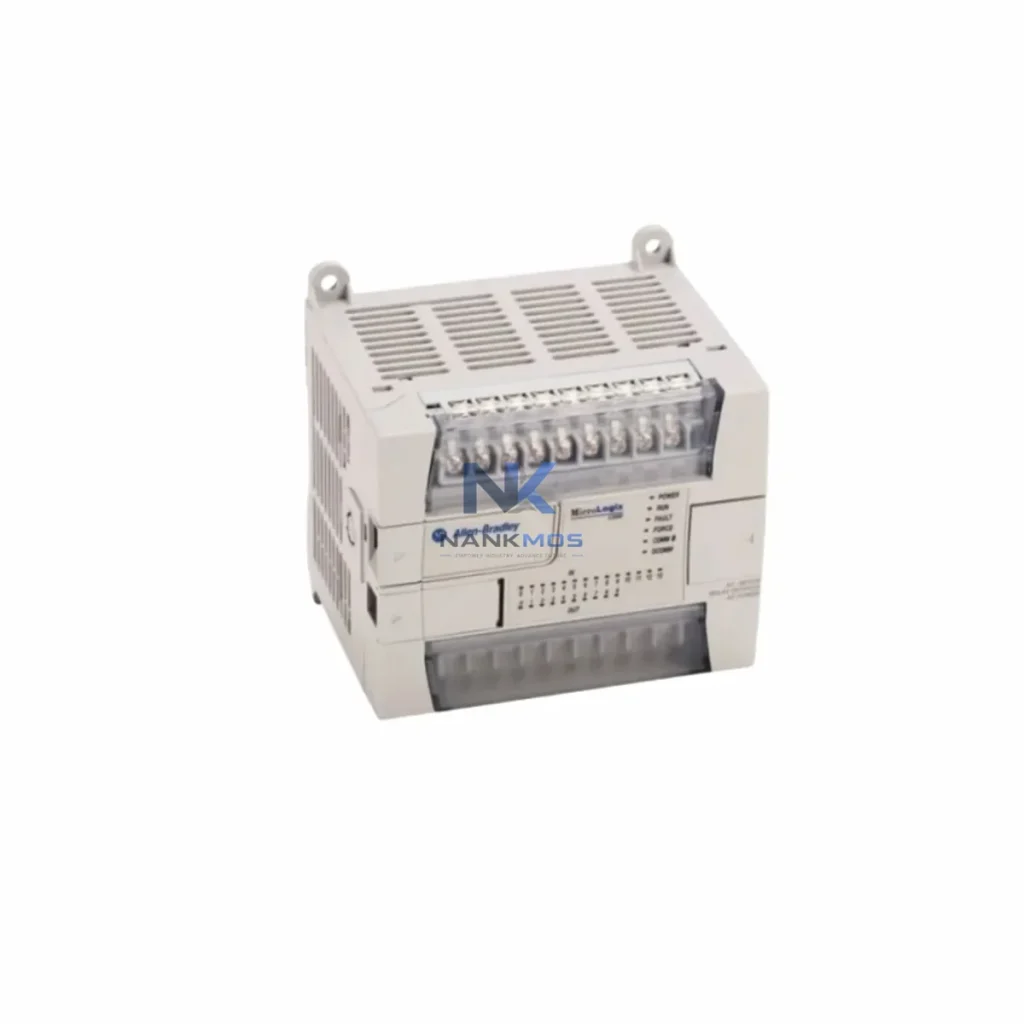

Allen-Bradley 1762-L40BWAR Programmable Logic Controller

Product Details

1762-L40BWAR Product Description

The Allen-Bradley 1762-L40BWAR is a MicroLogix 1200 series programmable logic controller engineered for demanding industrial environments where reliable data communication, real-time process control, and seamless network integration are non-negotiable. With 40 discrete I/O points and native Ethernet/IP protocol support, this controller serves as a critical node in the smart factory data chain — bridging field-level devices, distributed I/O modules, HMI panels, SCADA platforms, and enterprise MES systems into a unified, transparent automation network.

In modern manufacturing and process industries, the ability to move data from the sensor floor to the control room — and beyond to cloud analytics — defines operational efficiency. The 1762-L40BWAR is purpose-built for this role. Its compact form factor and robust instruction set make it equally suited for standalone machine control and as a coordinated node within a larger Rockwell Automation ControlLogix or CompactLogix architecture, enabling phased system expansion without architectural redesign.

The 1762-L40BWAR sits at the intersection of field instrumentation and supervisory control, making it a foundational element in any connected factory architecture. At the field level, discrete sensors — proximity switches, photoelectric detectors, pressure transmitters — feed real-time signals into the controller's 24 digital inputs. The onboard ladder logic engine processes these signals at scan-cycle speeds measured in milliseconds, executing control decisions that drive the 16 digital outputs connected to motor starters, solenoid valves, and actuator drives.

For analog process data, the 1762-L40BWAR expands seamlessly with the 1762-IF4 4-channel analog input module and the 1762-OF4 analog output module, enabling PID loop control for temperature, flow, and pressure regulation without requiring a separate analog controller. These expansion modules communicate over the MicroLogix backplane at high speed, ensuring that analog data is available to the CPU within the same scan cycle as discrete I/O.

Network communication is where the 1762-L40BWAR truly distinguishes itself in a smart factory context. Via its Channel 1 RS-232/RS-485 port, the controller can communicate using the DF1 full-duplex or DH-485 protocol, enabling peer-to-peer messaging with other MicroLogix controllers — such as the 1762-L24BXBR or 1763-L16AWA MicroLogix 1100 — across a multi-drop network without a dedicated network master. This architecture is particularly valuable in distributed machine lines where each station requires autonomous control but must share production status data with adjacent cells.

For Ethernet/IP connectivity, the 1761-NET-ENI Serial-to-Ethernet interface module bridges the controller's serial port to a standard 10/100 Ethernet network, enabling MSG instruction-based data exchange with ControlLogix L7x processors, CompactLogix L3x controllers, and upstream SCADA servers running Rockwell's FactoryTalk View SE or third-party platforms such as Wonderware InTouch or Ignition SCADA. This Ethernet bridge also enables remote programming via RSLogix 500 over a standard TCP/IP network, eliminating the need for on-site serial cable connections during routine program updates.

At the HMI layer, the 1762-L40BWAR integrates directly with PanelView 800 and PanelView Component C400 terminals via DH-485 or serial DF1, providing operators with real-time process visualization, alarm acknowledgment, and recipe management at the machine level. For larger supervisory displays, the controller's data is aggregated by a 1756-ENBT EtherNet/IP bridge module in a ControlLogix chassis, making all MicroLogix tag data available to plant-wide SCADA dashboards.

Variable frequency drives — including the PowerFlex 40 and PowerFlex 4M — connect to the 1762-L40BWAR via hardwired discrete I/O for start/stop and fault signals, while drive parameter data is accessible through the DPI or RS-485 Modbus RTU interface using an AIC+ Advanced Interface Converter (1761-NET-AIC). This dual-path communication strategy ensures that drive speed references, current draw, and fault codes are captured in the PLC data table and forwarded to the SCADA historian for trend analysis and predictive maintenance alerting.

Edge gateway devices — such as the Moxa MGate MB3170 or Ewon Flexy 205 — can be deployed alongside the 1762-L40BWAR to publish controller data to IIoT platforms and cloud analytics services via MQTT or OPC-UA, completing the data chain from field sensor to enterprise dashboard without modifying the existing PLC program.

Protocol Fragmentation: Many legacy automation sites operate with a mix of DF1, DH-485, Modbus RTU, and Ethernet/IP devices that cannot communicate natively. The 1762-L40BWAR's multi-port architecture — combined with protocol conversion accessories like the 1761-NET-AIC and 1761-NET-ENI — consolidates these disparate networks under a single controller, eliminating data silos and enabling unified data collection across mixed-protocol environments.

Data Islands and Production Transparency: Standalone machines that log data locally but cannot share it with plant-level systems create blind spots in production reporting. By deploying the 1762-L40BWAR as a network-connected controller, machine-level data — cycle counts, fault codes, output rates, energy consumption — becomes available to MES and ERP systems in real time, enabling accurate OEE calculation and production scheduling without manual data entry.

Remote Monitoring and Diagnostics: Unplanned downtime caused by delayed fault response is a persistent challenge in distributed manufacturing sites. The 1762-L40BWAR supports remote program monitoring and online editing via RSLogix 500 over Ethernet, allowing maintenance engineers to diagnose faults, force I/O states, and modify control logic from a central engineering workstation — or remotely via VPN — without dispatching technicians to the machine floor. Alarm data captured in the PLC data table can be forwarded to SCADA alarm servers for timestamped logging and escalation routing.

System Scalability: As production requirements evolve, the 1762-L40BWAR's modular expansion capability — supporting up to 6 expansion modules from the 1762 I/O family — allows I/O capacity to grow incrementally without replacing the base controller. When application complexity exceeds MicroLogix capacity, the controller's MSG instruction-based communication with ControlLogix systems provides a clear migration path, preserving existing field wiring and HMI configurations.

Q: What communication protocols does the 1762-L40BWAR support natively, and can it communicate with non-Rockwell devices? A: The 1762-L40BWAR natively supports DF1 full-duplex and half-duplex, DH-485, and ASCII protocols via its two serial channels. With the addition of the 1761-NET-ENI module, it gains Ethernet/IP connectivity. For non-Rockwell devices using Modbus RTU, the 1761-NET-AIC enables protocol bridging, allowing the controller to exchange data with third-party drives, meters, and sensors without custom programming.

Q: How does the 1762-L40BWAR perform in terms of network latency for real-time control applications? A: The MicroLogix 1200 series is designed for deterministic scan-cycle execution, with typical scan times in the 1–10 ms range depending on program size and I/O count. For time-critical applications, the controller's interrupt-driven I/O and high-speed counter inputs ensure that signal response times remain within acceptable bounds for most discrete manufacturing and process control applications.

Q: Can the 1762-L40BWAR be integrated into an existing SCADA or FactoryTalk system without replacing the current network infrastructure? A: Yes. The 1762-L40BWAR integrates with FactoryTalk View SE, RSView32, and third-party SCADA platforms via OPC-DA/UA servers (such as RSLinx Classic or KEPServerEX) that communicate with the controller over DF1 serial or Ethernet/IP. No network infrastructure changes are required if an existing Ethernet or DH-485 network is in place.

Q: What does the 12-month warranty cover, and is pre-shipment testing performed? A: Every 1762-L40BWAR unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes pre-shipment functional testing — including I/O verification, communication port validation, and power supply checks — to ensure it arrives ready for installation. In-stock units are available for immediate dispatch with full documentation support.
