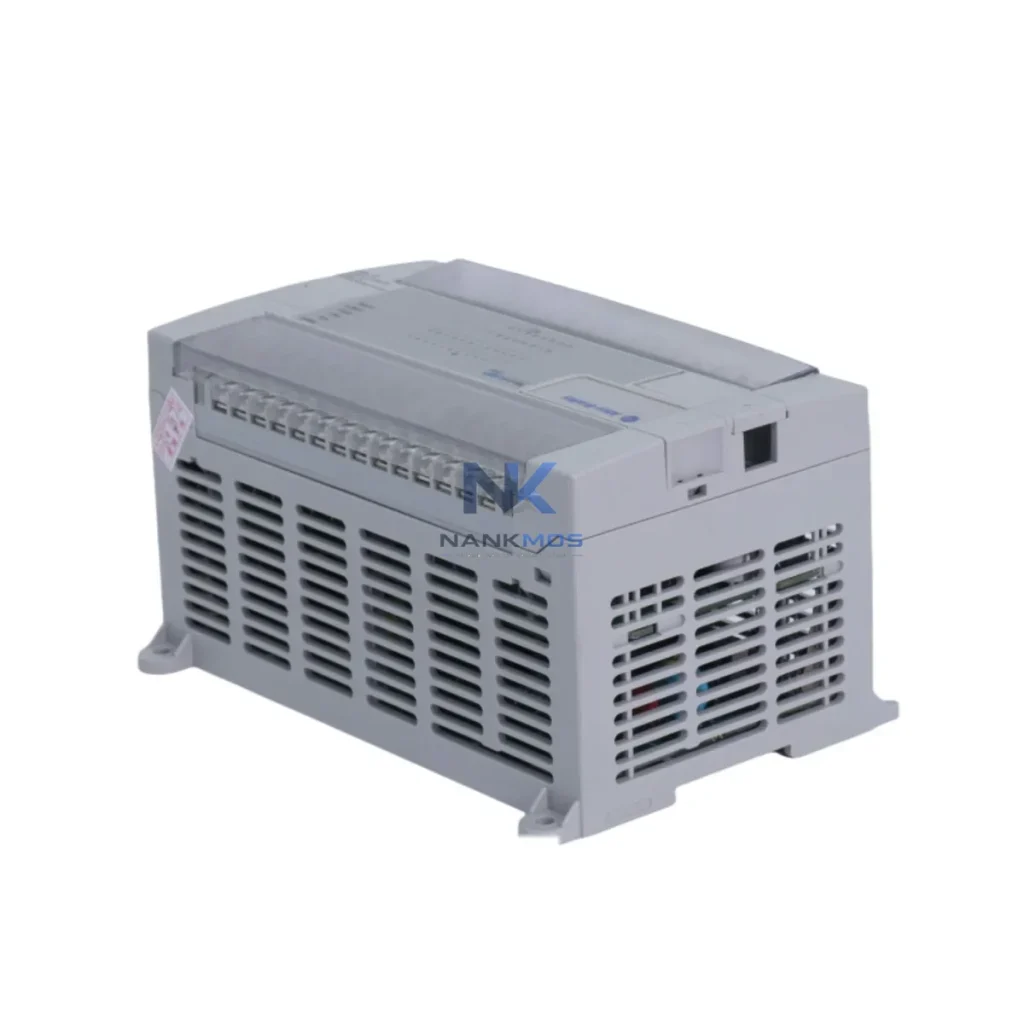

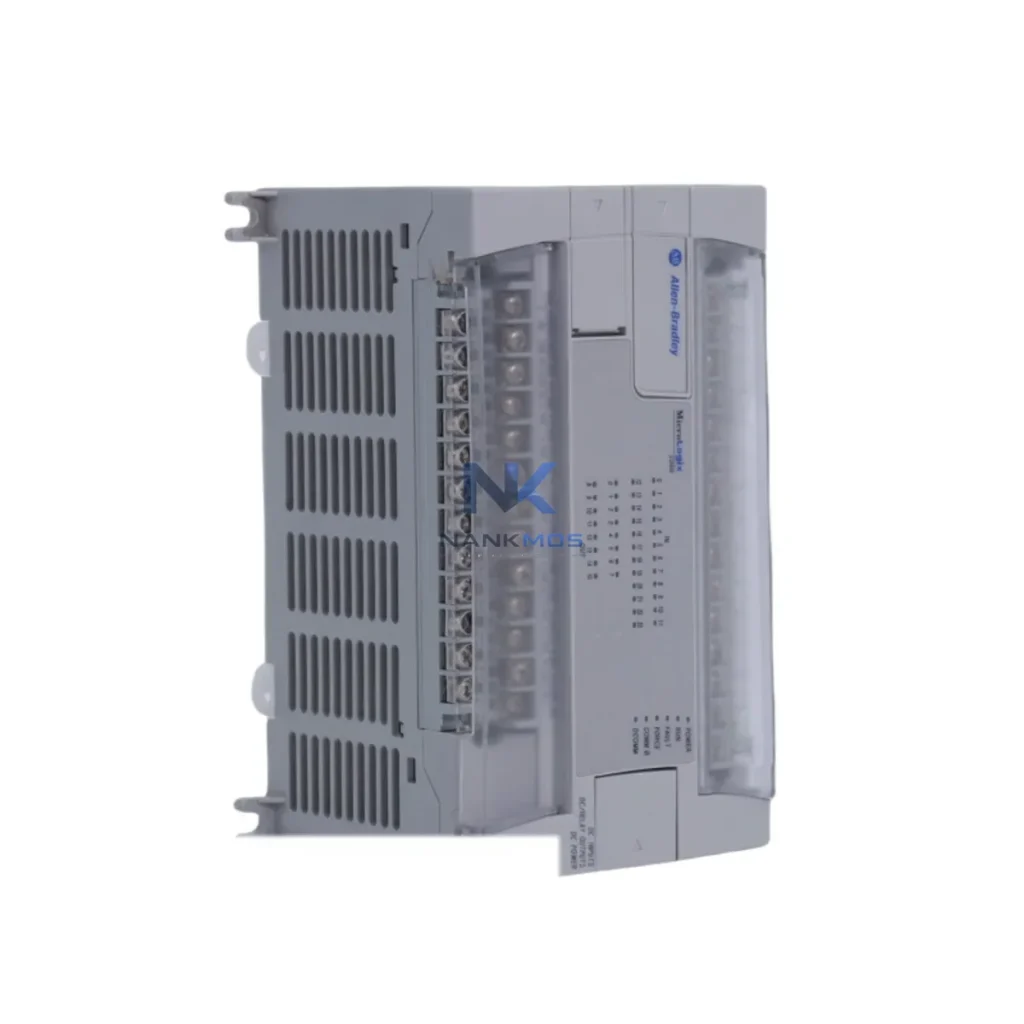

Allen-Bradley 1762-L40BXB Programmable Logic Controller

Product Details

1762-L40BXB Product Description

The Allen-Bradley 1762-L40BXB is a high-performance MicroLogix 1100 series Programmable Logic Controller engineered for energy-conscious industrial environments. Designed to meet the demands of smart production lines, this compact yet powerful PLC delivers precise motor control, real-time load management, and seamless integration with energy monitoring systems — making it a cornerstone component for factories targeting measurable reductions in energy consumption and operational downtime.

With 40 I/O points (24 DC inputs / 16 relay outputs), built-in Ethernet/IP and RS-232 communication ports, and native support for ladder logic programming via RSLogix 500 / Studio 5000 Logix Designer, the 1762-L40BXB is purpose-built for applications where cycle-time precision and energy-aware automation are non-negotiable. Its onboard analog I/O capability enables direct feedback from current transducers, temperature sensors, and pressure transmitters — allowing the controller to dynamically adjust drive outputs and reduce idle-state energy draw across the production floor.

In a fully integrated energy management architecture, the 1762-L40BXB operates as the central decision-making node, coordinating with upstream and downstream components to eliminate wasteful energy cycles. When paired with a PowerFlex 525 Variable Frequency Drive, the PLC issues speed-reference commands via Ethernet/IP, enabling the drive to ramp motor speed proportionally to actual load demand — eliminating the fixed-speed energy waste common in legacy relay-controlled systems.

The controller's analog inputs accept 4–20 mA signals from Allen-Bradley 1734 POINT I/O modules and third-party current monitoring sensors, enabling real-time power consumption feedback loops. This data is processed within the PLC's ladder logic to trigger load-shedding routines during peak demand windows, directly reducing peak energy charges. Integration with a PanelView Plus 7 HMI allows operators to visualize energy KPIs — including kWh per production cycle, motor load percentage, and drive efficiency — without requiring a separate SCADA workstation.

For multi-axis motion applications, the 1762-L40BXB coordinates with Kinetix 300 Servo Drives via DeviceNet or hardwired I/O, synchronizing axis motion to production line throughput targets while minimizing regenerative energy losses. The controller's RS-232 port supports Modbus RTU communication with third-party power meters and energy analyzers, enabling the PLC to log interval energy data and forward it to a FactoryTalk View SE SCADA platform for enterprise-level energy reporting.

Supplementary 1762-IQ16 digital input expansion modules extend the controller's sensing capacity to cover additional motor status signals, door interlock feedback, and conveyor jam detection — all of which feed into the PLC's energy-aware logic to prevent unnecessary motor run-time. Likewise, 1762-OW16 relay output modules handle high-current switching for motor starters and solenoid valves, ensuring clean load transitions that protect both the driven equipment and the upstream power distribution network.

Factory energy waste rarely originates from a single source — it accumulates across hundreds of micro-inefficiencies: motors running at full speed during partial-load conditions, drives cycling unnecessarily during shift changeovers, and equipment remaining energized during unplanned downtime. The Allen-Bradley 1762-L40BXB addresses each of these vectors through programmable energy management routines embedded directly in the controller's execution cycle.

By implementing time-based load scheduling within RSLogix 500, production engineers can configure the 1762-L40BXB to automatically de-energize non-critical loads — such as auxiliary conveyors, cooling fans, and lighting circuits — during scheduled breaks or low-throughput periods. This alone can reduce standby energy consumption by 15–30% in typical discrete manufacturing environments, without any hardware changes to the existing panel layout.

The controller's built-in data logging capability, accessible via Ethernet/IP to a connected FactoryTalk Historian or third-party OPC-UA server, enables predictive maintenance workflows. By trending motor current draw over time, maintenance teams can identify bearing wear, rotor imbalance, or coupling misalignment weeks before a failure event — preventing unplanned downtime that disrupts production line rhythm and forces emergency energy-intensive restart sequences.

Thermal load management is another critical benefit. By coordinating drive speed with actual process demand, the 1762-L40BXB reduces motor operating temperature, extending insulation life and reducing the cooling energy required in enclosed panel environments. In high-ambient installations — such as foundries, cement plants, or outdoor pump stations — this thermal efficiency directly translates to reduced HVAC load on the control room and extended mean time between failures (MTBF) for all connected drive components.

All units supplied by NANKMOS are pre-shipment tested against factory acceptance criteria, including I/O point verification, communication port handshake validation, and program upload/download confirmation. Each 1762-L40BXB ships with a 12-month warranty and is available from in-stock inventory for immediate dispatch — minimizing procurement lead times for urgent production line commissioning or emergency replacement scenarios.

Q1: How does the 1762-L40BXB contribute to measurable energy savings on a production line? The 1762-L40BXB enables energy savings through programmable load scheduling, VFD speed coordination via Ethernet/IP, and real-time analog feedback from current sensors. By eliminating fixed-speed motor operation and automating standby de-energization routines, facilities typically achieve 15–30% reductions in motor-related energy consumption without hardware redesign.

Q2: Which drive and SCADA systems is the 1762-L40BXB compatible with? The controller supports Ethernet/IP for integration with PowerFlex 525/755 VFDs, Kinetix servo drives, and PanelView HMIs. Its RS-232 port supports Modbus RTU for third-party power meters and energy analyzers. Data can be forwarded to FactoryTalk View SE, FactoryTalk Historian, or any OPC-UA compatible SCADA platform.

Q3: Can the 1762-L40BXB replace an existing MicroLogix 1000 or 1200 controller without rewiring? In most cases, yes. The MicroLogix 1100 series maintains backward compatibility with MicroLogix 1000 and 1200 I/O wiring conventions. Program migration from RSLogix 500 projects is straightforward, and the added Ethernet/IP port provides an upgrade path to networked energy monitoring without panel modifications. Confirm I/O count and analog requirements against your existing configuration before replacement.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every 1762-L40BXB supplied by NANKMOS undergoes pre-shipment testing that includes I/O point continuity verification, communication port handshake testing (Ethernet/IP and RS-232), and program memory read/write validation. The 12-month warranty covers hardware defects under normal operating conditions. Units are shipped from in-stock inventory with full documentation support for fast commissioning.
