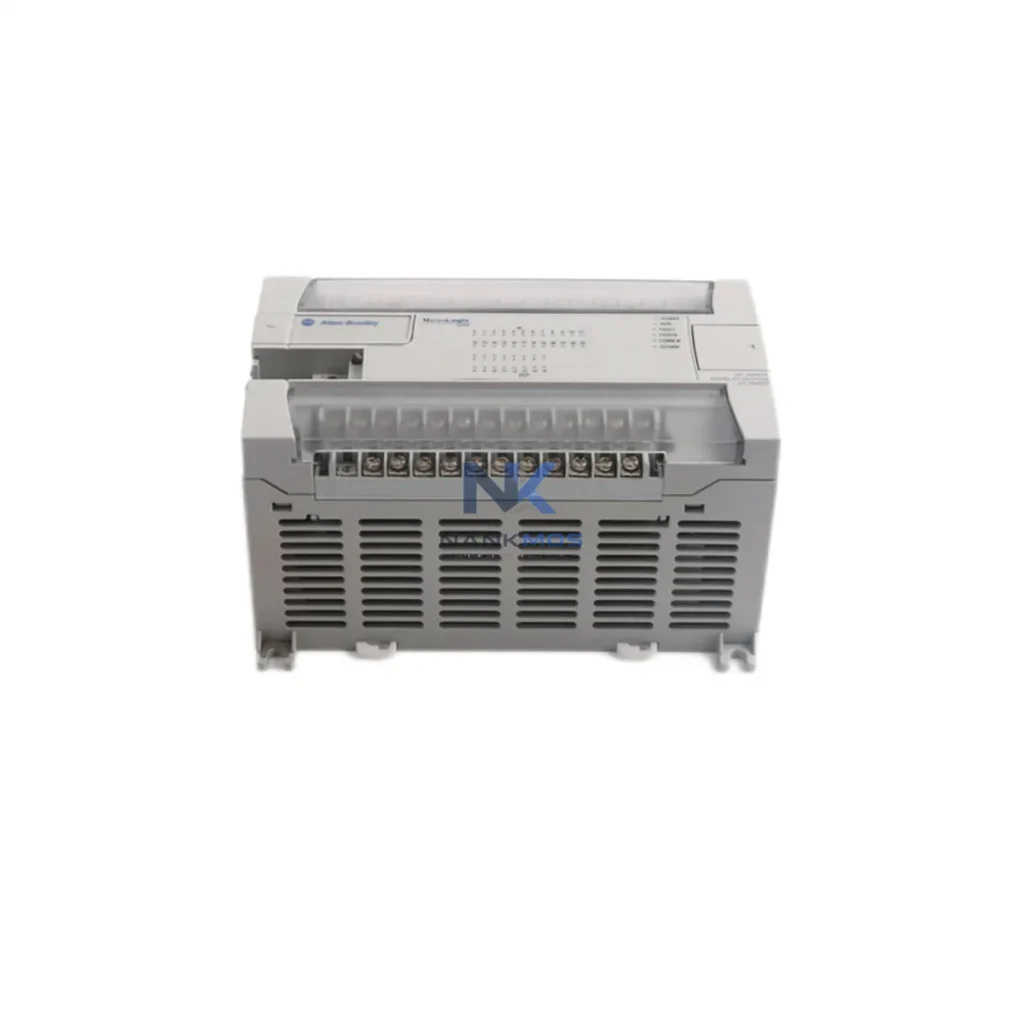

1762-L40BXBR Product Description

The Allen-Bradley 1762-L40BXBR is a 40-point MicroLogix 1200 series programmable logic controller engineered for seamless integration into modern industrial communication architectures. Designed to bridge field-level devices with supervisory control systems, this compact PLC delivers reliable protocol support across Modbus RTU, DH-485, and DF1 serial networks — making it a foundational node in smart factory data flow design. Whether deployed in discrete manufacturing, energy management, water treatment, or process automation, the 1762-L40BXBR enables real-time signal acquisition, deterministic ladder logic execution, and structured data exchange with upstream SCADA and HMI platforms.

In connected factory environments, the 1762-L40BXBR functions as a critical data origination point. Field sensors, proximity switches, and analog transmitters feed live process values directly into the controller's 24 digital inputs and 16 digital outputs, while the onboard serial communication port handles upstream data routing to Allen-Bradley RSLinx Classic gateways, Kepware KEPServerEX OPC-DA/UA servers, and third-party SCADA systems such as Wonderware InTouch or Ignition by Inductive Automation. This tight integration eliminates data silos and ensures that every I/O state change is captured, timestamped, and made available for visualization, alarm management, and historical trending.

The 1762-L40BXBR sits at the intersection of field instrumentation and plant-wide data infrastructure. In a typical smart factory deployment, field-level sensors — including pressure transmitters, flow meters, and temperature probes — deliver analog and discrete signals to the controller's input terminals. The 1762-L40BXBR processes these signals through its ladder logic program and simultaneously transmits structured data upstream via its DH-485 or Modbus RTU port.

For multi-node network architectures, the 1762-L40BXBR integrates naturally with the Allen-Bradley 1761-NET-AIC Advanced Interface Converter, enabling RS-232 to RS-485 conversion and allowing up to 32 MicroLogix nodes to share a single DH-485 segment. This network segment can then connect to a 1747-AIC or 1747-KE gateway module, bridging the DH-485 layer to an Ethernet/IP backbone where Allen-Bradley CompactLogix L3x or ControlLogix L7x controllers manage higher-level coordination tasks.

At the SCADA layer, the 1762-L40BXBR's data is made accessible through Kepware KEPServerEX with the Allen-Bradley DF1 or Modbus TCP driver, publishing real-time tag values to Ignition SCADA or Wonderware System Platform for operator visualization and alarm management. Remote I/O expansion is handled via the 1762-IQ16 digital input module or the 1762-OW16 relay output module, extending the controller's reach to additional field devices without increasing network complexity. For analog signal chains, the 1762-IF4 four-channel analog input module connects directly to the MicroLogix 1200 bus, capturing 4–20 mA process signals from variable frequency drives such as the Allen-Bradley PowerFlex 40 or PowerFlex 525, enabling closed-loop speed and torque feedback within the same data pipeline.

Edge connectivity is further enhanced when the 1762-L40BXBR is paired with an industrial Ethernet gateway such as the ProSoft Technology MVI56-MCM Modbus Communication Module or a Moxa NPort 5150A serial device server, converting the controller's serial data stream into Modbus TCP packets for transmission across plant Ethernet switches. This architecture supports integration with MES platforms, cloud-based IIoT dashboards, and enterprise ERP systems, completing the data chain from field sensor to business intelligence layer.

Many industrial sites operating legacy serial networks face persistent challenges: protocol fragmentation between Modbus RTU devices and newer Ethernet/IP systems, data islands created by standalone PLCs with no upstream reporting, and limited visibility into machine states during unplanned downtime. The 1762-L40BXBR directly addresses these pain points through its multi-protocol serial communication capability and broad software ecosystem support.

Protocol unification is achieved by configuring the 1762-L40BXBR as a Modbus master, polling field devices — including third-party variable frequency drives, smart sensors, and remote I/O racks — and consolidating their data into a single RSLogix 500 data table. This table is then exposed to SCADA systems via DF1 or DH-485, eliminating the need for separate protocol converters at each field node. For remote monitoring applications, the controller's MSG instruction enables peer-to-peer data exchange with other MicroLogix or SLC 500 controllers across the DH-485 network, supporting distributed alarm aggregation and production count reporting without requiring a central server.

Production line transparency is improved through structured data logging: the 1762-L40BXBR's integer and float data files store cycle counts, fault codes, and process setpoints that SCADA historians can poll at configurable intervals. Alarm tracking is handled by mapping discrete output coils to HMI alarm tags in PanelView Component or PanelView Plus terminals, providing operators with real-time fault annunciation and event logging. System expansion is straightforward — the MicroLogix 1200 platform supports up to 6 expansion modules, allowing the 1762-L40BXBR to grow alongside production requirements without controller replacement.

Q1: What communication protocols does the Allen-Bradley 1762-L40BXBR support, and how do they affect SCADA integration latency? The 1762-L40BXBR supports Modbus RTU, DH-485, and DF1 serial protocols. For SCADA integration via KEPServerEX or RSLinx Classic, typical polling latency on a DH-485 network at 19.2 kbps is 20–50 ms per node, suitable for most process monitoring and alarm management applications. For lower-latency requirements, DF1 full-duplex at 38.4 kbps reduces round-trip time to under 20 ms in point-to-point configurations.

Q2: Is the 1762-L40BXBR compatible with third-party Modbus devices such as variable frequency drives and smart sensors? Yes. When configured as a Modbus RTU master via Channel 0 (RS-232) or Channel 1 (RS-485 with 1762-NC01 adapter), the 1762-L40BXBR can poll any standard Modbus slave device, including Allen-Bradley PowerFlex 40/525 drives, third-party flow meters, and multi-function power meters. The MSG instruction in RSLogix 500 handles read/write register mapping with configurable timeout and retry parameters.

Q3: How does the 1762-L40BXBR support remote diagnostics and network stability monitoring? The controller's communication status bits (S:0–S:5 in the status file) expose network error counters, last-fault codes, and communication timeout flags that SCADA systems can monitor continuously. Combined with RSLinx Classic's remote node browsing capability, maintenance engineers can diagnose communication faults, verify node addresses, and force I/O states remotely without physical access to the panel — reducing mean time to repair in distributed automation sites.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1762-L40BXBR? Every 1762-L40BXBR unit supplied by NANKMOS carries a 12-month warranty covering hardware defects and communication failures. Each unit undergoes functional testing prior to shipment, including I/O point verification, serial communication port validation, and power-on self-test confirmation. In-stock units are available for same-week dispatch with full traceability documentation.
