Allen-Bradley 1762-OB8 PLC Digital Output Module

Product Details

1762-OB8 Product Description

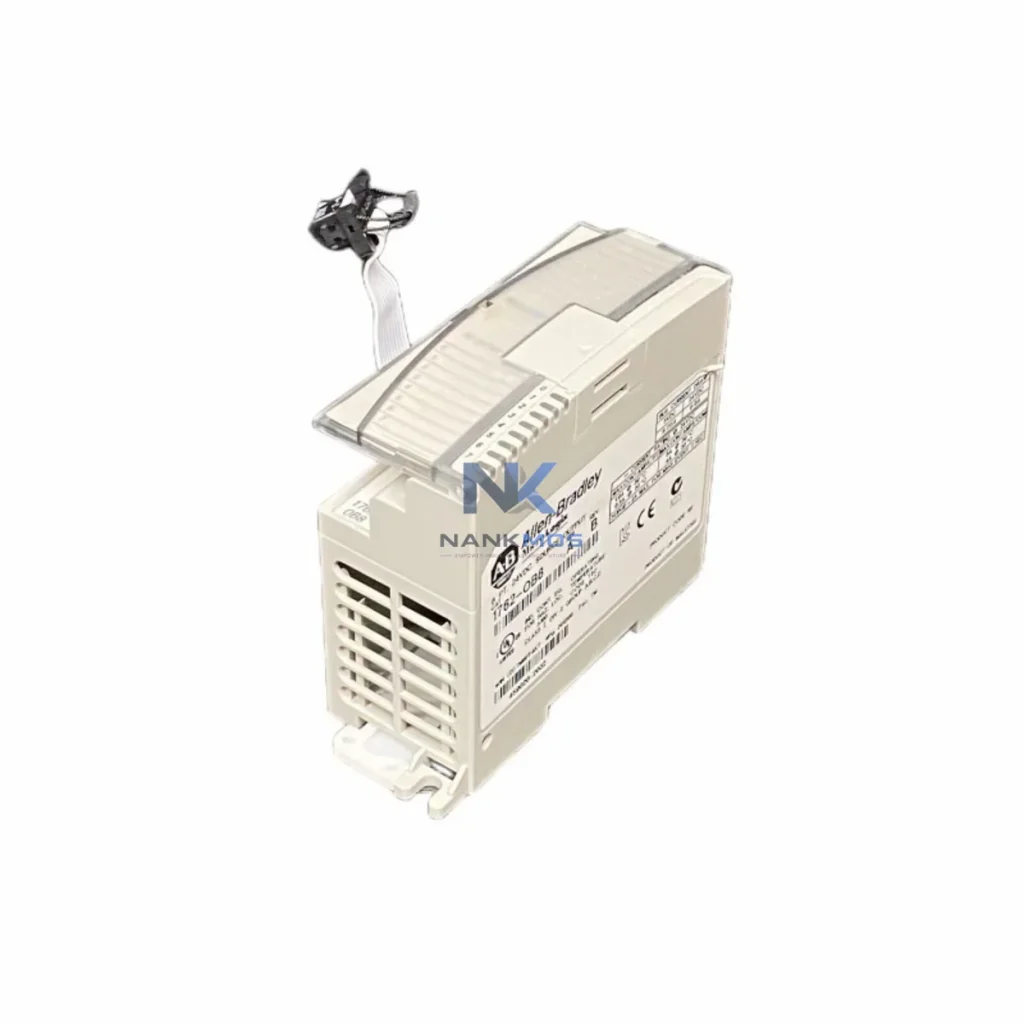

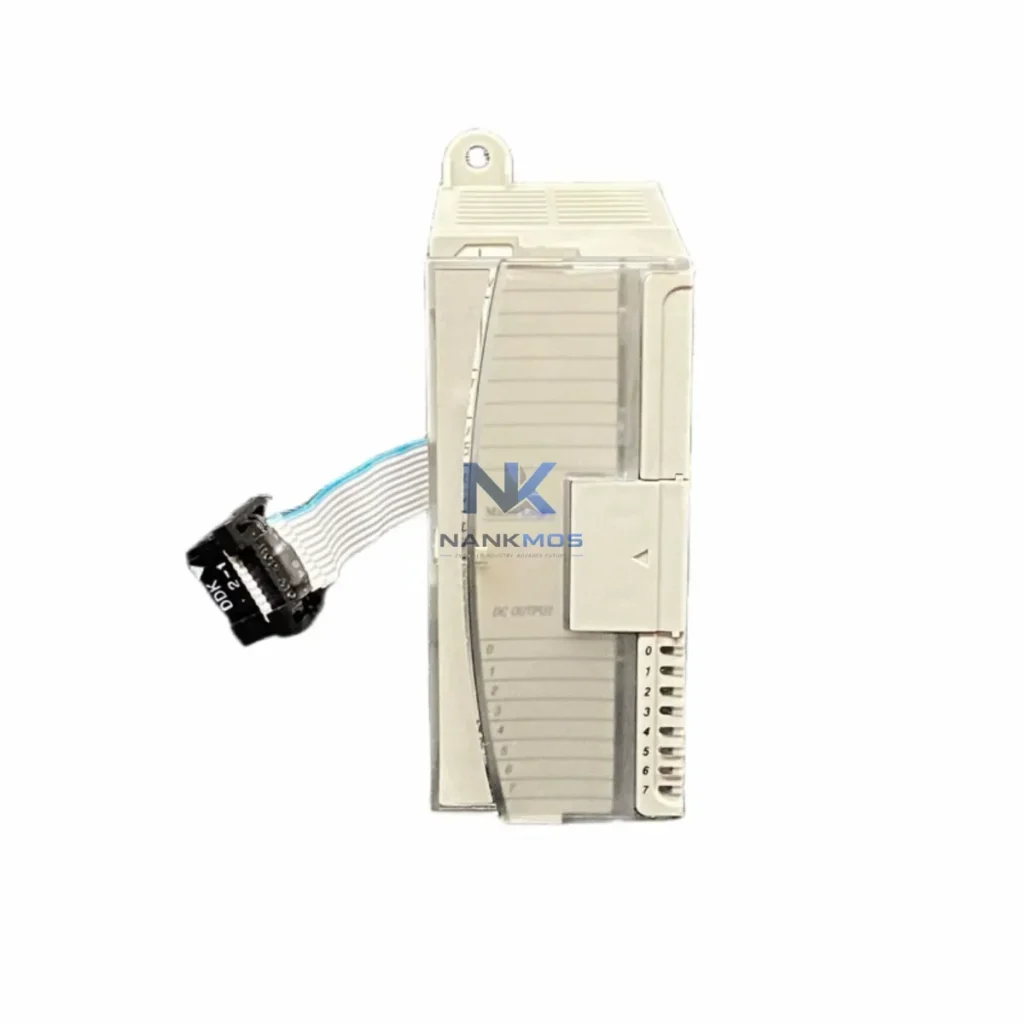

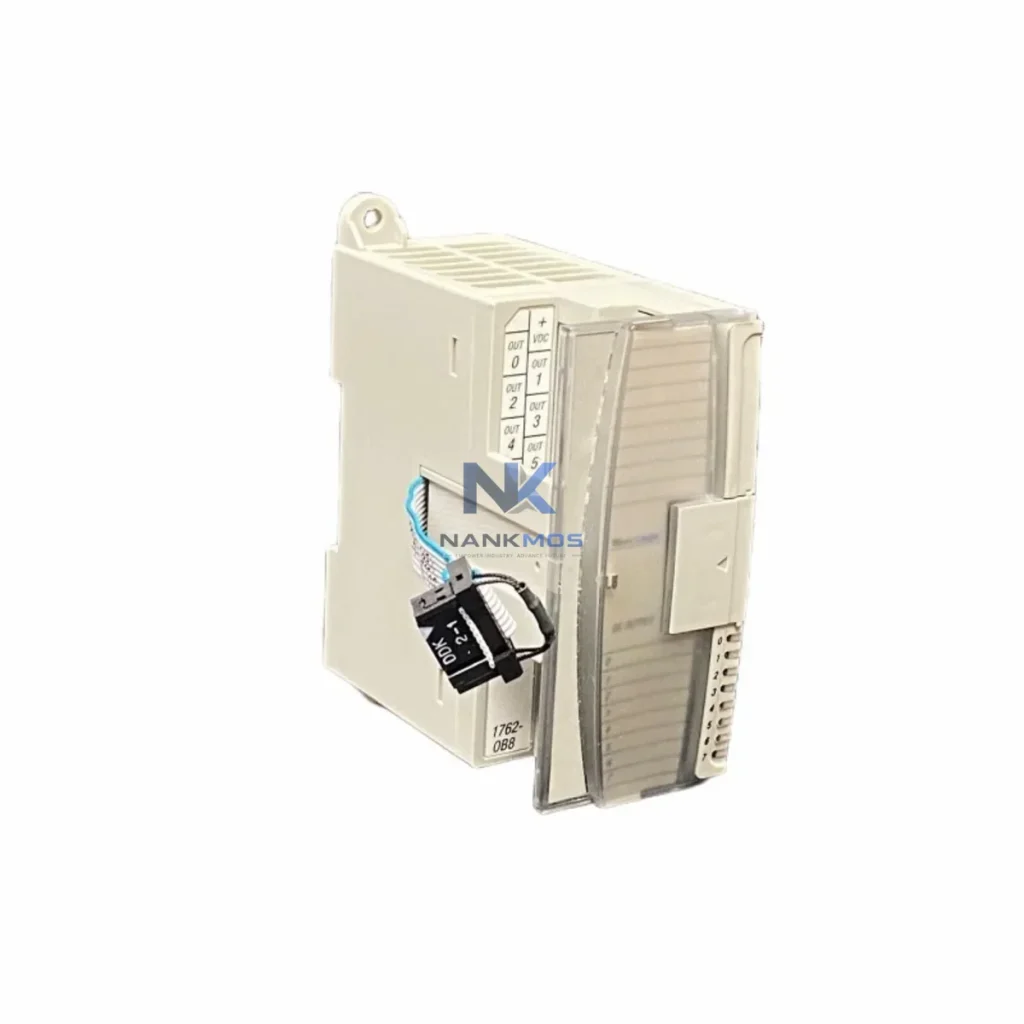

The Allen-Bradley 1762-OB8 is an 8-point 24VDC sourcing digital output module engineered for the MicroLogix 1200 and MicroLogix 1500 controller platforms. In modern smart factory environments, where every millisecond of signal latency and every node of network connectivity defines operational efficiency, the 1762-OB8 serves as a critical last-mile actuator interface — translating PLC logic decisions into precise, high-speed field-level commands. Whether driving solenoid valves, motor starters, indicator lights, or relay coils, this module anchors the output layer of a fully networked automation architecture.

Designed to operate within Allen-Bradley's MicroLogix expansion ecosystem, the 1762-OB8 integrates seamlessly with the MicroLogix 1200 and 1500 base units via the high-speed local I/O bus, ensuring deterministic scan-cycle performance. Its compatibility with DeviceNet and DH-485 communication protocols positions it as a natural fit for distributed control topologies where field devices, remote I/O racks, and supervisory systems must exchange data reliably across multi-node industrial networks. In facilities running Rockwell Automation's RSLogix 500 or Studio 5000 programming environments, the 1762-OB8 is recognized natively, reducing commissioning time and simplifying tag-based addressing for SCADA and HMI integration.

In a fully integrated smart factory data chain, the 1762-OB8 occupies the actuator command layer — the point where digital logic becomes physical action. The data flow begins upstream at the sensor and field device layer, where devices such as proximity switches, photoelectric sensors, and pressure transmitters feed real-time process signals into the MicroLogix 1200 or 1500 base unit via the companion 1762-IQ8 or 1762-IQ16 digital input modules. The PLC processes these inputs against ladder logic programs developed in RSLogix 500, then issues output commands through the 1762-OB8 to actuators on the production floor.

For facilities requiring network-level visibility, the MicroLogix controller communicates upstream via DH-485 to a 1761-NET-AIC Advanced Interface Converter or through a 1761-NET-DNI DeviceNet Interface, bridging the local controller network to a plant-wide DeviceNet segment. This allows SCADA systems — such as FactoryTalk View SE or third-party platforms using OPC-UA drivers — to poll real-time output status, log actuation events, and trigger alarm conditions based on output state changes detected through the 1762-OB8's status registers.

In multi-zone production lines, the 1762-OB8 may operate alongside 1762-OW8 relay output modules for mixed AC/DC load requirements, or in parallel with 1762-OA8 AC output modules where legacy actuators demand 120/240VAC drive signals. The MicroLogix 1500 base unit, with its expanded local I/O capacity, can host multiple 1762-series expansion modules simultaneously, enabling a single controller node to manage dozens of discrete output points across a production cell.

At the network transport layer, EtherNet/IP connectivity is achieved by pairing the MicroLogix system with a 1761-NET-ENI Ethernet Interface, enabling the controller — and by extension the 1762-OB8's output data — to be visible on the plant Ethernet backbone. This allows integration with edge computing gateways, industrial switches such as the Stratix 2000 or Stratix 5700 series, and upstream MES or ERP platforms that require real-time production output confirmation. Remote I/O expansion beyond the local rack is supported through DeviceNet-connected 1769-SDN Scanner modules in CompactLogix systems operating in the same facility, enabling cross-platform data sharing without protocol conversion overhead.

For remote diagnostic scenarios, field engineers can leverage RSLinx Classic or RSLinx Enterprise to establish a live data connection to the MicroLogix controller over DH-485 or EtherNet/IP, monitoring the 1762-OB8's output bit states, fault flags, and module health in real time — without requiring physical access to the control panel. This capability is particularly valuable in geographically distributed facilities or unmanned substations where minimizing on-site intervention is a key operational objective.

Many industrial sites operating legacy MicroLogix-based control systems face a common set of data integration challenges: protocol fragmentation between older DH-485 networks and modern EtherNet/IP infrastructure, data silos between PLC output layers and SCADA visualization platforms, and limited remote diagnostic capability for distributed output modules. The 1762-OB8 addresses these challenges by serving as a standardized, protocol-compatible output interface that bridges the gap between field-level actuation and network-level data visibility.

Protocol unification is achieved through the MicroLogix platform's multi-protocol support — DH-485 for legacy peer-to-peer communication, DeviceNet for field device integration, and EtherNet/IP via external interface modules. This eliminates the need for standalone protocol converters at each output node, reducing wiring complexity and potential points of failure. Data island elimination is addressed by mapping 1762-OB8 output states directly into the MicroLogix data table, making every output bit accessible to RSLogix 500 programs, FactoryTalk Historian data logging, and OPC-compliant SCADA clients simultaneously.

Production line transparency is enhanced through real-time output state monitoring via connected HMI panels — including Allen-Bradley PanelView 800 or PanelView Plus 7 terminals — which display actuator status, cycle counts, and fault conditions derived from 1762-OB8 output data. Alarm tracking is implemented at the SCADA level, where output state deviations trigger configurable alarm events logged with timestamp, duration, and operator acknowledgment records. System scalability is preserved through the modular 1762-series expansion architecture, allowing additional output modules to be added to the MicroLogix rack without controller replacement or network reconfiguration.

Q1: What communication protocols does the 1762-OB8 support for SCADA and HMI integration? The 1762-OB8 operates as a local expansion module within the MicroLogix 1200/1500 platform, which natively supports DH-485 and DeviceNet protocols. EtherNet/IP connectivity is available via the 1761-NET-ENI interface module, enabling integration with FactoryTalk View SE, PanelView HMI terminals, and OPC-UA-compatible SCADA platforms. All output states are accessible in real time through the MicroLogix data table without additional configuration.

Q2: How is network stability maintained when the 1762-OB8 is deployed in multi-node DeviceNet architectures? The MicroLogix platform's DeviceNet interface enforces deterministic polling cycles, ensuring that output command latency remains within defined scan-time boundaries even as network node count increases. Industrial-grade DeviceNet trunk cables and drop lines with proper termination resistors maintain signal integrity across extended network segments. For high-availability applications, redundant power supplies and network media can be implemented at the infrastructure level to eliminate single points of failure.

Q3: Can the 1762-OB8 support remote diagnostics without on-site access? Yes. When the MicroLogix controller is connected to an EtherNet/IP network via the 1761-NET-ENI module, RSLinx Enterprise or FactoryTalk AssetCentre can establish remote connections to monitor 1762-OB8 output bit states, module fault flags, and controller health metrics in real time. This enables remote troubleshooting, firmware review, and output state verification without dispatching field personnel to the installation site.

Q4: What warranty and pre-shipment testing does the 1762-OB8 carry? Every 1762-OB8 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes functional testing prior to shipment. In-stock inventory ensures rapid order fulfillment for both replacement and new-installation requirements. For bulk procurement or project-specific supply planning, contact our team to confirm availability and lead times.
