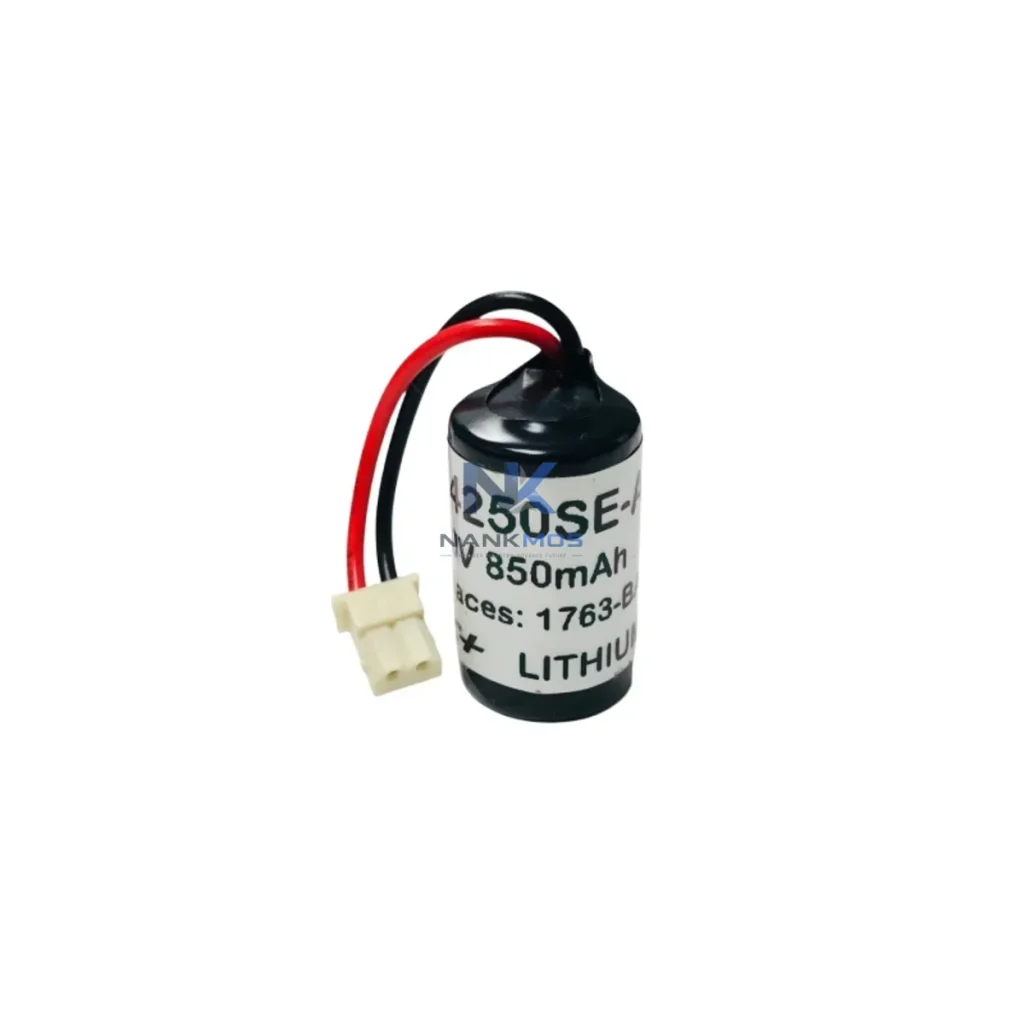

Allen-Bradley 1763-BA PLC Battery

Product Details

1763-BA Product Description

In a connected factory, every node in the data chain must remain powered and responsive — from field-level sensors and remote I/O modules to PLC controllers, HMI panels, SCADA gateways, and edge computing devices. The Allen-Bradley 1763-BA is the dedicated backup battery for the MicroLogix 1100 programmable logic controller, ensuring that SRAM program memory and the real-time clock (RTC) retain their state during power interruptions. In smart factory architectures where the MicroLogix 1100 serves as a network-linked automation node — communicating via EtherNet/IP, DF1, DH-485, or Modbus RTU — the 1763-BA is the silent guardian that keeps the controller's logic, timestamps, and network identity intact when mains power is lost.

Modern industrial automation sites depend on an unbroken data chain. At the field level, sensors and actuators feed signals into distributed I/O modules — such as the 1762-IQ16 or 1762-OW16 MicroLogix Expansion I/O — which relay real-time process values to the MicroLogix 1100 controller over the internal backplane. The MicroLogix 1100, powered and memory-protected by the 1763-BA battery, processes this data and communicates upstream via its embedded Ethernet port using EtherNet/IP to a managed industrial switch — for example, a Stratix 2000 or Stratix 5700 — which aggregates traffic from multiple automation nodes across the plant floor.

From the Ethernet backbone, data flows to FactoryTalk View SE SCADA servers and PanelView Plus HMI terminals, where operators monitor process variables, trend historical data, and respond to alarm conditions in real time. For legacy field devices communicating over DH-485 or DF1 serial protocols — such as older SLC 500 controllers or third-party variable frequency drives — the MicroLogix 1100 acts as a protocol bridge, translating serial data into EtherNet/IP packets for upstream SCADA consumption. In sites where Modbus RTU sensors or energy meters are deployed, the MicroLogix 1100's Channel 1 RS-485 port enables direct polling, with the 1763-BA ensuring that the controller's Modbus address map and communication parameters survive any power event.

At the edge, 1763-BA-protected MicroLogix 1100 nodes can interface with edge gateways — such as the Ewon Flexy or Secomea SiteManager — enabling secure remote access, cloud data forwarding, and OPC-UA tunneling to MES and ERP platforms. This complete data chain — from sensor signal acquisition through protocol conversion, Ethernet transmission, SCADA visualization, and remote diagnostics — depends on every node remaining operational. The 1763-BA ensures the MicroLogix 1100 never loses its program logic, network configuration, or RTC timestamp, even during unplanned outages.

Protocol Fragmentation: Many brownfield sites run a mix of EtherNet/IP, DF1, DH-485, and Modbus RTU devices. The MicroLogix 1100 — backed by the 1763-BA — serves as a multi-protocol node that bridges legacy serial devices to modern Ethernet networks, eliminating data silos between generations of equipment.

Data Islands and Memory Loss: Without a functioning backup battery, a MicroLogix 1100 that loses power will lose its SRAM-stored program and RTC data. This creates a data island — a controller that cannot resume communication or execute logic until manually reprogrammed. The 1763-BA eliminates this risk, ensuring seamless restart and continuous data flow after power restoration.

Remote Monitoring Gaps: In distributed automation architectures, a controller that loses its network configuration after a power event becomes invisible to SCADA and remote diagnostic tools. The 1763-BA preserves the MicroLogix 1100's IP address, communication parameters, and program state, keeping the node visible and responsive to FactoryTalk Diagnostics and remote engineering tools.

Production Line Transparency: Real-time OEE tracking, alarm logging, and production counting all depend on the controller's RTC for accurate timestamping. The 1763-BA maintains RTC accuracy across power cycles, ensuring that SCADA historians and MES systems receive correctly timestamped data for production reporting and root-cause analysis.

System Scalability: As automation sites expand — adding new I/O modules, communication adapters, or network segments — the MicroLogix 1100 must retain its updated program and configuration. The 1763-BA supports this scalability by protecting memory across maintenance windows and system upgrades.

Q1: Does the 1763-BA affect the MicroLogix 1100's EtherNet/IP communication performance? No. The 1763-BA is a passive backup battery that only activates during power loss. It has no impact on the controller's EtherNet/IP, DF1, DH-485, or Modbus RTU communication latency or throughput during normal operation. Network performance is determined entirely by the MicroLogix 1100's firmware and network infrastructure.

Q2: Is the 1763-BA compatible with all MicroLogix 1100 firmware versions and communication configurations? Yes. The 1763-BA is the OEM-specified backup battery for the entire MicroLogix 1100 (1763 Series) product family, regardless of firmware revision or communication channel configuration. It is compatible with all standard and enhanced MicroLogix 1100 models, including those configured for EtherNet/IP, DF1, DH-485, and Modbus RTU protocols.

Q3: How does the 1763-BA support remote diagnostics and predictive maintenance strategies? By preserving the MicroLogix 1100's program and RTC data across power events, the 1763-BA ensures that remote diagnostic tools — including FactoryTalk Diagnostics, RSLinx Classic, and third-party OPC-UA clients — can immediately reconnect to the controller after power restoration without manual intervention. This supports predictive maintenance workflows by maintaining continuous data availability for trend analysis and alarm history review.

Q4: What warranty and quality assurance does NANKMOS provide for the 1763-BA? All 1763-BA units supplied by NANKMOS carry a 12-month warranty and are subject to pre-shipment functional testing to verify battery integrity and compatibility with MicroLogix 1100 hardware. In-stock units are available for immediate dispatch to support urgent project timelines. For volume orders or system integration projects, contact our technical team at [email protected] or +86 18359268345.
