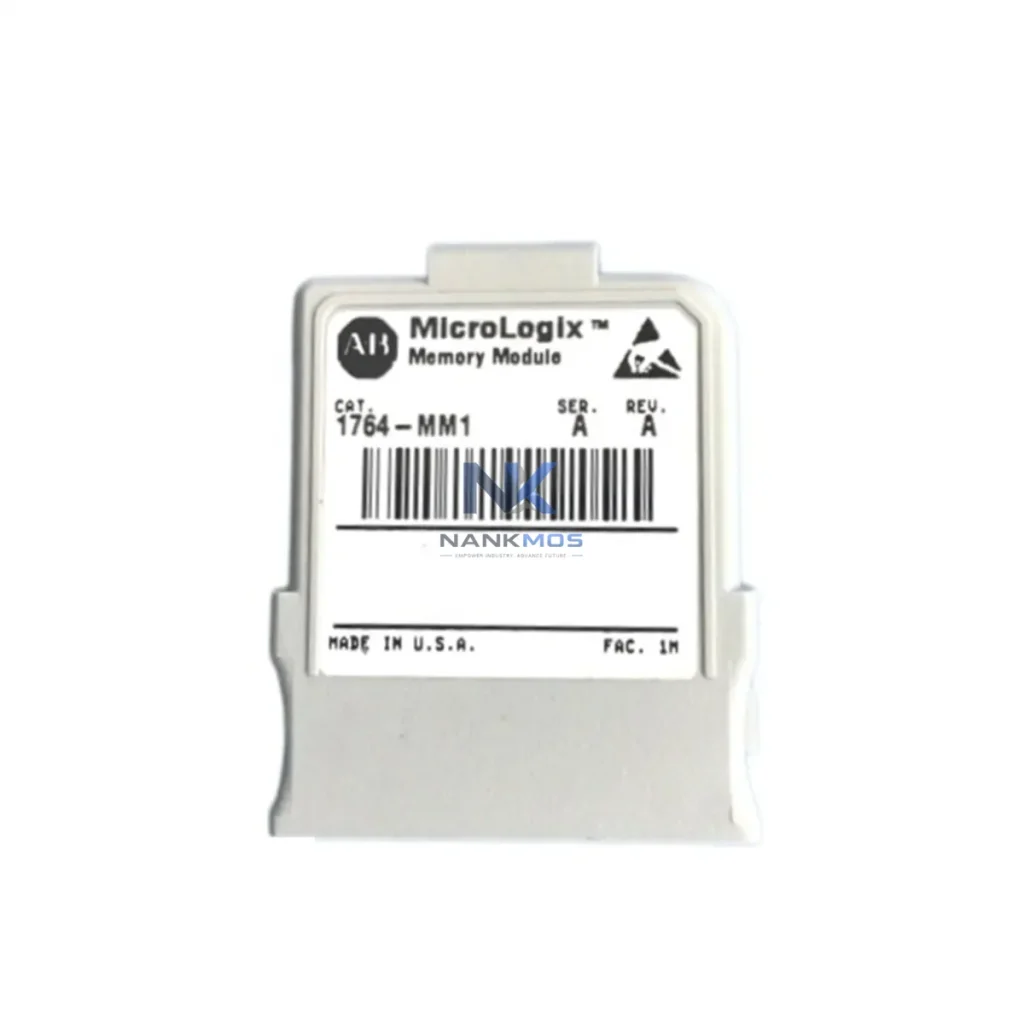

Allen-Bradley 1764-MM1 PLC Memory Module

Product Details

1764-MM1 Product Description

The Allen-Bradley 1764-MM1 is an 8 KB user memory expansion module engineered specifically for the MicroLogix 1500 programmable logic controller platform. Designed by Rockwell Automation, this module extends the onboard program and data memory capacity of the MicroLogix 1500 base unit, enabling engineers to deploy more complex ladder logic programs, larger data tables, and expanded I/O mapping within a compact, cost-effective control architecture. The 1764-MM1 is a direct plug-in module that installs into the dedicated memory slot on the MicroLogix 1500 controller, requiring no additional wiring, backplane connections, or external power supply. Its solid-state design ensures reliable, non-volatile memory retention, preserving program integrity across power cycles and supporting long-term deployment in demanding industrial environments.

Within a complete MicroLogix 1500 control system, the 1764-MM1 plays a critical role in expanding the controller's functional capacity without requiring a platform migration. The MicroLogix 1500 base units — including the 1764-24BWA and 1764-28BXB — provide integrated I/O, serial communication ports, and real-time clock functionality. By adding the 1764-MM1, system architects can accommodate larger application programs that leverage the full range of MicroLogix 1500 instruction sets, including PID loops, high-speed counter functions, and communication messaging blocks. This is particularly valuable in applications where the base controller memory is insufficient for the complete control sequence, allowing engineers to avoid costly upgrades to larger PLC platforms such as the SLC 500 or CompactLogix families.

The 1764-MM1 integrates seamlessly into the broader Rockwell Automation ecosystem. In a typical MicroLogix 1500 panel, the controller communicates with upstream SCADA or HMI systems via the built-in RS-232 DF1 or DH-485 ports, supporting devices such as the PanelView 300 Micro or PanelView Component C400 operator terminals. For distributed I/O expansion, the MicroLogix 1500 supports 1769 Compact I/O modules — including the 1769-IQ16 digital input module, 1769-OB16 digital output module, and 1769-IF4 analog input module — connected via the integrated 1769 I/O bus. The 1764-MM1 ensures that the controller has sufficient memory to manage all associated I/O data tables, communication buffers, and program files generated by these expansion modules without performance degradation.

From a system architecture perspective, the 1764-MM1 supports layered control designs where the MicroLogix 1500 functions as a standalone machine controller or as a remote node within a larger DH-485 network. In multi-node architectures, the controller may handle local machine sequencing while passing status data upstream to a SLC 5/04 or SLC 5/05 master controller via peer-to-peer messaging. The expanded memory provided by the 1764-MM1 allows engineers to implement more sophisticated MSG instruction blocks, enabling reliable data exchange across the network without exhausting the controller's program file capacity. For applications requiring Ethernet connectivity, the 1761-NET-ENI Serial-to-Ethernet interface module can be paired with the MicroLogix 1500 to provide EtherNet/IP communication, further extending the controller's integration capability within plant-wide control networks.

Power supply integrity is a foundational requirement for reliable MicroLogix 1500 operation. The controller is typically powered by a 24V DC supply, and in critical applications, redundant power arrangements using industrial DIN-rail power supplies with appropriate current ratings ensure continuous operation. Signal conditioning components such as Phoenix Contact or Weidmuller terminal blocks, signal isolators, and surge protection devices are commonly installed in the same control panel to protect the controller's I/O circuits from electrical noise and transient voltages. The 1764-MM1's non-volatile memory design ensures that program data is retained even during unexpected power interruptions, eliminating the need for battery backup in most standard applications.

For maintenance and diagnostic efficiency, the MicroLogix 1500 with the 1764-MM1 installed supports online program monitoring via RSLogix 500 software, allowing technicians to perform live edits, force I/O points, and monitor data table values without interrupting machine operation. The controller's built-in diagnostic LEDs — including RUN, FLT, BATT, and I/O status indicators — provide immediate visual feedback on system health. In facilities where predictive maintenance programs are implemented, the MicroLogix 1500's data logging and communication capabilities allow integration with plant historian systems, supporting long-term trend analysis and condition monitoring without requiring additional hardware.

The 1764-MM1 is suited for a wide range of industrial applications, including packaging line sequencing, conveyor control, pump and motor management in water treatment facilities, HVAC control in commercial buildings, and auxiliary control panels in power generation and distribution substations. Its compact form factor and simple installation procedure make it an efficient solution for both new system builds and field upgrades of existing MicroLogix 1500 installations. All units supplied by NANKMOS are tested prior to shipment, verified for compatibility with the MicroLogix 1500 platform, and covered by a 12-Month Warranty against manufacturing defects.

The 1764-MM1 operates within a layered MicroLogix 1500 automation platform that integrates multiple hardware and software components to deliver a complete control solution. The MicroLogix 1500 base units (1764-24BWA, 1764-28BXB) serve as the central processing and I/O hub, while the 1764-MM1 expands program memory to support complex control sequences. Digital I/O expansion is provided by 1769-IQ16 input modules and 1769-OB16 output modules connected via the 1769 Compact I/O bus. Analog signal processing is handled by the 1769-IF4 analog input module and 1769-OF2 analog output module, enabling PID control and process variable monitoring. Operator interface is delivered through PanelView Component C400 or PanelView 300 Micro HMI terminals connected via the RS-232 port. Network integration is achieved using the 1761-NET-ENI Serial-to-Ethernet interface for EtherNet/IP connectivity or the 1761-NET-AIC Advanced Interface Converter for DH-485 multi-drop networks. Power distribution within the control panel is managed by appropriately rated 24V DC DIN-rail power supplies with surge protection terminal blocks. The complete system supports modular expansion, simplified commissioning, and long-term maintainability across the full MicroLogix 1500 product family.

The Allen-Bradley 1764-MM1 and MicroLogix 1500 platform are deployed across a broad spectrum of industrial control applications. In packaging and material handling lines, the expanded memory supports complex sequencing programs that coordinate conveyor drives, pneumatic actuators, vision system triggers, and reject mechanisms within a single controller. In water and wastewater treatment facilities, the MicroLogix 1500 manages pump station control, level monitoring, chemical dosing sequences, and alarm reporting, with the 1764-MM1 providing the memory capacity required for comprehensive data table management. In power distribution substations and generator control panels, the controller handles protection relay interfacing, load transfer sequencing, and status reporting to SCADA systems. In mining and mineral processing applications, the MicroLogix 1500 controls conveyor interlocks, crusher sequencing, and sump pump management in remote locations where compact, reliable controllers are preferred. In HVAC and building automation systems, the controller manages air handling unit sequencing, chiller staging, and energy management routines. In petrochemical and process industries, the MicroLogix 1500 with 1764-MM1 supports batch process control, valve sequencing, and safety interlock logic in auxiliary control panels. Across all these applications, the 1764-MM1 ensures that the MicroLogix 1500 has sufficient memory to execute the full control program reliably throughout the system's operational life.

Q1: Is the 1764-MM1 compatible with all MicroLogix 1500 base units?The 1764-MM1 is designed for use with MicroLogix 1500 controllers, including the 1764-24BWA and 1764-28BXB base units. It installs directly into the dedicated memory expansion slot on the controller. Compatibility should be verified against the specific firmware revision of the host controller using the Rockwell Automation Product Compatibility and Download Center (PCDC) prior to installation.

Q2: Does the 1764-MM1 require any special configuration or software to activate?No special activation procedure is required. Once the 1764-MM1 is installed in the MicroLogix 1500 memory slot, RSLogix 500 software automatically recognizes the expanded memory capacity. The engineer simply selects the appropriate memory configuration in the RSLogix 500 project properties to utilize the additional 8 KB of user memory. No firmware updates or hardware jumper settings are required for standard installations.

Q3: What warranty and supply assurance does NANKMOS provide for the 1764-MM1?All 1764-MM1 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify memory integrity and physical connector condition. NANKMOS maintains inventory stock of the 1764-MM1 to support urgent project requirements and emergency replacement needs, with global shipping available. For procurement inquiries, contact [email protected] or +86 18359268345.
