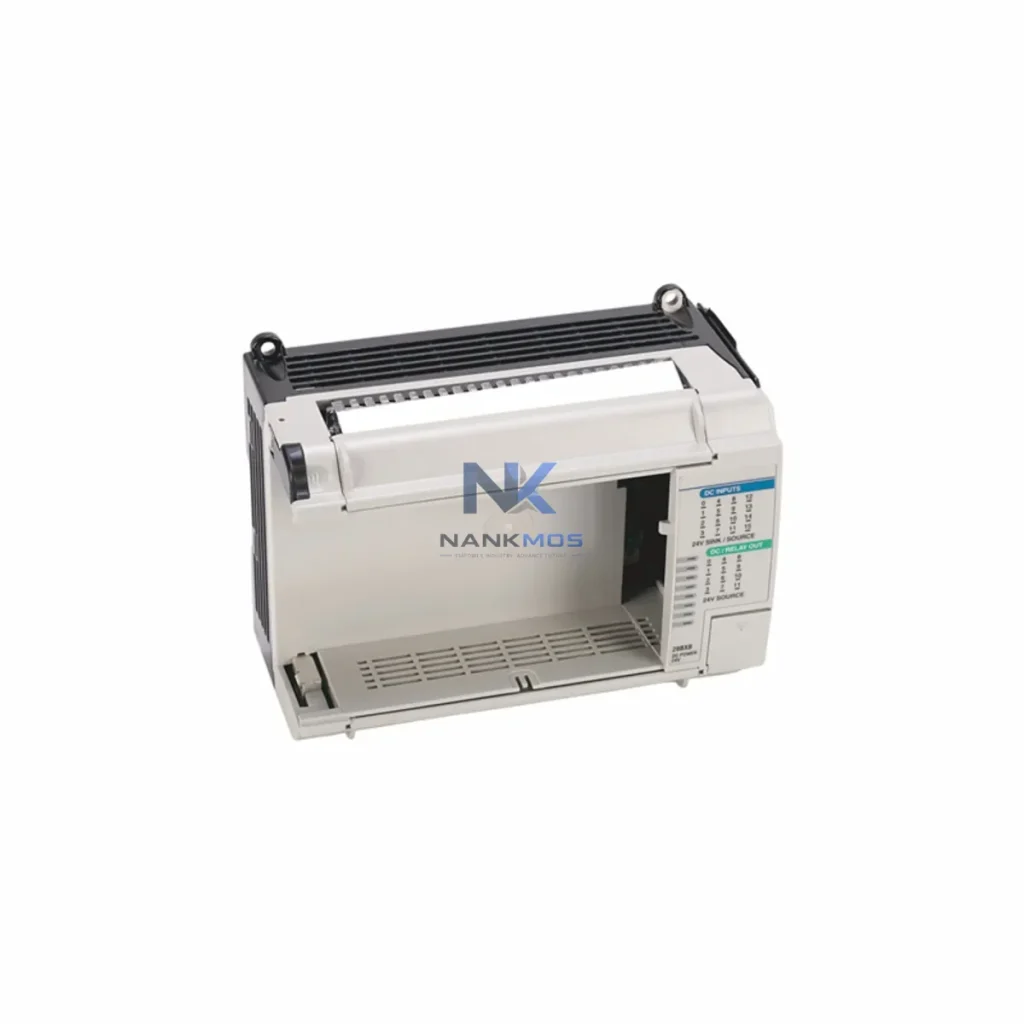

Allen-Bradley 1764-28BXB PLC Base Unit

Product Details

1764-28BXB Product Description

The Allen-Bradley 1764-28BXB is a high-performance base unit within the MicroLogix 1500 series, engineered to deliver precise energy control and load management across demanding industrial production environments. Designed for manufacturers seeking to reduce operational energy costs without sacrificing throughput, the 1764-28BXB integrates seamlessly into modern smart production lines where every watt and every cycle second counts. With 28 I/O points onboard and support for expansion modules, this controller provides the processing backbone for energy-aware automation strategies in sectors including discrete manufacturing, material handling, water treatment, and process industries.

At its core, the 1764-28BXB is built to coordinate motor control sequences with precision timing, enabling production engineers to eliminate unnecessary motor run-on, reduce idle-state energy draw, and synchronize drive ramp-up profiles with actual line demand. When paired with PowerFlex 4M or PowerFlex 40 variable frequency drives, the controller can issue speed reference commands via hardwired I/O or serial communication, allowing the drive to modulate motor output in direct response to real-time load conditions rather than running at fixed full speed. This dynamic drive coordination is one of the most impactful levers for reducing energy consumption in conveyor, pump, and fan applications.

Effective energy management on a production line is never the result of a single device — it is the outcome of a well-coordinated control architecture. The 1764-28BXB serves as the central decision-making node in this architecture, processing sensor inputs, executing ladder logic, and issuing output commands that govern the energy state of every connected actuator and drive system.

In a typical energy-optimized cell, the 1764-28BXB receives real-time status signals from 1769-IQ16 digital input modules monitoring machine-ready and part-present conditions. Based on this data, it commands PowerFlex 40 variable frequency drives to ramp motors up or down in proportion to actual production demand, rather than running at constant speed. Simultaneously, the controller interfaces with 1769-OF2 analog output modules to provide 4–20 mA speed reference signals to servo amplifiers or proportional valve controllers, enabling fine-grained load modulation.

For energy monitoring, the 1764-28BXB can be integrated with power measurement modules such as the 1420 PowerMonitor or third-party energy meters via the RS-232 DF1 port, feeding consumption data upstream to a SCADA system like FactoryTalk View SE. This closed-loop visibility allows plant engineers to identify high-consumption events, correlate them with specific production steps, and implement corrective logic directly in the PLC program — without requiring a separate energy management controller.

The controller also coordinates with 1764-LRP processor modules and 1764-MM1 memory modules to support larger ladder programs that include energy-state machine logic — automatically transitioning connected equipment between run, standby, and sleep states based on line throughput signals from upstream conveyors or downstream buffers. When a PanelView Component HMI is connected via DH-485, operators gain real-time visibility into energy mode status and can manually override drive states during maintenance windows, reducing the risk of equipment being left in high-draw idle states.

The 1764-28BXB contributes to production line energy optimization through three primary mechanisms: demand-responsive motor control, thermal load reduction, and predictive maintenance readiness.

Demand-responsive motor control is achieved by programming the 1764-28BXB to monitor line speed signals — typically from encoder feedback or proximity sensors connected to 1769-IQ32 input modules — and dynamically adjust drive output commands to match actual throughput requirements. This eliminates the common inefficiency of motors running at full speed during partial-load or gap periods between product batches, which in high-cycle applications can account for 15–30% of total motor energy consumption.

Thermal load reduction follows naturally from reduced motor speed and current draw. By preventing motors from running unnecessarily at full torque, the 1764-28BXB helps lower heat generation in drive cabinets and motor windings, extending insulation life and reducing the cooling energy required to maintain safe panel temperatures. In facilities where compressed air or chilled water cooling is used for control panels, this thermal benefit translates directly into additional energy savings at the utility level.

Predictive maintenance readiness is supported through the controller's ability to log runtime hours, cycle counts, and fault events using onboard data file registers. When integrated with a FactoryTalk Historian or SCADA data historian via EtherNet/IP (using a 1761-NET-ENI adapter), this operational data can be trended over time to identify degrading drive performance, increasing motor current draw, or abnormal cycle time deviations — all early indicators of mechanical wear that, if unaddressed, lead to unplanned downtime and energy-wasting fault recovery cycles.

Every 1764-28BXB unit shipped by NANKMOS undergoes full functional testing including I/O verification, communication port validation, and power-on self-test confirmation prior to dispatch. Units are supplied with a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial use conditions, with in-stock availability supporting rapid deployment for both new installations and replacement scenarios.

Q1: How does the 1764-28BXB help reduce energy consumption on a production line?The 1764-28BXB enables demand-based motor control by processing real-time I/O signals and issuing precise output commands to variable frequency drives such as the PowerFlex 40. This prevents motors from running at unnecessary full speed during low-demand or idle periods, directly reducing energy consumption and thermal load in the drive cabinet.

Q2: Is the 1764-28BXB compatible with EtherNet/IP and SCADA systems?The base unit communicates natively via DF1 and DH-485 over RS-232. EtherNet/IP connectivity can be added using a 1761-NET-ENI Ethernet interface module, enabling integration with FactoryTalk View SE, FactoryTalk Historian, and third-party SCADA platforms for energy data collection and remote monitoring.

Q3: Can the 1764-28BXB replace an existing MicroLogix 1500 unit without reprogramming?Yes. The 1764-28BXB is a direct base unit replacement within the MicroLogix 1500 platform. Existing RSLogix 500 programs are fully compatible and can be downloaded to the replacement unit without modification, provided the I/O configuration and processor module (1764-LRP or 1764-LSP) remain the same. NANKMOS recommends a full I/O verification test after installation.

Q4: What does the 12-Month Warranty cover, and how is stock availability managed?The 12-Month Warranty covers manufacturing defects and operational failures under standard industrial operating conditions, effective from the date of shipment. NANKMOS maintains in-stock inventory of the 1764-28BXB to support both planned procurement and urgent replacement requirements, with pre-shipment functional testing performed on every unit to ensure operational readiness upon arrival.
