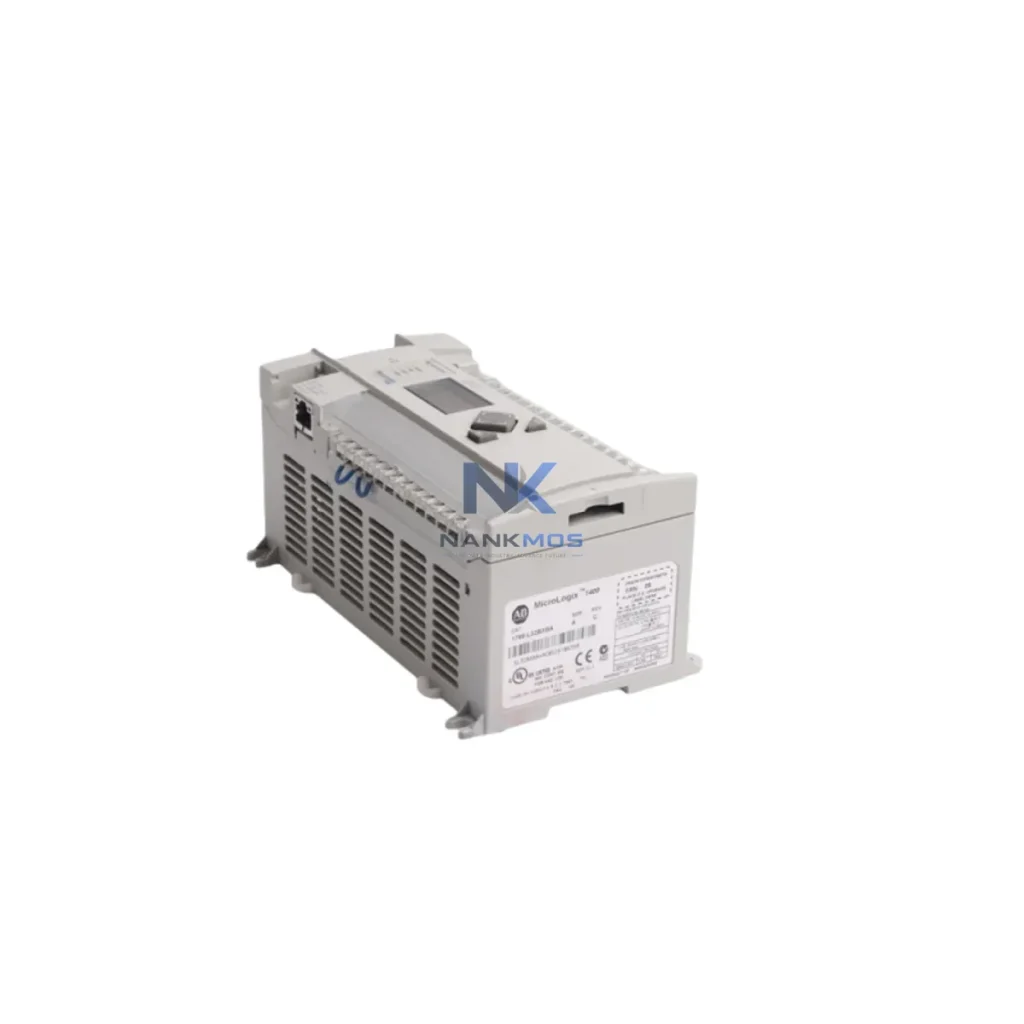

Allen-Bradley 1766-L32BXBA PLC Controller

Product Details

1766-L32BXBA Product Description

The Allen-Bradley 1766-L32BXBA is a high-performance programmable logic controller within the MicroLogix 1400 platform, engineered to serve as the central processing unit in compact yet capable industrial control architectures. With 32 I/O points onboard, embedded Ethernet connectivity, and support for multiple communication protocols, the 1766-L32BXBA delivers the processing power, signal integrity, and modular expandability required for demanding automation environments across manufacturing, energy, water treatment, and process industries. Every unit supplied by NANKMOS undergoes pre-shipment functional testing and is backed by a 12-Month Warranty, ensuring reliable deployment from day one.

The 1766-L32BXBA is designed to function as the command core within a layered MicroLogix 1400 automation platform. Its embedded EtherNet/IP port enables direct integration with supervisory systems, SCADA platforms, and HMI panels such as the Allen-Bradley PanelView Component C400 or C600, providing operators with real-time process visibility without requiring additional communication gateways in straightforward topologies.

At the I/O layer, the 1766-L32BXBA supports seamless expansion through the 1762-IQ16 (16-point 24 VDC digital input module) and 1762-OW16 (16-point relay output module), allowing engineers to scale the I/O count to match process complexity without replacing the CPU. For analog signal acquisition — critical in process control loops involving temperature, pressure, or flow — the 1762-IF4 four-channel analog input module and 1762-OF4 analog output module extend the controller's measurement and actuation range with high-resolution signal fidelity.

Communication architecture is a key strength of this platform. The 1766-L32BXBA's dual serial ports (Channel 0 and Channel 1) support simultaneous Modbus RTU and DF1 communication, enabling the controller to interface with third-party field devices, variable frequency drives such as the Allen-Bradley PowerFlex 40 or PowerFlex 525, and remote I/O nodes without protocol conversion overhead. The embedded Ethernet port further supports EtherNet/IP messaging to upstream PLCs, distributed control systems, or MES platforms.

For power distribution within the control cabinet, the 1606-XLP72E or equivalent 24 VDC power supply provides stable, regulated power to the 1762 I/O bus and field devices, ensuring voltage stability under varying load conditions. Signal isolation between field wiring and the controller backplane is maintained through DIN-rail-mounted signal isolators or terminal relay modules such as the 1492-AIFM series, protecting the CPU from transient voltages and ground loops common in industrial environments.

In redundancy-sensitive applications, the 1766-L32BXBA can be paired with a 1761-NET-ENI Ethernet interface module on legacy serial networks, bridging older DF1 devices into modern EtherNet/IP architectures and extending the operational lifespan of existing field infrastructure. Industrial Ethernet switches with managed VLAN support further segment control traffic from HMI and historian traffic, improving network determinism and cybersecurity posture across the automation layer.

Discrete Manufacturing: In automotive component assembly and electronics manufacturing lines, the 1766-L32BXBA manages conveyor sequencing, robotic cell interlocking, and quality inspection triggers. Its relay output configuration (BXBA) is well-suited for direct control of solenoid valves, motor starters, and indicator lamps without intermediate relay panels, reducing panel footprint and wiring complexity.

Water & Wastewater Treatment: Municipal pump stations and filtration systems rely on the 1766-L32BXBA for level control, pump sequencing, and alarm management. The onboard analog I/O handles 4–20 mA signals from submersible level transmitters and turbidity sensors, while the Ethernet port enables remote monitoring via SCADA over fiber or cellular backhaul.

Power Distribution & Energy Management: Substation automation and distributed energy resource management systems use the 1766-L32BXBA to monitor breaker status, control capacitor banks, and log energy consumption data. Modbus RTU communication over Channel 1 connects to power meters and protection relays, consolidating energy data for upstream reporting.

Packaging & Material Handling: High-speed packaging lines use the 1766-L32BXBA for product counting, reject gate control, and line speed synchronization with upstream filling or labeling equipment. The controller's fast scan time and deterministic I/O response support precise timing requirements in continuous-motion packaging architectures.

Mining & Metals Processing: Conveyor belt monitoring, crusher control, and ventilation fan sequencing in underground and surface mining operations benefit from the 1766-L32BXBA's wide operating temperature range and robust DIN-rail mounting, which withstands vibration and dust-laden environments typical of mineral processing facilities.

Q1: How many 1762 expansion modules can be connected to the 1766-L32BXBA, and what is the maximum I/O count? The 1766-L32BXBA supports up to 7 expansion modules from the 1762 I/O family, including digital, analog, and specialty modules. Combined with the 32 onboard I/O points, the maximum system I/O capacity reaches approximately 144 points, sufficient for most compact machine and process control applications. Module selection should account for the controller's power budget and the total current draw of the I/O bus.

Q2: Is the 1766-L32BXBA compatible with existing MicroLogix 1200 or SLC 500 programs, and what migration path is recommended? The 1766-L32BXBA uses RSLogix 500 programming software, which is also used for MicroLogix 1200 and SLC 500 controllers, simplifying program migration. While instruction sets are largely compatible, engineers should verify I/O addressing, communication configuration, and any platform-specific instructions before deploying migrated programs. NANKMOS recommends bench-testing migrated programs against the physical hardware prior to site commissioning to validate timing and I/O behavior.

Q3: What warranty and supply continuity does NANKMOS provide for the 1766-L32BXBA? NANKMOS provides a 12-Month Warranty on all 1766-L32BXBA units, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify I/O operation, communication port integrity, and power supply performance before dispatch. NANKMOS maintains in-stock inventory of MicroLogix 1400 platform components — including 1762 I/O modules, power supplies, and communication accessories — to support rapid fulfillment and minimize project lead times for both new installations and maintenance replacements.
