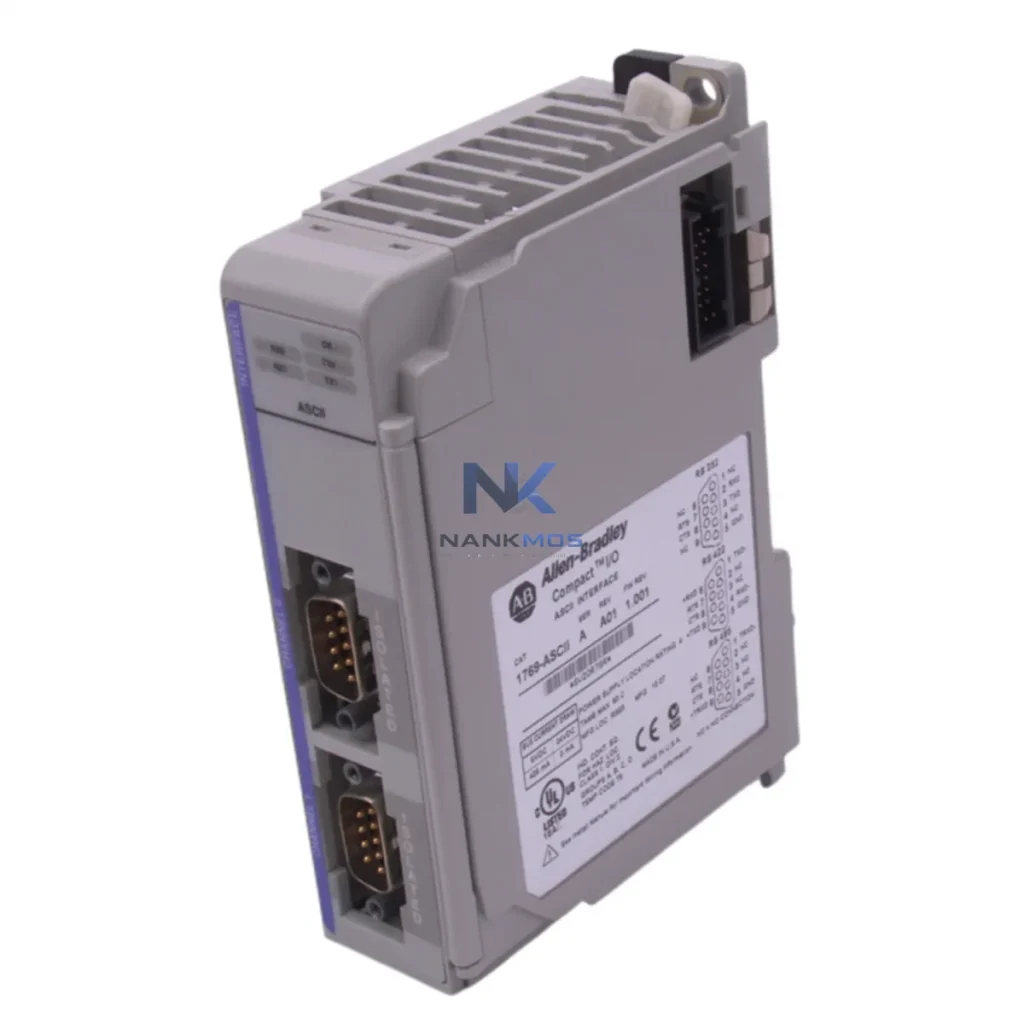

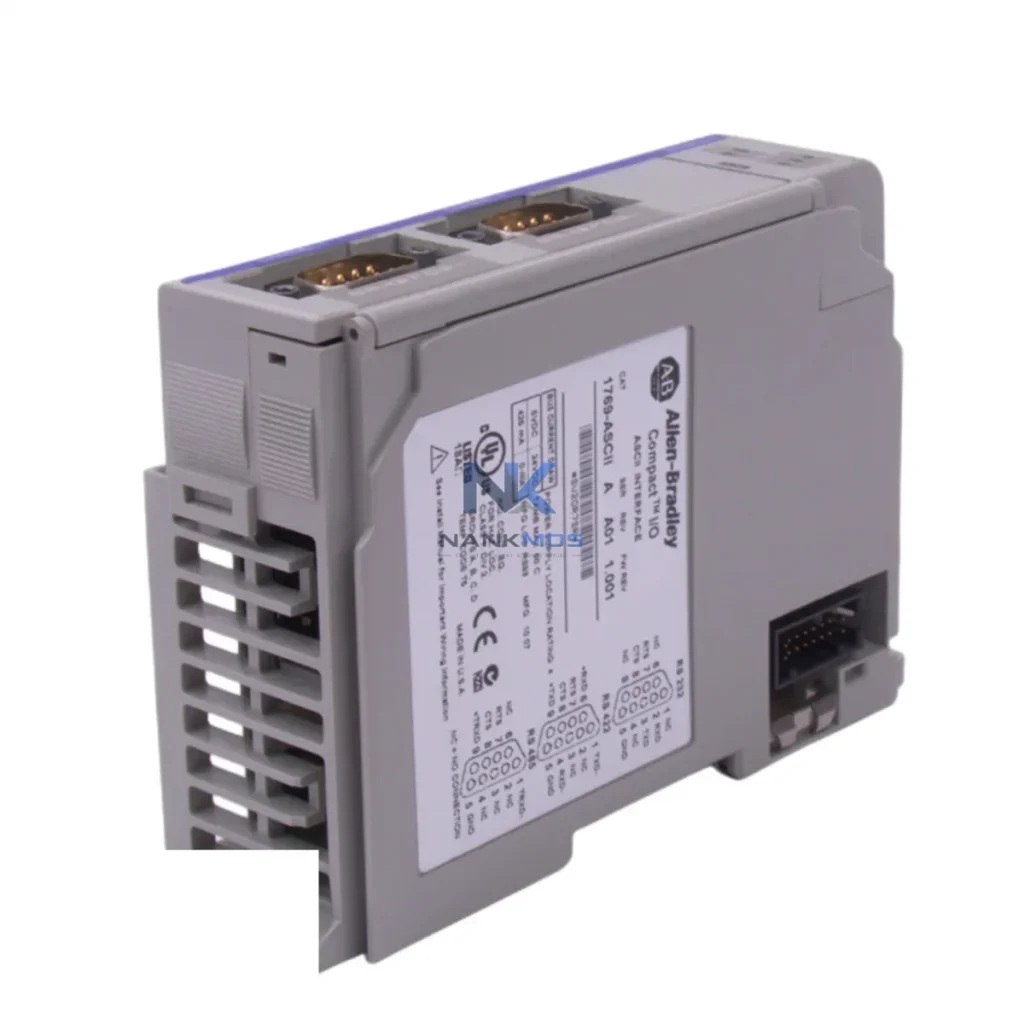

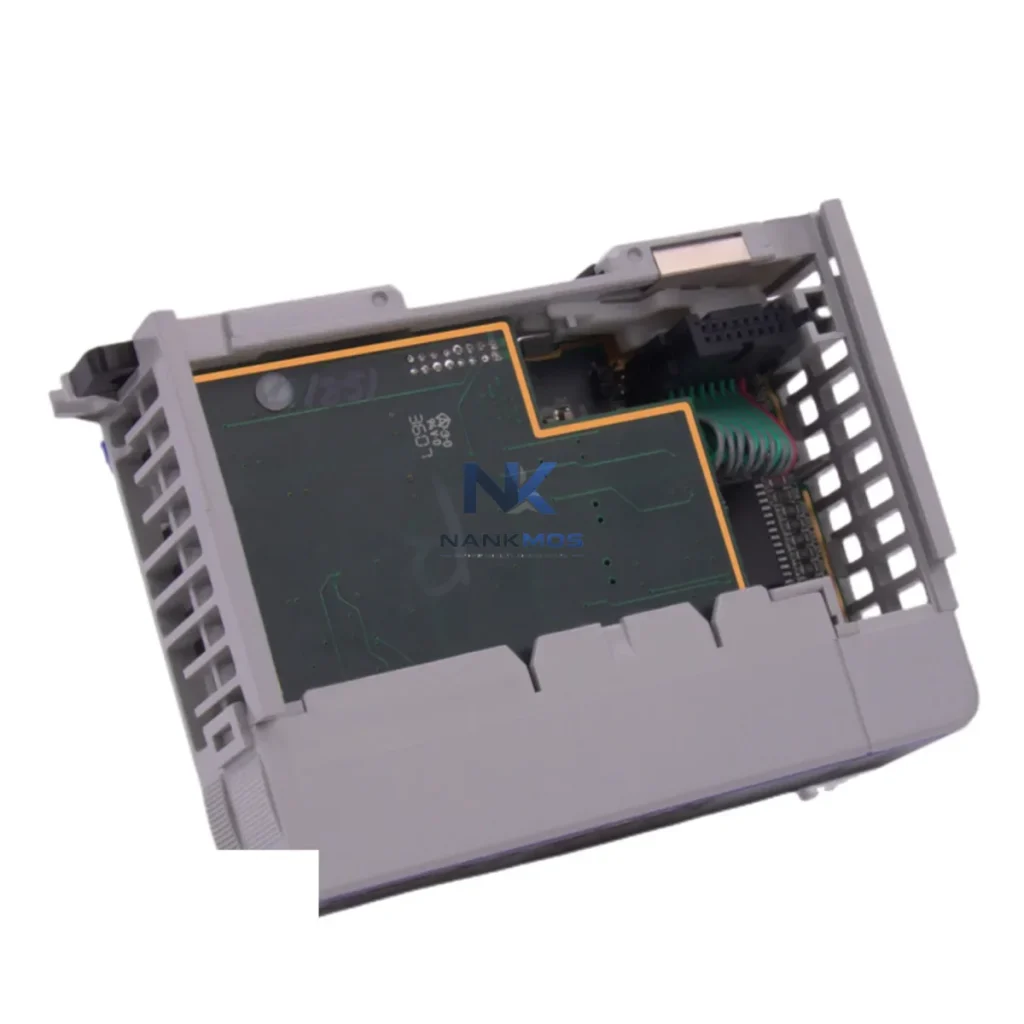

Allen-Bradley 1769-ASCII ASCII Interface Module

Product Details

1769-ASCII Product Description

The Allen-Bradley 1769-ASCII is a compact, rail-mounted ASCII Interface Module engineered for the CompactLogix 1769 backplane architecture. Designed to bridge legacy serial devices and modern industrial Ethernet networks, the 1769-ASCII enables seamless ASCII-based serial communication between field instruments, barcode readers, weigh scales, vision systems, and the CompactLogix PLC controller — forming a critical node in the smart factory data chain. With deterministic data exchange, configurable baud rates, and native integration into the Logix 5000 control environment, this module eliminates data silos and accelerates the path to real-time production visibility.

In a modern smart factory, data integrity across every layer of the automation stack is non-negotiable. The 1769-ASCII sits at the intersection of legacy serial instrumentation and the EtherNet/IP backbone, acting as the protocol conversion bridge that keeps older field devices relevant in Industry 4.0 architectures.

At the field level, serial devices — including barcode scanners, RFID readers, weigh scales, and vision inspection cameras — transmit ASCII-formatted strings to the 1769-ASCII module. The module buffers and parses these strings within the CompactLogix 1769-L33ER or 1769-L30ER controller's memory map, making the data immediately accessible to the Logix 5000 ladder logic or structured text programs running on the controller. From there, the CompactLogix controller forwards processed data upstream via EtherNet/IP to SCADA platforms such as Rockwell's FactoryTalk View SE or third-party systems like Ignition SCADA, enabling real-time dashboards and alarm management.

For distributed I/O expansion, the 1769-ASCII coexists on the same 1769 backplane alongside modules such as the 1769-IQ16 digital input module and the 1769-OF4 analog output module, sharing the backplane bus without interference. When remote I/O nodes are required across the plant floor, the 1756-EN2T EtherNet/IP communication module on a ControlLogix rack can aggregate data from multiple CompactLogix nodes — including those running 1769-ASCII — into a unified data model visible to the plant's MES layer.

HMI integration is equally straightforward. A PanelView Plus 7 terminal connected via EtherNet/IP to the CompactLogix controller can display live ASCII-sourced data — such as batch weights, scan codes, or inspection results — directly on the operator interface, closing the loop between field measurement and operator decision-making. For edge analytics, a 1783-NATR NAT router or an industrial edge gateway running FactoryTalk Edge can forward selected tags to cloud historians or OPC-UA servers, enabling remote diagnostics and predictive maintenance workflows without exposing the control network to external risk.

Variable-speed drives such as the PowerFlex 525 AC drive, connected via EtherNet/IP to the same CompactLogix controller, can receive setpoint adjustments derived from ASCII-sourced process data — for example, adjusting conveyor speed based on a weigh scale reading captured by the 1769-ASCII. This closed-loop integration between serial instrumentation, PLC logic, and drive control exemplifies the data-driven production model that smart factories demand.

For power infrastructure, the 1769-PA2 power supply provides stable 24 VDC backplane power to the entire 1769 system, ensuring the 1769-ASCII and co-resident I/O modules operate within specification even under fluctuating plant power conditions. All units supplied by NANKMOS are tested for backplane communication integrity and serial port functionality prior to dispatch, with a 12-month warranty covering hardware defects and communication failures.

Many production environments still rely on serial-based instruments that predate industrial Ethernet — creating protocol fragmentation, data islands, and blind spots in real-time monitoring. The 1769-ASCII directly addresses these challenges:

Q1: What is the maximum communication distance supported by the 1769-ASCII? The 1769-ASCII supports RS-232 communication up to approximately 15 metres (50 ft) and RS-485 up to 1,200 metres (4,000 ft) depending on baud rate and cable quality. For longer distances, a signal repeater or RS-485 line driver is recommended. All units are tested for signal integrity at rated distances before shipment.

Q2: Is the 1769-ASCII compatible with third-party SCADA and HMI systems? Yes. Because the 1769-ASCII integrates into the CompactLogix tag database, any SCADA or HMI system capable of communicating with a CompactLogix controller via EtherNet/IP — including Ignition, Wonderware, Citect, and FactoryTalk View SE — can access ASCII-sourced data without additional drivers or middleware.

Q3: How does the 1769-ASCII handle communication latency in time-sensitive applications? The module uses a producer/consumer communication model within the 1769 backplane, with configurable RPI (Requested Packet Interval) settings in Studio 5000. For most ASCII serial applications, latency is bounded by the serial baud rate and string termination character configuration. At 19,200 bps with short message strings, end-to-end latency from serial device to PLC tag is typically under 10 ms.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? Every 1769-ASCII unit supplied by NANKMOS undergoes functional testing including backplane communication verification, serial port loopback testing, and baud rate configuration checks before dispatch. The 12-month warranty covers hardware defects, communication port failures, and backplane interface faults under normal operating conditions. Warranty claims are supported with direct technical assistance and fast replacement logistics.
