Allen-Bradley 1769-PA2 Industrial AC Power Supply

Product Details

1769-PA2 Product Description

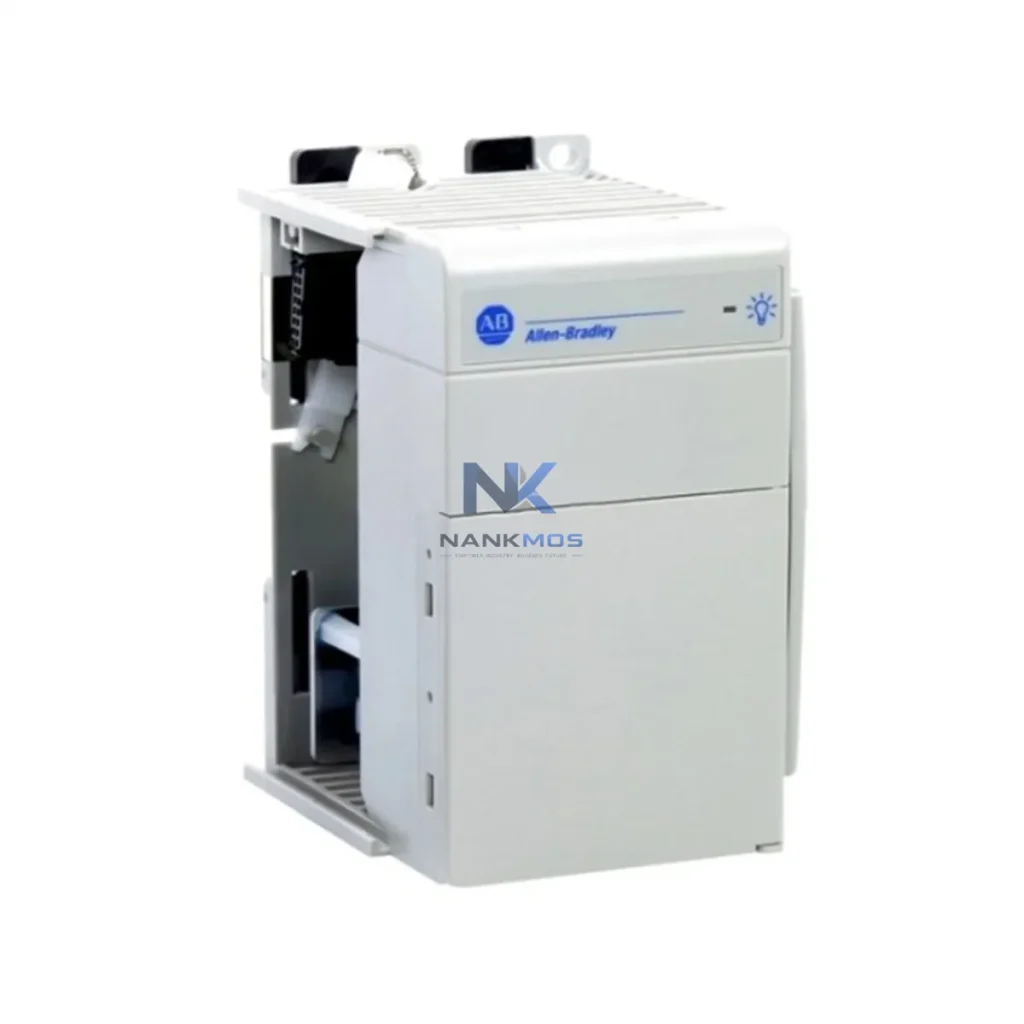

The Allen-Bradley 1769-PA2 is a field-proven AC power supply engineered for CompactLogix control architectures, delivering stable, regulated DC bus power to the 1769 Compact I/O backplane in environments where network-integrated automation is non-negotiable. Rated at 120/240 V AC input and providing 2 A at 5 V DC and 0.8 A at 24 V DC output, the 1769-PA2 anchors the power layer of a smart factory data chain — from field-level sensor nodes through PLC logic engines, remote I/O banks, HMI panels, SCADA gateways, and up to enterprise MES platforms.

In modern industrial connectivity architectures, power supply reliability is the silent prerequisite for uninterrupted data flow. When a 1769-PA2 powers a CompactLogix L33ER or L36ERM controller, it enables the processor to sustain continuous EtherNet/IP cyclic communication with distributed 1734 POINT I/O modules, 1756 ControlLogix remote chassis, and third-party Modbus TCP field devices — all without voltage sag or brownout-induced communication faults. The result is a deterministic, low-latency data backbone that SCADA systems such as Rockwell FactoryTalk View SE and Ignition SCADA can poll at sub-100 ms scan rates for real-time process visibility.

Signal acquisition begins at the sensor layer, where 1769-IQ16 digital input modules and 1769-IF4 analog input modules collect process variables — temperature, pressure, flow, and position — and feed them into the CompactLogix processor over the local 1769 backplane bus. The 1769-PA2 sustains the backplane voltage rail that makes this high-speed I/O scan possible. From the controller, structured data packets travel over EtherNet/IP to upstream 1783-US8T Stratix managed switches, which segment the plant network into deterministic control VLANs and supervisory data VLANs, preventing HMI polling traffic from interfering with time-critical PLC-to-drive communications.

Variable frequency drives such as the PowerFlex 525 and PowerFlex 755 receive speed and torque references from the CompactLogix controller via EtherNet/IP implicit messaging. The 1769-PA2-powered controller also manages 1769-SDN DeviceNet Scanner modules for legacy field bus devices, bridging older sensor networks into the modern EtherNet/IP fabric through protocol conversion at the controller backplane level. This eliminates data silos that historically prevented plant engineers from correlating drive performance data with upstream process sensor readings in a unified SCADA dashboard.

For remote diagnostics, the CompactLogix platform supported by the 1769-PA2 exposes its tag database to FactoryTalk Diagnostics and to OPC-UA servers running on edge gateway hardware such as the Moxa MGate MB3480 or the ProSoft Technology PLX51-EIP-MBS gateway. These gateways translate EtherNet/IP tag data into MQTT payloads for cloud-based IIoT platforms, enabling remote engineers to monitor controller health, I/O module status, and power supply diagnostics from any location. Alarm events generated by the CompactLogix processor — including power supply fault flags — are forwarded in real time to SCADA alarm management consoles, where they are timestamped, logged, and escalated according to ISA-18.2 alarm management workflows.

Data visualization is achieved through PanelView Plus 7 HMI terminals connected to the same EtherNet/IP network segment. Operators view live process trends, motor speed curves, and I/O status maps on high-resolution touchscreens, with historian data archived to FactoryTalk Historian SE for long-term OEE analysis. The 1769-PA2 ensures that the CompactLogix controller powering these visualization pipelines never experiences a power-related communication dropout, maintaining the data integrity that predictive maintenance algorithms depend on.

System expansion is straightforward: additional 1769 Compact I/O modules — including 1769-OB16 digital output, 1769-OF4 analog output, and 1769-HSC high-speed counter modules — can be added to the backplane without replacing the power supply, provided the total backplane current draw remains within the 1769-PA2's rated output. For larger expansions requiring additional current capacity, the 1769-PA2 can be paired with a 1769-PB4 24 V DC power supply to share the backplane load across two power supply slots.

Every 1769-PA2 unit shipped by NANKMOS undergoes pre-shipment functional testing, including input voltage range verification, output voltage regulation checks under full load, and backplane connector integrity inspection. Units are dispatched with full documentation and are covered by a 12-month warranty against manufacturing defects. In-stock inventory supports fast DHL/FedEx international shipping to manufacturing sites across Asia, Europe, and the Americas, with typical lead times of 3–7 business days for standard orders.

A representative smart factory data flow built around the 1769-PA2 begins at the field device layer, where 1769-IQ16 digital input modules capture discrete signals from proximity sensors and safety interlocks, while 1769-IF4 analog input modules digitize 4–20 mA signals from pressure transmitters and flow meters. These signals are processed by a CompactLogix L33ER controller — powered and backplane-sustained by the 1769-PA2 — which executes ladder logic and function block programs at a 10 ms task cycle.

The controller communicates upstream via EtherNet/IP to a 1783-US8T Stratix 2000 unmanaged switch, which aggregates traffic from the PLC, a PanelView Plus 7 HMI terminal, and a ProSoft Technology PLX51-EIP-MBS Modbus gateway. The Modbus gateway bridges legacy energy meters and third-party sensors into the EtherNet/IP tag space, eliminating the data isolation that prevents unified energy monitoring. A Moxa MGate MB3480 serial-to-EtherNet/IP gateway further extends connectivity to RS-485 Modbus RTU devices such as motor protection relays and power analyzers.

PowerFlex 525 variable frequency drives receive velocity references from the CompactLogix controller via EtherNet/IP implicit I/O messaging, with drive fault codes and actual speed feedback returned to the controller tag database every 10 ms. This closed-loop data path enables the SCADA system — running FactoryTalk View SE or Ignition — to display real-time motor performance dashboards and trigger alarm notifications when drive parameters exceed defined thresholds. The 1769-PA2 ensures the controller sustains this communication loop without interruption, even during AC input voltage fluctuations within its rated ±10% tolerance band.

At the edge, an industrial edge gateway running an OPC-UA server aggregates tag data from the CompactLogix controller and publishes it as MQTT messages to a cloud IIoT platform, enabling remote engineers to perform predictive maintenance analysis on motor vibration trends, I/O module error counters, and power supply health indicators — all traceable back to the stable power foundation provided by the 1769-PA2.

Protocol Fragmentation: Many production sites operate a mix of EtherNet/IP PLCs, Modbus RTU energy meters, and PROFIBUS field devices. The CompactLogix platform powered by the 1769-PA2 resolves this through scanner modules and protocol gateways that consolidate all field data into a single EtherNet/IP tag namespace, accessible to SCADA and MES systems through a unified OPC-UA interface.

Data Silos: When drive data, sensor readings, and controller diagnostics exist in separate, disconnected systems, plant engineers cannot correlate events across the production line. The 1769-PA2-powered CompactLogix architecture bridges these silos by centralizing all I/O data in the controller tag database, which is then exposed to SCADA historians for cross-system trend analysis and root-cause investigation.

Remote Monitoring Gaps: Without reliable controller power, remote diagnostic sessions via FactoryTalk Remote Access or VPN-connected Studio 5000 Logix Designer are interrupted, forcing on-site engineer dispatch. The 1769-PA2's stable output voltage eliminates power-related controller resets that would otherwise terminate active remote sessions.

Production Line Transparency: Real-time OEE dashboards require continuous, uninterrupted data streams from every node on the plant network. The 1769-PA2 provides the power foundation that keeps CompactLogix controllers online 24/7, ensuring that FactoryTalk Historian and third-party analytics platforms receive complete, gap-free production datasets.

Alarm Traceability: ISA-18.2-compliant alarm management requires accurate event timestamps. Controller power interruptions corrupt alarm logs by generating spurious fault events. The 1769-PA2's regulated output prevents these false alarms, maintaining the integrity of alarm history databases used for safety audits and regulatory compliance reporting.

Q1: Does the 1769-PA2 support EtherNet/IP communication directly?The 1769-PA2 is an AC power supply module, not a communication module. EtherNet/IP communication is handled by the CompactLogix controller (e.g., L33ER, L36ERM) hosted on the same 1769 backplane. The 1769-PA2 provides the stable 5 V DC and 24 V DC backplane power that the controller and all communication modules require to operate without interruption.

Q2: What is the maximum number of 1769 I/O modules the 1769-PA2 can support?The 1769-PA2 provides 2 A at 5 V DC and 0.8 A at 24 V DC. The number of supported modules depends on the total current draw of all modules in the backplane. Rockwell Automation's system power budget tool in Studio 5000 should be used to verify that the combined module current draw does not exceed the 1769-PA2's rated output. For higher-current configurations, a 1769-PB4 supplemental power supply can be added.

Q3: How does the 1769-PA2 contribute to network stability in EtherNet/IP systems?Network communication faults in EtherNet/IP systems are frequently caused by controller resets triggered by power supply instability. The 1769-PA2's regulated output maintains the CompactLogix controller in continuous operation, preventing unplanned controller restarts that would cause EtherNet/IP connection timeouts, drive faults, and SCADA data gaps. This makes the 1769-PA2 a critical component of overall network stability, not just a power component.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1769-PA2?Every 1769-PA2 unit is covered by a 12-month warranty against manufacturing defects from the date of shipment. Pre-shipment testing includes input voltage range verification (85–264 V AC), output voltage regulation under full backplane load, and backplane connector pin integrity checks. Units are shipped with test documentation upon request. Contact [email protected] or +86 18359268345 for warranty claims or technical support.
