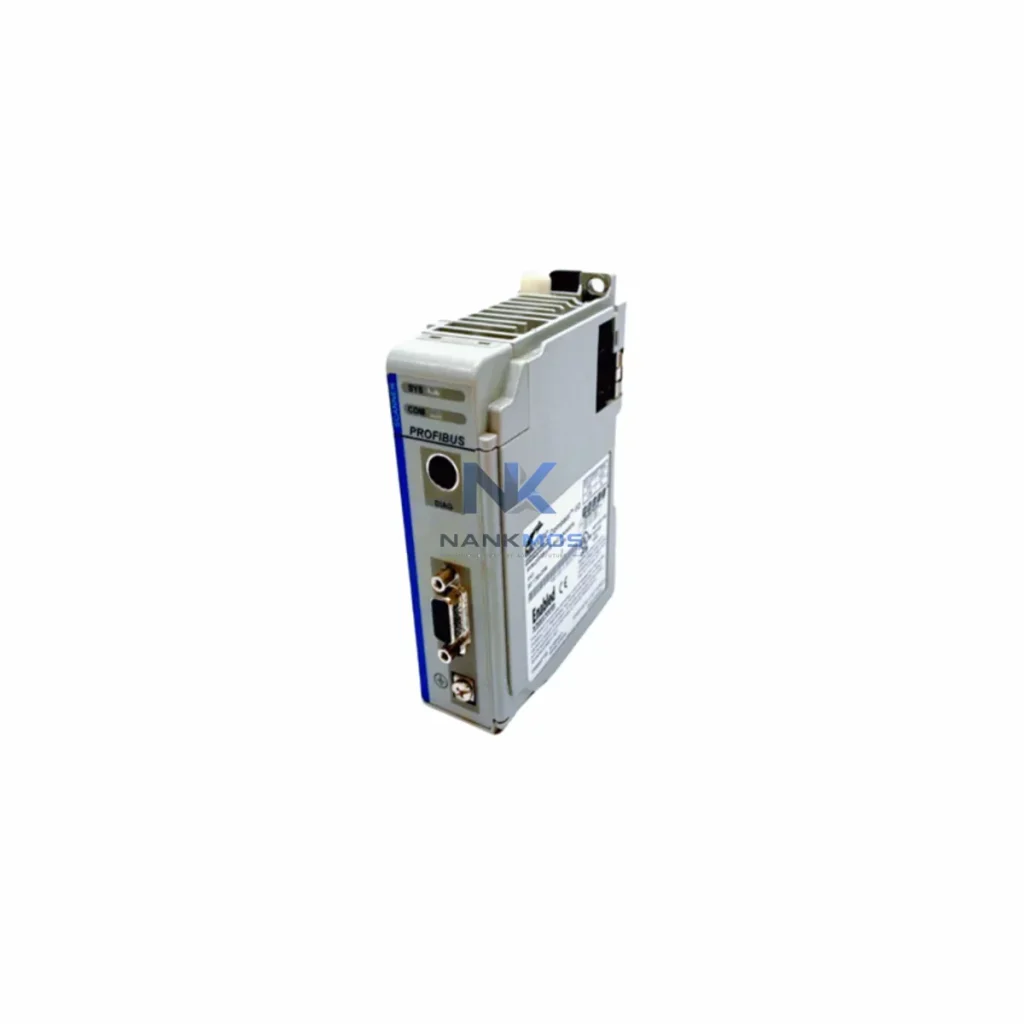

Allen-Bradley 1769-DPM Communication Gateway

Product Details

1769-DPM Product Description

The Allen-Bradley 1769-DPM is a PROFIBUS-DP master communication module engineered for the CompactLogix platform, delivering seamless protocol bridging between field-level devices and upper-layer control and monitoring systems. In modern smart factory environments where data continuity across every node — from sensor to SCADA — defines operational efficiency, the 1769-DPM serves as a critical connectivity backbone. It enables CompactLogix controllers to act as PROFIBUS-DP masters, orchestrating real-time cyclic data exchange with up to 125 slave devices across a single PROFIBUS segment. This capability transforms isolated field instruments into fully integrated data sources within a unified industrial network architecture.

Deployed across discrete manufacturing, process automation, and hybrid production environments, the 1769-DPM supports baud rates from 9.6 kbps up to 12 Mbps, adapting to both legacy PROFIBUS installations and high-speed modern networks. Its compact 1769 form factor slots directly into CompactLogix expansion chassis, minimising panel footprint while maximising network reach. The module is fully compatible with Rockwell Automation's Studio 5000 Logix Designer environment, enabling engineers to configure PROFIBUS slave GSD files, map I/O data tables, and monitor network diagnostics without leaving the familiar Logix programming interface.

The 1769-DPM sits at the intersection of field-level instrumentation and plant-wide data infrastructure. In a typical smart factory deployment, field devices such as PROFIBUS-DP-enabled variable frequency drives (for example, PowerFlex 755 drives configured with PROFIBUS adapter cards), distributed I/O blocks, pressure transmitters, and flow meters connect directly to the 1769-DPM as slave nodes. The module cyclically polls each slave, collecting process values and status bytes in real time and writing them into the CompactLogix controller's data tables — making live field data immediately available to the Logix ladder or function block program.

Upstream from the CompactLogix controller, an EtherNet/IP backbone — typically structured through a managed industrial Ethernet switch such as a Stratix 5700 — carries aggregated process data to SCADA servers running FactoryTalk View SE or third-party platforms like Ignition by Inductive Automation. HMI panels, including PanelView Plus 7 terminals, subscribe to controller tags over EtherNet/IP, rendering real-time process graphics, alarm banners, and trend displays for operators on the plant floor. Remote engineering teams access the same data through FactoryTalk Remote Access or VPN-secured connections to the plant network, enabling remote diagnostics and parameter adjustments without physical site visits.

For facilities running mixed-protocol environments, the 1769-DPM pairs naturally with other 1769 CompactLogix communication modules. A 1769-ASCII module may handle serial instrument data on the same chassis, while a 1769-SM2 or similar motion interface coordinates servo axis feedback. Where legacy DeviceNet segments still exist alongside PROFIBUS, a 1769-SDN DeviceNet scanner module can coexist in the same CompactLogix rack, with the controller's program logic merging data from both fieldbus networks into a single unified dataset. This multi-protocol chassis architecture eliminates the need for separate PLCs per fieldbus, reducing hardware cost and simplifying maintenance.

At the edge, data aggregators and industrial IoT gateways — such as Moxa MGate PROFIBUS-to-Ethernet converters or Kepware KEPServerEX OPC-UA drivers — can tap into the PROFIBUS segment or the EtherNet/IP network to forward time-series data to cloud analytics platforms or MES systems. This creates a complete, unbroken data chain: from a PROFIBUS pressure sensor on a compressor skid, through the 1769-DPM, into the CompactLogix controller, across the Stratix switch, up to FactoryTalk Historian, and finally into dashboards and KPI reports consumed by production managers and maintenance engineers.

Protocol Fragmentation: Many production sites operate a mix of PROFIBUS-DP legacy devices alongside newer EtherNet/IP or Modbus TCP equipment. The 1769-DPM resolves this fragmentation by acting as the PROFIBUS master within a CompactLogix system that simultaneously manages EtherNet/IP I/O — allowing a single controller to unify data from both protocol domains without external gateways or additional PLCs.

Data Islands and Visibility Gaps: Field devices that communicate only over PROFIBUS are often invisible to plant-level SCADA and MES systems. By routing PROFIBUS slave data through the 1769-DPM into the CompactLogix tag database, every connected instrument becomes addressable by FactoryTalk View, Ignition, or any OPC-UA-compatible SCADA client — eliminating data islands and enabling full production-line transparency.

Remote Monitoring and Alarm Traceability: The 1769-DPM provides per-slave diagnostic data including communication fault flags, device status bytes, and bus error counters. These diagnostics are mapped into controller tags and can trigger alarm objects in FactoryTalk Alarms and Events or equivalent SCADA alarm subsystems, giving maintenance teams timestamped, traceable fault records for root-cause analysis and predictive maintenance scheduling.

Network Scalability: As production lines expand, additional PROFIBUS slave devices — remote I/O blocks, smart sensors, or drive units — can be added to the PROFIBUS segment up to the 125-node limit without modifying the CompactLogix hardware. GSD file imports in Studio 5000 handle new device configurations, and the controller program can be updated online with minimal disruption to running processes.

Shipment Readiness and Supply Assurance: Every 1769-DPM unit supplied by NANKMOS undergoes pre-shipment functional testing covering PROFIBUS bus initialisation, slave polling verification, and EtherNet/IP upstream communication checks. In-stock inventory ensures short lead times for MRO replacements and project commissioning schedules. All units are covered by a 12-Month Warranty from the date of shipment.

Q1: What is the maximum number of PROFIBUS-DP slaves the 1769-DPM can manage?The 1769-DPM supports up to 125 PROFIBUS-DP slave devices on a single segment. Each slave is configured via its GSD file imported into Studio 5000 Logix Designer, and cyclic I/O data is automatically mapped into the CompactLogix controller's data tables for use in the control program.

Q2: Is the 1769-DPM compatible with all CompactLogix controller variants?The module is compatible with CompactLogix 1769-L3x, L4x, and L5x series controllers. It occupies one slot in the 1769 expansion chassis and communicates with the host controller over the CompactLogix backplane. Verify your Studio 5000 firmware version against the module's firmware requirements before installation.

Q3: How does the 1769-DPM support remote diagnostics and network health monitoring?The module maps PROFIBUS bus diagnostics — including slave communication status, fault codes, and bus error counters — directly into the CompactLogix tag database. These tags can be monitored remotely via FactoryTalk Remote Access, surfaced in SCADA alarm systems, or logged to FactoryTalk Historian for trend analysis and predictive maintenance workflows.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1769-DPM?All 1769-DPM units are covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing including PROFIBUS master initialisation, slave polling verification, and backplane communication checks. In-stock availability supports urgent MRO replacements and project commissioning timelines with minimal lead time.
