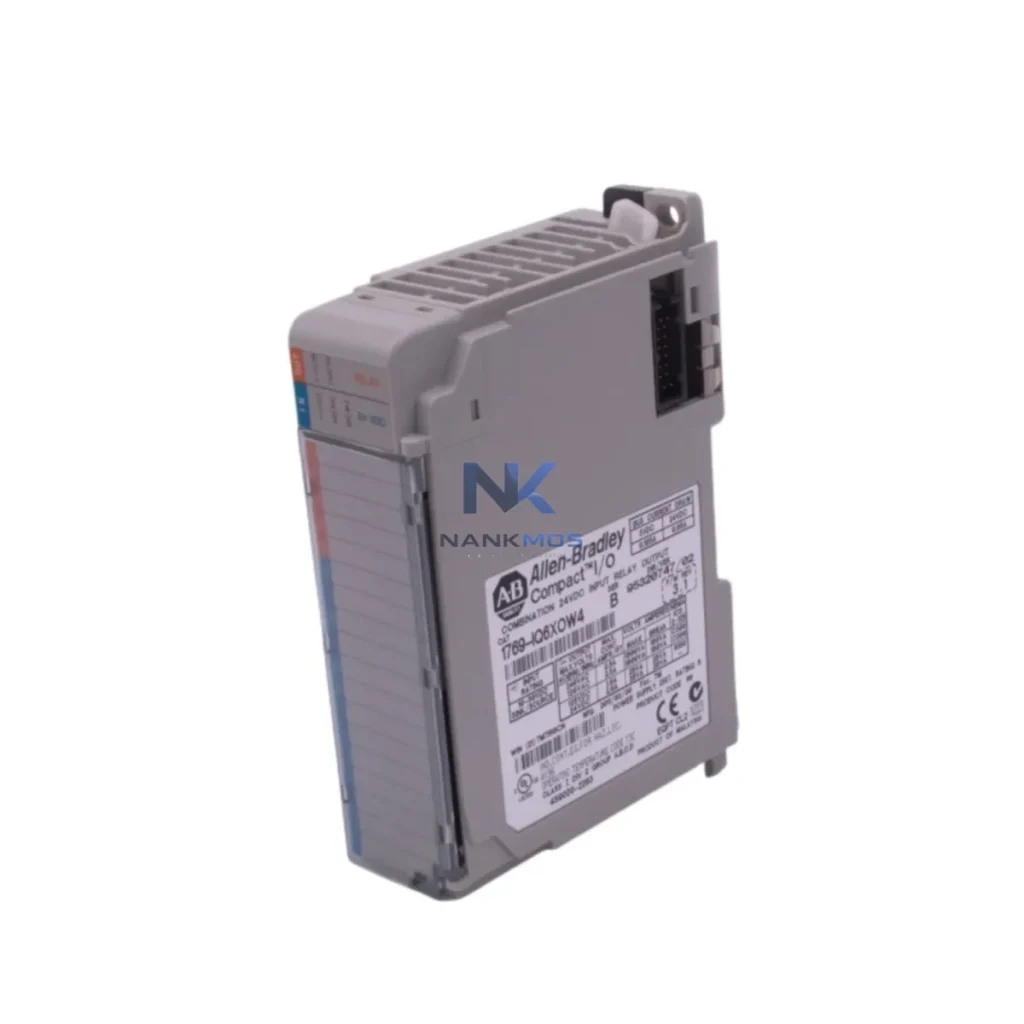

Allen-Bradley 1769-IQ6XOW4 PLC I/O Module

Product Details

1769-IQ6XOW4 Product Description

The Allen-Bradley 1769-IQ6XOW4 is a CompactLogix-native combination I/O module integrating six 24V DC digital inputs and four relay output channels within a single 1769 Series compact form factor. Engineered for direct backplane insertion into CompactLogix L1, L2, L3, and L30 controller racks, this module eliminates the need for separate discrete input and output modules in space-constrained control cabinets, reducing wiring complexity, panel footprint, and commissioning time across manufacturing, energy, and process automation architectures.

In a layered industrial control architecture, the 1769-IQ6XOW4 occupies the field I/O layer, bridging the control layer — where the CompactLogix processor executes ladder logic and function block programs — with the execution layer, where actuators, solenoids, motor starters, and pilot devices respond to discrete commands. The relay output contacts rated at 240V AC / 2A provide galvanic isolation between the controller backplane and field-side loads, a critical design requirement in mixed-voltage panels where AC-driven devices share a cabinet with 24V DC control circuits. This isolation characteristic directly supports arc-flash risk reduction and simplifies compliance with IEC 60204-1 machine safety wiring standards.

System architects integrating the 1769-IQ6XOW4 into a CompactLogix platform benefit from its seamless coexistence with the broader 1769 Compact I/O ecosystem. Adjacent modules such as the 1769-IQ16 (16-point 24V DC digital input) and 1769-OB16 (16-point 24V DC transistor output) extend discrete I/O density on the same backplane without additional communication overhead. For analog signal acquisition — temperature loops, pressure transmitters, or flow meters — the 1769-IF4 four-channel analog input module integrates on the same rack, sharing the CompactLogix backplane bus and eliminating the need for a separate analog sub-system. This modular expansion model allows engineers to scale I/O capacity incrementally as process requirements evolve, without replacing the controller or rewiring the backplane.

Communication architecture plays a central role in CompactLogix deployments. The 1769-L30ER or 1769-L33ER CompactLogix controllers provide dual EtherNet/IP ports for device-level ring (DLR) topology, enabling network-level redundancy without a dedicated managed switch in smaller installations. For larger distributed architectures, the 1756-EN2TR ControlLogix EtherNet/IP bridge or a Stratix 5700 industrial managed switch provides the backbone for deterministic I/O scanning across multiple CompactLogix drops. The 1769-IQ6XOW4 participates in this communication hierarchy transparently — its I/O data is mapped directly into the controller's I/O tree, accessible via standard RSLogix 5000 or Studio 5000 Logix Designer tag-based programming without additional configuration.

Power architecture integration is equally straightforward. The 1769-PA2 or 1769-PB2 CompactLogix power supply modules provide regulated 5V DC backplane power and 24V DC field power to the 1769-IQ6XOW4 and adjacent modules. In redundant power designs, dual power supplies with diode-ORing modules ensure uninterrupted backplane operation during a single power supply failure — a standard requirement in continuous-process industries such as petrochemical refining, water treatment, and pharmaceutical manufacturing. The relay output contacts on the 1769-IQ6XOW4 are independently powered from the field-side terminal block, allowing the output circuit voltage to differ from the backplane supply, which is essential when driving 120V AC or 240V AC field devices from a 24V DC-powered controller rack.

HMI integration is a natural extension of the 1769-IQ6XOW4's role in the control architecture. PanelView Plus 7 terminals connected via EtherNet/IP to the CompactLogix controller can display real-time input status and output command states mapped from the 1769-IQ6XOW4's I/O tags. Operators gain visibility into field device states — limit switches, proximity sensors, motor run feedback — without additional signal conditioning or intermediate relay panels. For remote monitoring, FactoryTalk View SE or FactoryTalk Remote Access extends this visibility to supervisory workstations and mobile devices, supporting predictive maintenance workflows and reducing unplanned downtime in high-availability production environments.

Protection layer considerations are addressed through the relay output's inherent contact isolation and the module's built-in diagnostics. Studio 5000 Logix Designer provides tag-level fault detection for I/O module communication loss, enabling the controller to execute fault routines — safe-state outputs, alarm annunciation, or controlled shutdown sequences — without operator intervention. For installations requiring additional signal isolation between field devices and the controller backplane, Phoenix Contact MACX or Weidmüller WAS4 signal isolators can be inserted in the field wiring path, providing 3-way isolation (input, output, power) and protecting the 1769-IQ6XOW4 from transient overvoltage events in electrically noisy environments such as variable frequency drive (VFD) panels or high-current motor control centers.

Long-term maintenance efficiency is a defining advantage of the 1769 Series platform. The 1769-IQ6XOW4's removable terminal blocks allow field wiring to remain connected while the module is extracted for bench testing or replacement, eliminating rewiring during scheduled maintenance windows. Module-level diagnostics accessible via the controller's I/O tree provide real-time status without requiring a laptop connection at the panel, reducing mean time to repair (MTTR) in distributed installations. Spare module inventory management is simplified by the module's broad compatibility across all CompactLogix L1–L3 controller families, ensuring a single spare SKU covers multiple machine variants on the same production floor.

Every 1769-IQ6XOW4 unit supplied by NANKMOS undergoes pre-shipment functional verification including input channel continuity, relay contact resistance measurement, and backplane connector integrity inspection. Units are shipped in anti-static packaging with original Allen-Bradley documentation and are covered by a 12-Month Warranty against manufacturing defects and functional failure. In-stock availability supports fast dispatch for MRO replacement, capital project procurement, and emergency breakdown scenarios across global industrial facilities.

The 1769-IQ6XOW4 achieves its full architectural value when deployed as part of a cohesive CompactLogix automation platform. A representative integrated architecture for a mid-scale discrete manufacturing line might include a 1769-L33ER CompactLogix controller as the processing core, supported by a 1769-PA2 power supply for backplane regulation. Discrete I/O density is extended with 1769-IQ16 input modules and 1769-OB16 transistor output modules for high-speed solenoid and pilot light control, while the 1769-IQ6XOW4 handles mixed-voltage relay-switched loads. Analog process variables are acquired via 1769-IF4 analog input modules, with 1769-OF2 analog output modules driving proportional control valves and variable speed references.

Network connectivity is provided by the controller's onboard EtherNet/IP ports, with a Stratix 5700 managed switch aggregating traffic from multiple CompactLogix drops, PowerFlex 525 AC drives on the motor control layer, and a PanelView Plus 7 HMI terminal for operator interaction. For installations requiring DeviceNet or ControlNet legacy device integration, a 1769-SDN DeviceNet scanner module can be added to the same backplane, preserving investment in existing field devices while migrating the controller platform to EtherNet/IP. This architecture demonstrates the 1769-IQ6XOW4's role not as an isolated component, but as a functional node in a fully integrated, scalable, and maintainable automation system.

The 1769-IQ6XOW4 is deployed across a wide range of industrial sectors where compact, mixed-signal I/O is required within a CompactLogix control architecture:

Q1: Is the 1769-IQ6XOW4 compatible with all CompactLogix controller generations, and does it require any special configuration in Studio 5000? The 1769-IQ6XOW4 is compatible with all CompactLogix L1, L2, and L3 series controllers (L16, L18, L23, L30, L31, L32, L35, L36, L37, L43, L45) running RSLogix 5000 v16 or later, or Studio 5000 Logix Designer v21 or later. Configuration is automatic — the module is recognized by the controller during I/O tree auto-configuration, and no additional EDS file installation is required for standard deployments. Input filter times and output fault states are configurable via the module's properties dialog in Studio 5000.

Q2: Can the relay outputs on the 1769-IQ6XOW4 switch both AC and DC loads, and what are the derating requirements for inductive loads? Yes. The four Form C relay outputs are rated for 240V AC or 125V DC at 2A resistive. For inductive loads — motor starters, solenoid valves, and contactor coils — Rockwell Automation recommends derating to approximately 1.5A and installing suppression devices (RC snubbers for AC loads, flyback diodes for DC loads) across the load terminals to extend relay contact life and reduce EMI injection into the control cabinet. Inductive load switching without suppression can reduce relay contact life by 60–80% compared to resistive load ratings.

Q3: What is the warranty coverage for the 1769-IQ6XOW4 supplied by NANKMOS, and what is the typical lead time for replacement units? All 1769-IQ6XOW4 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure from the date of shipment. In the event of a warranty claim, NANKMOS provides advance replacement shipping to minimize production downtime. In-stock units are typically dispatched within 1–3 business days for standard orders. For emergency MRO requirements, expedited same-day dispatch is available upon request. Contact [email protected] or +86 18359268345 for stock confirmation and lead time verification.
