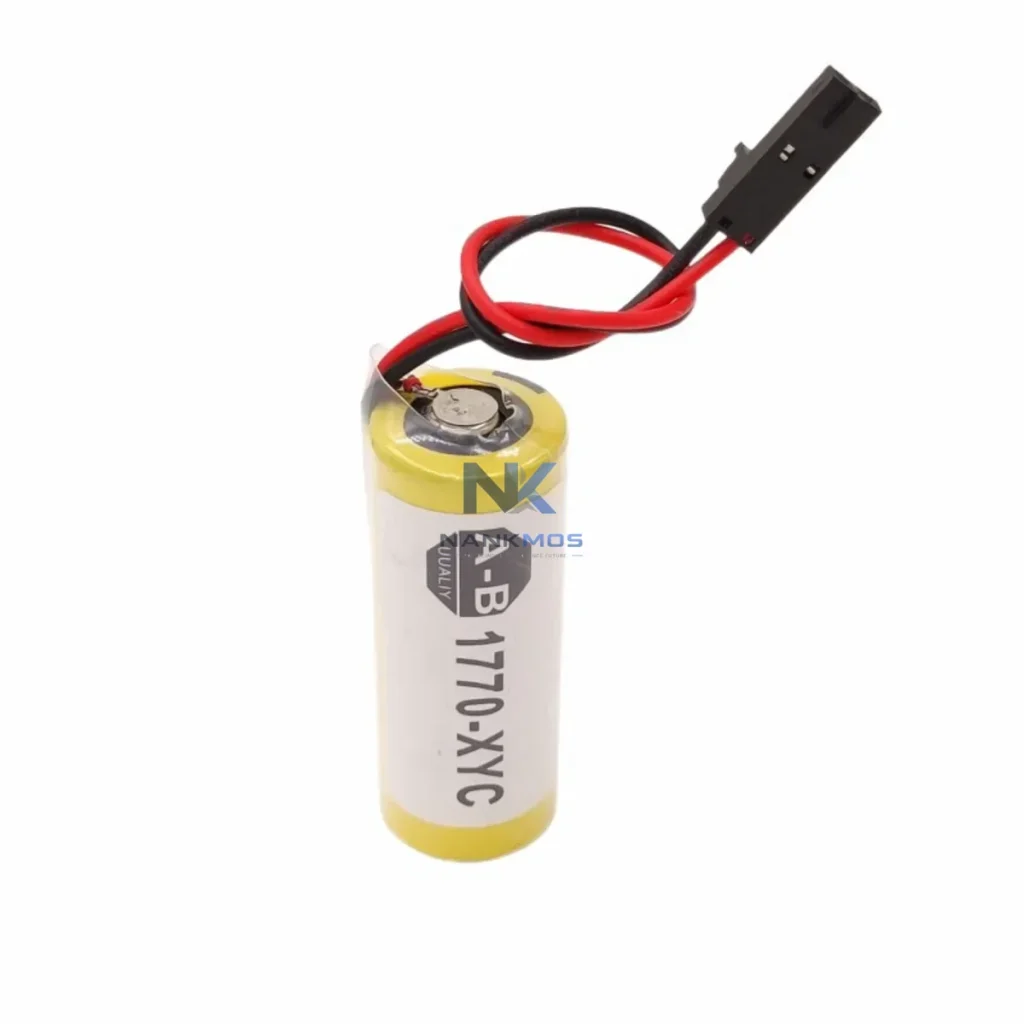

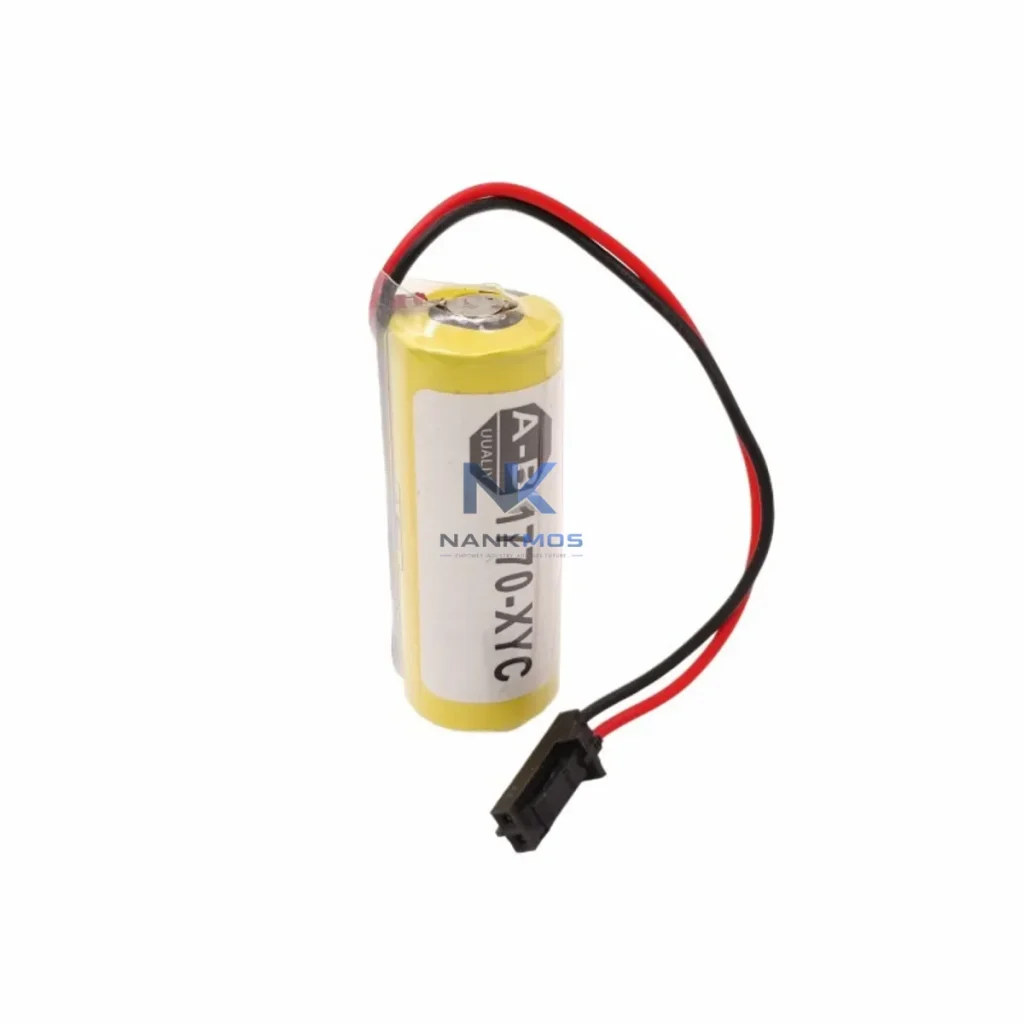

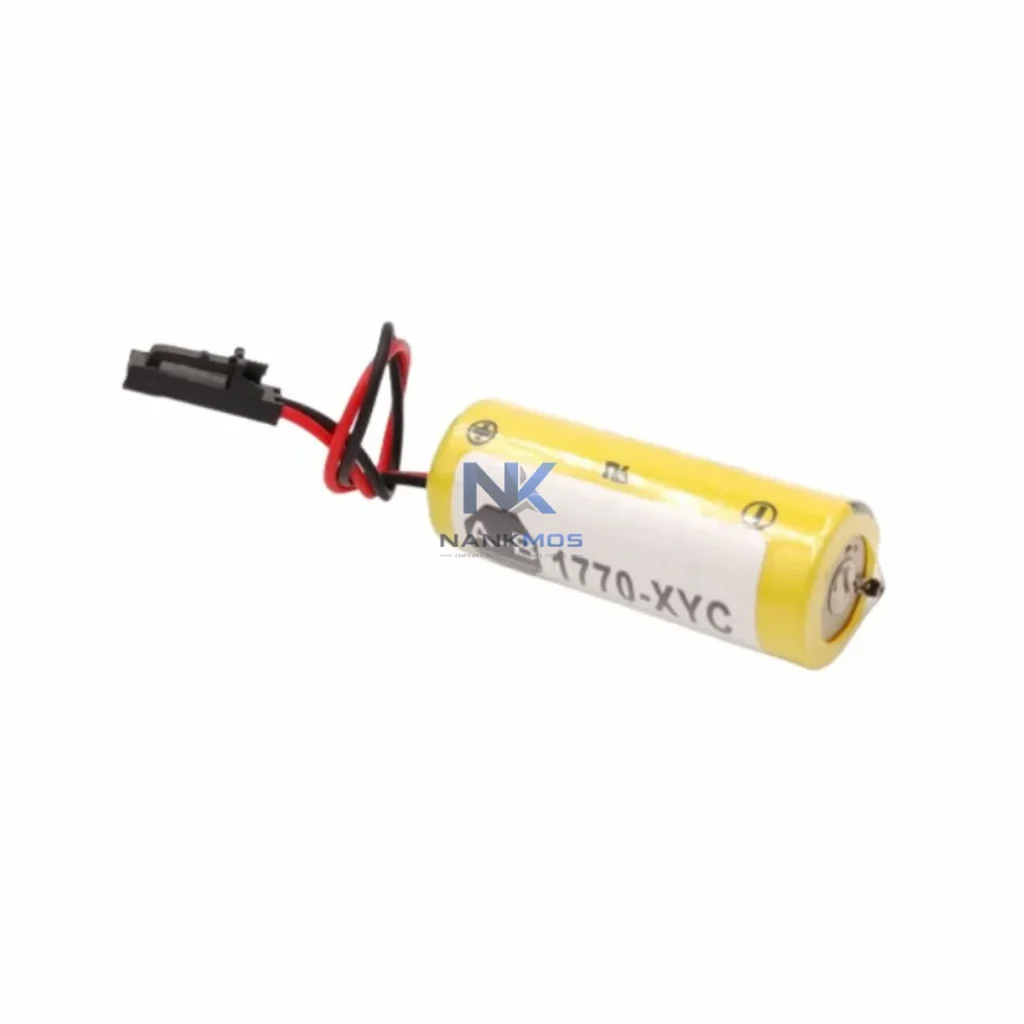

Allen-Bradley 1770-XYC PLC Battery Module

Product Details

1770-XYC Product Description

The Allen-Bradley 1770-XYC is a dedicated memory retention battery module engineered for the PLC-5 programmable controller family — one of Rockwell Automation's most enduring and widely deployed control platforms in heavy industrial environments. Designed to preserve user program memory, data table contents, and configuration parameters during power interruptions, the 1770-XYC plays a critical role in maintaining system continuity across the full control architecture. Its function extends beyond simple battery backup: it is a foundational element of system reliability, ensuring that the PLC-5 processor can resume operation without re-initialization after an unplanned power loss, a scheduled maintenance window, or a controlled shutdown sequence.

In modern industrial automation architectures, memory retention is not a peripheral concern — it is a core engineering requirement. The 1770-XYC addresses this requirement with a form factor and electrical specification precisely matched to the PLC-5 chassis environment. Whether deployed in a standalone control cabinet or integrated into a multi-rack distributed control system, the module delivers consistent, low-drain power to the processor's CMOS memory circuits, maintaining data integrity across extended offline periods. This makes it indispensable for facilities operating continuous processes where re-programming downtime is operationally unacceptable.

The 1770-XYC is fully compatible with the broader PLC-5 ecosystem, including the 1771 I/O chassis and adapter modules, 1785 PLC-5 processor families (such as the 1785-L20, 1785-L40, and 1785-L80), and the 1770-KF2 and 1770-KF3 communication interface modules. Within a layered control architecture, the processor supported by the 1770-XYC typically sits at the control layer, coordinating signal flow from the I/O layer — populated by 1771-IB, 1771-OB, and 1771-OW discrete and analog modules — through to the HMI layer, where PanelView terminals or SCADA workstations provide operator visibility. The memory retention function ensures that all configured I/O maps, PID loop parameters, and ladder logic routines remain intact regardless of power state transitions.

From a communications architecture perspective, the PLC-5 processor supported by the 1770-XYC commonly interfaces with Data Highway Plus (DH+) networks via the 1770-KF2 gateway, enabling peer-to-peer messaging between controllers and upstream supervisory systems. In redundant architectures, where a secondary PLC-5 processor mirrors the primary, memory retention at both nodes is essential to ensure seamless failover without program loss. The 1770-XYC supports this redundancy requirement by maintaining the memory state of each processor independently, allowing the standby unit to assume control with a fully synchronized program image.

Installation of the 1770-XYC follows standard Allen-Bradley field replacement procedures. The module is inserted into the designated battery slot on the PLC-5 processor faceplate, with no special tooling required. Replacement intervals are determined by the processor's battery low indicator, which provides advance warning before memory retention is compromised. Engineering teams should incorporate 1770-XYC replacement into their preventive maintenance schedules, particularly for processors operating in high-temperature environments where battery discharge rates are accelerated. Proper disposal of spent lithium cells must comply with local environmental regulations.

For system integrators and maintenance engineers managing legacy PLC-5 installations, sourcing a reliable supply of 1770-XYC modules is a long-term operational priority. NANKMOS maintains verified inventory of the 1770-XYC, with each unit subject to pre-shipment functional testing to confirm battery voltage, terminal integrity, and connector fit. All units are supplied with a 12-Month Warranty covering manufacturing defects and electrical performance, providing procurement teams with the confidence needed for both immediate replacement and strategic sparing programs.

The 1770-XYC operates within a mature, multi-layer automation platform that remains active across thousands of installed sites globally. At the control layer, the 1785-L40 and 1785-L80 PLC-5 processors serve as the primary execution engines, running ladder logic and structured programs that govern process sequences, interlocks, and regulatory control loops. The 1770-XYC ensures these processors retain their full program state across any power interruption, eliminating the need for cold-start re-initialization procedures that can consume hours of engineering time.

At the I/O layer, the 1771 chassis system provides the physical and electrical interface between the PLC-5 processor and field devices. Modules such as the 1771-IB16 discrete input, 1771-OB16 discrete output, 1771-IF4 analog input, and 1771-OF4 analog output populate the I/O racks, delivering signal conditioning and isolation for sensors, actuators, and transmitters across the plant floor. The integrity of the I/O configuration — including module addressing, scaling parameters, and alarm thresholds — is preserved by the 1770-XYC during power-off states.

At the communications layer, the 1770-KF2 Data Highway Plus communication interface module bridges the PLC-5 network to upstream SCADA systems and peer controllers. In multi-controller architectures, the 1785-L40B and 1785-L80B processors exchange MSG instructions over DH+ to coordinate production sequences across departments or process units. The 1770-XYC ensures that communication configuration tables and peer address mappings are retained without manual re-entry after a power cycle.

At the power layer, the 1771-P4S and 1771-P7 power supply modules provide regulated DC power to the I/O chassis, while the PLC-5 processor draws its operating power from the chassis backplane. The 1770-XYC supplements this architecture by providing independent memory backup power, decoupled from the main supply rail, ensuring that a power supply fault does not result in program loss at the processor level.

At the HMI layer, PanelView 550 and PanelView 900 terminals connected via DH+ provide operator interface capability, displaying real-time process values and alarm states sourced from the PLC-5 data tables. The continuity of these data tables — maintained by the 1770-XYC — ensures that HMI displays resume accurate process representation immediately upon system restart, without requiring operator re-entry of setpoints or configuration data.

The Allen-Bradley 1770-XYC finds application across a broad spectrum of industrial sectors where PLC-5 systems remain the established control platform. In manufacturing and assembly environments, PLC-5 controllers manage conveyor sequencing, robotic cell coordination, and quality inspection interlocks; the 1770-XYC ensures that production recipes and tooling parameters survive planned shutdowns and emergency stops without data loss.

In power generation and electrical distribution facilities, PLC-5 systems control switchgear sequencing, generator synchronization, and load shedding logic. Memory retention is critical in these environments because re-programming a protection relay or generator control sequence after a power event introduces unacceptable risk. The 1770-XYC eliminates this risk by maintaining the full program image in CMOS memory indefinitely.

In petrochemical and refining plants, PLC-5 controllers govern pump sequencing, valve control, and safety interlock systems. These applications demand that control logic remain intact through turnaround maintenance periods that may last days or weeks. The 1770-XYC supports extended offline retention, ensuring that the control system is ready to resume operation immediately when the plant returns to service.

In water and wastewater treatment facilities, PLC-5 systems manage dosing sequences, filtration cycles, and pump station control. The 1770-XYC preserves the PID tuning parameters and setpoint tables that operators have refined over years of operation, protecting the institutional knowledge embedded in the control system configuration.

In mining and minerals processing, PLC-5 controllers operate in harsh environments with frequent power fluctuations caused by large motor starts and variable load conditions. The 1770-XYC provides robust memory protection in these electrically noisy environments, ensuring that crusher control sequences, conveyor interlocks, and process control loops remain intact through power disturbances.

Q1: Is the 1770-XYC compatible with all PLC-5 processor variants, including the enhanced and ethernet models? The 1770-XYC is designed for the PLC-5 processor family, including standard, enhanced (E-series), and ethernet-capable variants such as the 1785-L40E and 1785-L80E. The battery slot interface is consistent across the PLC-5 processor faceplate design. Engineers should verify the specific processor documentation to confirm battery module compatibility for their installed variant, particularly for older or specialized processor configurations.

Q2: How does the 1770-XYC integrate into a preventive maintenance program for a multi-rack PLC-5 system? In a multi-rack PLC-5 architecture, each processor chassis requires its own 1770-XYC module. Maintenance programs should track battery installation dates and ambient operating temperatures, as elevated temperatures accelerate lithium cell discharge. NANKMOS recommends maintaining a strategic spare inventory of 1770-XYC modules to support immediate replacement when the processor's battery low indicator activates, minimizing the window of unprotected memory exposure. All replacement units supplied by NANKMOS are covered by a 12-Month Warranty.

Q3: What happens to the PLC-5 program if the 1770-XYC is not replaced before battery depletion? If the 1770-XYC battery depletes completely and the processor loses main power, the CMOS RAM contents — including the user program, data tables, and I/O configuration — will be lost. Recovery requires reloading the program from a backup source such as a 1784-KT programming terminal, a 6200 Series programming software backup file, or a 1770-XR EEPROM module if one is installed. This recovery process can require significant engineering time and introduces the risk of loading an outdated program version. Proactive 1770-XYC replacement is the most effective mitigation strategy.
