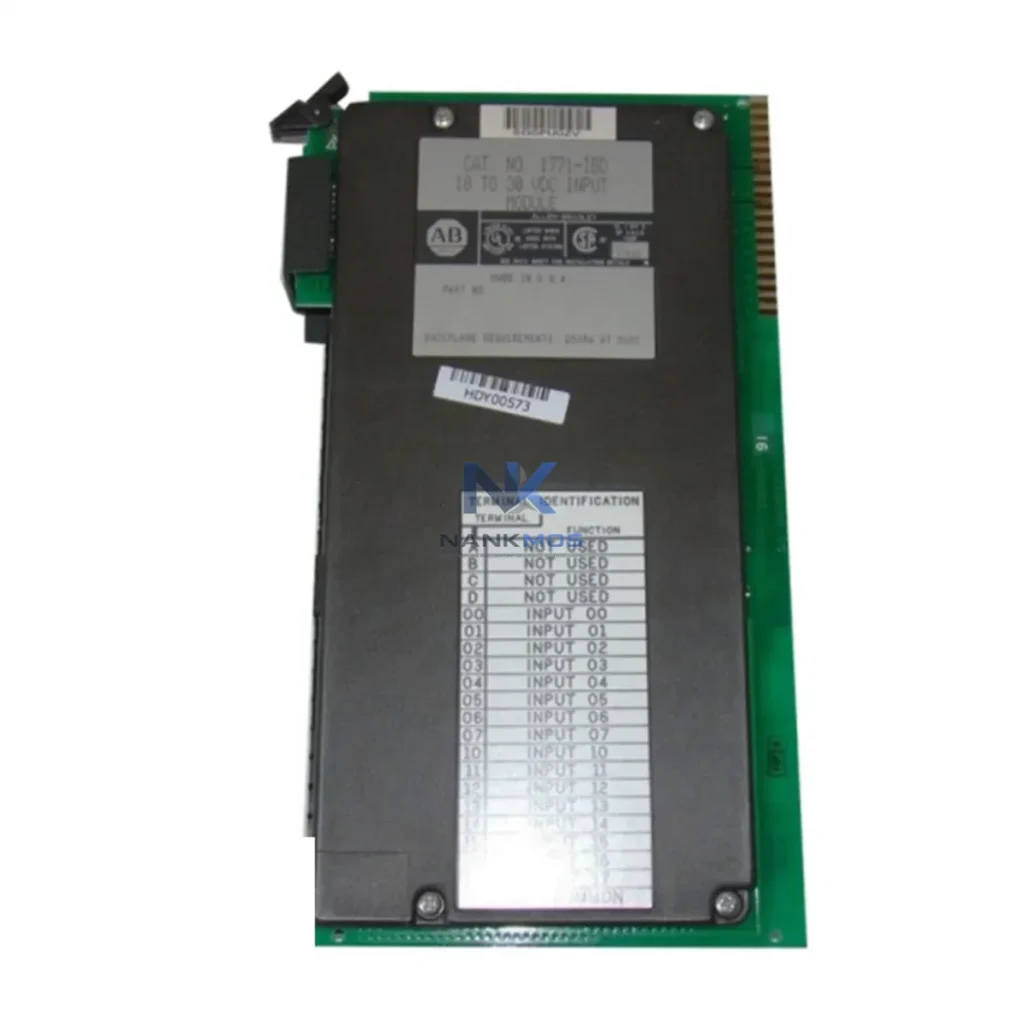

Allen-Bradley 1771-IB DC Input Module

Product Details

1771-IB Product Description

The Allen-Bradley 1771-IB is a 16-channel, 24VDC discrete input module engineered for the PLC-5 I/O chassis platform — one of Rockwell Automation's most enduring control architectures in continuous process, discrete manufacturing, and hybrid automation environments. Designed to interface directly with field-level sensors, proximity switches, pushbuttons, and limit switches, the 1771-IB serves as the foundational signal acquisition layer in a smart factory data chain that extends from the plant floor all the way to SCADA dashboards and enterprise MES systems.

In a connected factory architecture, the 1771-IB occupies the critical first node: it captures raw 24VDC discrete signals from field devices and delivers them into the PLC-5 backplane for real-time ladder logic processing. From there, processed data travels upstream through communication modules such as the 1771-KE or 1785-KE Data Highway Plus (DH+) interface, enabling the PLC-5 processor to exchange I/O status, alarm states, and diagnostic data with supervisory systems. When integrated with a ControlLogix gateway or a third-party protocol converter supporting Modbus TCP, EtherNet/IP, or PROFIBUS DP, the 1771-IB's field signals become accessible to modern SCADA platforms, historian databases, and cloud-based analytics engines — closing the loop between legacy discrete I/O and Industry 4.0 data infrastructure.

For facilities running mixed-generation control systems, the 1771-IB is frequently deployed alongside Allen-Bradley 1771-OBD DC output modules and 1771-IA AC input modules within the same 1771 I/O chassis, creating a unified, slot-addressable I/O bank that the PLC-5 processor scans deterministically. This deterministic scan cycle is essential for time-sensitive applications such as conveyor sequencing, press control, and packaging line synchronization, where input latency directly impacts throughput and safety interlock reliability.

The 1771-IB's role in a smart factory data flow begins at the sensor layer. Field devices — including inductive proximity sensors, photoelectric sensors, and mechanical limit switches — deliver 24VDC ON/OFF signals directly to the module's 16 input terminals. These signals are optically isolated and debounced before being presented to the PLC-5 processor's I/O scan table, ensuring clean, noise-immune data entry into the control logic.

Within the 1771 chassis, the 1771-IB coexists with complementary modules such as the 1771-OBD (DC output), 1771-IQ (AC/DC input), and 1771-ASB remote I/O adapter, which extends the chassis over Allen-Bradley's Remote I/O (RIO) network to a host PLC-5 processor located up to 10,000 feet away. This RIO architecture is widely used in large-footprint plants — automotive assembly, food and beverage lines, and water treatment facilities — where distributed I/O racks must communicate reliably with a centralized control room.

For SCADA and HMI integration, the PLC-5 processor communicates over Data Highway Plus (DH+) using modules like the 1785-KE or 1771-KE, making the 1771-IB's input states visible to FactoryTalk View SE, Wonderware InTouch, or Ignition SCADA. Operators can monitor individual channel states, track input transition counts, and configure alarm thresholds — all driven by the discrete signals the 1771-IB captures at the field level.

In modernization projects, the 1771-IB is frequently retained in service while a ControlLogix 1756-ENBT EtherNet/IP bridge or a third-party Modbus TCP gateway is added to the network, translating PLC-5 data table values — including 1771-IB input states — into standard industrial Ethernet packets. This allows existing 1771 I/O infrastructure to feed data to edge computing nodes, IoT platforms, and cloud-based predictive maintenance systems without requiring a full hardware replacement. The result is a cost-effective path to smart factory connectivity that preserves the reliability of proven Allen-Bradley discrete I/O hardware.

For applications requiring higher-density or mixed analog/discrete I/O, the 1771-IB is often deployed in combination with 1771-IFE analog input modules and 1771-OFE analog output modules within the same chassis, enabling the PLC-5 to manage both process variables and discrete interlocks from a single, unified I/O platform. This integration simplifies wiring, reduces panel footprint, and streamlines the SCADA tag database by consolidating all field signals under one processor's data table.

Legacy discrete I/O systems built around the 1771 platform frequently encounter data visibility challenges as plants transition toward smart manufacturing. The 1771-IB addresses several of the most common pain points:

Protocol Fragmentation: Many sites run a mix of DH+, RIO, DeviceNet, and EtherNet/IP networks. The 1771-IB's signals, once in the PLC-5 data table, can be bridged to any of these protocols via Rockwell's 1756-DHRIO or third-party gateways, eliminating the data silos that arise when legacy I/O cannot communicate with modern network infrastructure.

Remote Monitoring Gaps: Without visibility into individual input channel states, maintenance teams cannot diagnose field device failures remotely. By surfacing 1771-IB input data through SCADA and historian systems, engineers can track input transition rates, detect stuck contacts, and identify wiring faults from the control room — reducing unplanned downtime and mean time to repair (MTTR).

Production Line Transparency: In high-speed discrete manufacturing, every input transition represents a production event — a part detected, a door opened, a cycle completed. Logging 1771-IB input states to a historian via the PLC-5's DH+ connection enables cycle time analysis, OEE calculation, and bottleneck identification without adding new hardware to the line.

Alarm Tracking and Escalation: SCADA systems connected to the PLC-5 via DH+ can configure alarm thresholds on any 1771-IB input channel, enabling automated notifications when a sensor fails to actuate within an expected time window — a critical capability for safety interlock verification and regulatory compliance.

System Expansion: The 1771 chassis architecture supports up to 16 I/O slots, allowing the 1771-IB to be expanded with additional input, output, analog, and specialty modules as production requirements grow. Combined with RIO networking, a single PLC-5 processor can manage hundreds of 1771-IB channels distributed across multiple remote racks — providing a scalable, future-ready I/O infrastructure.

Q1: What communication protocols does the Allen-Bradley 1771-IB support for SCADA integration?The 1771-IB itself is a backplane I/O module and does not have an independent network port. Its input data resides in the PLC-5 processor's I/O data table, which is accessible over Data Highway Plus (DH+) via 1771-KE or 1785-KE communication modules, and over Remote I/O (RIO) via the 1771-ASB adapter. For EtherNet/IP or Modbus TCP connectivity, a protocol gateway such as the 1756-ENBT or a third-party converter is required. This makes the 1771-IB's field signals available to any SCADA, HMI, or MES platform that supports these standard industrial protocols.

Q2: How does the 1771-IB ensure network stability and signal integrity in noisy industrial environments?The 1771-IB incorporates optical isolation on all 16 input channels, separating field-side wiring from the backplane logic circuitry. This isolation prevents ground loops, transient voltage spikes, and EMI from corrupting the PLC-5's I/O scan data. The module is rated for operation in standard industrial temperature and humidity ranges, and its backplane connector provides a mechanically secure, vibration-resistant interface to the 1771 chassis — ensuring reliable signal transmission even in high-vibration environments such as press rooms and conveyor systems.

Q3: Can the 1771-IB be used in a remote I/O configuration for distributed smart factory deployments?Yes. When paired with a 1771-ASB remote I/O adapter in the same chassis, the 1771-IB's input data is transmitted over Allen-Bradley's Remote I/O (RIO) network to a host PLC-5 processor at distances up to 10,000 feet. This makes the 1771-IB well-suited for distributed I/O architectures in large plants, where field devices are located far from the main control panel. The RIO network supports deterministic, high-speed data transfer, ensuring that input state changes are reflected in the host processor's data table within the configured RIO scan time.

Q4: What does the 12-month warranty cover, and is the module tested before shipment?Every Allen-Bradley 1771-IB unit supplied by NANKMOS is function-tested prior to dispatch, verifying all 16 input channels, backplane communication, and LED status indicators. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with appropriate ESD protection and packaging to prevent transit damage. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
