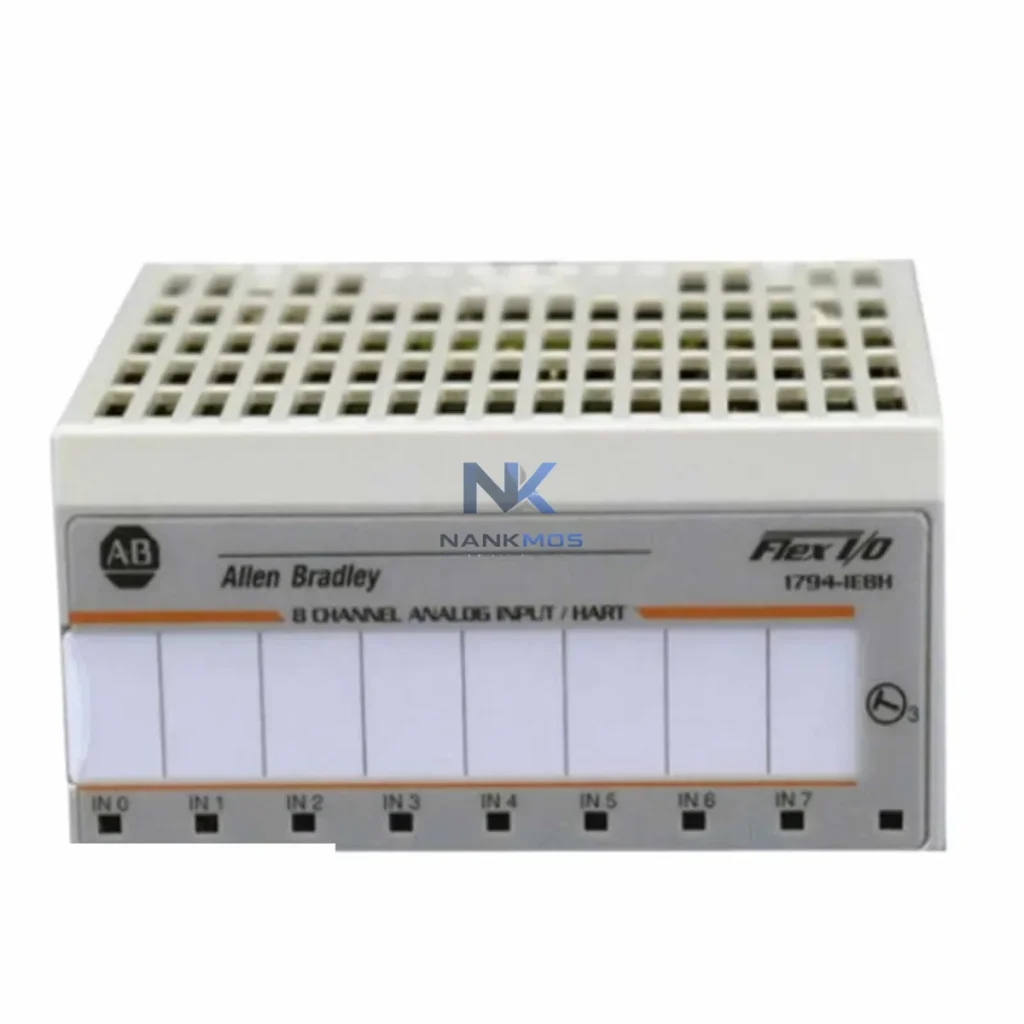

Allen-Bradley 1794-IE8H Analog Input Module

Product Details

1794-IE8H Product Description

The Allen-Bradley 1794-IE8H is an 8-channel analog input module engineered for the FLEX I/O platform, delivering precision signal acquisition and seamless data integration across modern industrial network architectures. Designed for demanding smart factory environments, the 1794-IE8H bridges field-level instrumentation — including pressure transmitters, temperature sensors, flow meters, and process analyzers — with upper-layer control and supervisory systems through a robust, protocol-ready communication backbone.

In a connected factory data chain, the 1794-IE8H sits at the critical junction between physical process signals and digital control logic. Analog signals from field sensors are conditioned and digitized within the module, then transmitted over the FLEX I/O backplane to the resident adapter — such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter — which forwards real-time process values upstream to the ControlLogix or CompactLogix PLC controller. From there, data flows through the plant network to SCADA platforms, historian servers, and HMI terminals, enabling operators to monitor process variables, configure alarm thresholds, and execute remote diagnostic routines without interrupting production.

The 1794-IE8H operates as the analog signal entry point in a layered industrial data architecture. At the field level, sensors and transmitters — including thermocouple assemblies, RTD probes, 4–20 mA pressure transducers, and ultrasonic flow meters — feed raw analog signals into the module's eight input channels. The 1794-IE8H performs high-resolution analog-to-digital conversion and presents structured process data on the FLEX I/O backplane.

The backplane connects to a communication adapter that determines the network protocol for upstream data delivery. When paired with the 1794-AENT EtherNet/IP adapter, the module integrates directly into a standard Ethernet infrastructure, enabling high-speed cyclic data exchange with a ControlLogix L7x or CompactLogix L3x controller. For legacy installations, the 1794-ADN DeviceNet adapter or 1794-ACN15 ControlNet adapter provides backward-compatible connectivity to existing plant networks without requiring infrastructure replacement.

At the controller level, the ControlLogix PLC processes the analog input data, executes PID control loops, and generates output commands to downstream actuators and drives — including PowerFlex 525 or PowerFlex 755 variable frequency drives — that regulate motor speed, pump flow, and valve position based on real-time sensor feedback. The controller simultaneously forwards process data over the plant Ethernet backbone to the SCADA layer.

SCADA platforms such as FactoryTalk View SE or third-party systems like Ignition by Inductive Automation receive the structured data stream and present it on operator HMI panels — including PanelView Plus 7 terminals — as trend charts, process mimics, and alarm dashboards. Alarm conditions detected by the 1794-IE8H — such as signal over-range, wire-break detection, or channel fault — are propagated through the data chain to the SCADA alarm manager, triggering notifications to maintenance personnel and logging events to the historian for post-incident analysis.

For remote diagnostic capability, the EtherNet/IP network path enables engineers to access module status, channel diagnostics, and configuration parameters from remote engineering workstations or mobile devices via FactoryTalk Remote Access or VPN-secured connections. This eliminates the need for on-site intervention during routine diagnostics, reducing mean time to repair and supporting predictive maintenance strategies. Edge gateway devices — such as the Moxa MGate MB3170 or Cisco IE 4000 industrial switch — can further aggregate data from multiple FLEX I/O drops and forward consolidated datasets to cloud analytics platforms or MES systems for production KPI tracking and OEE calculation.

In multi-drop FLEX I/O installations, the 1794-IE8H can be combined with digital I/O modules such as the 1794-IB16 16-channel digital input module and analog output modules like the 1794-OE4 on the same backplane, creating a compact, mixed-signal remote I/O node that handles both discrete and analog process variables within a single enclosure. This modular architecture supports system expansion without rewiring, allowing engineers to add channels incrementally as production lines scale.

Protocol Fragmentation: Many industrial sites operate a mix of legacy DeviceNet, ControlNet, and modern EtherNet/IP networks. The 1794-IE8H's adapter-agnostic backplane design allows the same analog input module to serve across all three network types by simply swapping the communication adapter, eliminating the need to replace field wiring or module hardware when upgrading network infrastructure.

Data Silos and Process Visibility: Analog signals that previously terminated at local panel meters or standalone controllers can be integrated into the plant-wide data network through the 1794-IE8H, converting isolated process measurements into structured, network-accessible data points. This enables centralized monitoring of distributed process variables — temperature, pressure, flow, and level — from a single SCADA console, eliminating blind spots in production visibility.

Remote Monitoring and Alarm Management: The 1794-IE8H supports per-channel alarm configuration, including high/low setpoints and rate-of-change detection, which are communicated in real time to the SCADA alarm system. Remote operators receive immediate notification of process deviations without requiring physical presence at the field panel, supporting 24/7 unmanned monitoring strategies in smart factory deployments.

System Scalability: The FLEX I/O platform supports up to eight modules per adapter, and multiple adapters can be networked across a plant. As production capacity grows, additional 1794-IE8H modules can be added to existing backplanes or new remote I/O drops can be commissioned without modifying the controller program structure, protecting the capital investment in existing automation infrastructure.

Shipment and Quality Assurance: Every 1794-IE8H unit supplied by NANKMOS undergoes functional verification prior to dispatch, including channel continuity checks and communication handshake testing. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. In-stock inventory ensures rapid order fulfillment to support urgent project timelines and unplanned maintenance requirements.

Q1: What communication protocols does the 1794-IE8H support, and how is the protocol selected? The 1794-IE8H itself is a backplane-resident analog input module and does not contain an onboard network interface. Protocol selection is determined by the FLEX I/O communication adapter installed on the same backplane. Pairing with the 1794-AENT provides EtherNet/IP connectivity; the 1794-ADN enables DeviceNet; and the 1794-ACN15 supports ControlNet. This architecture allows the same 1794-IE8H module to operate across different network topologies without hardware modification to the I/O module itself.

Q2: How does the 1794-IE8H handle communication latency in real-time process control applications? The 1794-IE8H performs analog-to-digital conversion at the module level and presents data on the FLEX I/O backplane at the adapter's configured RPI (Requested Packet Interval). For EtherNet/IP deployments, RPI values as low as 1 ms are achievable, supporting time-sensitive control loops. For less latency-critical applications, longer RPI values reduce network bandwidth consumption. The module's onboard signal conditioning ensures that digitized values are stable and noise-filtered before transmission, minimizing false triggers in alarm and control logic.

Q3: Can the 1794-IE8H be integrated with third-party SCADA and HMI systems outside the Rockwell Automation ecosystem? Yes. When connected via EtherNet/IP, the 1794-IE8H's data is accessible to any SCADA or HMI platform that supports the EtherNet/IP or CIP protocol stack, including Ignition by Inductive Automation, Siemens WinCC OA, Wonderware InTouch, and GE iFIX. OPC-UA gateway devices can also bridge the EtherNet/IP data to OPC-UA clients, enabling integration with cloud analytics platforms, MES systems, and enterprise ERP environments without proprietary middleware.

Q4: What warranty and post-sale support does NANKMOS provide for the 1794-IE8H? All 1794-IE8H units supplied by NANKMOS carry a 12-month warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Pre-shipment functional testing is performed on every unit to verify channel integrity and communication handshake. For technical support, replacement coordination, or RFQ inquiries, contact NANKMOS at [email protected] or +86 18359268345. Expedited replacement is available for in-warranty failures to minimize production downtime.
