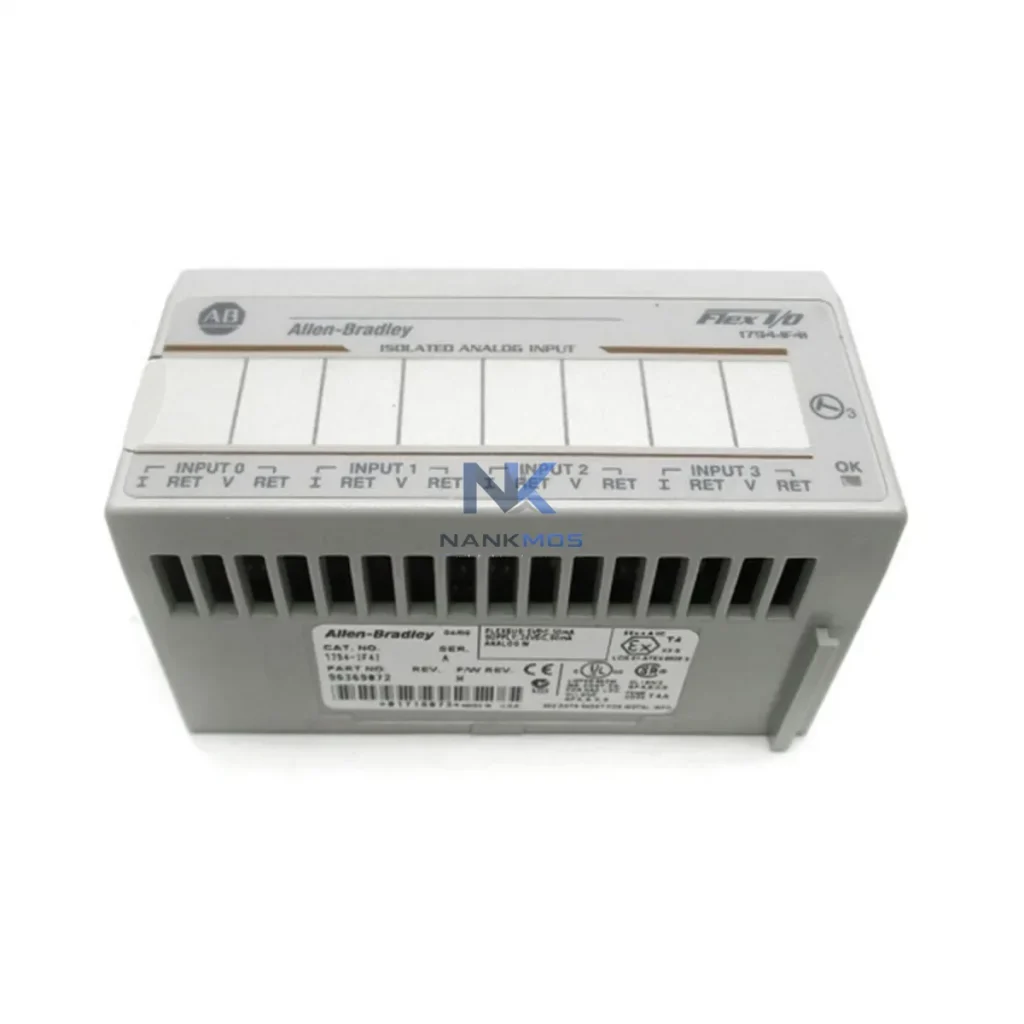

Allen-Bradley 1794-IF4I Analog Input Module

Product Details

1794-IF4I Product Description

The Allen-Bradley 1794-IF4I is a 4-channel isolated analog input module engineered for the FLEX I/O platform — one of Rockwell Automation's most widely deployed distributed I/O architectures in smart manufacturing environments. Designed to bridge the gap between field-level instrumentation and upper-layer control systems, the 1794-IF4I delivers high-resolution signal acquisition, channel-to-channel isolation, and seamless integration into EtherNet/IP and ControlNet-based automation networks. Whether deployed in a discrete manufacturing cell, a continuous process line, or a hybrid energy management system, this module serves as a critical data-entry node in the industrial data chain — converting analog signals from sensors, transmitters, and transducers into structured digital data that PLCs, SCADA platforms, and HMI systems can act upon in real time.

In modern smart factory architectures, reliable analog input is not merely a hardware function — it is the foundation of data-driven decision-making. The 1794-IF4I supports current (4–20 mA) and voltage (±10 V, 0–10 V) input ranges, making it compatible with the vast majority of industrial field instruments including pressure transmitters, flow meters, temperature sensors, and level transducers. Its isolated channel design eliminates ground loop interference, a common source of signal degradation in electrically noisy production environments such as motor drive rooms, welding cells, and high-voltage switchgear areas.

In a fully connected smart factory, the 1794-IF4I operates as the analog signal gateway at the field layer, feeding real-time process data upward through a structured data chain. Consider a typical energy monitoring and process control scenario: field-mounted pressure transmitters and thermocouple-based temperature sensors output 4–20 mA signals that are wired directly into the 1794-IF4I's isolated input channels. The module, mounted on a FLEX I/O rail alongside digital I/O modules such as the 1794-OB16 (16-channel digital output) and the 1794-IB16 (16-channel digital input), communicates upstream via a 1794-AENT EtherNet/IP adapter — translating field-level analog data into structured EtherNet/IP packets that travel across the plant network backbone.

At the control layer, a ControlLogix 1756-L73 PLC receives the digitized analog values via the EtherNet/IP network, executing ladder logic or function block programs that compare real-time readings against setpoints. When a process variable drifts beyond tolerance — for example, a tank pressure exceeding its safe operating range — the PLC triggers an alarm output through a 1756-OB16I digital output module, simultaneously logging the event to the FactoryTalk Historian server for traceability. Operators monitoring the line via a PanelView Plus 7 HMI terminal see live analog trends, alarm banners, and historical charts without any manual data entry.

For facilities running variable-speed drives, the 1794-IF4I also plays a role in closed-loop speed and torque feedback. Analog output signals from PowerFlex 525 or PowerFlex 755 variable frequency drives — representing actual motor speed or output current — can be looped back into the 1794-IF4I for independent verification, enabling the PLC to cross-check drive feedback against encoder data and detect mechanical anomalies before they escalate into unplanned downtime. This closed-loop analog monitoring strategy is increasingly common in energy-intensive industries such as water treatment, chemical processing, and automotive stamping.

At the network edge, an Allen-Bradley Stratix 5700 managed industrial Ethernet switch provides the Layer 2 network infrastructure that connects the FLEX I/O adapter, the ControlLogix backplane, the HMI terminal, and the SCADA server into a single, deterministic EtherNet/IP network. VLAN segmentation on the Stratix 5700 isolates control traffic from IT traffic, ensuring that analog data from the 1794-IF4I reaches the PLC with minimal latency — typically sub-millisecond on a properly configured EtherNet/IP network. For remote sites or multi-building plant layouts, an Allen-Bradley 1783-NATR NAT router extends the EtherNet/IP network across WAN links, enabling remote SCADA access and remote diagnostics without exposing the control network to the corporate IT domain.

In SCADA-centric deployments, the analog data collected by the 1794-IF4I is ultimately visualized in platforms such as Ignition by Inductive Automation or Rockwell's FactoryTalk View SE, where engineers configure trend displays, alarm dashboards, and KPI widgets that aggregate data from dozens of FLEX I/O nodes across the plant floor. The 1794-IF4I's 16-bit resolution ensures that even small process deviations — a 0.1 bar pressure fluctuation or a 0.5°C temperature drift — are captured with sufficient fidelity for process optimization and regulatory compliance reporting.

Many industrial facilities still operate with legacy analog instrumentation that was never designed for networked data collection. Standalone 4–20 mA loops, local panel meters, and paper-based logging create data silos that prevent plant managers from achieving real-time visibility into process performance. The 1794-IF4I directly addresses this challenge by providing a standards-compliant, network-ready analog input interface that integrates legacy field instruments into modern EtherNet/IP and ControlNet architectures without requiring instrument replacement.

Protocol fragmentation is another common pain point in brownfield automation sites. Facilities that have grown organically over decades often have a mix of DeviceNet, ControlNet, and EtherNet/IP segments, each managed by different generations of Allen-Bradley hardware. The FLEX I/O platform's adapter-based architecture — where the same 1794-IF4I module can be paired with a 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), or 1794-ADN (DeviceNet) adapter — means that the module can be deployed across all three network types without hardware changes, dramatically simplifying multi-protocol site upgrades.

Remote monitoring and diagnostics are increasingly mandatory in facilities where on-site staffing is limited or where process uptime requirements are stringent. The 1794-IF4I supports Rockwell's integrated diagnostics framework: channel-level fault detection, open-wire detection, and over-range alarms are all reported back to the PLC and SCADA system in real time, enabling maintenance teams to identify failing sensors or wiring faults from the control room — or remotely via VPN — before they cause process shutdowns. This capability is particularly valuable in hazardous or hard-to-access installation locations such as offshore platforms, chemical storage areas, or high-voltage substations.

Production line transparency is achieved by combining the 1794-IF4I's high-resolution analog data with the plant's MES or ERP system via OPC-UA or FactoryTalk Gateway middleware. Real-time analog trends — energy consumption, flow rates, temperature profiles — become KPIs visible to production managers, quality engineers, and supply chain planners, enabling data-driven decisions that reduce waste, improve yield, and support continuous improvement initiatives such as Six Sigma and Lean Manufacturing.

Q1: What communication protocols does the 1794-IF4I support, and is it compatible with EtherNet/IP networks?The 1794-IF4I itself is a passive analog input module; its network protocol is determined by the FLEX I/O adapter it is paired with. When used with the 1794-AENT adapter, it communicates via EtherNet/IP — the most widely used industrial Ethernet protocol in Rockwell Automation environments. ControlNet compatibility is available via the 1794-ACN15 adapter, and DeviceNet via the 1794-ADN adapter. This adapter-based flexibility makes the 1794-IF4I one of the most protocol-versatile analog input modules in the Allen-Bradley portfolio.

Q2: How does the 1794-IF4I handle network latency and real-time data transmission in high-speed process control applications?The 1794-IF4I communicates with the FLEX I/O adapter via the module's internal backplane bus, which operates independently of the plant Ethernet network. The adapter then transmits data to the PLC via EtherNet/IP implicit messaging (Class 1 connections), which is optimized for deterministic, cyclic data exchange. On a properly configured EtherNet/IP network with a Stratix managed switch, round-trip latency from analog input to PLC scan is typically under 10 ms, well within the requirements of most process control and energy monitoring applications.

Q3: Can the 1794-IF4I be integrated with third-party SCADA systems such as Ignition or Wonderware?Yes. The 1794-IF4I's data is accessible to any SCADA platform that supports EtherNet/IP or OPC-DA/OPC-UA connectivity. Ignition by Inductive Automation includes a native Allen-Bradley EtherNet/IP driver that can read FLEX I/O analog data directly from the ControlLogix or CompactLogix PLC tag database. Wonderware (AVEVA) System Platform similarly supports Allen-Bradley I/O via its DAServer architecture. No additional hardware or middleware is required for standard SCADA integration.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment?Every 1794-IF4I unit supplied by NANKMOS undergoes functional testing prior to shipment, including channel-level analog signal verification across the full input range (4–20 mA and voltage modes), isolation integrity checks, and communication handshake validation with a FLEX I/O adapter. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped in anti-static packaging with documentation. For bulk orders or project-specific requirements, expedited testing reports and extended warranty options are available upon request — contact [email protected] for details.
