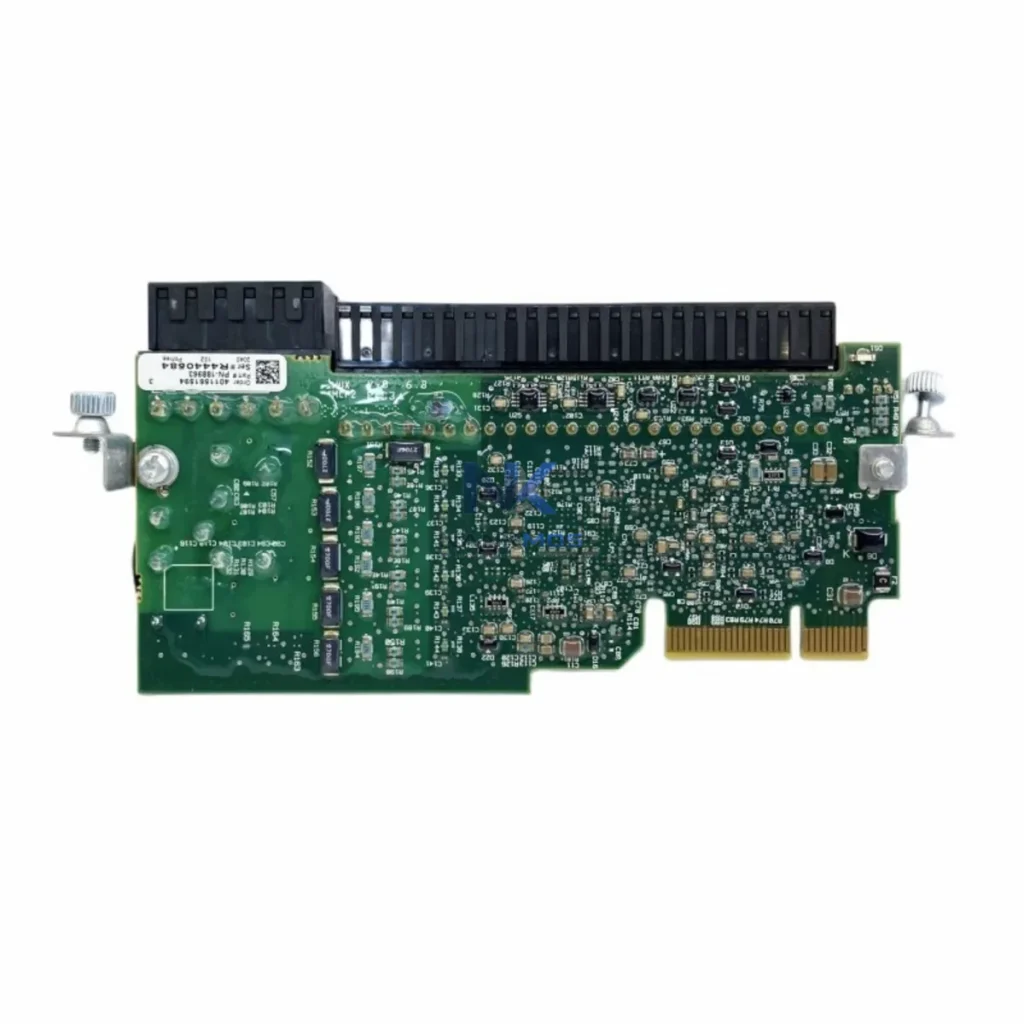

Allen-Bradley 20-750-S Safety Torque-Off Module

Product Details

20-750-S Product Description

The Allen-Bradley 20-750-S Safety Torque-Off (STO) Module is a certified safety option card engineered for the PowerFlex 750 Series AC drive platform. Rated to SIL 2 (IEC 62061) and PLd (ISO 13849-1), it delivers hardware-enforced safe torque removal without the need for external contactors — enabling leaner, faster, and more diagnostically transparent safety architectures across modern smart factory environments. Whether integrated into a standalone drive cabinet or embedded within a distributed motion control network, the 20-750-S provides the foundational safety data link that connects field-level drive protection to plant-wide SCADA visibility and remote diagnostic systems.

In a fully connected smart factory, the 20-750-S sits at the intersection of field-level safety and plant-wide data transparency. The data flow begins at the sensor and actuator layer: safety light curtains, emergency stop buttons, and door interlock switches feed hardwired STO signals directly into the 20-750-S module installed in the PowerFlex 755 or PowerFlex 753 drive. The moment a safety event is detected, the module cuts torque to the motor within the certified response time — no software delay, no contactor wear.

At the control layer, a GuardLogix 5580 safety PLC monitors the STO status via the EtherNet/IP safety network. The GuardLogix controller aggregates safety state data from multiple drives across the production line, correlating STO events with process data from remote I/O modules such as the POINT Guard I/O 1734-IB8S. This consolidated safety data is then passed upstream to the FactoryTalk View SE SCADA/HMI system, where operators receive real-time alarm notifications, drive status dashboards, and trend visualizations — all without leaving the control room.

For multi-axis motion applications, the 20-750-S integrates seamlessly alongside the 20-750-ENETR EtherNet/IP dual-port option card, enabling the PowerFlex 750 drive to participate in a ring-topology industrial Ethernet network. Managed industrial switches — such as those in the Stratix 5700 series — maintain network redundancy and deterministic packet delivery, ensuring that safety status signals and diagnostic data reach the SCADA layer with minimal latency even under heavy network load.

Edge-level data aggregation is handled by an industrial edge gateway, which collects drive diagnostic parameters — output frequency, DC bus voltage, fault codes, and STO activation history — and forwards them to cloud-based or on-premise analytics platforms. This edge-to-cloud data pipeline enables predictive maintenance workflows: maintenance engineers can remotely review drive health trends, schedule preventive interventions, and validate STO response times without physical access to the panel. The 20-750-S thus becomes not just a safety device, but a live data node in the plant's industrial IoT architecture.

On the power and signal conditioning side, the 20-750-S operates within a drive system that typically includes a 1606-XLP industrial power supply for stable 24 VDC auxiliary power, and may be paired with a 20-750-DNET DeviceNet option card in legacy hybrid networks where older field devices still communicate over DeviceNet. For plants transitioning to unified EtherNet/IP architectures, the 20-750-S supports phased migration — the STO function remains hardware-enforced and protocol-agnostic, while the surrounding network infrastructure is upgraded incrementally.

Variable frequency drives across the facility — including other PowerFlex 750 units managing conveyor motors, pump stations, and compressor drives — can be monitored collectively through FactoryTalk AssetCentre, which logs STO events, firmware versions, and configuration changes for audit and compliance purposes. This system-wide visibility transforms individual drive safety events into actionable plant intelligence, supporting both regulatory compliance and continuous improvement initiatives.

Protocol Fragmentation: Many automation sites operate mixed safety architectures — some drives use hardwired STO, others rely on safety fieldbus protocols. The 20-750-S resolves this by providing a hardware STO interface that is protocol-agnostic at the field level, while the PowerFlex 750's option card architecture allows simultaneous installation of communication cards (EtherNet/IP, DeviceNet, PROFIBUS) to bridge legacy and modern network layers without replacing the drive.

Data Silos and Production Transparency: Without a connected safety module, STO events are invisible to SCADA and MES systems — they appear only as unplanned downtime. The 20-750-S, integrated with GuardLogix and FactoryTalk View SE, surfaces every STO activation as a timestamped, tagged event in the historian, enabling root-cause analysis, OEE calculation, and production loss reporting at the line level.

Remote Monitoring and Alarm Tracking: Distributed production sites — where a single engineering team manages drives across multiple buildings or campuses — benefit from the 20-750-S's integration with remote diagnostic tools. Drive fault codes, STO status, and safety relay states are accessible via FactoryTalk Remote Access or VPN-connected HMI terminals, eliminating the need for on-site inspection for first-level fault diagnosis.

System Scalability: As production lines expand, additional PowerFlex 750 drives with 20-750-S modules can be added to the EtherNet/IP safety network without architectural redesign. The GuardLogix safety PLC supports incremental I/O expansion via 1734 POINT I/O modules, and the Stratix managed switch infrastructure scales to accommodate additional network nodes — ensuring that safety data coverage grows in step with the physical plant.

Q1: What is the STO response time of the 20-750-S, and does network latency affect it?The 20-750-S achieves STO activation through a hardwired signal path, independent of any fieldbus or EtherNet/IP communication. The safety response time meets SIL 2 / PLd requirements as defined in EN 61800-5-2. Network latency on the EtherNet/IP layer affects only diagnostic and status reporting — it has no impact on the hardware STO function itself.

Q2: Is the 20-750-S compatible with both PowerFlex 753 and PowerFlex 755 drives?Yes. The 20-750-S is designed for the PowerFlex 750 Series option card architecture, which is shared across the PowerFlex 753 and PowerFlex 755 platforms. It occupies a dedicated option card slot and is configured via the drive's parameter set within the Studio 5000 / RSLogix 5000 programming environment.

Q3: Can the 20-750-S be integrated into a GuardLogix safety PLC network for centralized safety monitoring?Yes. When combined with the 20-750-ENETR EtherNet/IP option card, the PowerFlex 750 drive can exchange safety status data with a GuardLogix 5580 controller over a CIP Safety network. This enables centralized safety logic, coordinated multi-drive STO commands, and full integration with FactoryTalk View SE for SCADA-level alarm management and safety event logging.

Q4: What pre-shipment testing and warranty coverage does NANKMOS provide for the 20-750-S?Every 20-750-S unit supplied by NANKMOS undergoes pre-shipment functional verification to confirm STO signal integrity and option card communication. All units are covered by a 12-Month Warranty from the date of delivery. In-stock units are available for immediate dispatch, with lead times confirmed at the time of order. For volume requirements or urgent project timelines, contact [email protected] or +86 18359268345.
