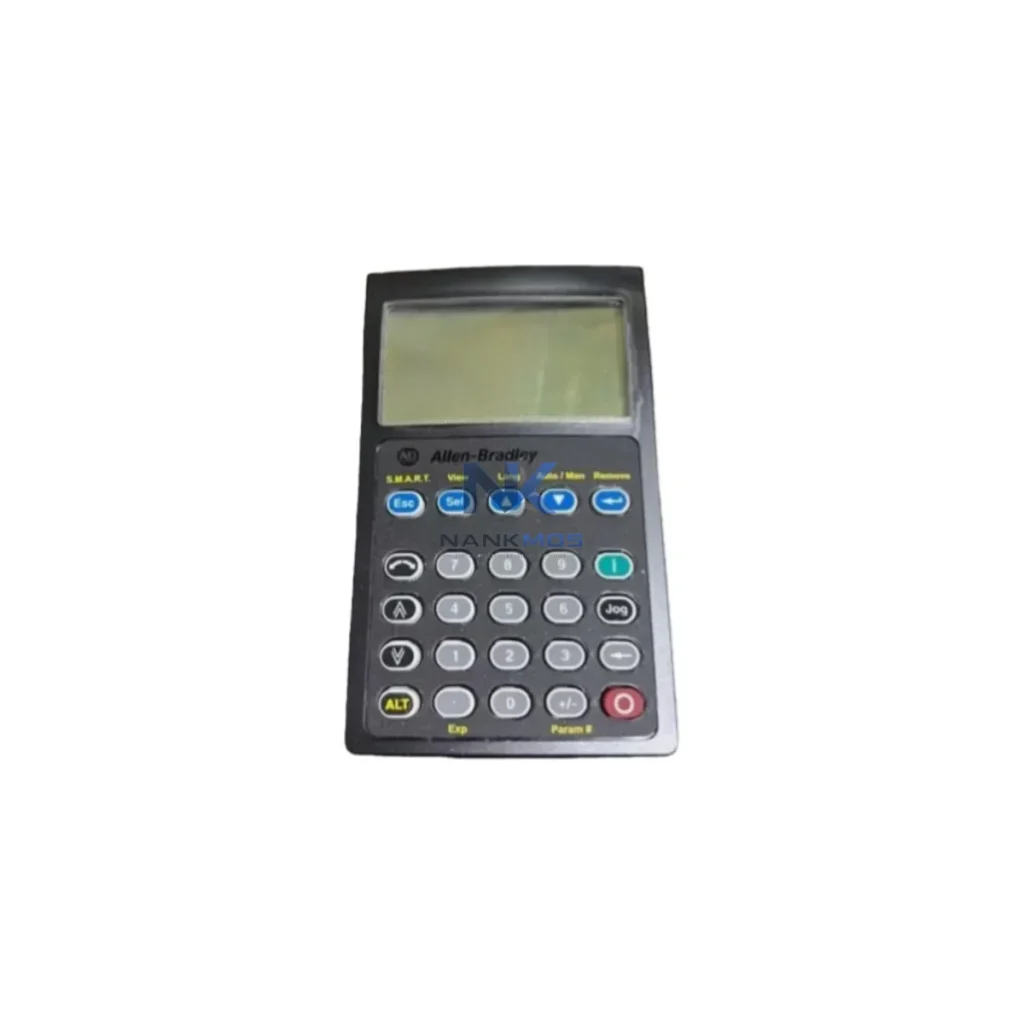

Allen-Bradley 20-HIM-A3 Human Interface Module

Product Details

20-HIM-A3 Product Description

The Allen-Bradley 20-HIM-A3 Human Interface Module is engineered as a precision operator interface within the Rockwell Automation PowerFlex drive ecosystem. Rather than functioning as a standalone accessory, the 20-HIM-A3 occupies a critical position in the HMI layer of a layered industrial control architecture — bridging the gap between the control layer, the drive execution layer, and the maintenance layer in a unified, coherent system design.

In a typical PowerFlex-based automation platform, the 20-HIM-A3 connects directly to the DPI peripheral port of drives such as the PowerFlex 40, PowerFlex 70, PowerFlex 700, and PowerFlex 750-Series variable frequency drives. This plug-in architecture eliminates the need for external wiring or auxiliary power, reducing panel complexity and commissioning time. The DPI bus also enables the 20-HIM-A3 to coexist with other DPI peripherals — including the 20-COMM-E EtherNet/IP communication adapter and the 20-COMM-D DeviceNet adapter — allowing simultaneous network connectivity and local operator access without hardware conflict.

At the control layer, the 20-HIM-A3 integrates seamlessly with ControlLogix and CompactLogix programmable automation controllers (PACs) operating over EtherNet/IP or DeviceNet. Engineers can use the HIM to locally verify drive parameter sets that have been downloaded from Studio 5000 Logix Designer, confirming that speed references, acceleration/deceleration ramps, and fault response configurations align with the PLC program logic. This local verification capability is especially valuable during initial commissioning and post-maintenance restart sequences, where confirming drive state before enabling the control loop is a standard engineering practice.

The parameter copy function of the 20-HIM-A3 supports upload and download of complete drive parameter sets. In multi-drive installations — such as conveyor systems, pump stations, or HVAC air-handling units — this feature allows a single HIM to replicate a validated parameter set across multiple PowerFlex 40P or PowerFlex 400 drives, dramatically reducing commissioning time and eliminating manual re-entry errors. Combined with the 20-HIM-H10 remote-mount cable and panel-mount bezel kit, the 20-HIM-A3 can be positioned on the control cabinet door for ergonomic operator access while the drive remains mounted in the back panel — a configuration widely adopted in water treatment, packaging, and material handling installations.

From a signal flow perspective, the 20-HIM-A3 reads and displays real-time drive output data — including output frequency, output current, DC bus voltage, and fault codes — directly from the drive's internal data table via the DPI bus. This live diagnostic visibility supports rapid fault isolation without requiring a laptop or software connection, reducing mean time to repair (MTTR) in production environments. When integrated with a PowerFlex 700S high-performance drive in a closed-loop vector control application, the HIM provides direct access to encoder feedback parameters and torque reference values, enabling precise tuning adjustments at the machine level.

For redundancy-conscious architectures, the 20-HIM-A3 complements the broader PowerFlex system by providing a local fallback interface when network communication is interrupted. In EtherNet/IP-connected systems where the primary speed reference originates from a ControlLogix L7x controller, the HIM allows operators to switch to local control mode and maintain process continuity during network diagnostics or PLC firmware updates — a capability that directly supports high-availability process designs in chemical, oil and gas, and power generation facilities.

The 20-HIM-A3 also supports integration with Allen-Bradley PanelView Plus HMI terminals at the supervisory layer. While the PanelView provides the graphical SCADA-level overview, the 20-HIM-A3 serves as the drive-level diagnostic and parameter interface — a two-tier HMI architecture that separates process visualization from drive configuration, improving both operator clarity and maintenance efficiency. This layered approach is consistent with ISA-88 and ISA-95 automation hierarchy principles, ensuring that each interface layer serves a defined and non-overlapping function.

All units supplied by NANKMOS are sourced from verified distribution channels, subjected to pre-shipment functional inspection, and covered by a 12-Month Warranty from the date of shipment. In-stock availability supports short lead times for MRO procurement, capital project builds, and emergency replacement scenarios across global industrial facilities.

Manufacturing & Assembly Lines: In automotive and discrete manufacturing environments, the 20-HIM-A3 is deployed on PowerFlex drives controlling conveyor belts, robotic transfer units, and spindle drives. Local parameter access via the HIM enables maintenance technicians to adjust acceleration profiles and verify fault history without interrupting the production schedule or requiring remote PLC access.

Water & Wastewater Treatment: Pump station and aeration basin applications rely on PowerFlex 40 and PowerFlex 700 drives for variable-speed pump control. The 20-HIM-A3 provides operators with direct access to flow-rate-correlated speed references and enables local manual override during SCADA maintenance windows, ensuring uninterrupted process control in critical infrastructure environments.

Power Generation & Utilities: In auxiliary drive systems for turbine cooling fans, boiler feed pumps, and induced draft fans, the 20-HIM-A3 supports local commissioning and parameter verification against OEM drive specifications. Its IP66-rated remote-mount configuration is particularly suited to harsh electrical room environments where panel-door mounting is required for operator safety.

Oil, Gas & Petrochemical: Wellhead pump drives, compressor control panels, and pipeline booster stations use PowerFlex drives in hazardous-area-adjacent control cabinets. The 20-HIM-A3 enables local drive diagnostics and parameter backup — critical for facilities where remote access is restricted by cybersecurity policy or physical isolation requirements.

Mining & Metals: Conveyor drives, crusher motor controls, and hoist systems in mining operations demand robust, reliable operator interfaces. The 20-HIM-A3's parameter copy function supports rapid drive replacement in remote mine sites where minimizing downtime is operationally and economically critical.

Packaging & Material Handling: High-cycle packaging lines with multiple PowerFlex drives benefit from the 20-HIM-A3's ability to standardize parameter sets across all drives in a line, ensuring consistent speed profiles, torque limits, and fault responses across the entire packaging architecture.

Q1: Is the 20-HIM-A3 compatible with all PowerFlex drive families, and can it be shared between multiple drives? The 20-HIM-A3 is compatible with PowerFlex 4, 40, 40P, 400, 70, 700, 700H, 700S, and 750-Series drives via the DPI peripheral port. While it is physically designed for single-drive connection at any given time, it can be disconnected and reconnected to different drives for parameter upload/download operations — making it a portable commissioning and maintenance tool across a multi-drive installation. For permanent multi-drive HMI access, a networked PanelView Plus terminal connected via EtherNet/IP is the recommended supervisory solution.

Q2: Can the 20-HIM-A3 be used for remote-mount panel-door installation, and what accessories are required? Yes. The 20-HIM-A3 supports remote-mount installation using the 20-HIM-H10 DPI cable (available in 1 m and 3 m lengths) and the corresponding panel-mount bezel kit. This configuration achieves an IP66 protection rating for the HIM face, suitable for wash-down and dusty industrial environments. The drive itself remains in its standard IP20 or IP54 enclosure in the back panel, while the HIM is accessible on the cabinet door for ergonomic operator interaction.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? All 20-HIM-A3 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units undergo pre-shipment inspection to verify DPI communication integrity and display functionality. In-stock units are available for same-week dispatch, supporting both planned capital project timelines and urgent MRO replacement requirements. For volume procurement or project-specific lead time commitments, contact NANKMOS directly at [email protected] or +86 18359268345.
