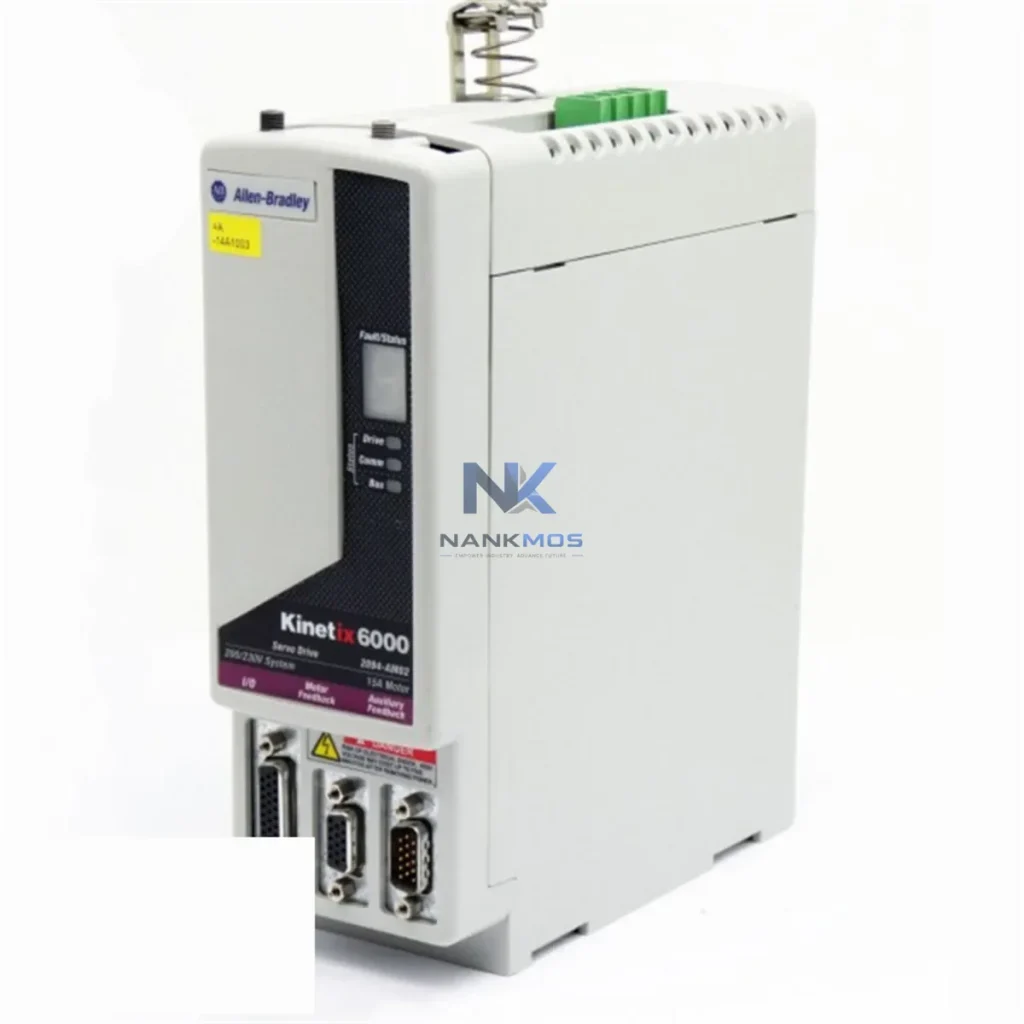

Allen-Bradley 2094-AM02 Servo Drive Axis Module

Product Details

2094-AM02 Product Description

The Allen-Bradley 2094-AM02 is a high-performance servo drive axis module within the Kinetix 6000 multi-axis drive system, engineered to deliver precise motion control and measurable energy efficiency across demanding industrial production environments. Designed for shared DC bus architecture, the 2094-AM02 enables regenerative energy recovery between axes, significantly reducing net power consumption on coordinated multi-axis production lines. Whether deployed in automotive assembly, packaging machinery, material handling conveyors, or precision CNC machining centers, this axis module delivers the torque density, thermal stability, and communication transparency that modern smart factories require.

Operating within the Kinetix 6000 platform, the 2094-AM02 integrates seamlessly with the 2094-BC01-M01-S (IAM — Integrated Axis Module) as the shared DC bus power source, allowing multiple axis modules to share regenerated braking energy rather than dissipating it as heat. This architecture directly reduces thermal load on the control cabinet, lowers cooling infrastructure requirements, and extends the operational lifespan of adjacent drive components. The result is a leaner energy profile per production cycle and a measurable reduction in facility-level power demand.

The 2094-AM02 axis module is purpose-built to operate within a tightly integrated automation architecture where every component contributes to system-level energy efficiency. At the motion control layer, the module receives velocity, torque, and position commands from a ControlLogix controller — typically a 1756-L7x or 1756-L8x processor — via the 1756-M08SE or 1756-M16SE SERCOS motion module. This fiber-optic SERCOS ring delivers deterministic, low-latency command cycles that eliminate motion jitter and prevent energy-wasting overcorrection in servo loops.

On the power monitoring side, the 2094-AM02 works alongside power quality instruments such as the PowerMonitor 5000 (1426-M6E) to provide real-time visibility into bus voltage, current draw, and regenerative energy flow. Operators and energy managers can track axis-level consumption trends through the FactoryTalk View SE HMI platform, enabling data-driven decisions about load scheduling and peak demand management. When integrated with a SCADA system running FactoryTalk Historian, the energy data captured from the Kinetix 6000 bus can be trended over time to identify inefficiencies and validate energy-saving initiatives.

At the I/O layer, the 1756-IB16 digital input module and 1756-OB16E digital output module handle safety interlocks, axis-enable signals, and fault acknowledgment routines that protect the 2094-AM02 from operating outside its thermal or current envelope. The 1734 POINT I/O platform further extends distributed I/O capability to remote machine sections, reducing wiring runs and associated resistive losses. For applications requiring precise torque feedback, the 2094-AM02 pairs with MPL-series (Kinetix) servo motors equipped with high-resolution encoders, ensuring that commanded torque maps accurately to mechanical output — minimizing reactive current and improving power factor at the drive level.

In multi-axis gantry or coordinated pick-and-place systems, the 2094-AM02 shares the DC bus with companion axis modules such as the 2094-AM01 and 2094-AM03, allowing deceleration energy from one axis to directly power the acceleration phase of another. This inter-axis energy exchange is managed transparently by the Logix5000 motion engine, requiring no additional hardware and delivering measurable reductions in peak demand charges from the facility power grid.

Modern production lines face increasing pressure to reduce energy costs, minimize unplanned downtime, and maintain consistent cycle times — all simultaneously. The Allen-Bradley 2094-AM02 addresses each of these challenges through its shared DC bus design, high-efficiency IGBT switching topology, and deep integration with the Rockwell Automation Logix ecosystem.

By recovering regenerative braking energy between axes rather than burning it off through dynamic braking resistors, the 2094-AM02 reduces the thermal load inside the control cabinet. Lower cabinet temperatures translate directly into longer MTBF (Mean Time Between Failures) for all installed components — including the axis module itself, the IAM power supply, and neighboring I/O and communication modules. Facilities that have migrated from legacy analog servo systems to Kinetix 6000 shared-bus architectures typically report 15–25% reductions in drive-related energy consumption per production shift.

From a production rhythm perspective, the 2094-AM02 supports high-bandwidth torque and velocity loops that maintain axis synchronization even during rapid load changes. This stability prevents the micro-stoppages and re-homing cycles that silently erode OEE (Overall Equipment Effectiveness) on high-speed lines. Predictive maintenance is further supported through the drive's built-in diagnostic registers, which expose motor thermal model data, bus voltage history, and fault counters to the ControlLogix controller — enabling condition-based maintenance scheduling before failures occur.

For facilities operating under ISO 50001 energy management frameworks or pursuing carbon reduction targets, the 2094-AM02 provides the metering transparency and control granularity needed to document energy savings at the machine level. Combined with FactoryTalk EnergyMetrix or third-party energy management systems via EtherNet/IP data exchange, the Kinetix 6000 platform becomes a measurable contributor to facility-wide sustainability goals.

All units supplied by NANKMOS are sourced from verified supply channels, inspected upon receipt, and subjected to functional testing prior to shipment. Stock is maintained to support both planned MRO procurement and urgent replacement scenarios, with typical lead times of 3–7 business days for in-stock units.

Q1: What energy savings can I expect from deploying the 2094-AM02 in a shared DC bus configuration? The shared DC bus architecture of the Kinetix 6000 system allows regenerative braking energy from decelerating axes to be reused by accelerating axes on the same bus. In coordinated multi-axis applications such as gantry systems or rotary indexers, this inter-axis energy exchange can reduce net energy consumption by 15–30% compared to individual drive configurations with dynamic braking resistors. Actual savings depend on duty cycle, axis count, and load profile.

Q2: Is the 2094-AM02 compatible with my existing ControlLogix system and SERCOS motion controller? Yes. The 2094-AM02 is designed for use within the Kinetix 6000 multi-axis drive system and communicates via SERCOS fiber-optic interface with compatible motion modules including the 1756-M08SE and 1756-M16SE. It requires a Kinetix 6000 IAM (such as the 2094-BC01-M01-S) as the shared DC bus power source. Verify firmware compatibility between your motion controller and the axis module before installation.

Q3: Can the 2094-AM02 replace an existing axis module in my Kinetix 6000 system without reconfiguring the entire drive chassis? In most cases, yes. The 2094-AM02 is a direct form-fit-function replacement for compatible Kinetix 6000 axis module slots. After physical installation, the axis configuration parameters (motor catalog number, feedback type, scaling) must be verified or re-entered in Studio 5000 Logix Designer. NANKMOS recommends a controlled commissioning test cycle after any axis module replacement to confirm motion performance before returning the line to production.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle the testing and shipping process? All 2094-AM02 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify power stage integrity, communication readiness, and thermal performance. Units are packaged in anti-static, shock-protected materials and shipped with tracking. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
