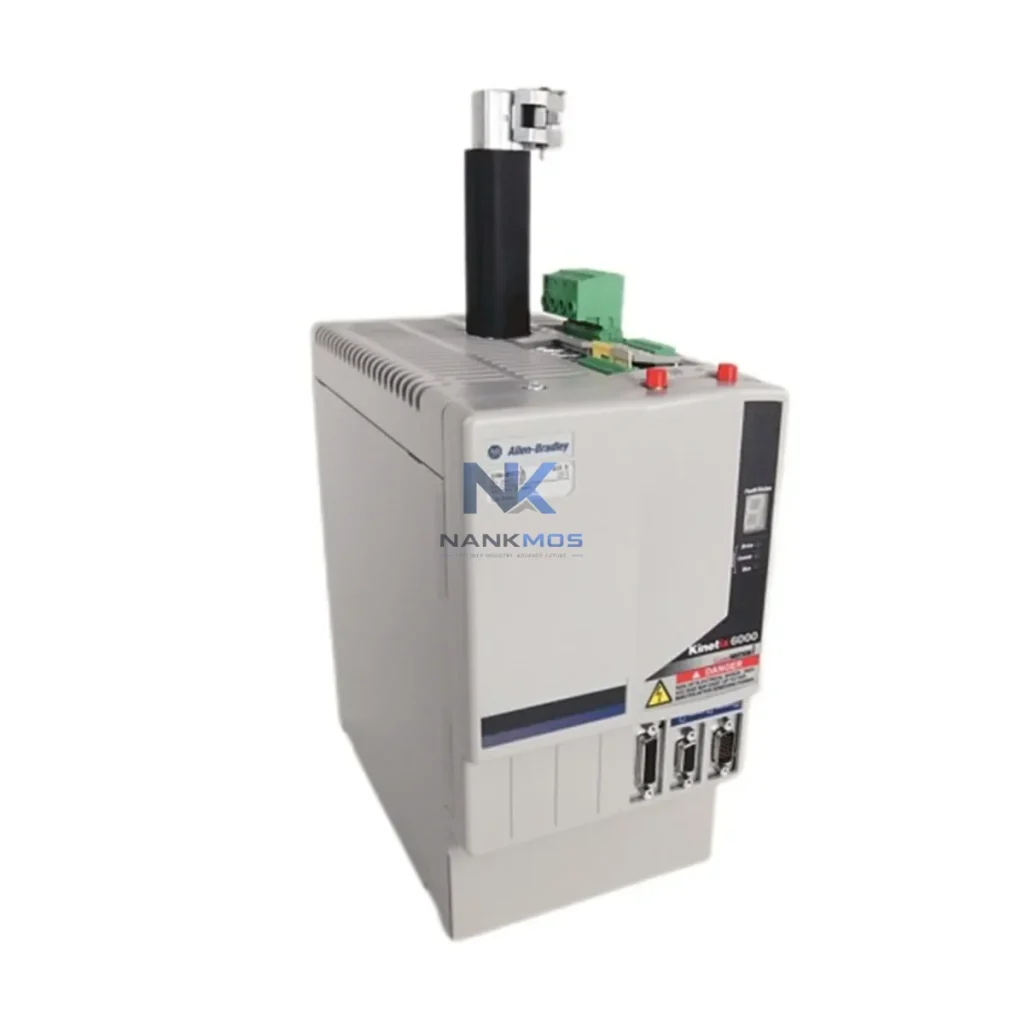

Allen-Bradley 2094-BM03-S Servo Drive Axis Module

Product Details

2094-BM03-S Product Description

The Allen-Bradley 2094-BM03-S is a high-performance Sercos axis module designed for the Kinetix 6000 multi-axis servo drive system. Built to serve as a critical node in the industrial data chain, this module bridges real-time servo motion data with upper-level control architectures — enabling seamless communication between field-level servo motors, ControlLogix PLCs, SCADA platforms, and HMI visualization systems. In smart factory environments where every millisecond of motion data matters, the 2094-BM03-S delivers deterministic, high-speed Sercos III communication that eliminates latency bottlenecks and ensures synchronized multi-axis coordination across the production line.

Engineered for demanding automation sites in automotive, semiconductor, packaging, and precision manufacturing industries, the 2094-BM03-S integrates directly into the Kinetix 6000 power rail alongside companion modules such as the 2094-BC04-M05-S inverter module and the 2094-BMP5-S power module, forming a tightly coupled servo system that supports centralized data acquisition and distributed motion control. Its Sercos interface provides a fiber-optic ring topology that is inherently immune to electromagnetic interference — a critical advantage in high-noise industrial environments where copper-based fieldbus systems often suffer signal degradation.

In a fully connected smart factory, the 2094-BM03-S sits at the intersection of motion execution and data intelligence. The data flow begins at the servo motor encoder — typically a Kinetix-compatible MPL or MPM series motor — where position, velocity, and torque feedback signals are captured in real time. These signals travel via the Sercos fiber ring to the 2094-BM03-S axis module, which processes the feedback and executes motion commands issued by the ControlLogix L7x or L8x series PLC over the same deterministic Sercos channel.

The ControlLogix controller, equipped with a 1756-M08SE or 1756-M16SE Sercos interface module, orchestrates multi-axis coordination across all 2094-BM03-S modules on the power rail. Motion status, fault codes, axis position data, and drive health parameters are continuously published to the controller's tag database, where they become available to the EtherNet/IP network layer. From there, a FactoryTalk Gateway or a third-party OPC-UA server aggregates the data and forwards it to SCADA platforms such as FactoryTalk View SE or Ignition SCADA, enabling real-time visualization of servo performance across the entire production line.

Remote I/O modules such as the 1734 POINT I/O or 1756 ControlLogix I/O cards extend the data acquisition reach to auxiliary sensors — including proximity switches, temperature probes, and vibration sensors mounted on servo-driven axes. These sensor signals feed into the same ControlLogix tag structure, allowing the SCADA system to correlate motion data with environmental and process variables for predictive maintenance analysis. Edge gateway devices, such as the Rockwell Automation FactoryTalk Edge Gateway or compatible third-party industrial IoT gateways, can further push aggregated servo data to cloud analytics platforms for fleet-wide performance benchmarking.

Variable frequency drives (VFDs) controlling auxiliary conveyor or pump motors — such as the PowerFlex 525 or PowerFlex 755 — communicate via EtherNet/IP alongside the Sercos servo system, and their operational data is unified in the same FactoryTalk Historian database. This unified data architecture allows maintenance engineers to correlate servo axis faults with upstream VFD load changes, identifying root causes of production stoppages without requiring physical inspection of the drive cabinet. Industrial managed switches, such as the Stratix 5700 series, provide the EtherNet/IP backbone that connects PLCs, HMI panels, SCADA servers, and edge gateways into a single, high-availability network fabric.

Many automation sites operating legacy servo systems face persistent data gaps: motion controllers that cannot expose real-time axis data to SCADA, protocol mismatches between Sercos servo drives and EtherNet/IP-based upper systems, and isolated drive cabinets that generate no actionable diagnostic data. The 2094-BM03-S addresses these challenges by operating within the Kinetix 6000 ecosystem, which is natively integrated with ControlLogix and the Rockwell Software suite — eliminating the need for third-party protocol converters or custom middleware.

For sites transitioning from older Sercos I/II architectures, the 2094-BM03-S provides a compatible upgrade path that preserves existing fiber-optic wiring infrastructure while delivering improved axis performance and diagnostic transparency. Alarm and fault data generated by the axis module — including overcurrent, encoder loss, and communication timeout events — are automatically mapped to ControlLogix fault tags and surfaced in FactoryTalk View HMI alarm banners, enabling operators to respond to drive faults within seconds rather than minutes.

Remote diagnostics are supported through the ControlLogix EtherNet/IP backplane, allowing maintenance teams to interrogate axis module parameters, review fault history, and perform drive tuning adjustments from a remote engineering workstation without interrupting production. This capability is particularly valuable for multi-site manufacturers who need centralized visibility into servo system health across geographically distributed plants. Data visualization dashboards built in FactoryTalk View SE or third-party tools can display real-time axis torque trends, position error plots, and thermal load indicators — transforming raw servo data into actionable production intelligence.

Q1: What communication protocol does the 2094-BM03-S use, and is it compatible with EtherNet/IP-based SCADA systems? The 2094-BM03-S uses the Sercos (Serial Real-time Communication System) fiber-optic protocol for axis-level communication within the Kinetix 6000 drive system. At the controller level, the ControlLogix PLC bridges Sercos data to the EtherNet/IP network, making all axis parameters — including position, velocity, torque, and fault status — fully accessible to EtherNet/IP-based SCADA and HMI systems such as FactoryTalk View SE, Ignition, and Wonderware.

Q2: How does the 2094-BM03-S support remote diagnostics and predictive maintenance? Axis module diagnostic data — including fault codes, thermal status, encoder feedback quality, and communication health — is continuously updated in the ControlLogix tag database and accessible via EtherNet/IP from any authorized remote workstation. Integration with FactoryTalk Historian enables long-term trend logging of axis performance parameters, supporting predictive maintenance models that can identify bearing wear, encoder degradation, or thermal overload conditions before they cause unplanned downtime.

Q3: Can the 2094-BM03-S be expanded to support additional axes without rewiring the Sercos network? Yes. The Kinetix 6000 system supports modular expansion by adding additional 2094-BM03-S or compatible axis modules to the existing power rail. The Sercos fiber ring topology accommodates additional nodes without requiring changes to the physical network wiring — only the ControlLogix motion configuration needs to be updated to recognize the new axes. This makes the 2094-BM03-S an ideal choice for phased capacity expansions on packaging, assembly, and CNC machining lines.

Q4: What warranty and pre-shipment testing does the 2094-BM03-S include? Every 2094-BM03-S supplied by NANKMOS includes a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Units undergo pre-shipment functional testing to verify Sercos communication integrity, axis enable/disable response, and power stage operation before dispatch. In-stock units are available for immediate shipment, with lead times confirmed at the time of order placement.
