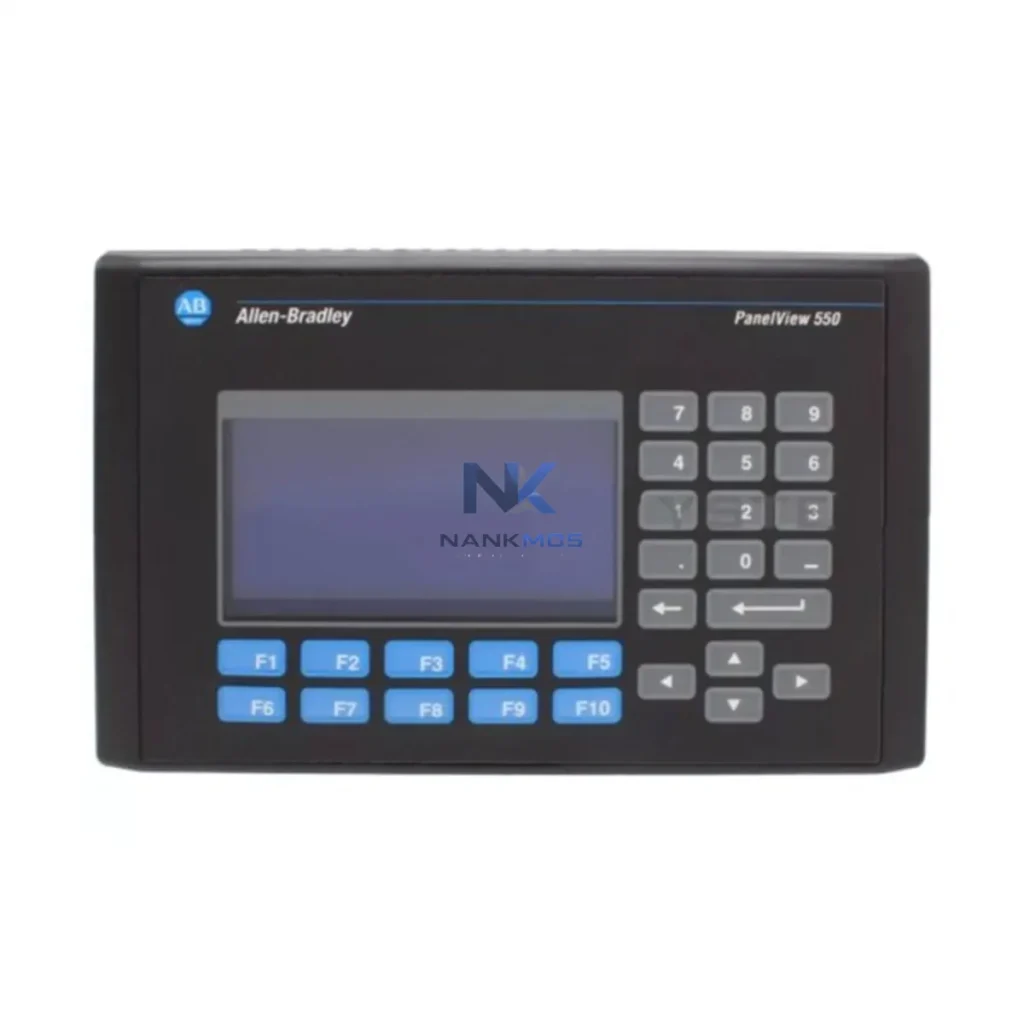

Allen-Bradley 2711-B5A10 HMI Communication Gateway

Product Details

2711-B5A10 Product Description

The Allen-Bradley 2711-B5A10 is a PanelView 550 Human-Machine Interface terminal engineered for seamless integration into industrial data networks. Supporting DH-485, DH+, and DF1 serial communication protocols, this HMI gateway serves as a critical node in the smart factory data chain — bridging field-level devices, programmable logic controllers, and supervisory control systems into a unified, real-time operational picture. Whether deployed in discrete manufacturing, process automation, or energy management environments, the 2711-B5A10 delivers reliable operator visibility and bidirectional data exchange across the full automation hierarchy.

In a modern smart factory architecture, the 2711-B5A10 occupies the operator interface layer — the point where machine-level signals become human-readable process data. At the field level, sensors, actuators, and motor drives transmit real-time status signals to Allen-Bradley SLC 5/03 or SLC 5/04 programmable controllers over DH-485 networks. The 2711-B5A10 connects directly to these controllers, reading register values, setpoints, and alarm states without requiring an intermediate communication module.

For plants running legacy DH+ backbones, the 2711-B5A10 integrates with 1785-KA5 or 1784-KTX communication adapters, enabling the HMI to participate in multi-node Data Highway Plus networks alongside PLC-5 processors and remote I/O racks. In distributed control architectures, the terminal can be paired with a 1747-AIC isolated link coupler to extend DH-485 segments across longer cable runs, maintaining signal integrity in electrically noisy environments such as motor control centers and variable frequency drive panels.

When the plant SCADA system — such as Rockwell FactoryTalk View or Wonderware InTouch — requires consolidated data from multiple HMI nodes, the 2711-B5A10 feeds operator inputs and alarm acknowledgments upstream through the DH+ network to a 1756-ENBT EtherNet/IP bridge module installed in a ControlLogix chassis. This bridge translates legacy DH+ traffic into standard Ethernet packets, allowing SCADA servers to poll real-time production data, log historian records, and push setpoint changes back to the field — all within a single unified network fabric.

For remote diagnostics and predictive maintenance workflows, the 2711-B5A10 alarm and event logs can be forwarded through a ProSoft Technology MVI56-DFCM DF1 communication module to an edge gateway running IIoT middleware. From there, data streams flow to cloud-based analytics platforms or on-premise MES systems, enabling maintenance teams to monitor equipment health, track cycle counts, and receive early fault notifications without dispatching technicians to the machine floor. This closed-loop data path — from sensor signal through PLC register, HMI display, SCADA historian, and edge analytics — forms the backbone of transparent, data-driven production management.

Many industrial facilities operating mixed-generation control systems face persistent data visibility challenges: legacy DH-485 and DH+ networks cannot natively communicate with modern EtherNet/IP infrastructure, creating protocol islands where critical process data remains trapped at the machine level. The 2711-B5A10 addresses this by providing a standardized operator interface that consolidates local PLC data into a single display point, reducing the need for technicians to interpret raw controller registers directly.

In plants where alarm management is fragmented across multiple standalone HMI terminals, the 2711-B5A10's configurable alarm pages and event logging capabilities allow operators to capture fault timestamps, acknowledge conditions, and escalate unresolved alarms to supervisory systems. When integrated with a 1747-SDN DeviceNet scanner or a 1756-DNB DeviceNet bridge, the terminal can also surface device-level diagnostics from smart field instruments — flow meters, pressure transmitters, and variable speed drives — that would otherwise require dedicated handheld configuration tools to interrogate.

For production line transparency, the 2711-B5A10 supports recipe management and parameter download functions, enabling rapid changeover between product configurations without manual re-entry of setpoints at each controller. This capability directly reduces changeover time, minimizes operator error, and supports traceability requirements in regulated industries such as food and beverage, pharmaceutical manufacturing, and water treatment. Combined with remote access through a 1761-NET-AIC network interface converter, maintenance engineers can perform firmware diagnostics and configuration backups from a central engineering workstation, eliminating unplanned downtime caused by on-site troubleshooting delays.

Q1: What communication protocols does the Allen-Bradley 2711-B5A10 support, and are they compatible with current ControlLogix systems? The 2711-B5A10 natively supports DH-485, DH+ (Data Highway Plus), and DF1 serial protocols. Direct connection to ControlLogix processors requires a protocol gateway such as the 1756-DHRIO or a 1784-U2DHP USB-to-DH+ adapter, which translates between the legacy DH+ network and the ControlLogix backplane. All units supplied by NANKMOS are pre-tested for communication handshake integrity prior to shipment.

Q2: How does the 2711-B5A10 perform in electrically noisy environments with multiple VFDs and motor starters on the same network segment? The DH-485 physical layer uses balanced RS-485 differential signaling, which provides inherent common-mode noise rejection suitable for industrial environments with variable frequency drives and motor control equipment. For installations with severe EMI, pairing the 2711-B5A10 with a 1747-AIC isolated link coupler provides galvanic isolation between network segments, preventing ground loop interference from propagating across the DH-485 bus.

Q3: Can the 2711-B5A10 be integrated into a SCADA system for remote monitoring and data logging? Yes. The 2711-B5A10 communicates with SCADA platforms such as Rockwell FactoryTalk View SE, Wonderware System Platform, and Ignition SCADA through the connected PLC network. SCADA servers poll the SLC or PLC-5 controller — which the HMI is also connected to — for tag data, alarm states, and production counters. For direct remote access, a 1761-NET-AIC or ProSoft DF1-to-Ethernet gateway can bridge the serial DF1 port to a TCP/IP network, enabling remote diagnostics without physical access to the panel.

Q4: What does the 12-month warranty cover, and what is the typical lead time for in-stock units? All Allen-Bradley 2711-B5A10 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects, communication port failures, and display assembly faults from the date of shipment. In-stock units are available for same-week dispatch. For volume orders or project-specific lead time requirements, contact our technical sales team at [email protected] or +86 18359268345 for a confirmed delivery schedule.
