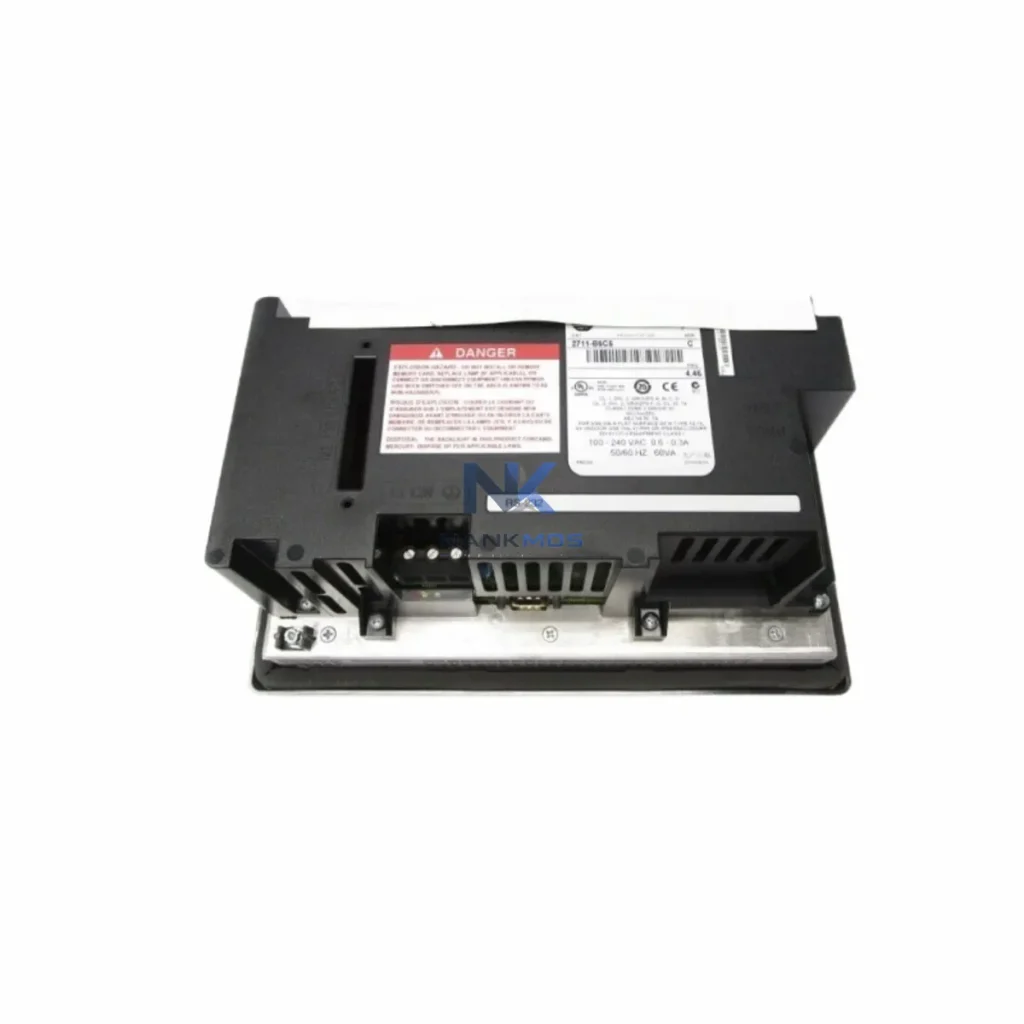

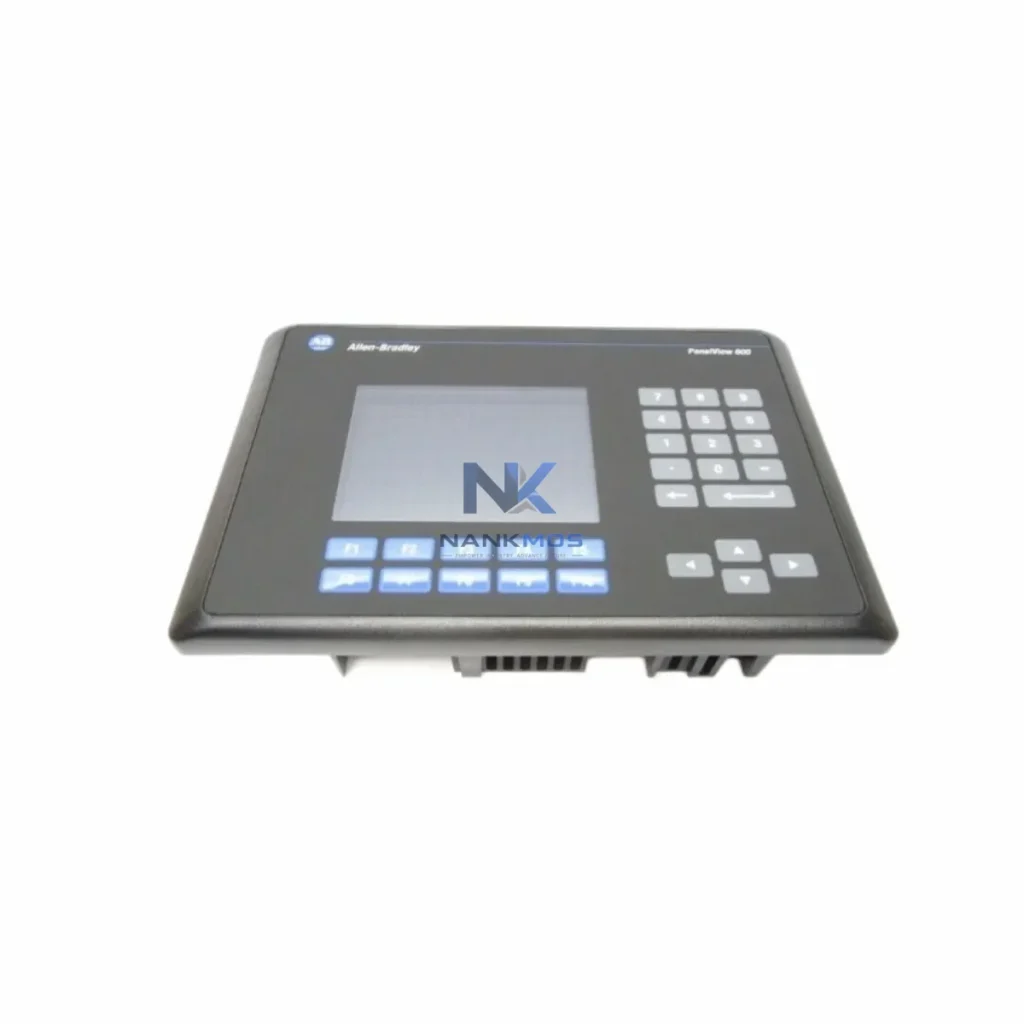

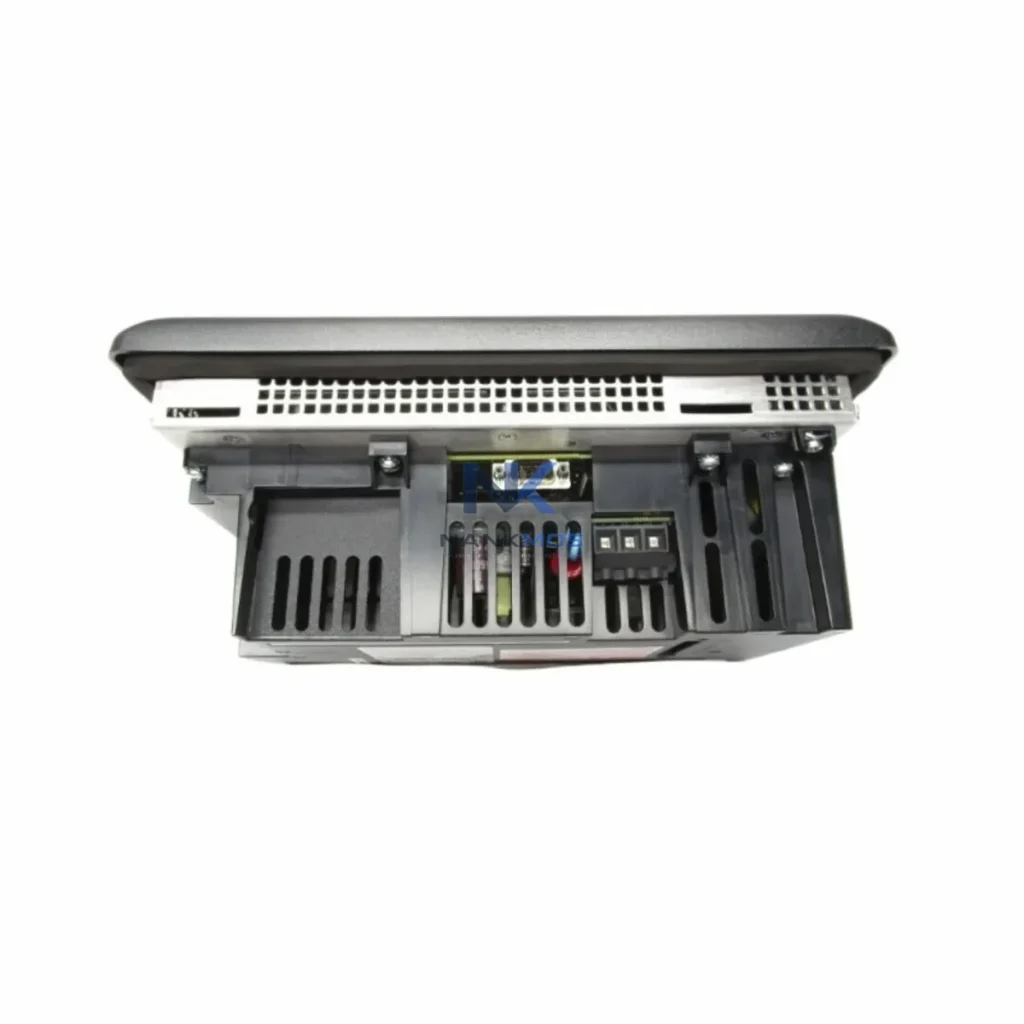

Allen-Bradley 2711-B6C5 HMI Terminal

Product Details

2711-B6C5 Product Description

The Allen-Bradley 2711-B6C5 is a PanelView 600 series Human-Machine Interface terminal engineered for demanding industrial environments where energy visibility, load management, and production-line efficiency are non-negotiable. As a 6-inch monochrome keypad-and-touchscreen operator terminal, the 2711-B6C5 delivers real-time process feedback, alarm management, and operator control in a compact, panel-mount form factor. It is designed to integrate seamlessly into energy-aware automation architectures, enabling plant engineers to monitor power consumption, respond to load fluctuations, and maintain optimal equipment utilization across continuous and discrete manufacturing lines.

In modern smart factories, the HMI is no longer a passive display — it is the operator's primary window into the energy state of the production floor. The 2711-B6C5 connects directly to Allen-Bradley PLCs such as the MicroLogix 1100 and SLC 500 series via DH-485 or RS-232 DF1 communication protocols, enabling live visualization of motor run states, drive output frequencies, and power draw from connected equipment. When paired with a PowerFlex 40 variable frequency drive or a PowerFlex 70 AC drive, the terminal allows operators to monitor drive speed references, current output, and fault codes without leaving the control panel — reducing the time between fault detection and corrective action, and minimizing unplanned downtime that drives up idle-state energy consumption.

Energy efficiency in industrial settings depends on the ability to act on real-time data. The 2711-B6C5 supports recipe management and setpoint adjustment, allowing production teams to configure energy-optimized operating profiles for different production runs. By integrating with an Allen-Bradley PowerMonitor 500 or PowerMonitor 1000 power monitoring module through the PLC backplane or communication network, operators can display instantaneous kW demand, power factor, and cumulative energy consumption directly on the PanelView 600 screen. This closed-loop visibility between the HMI, the PLC, and the power monitoring module is a foundational element of any plant-level energy management strategy.

Deploying the 2711-B6C5 within a power-aware automation architecture requires careful consideration of the communication topology and the devices it will supervise. In a typical DH-485 network, the PanelView 600 terminal acts as a master node, polling an Allen-Bradley MicroLogix 1400 PLC for real-time tag data. The PLC, in turn, aggregates status signals from 1734 POINT I/O modules — including digital inputs from motor contactors, analog inputs from current transducers, and temperature signals from PT100 sensors mounted on motor housings. This data chain gives the 2711-B6C5 a comprehensive view of the energy state of every motor and actuator on the line.

For lines running variable-speed drives, the 2711-B6C5 can display the output frequency and torque current of a PowerFlex 523 or PowerFlex 525 drive, allowing operators to verify that motors are running at energy-optimal speeds rather than at fixed full-load. When a drive reports an over-current or over-temperature fault, the HMI alarm system triggers an immediate operator notification, enabling rapid intervention before thermal stress causes insulation degradation or bearing failure — both of which lead to unplanned downtime and the associated energy penalty of restarting cold equipment.

The 2711-B6C5 also supports integration with Allen-Bradley 1769 CompactLogix systems via an RS-232 DF1 point-to-point connection, making it a cost-effective HMI solution for mid-size energy monitoring panels. When the CompactLogix controller is running an energy management routine — sampling power data from a 1408-EM3A-ENT energy meter module — the PanelView 600 can present trend data, shift-level consumption totals, and demand peak alerts to the operator in a clear, actionable format. This positions the 2711-B6C5 not merely as a display device, but as an active participant in the plant's energy reduction program.

In SCADA-integrated environments, the PLC connected to the 2711-B6C5 typically serves as a data concentrator, forwarding energy and status tags upstream to a Wonderware or FactoryTalk View SE SCADA system via Ethernet/IP. The HMI terminal handles local operator interaction — setpoint changes, manual overrides, and alarm acknowledgment — while the SCADA layer handles historical trending, KPI dashboards, and cross-line energy benchmarking. This division of responsibility ensures that the 2711-B6C5 remains responsive at the machine level even during periods of high network traffic on the plant backbone.

The 2711-B6C5 contributes to production-line energy optimization through three primary mechanisms: real-time load visibility, alarm-driven response, and operator-guided setpoint management. On a packaging line, for example, the terminal can display the current draw of a conveyor motor, the fill-valve cycle time, and the reject rate simultaneously. When the conveyor motor current exceeds a configurable threshold — indicating mechanical drag from a worn bearing or misaligned belt — the HMI alarm alerts the operator before the condition escalates to a full motor trip. Early intervention reduces both energy waste from inefficient motor operation and the downtime cost of an unplanned stop.

On lines with multiple production zones, the 2711-B6C5 supports multi-screen navigation, allowing a single operator to monitor energy states across several machine sections from one panel location. This reduces the need for dedicated per-machine displays, lowering the total panel power budget and simplifying the operator interface architecture. Recipe-based setpoint management further reduces energy waste by ensuring that speed references, temperature setpoints, and pressure targets are always matched to the current product specification — eliminating the over-speed and over-temperature conditions that are common sources of unnecessary energy consumption in manually configured systems.

Thermal load management is another area where the 2711-B6C5 delivers measurable value. By displaying motor winding temperature trends from NTC or PTC thermistor inputs processed by the PLC, the terminal enables operators to identify motors that are running hotter than expected — a leading indicator of insulation aging, bearing wear, or inadequate ventilation. Addressing these conditions proactively reduces cooling energy demand in the control panel and extends motor service life, contributing to a lower total cost of ownership and a more stable production rhythm.

Every unit of the Allen-Bradley 2711-B6C5 supplied by NANKMOS is drawn from verified inventory stock and subjected to a functional outgoing test prior to shipment. The test procedure validates display operation, keypad response, communication port integrity, and power supply performance. This pre-shipment verification ensures that the terminal arrives ready for immediate installation, eliminating the commissioning delays and energy waste associated with field-returned defective units. All 2711-B6C5 terminals are covered by a 12-Month Warranty from the date of shipment, providing procurement teams and maintenance engineers with a reliable, low-risk sourcing option for both planned upgrades and emergency replacements.

Q1: How does the 2711-B6C5 contribute to energy savings on a production line? The 2711-B6C5 provides operators with real-time visibility into motor states, drive outputs, and process parameters sourced from the connected PLC. By enabling rapid alarm response and supporting energy-optimized recipe setpoints, it reduces idle-state energy consumption, prevents over-speed motor operation, and minimizes the downtime-related energy penalty of unplanned stops.

Q2: Which PLC and drive systems is the 2711-B6C5 compatible with? The 2711-B6C5 is compatible with Allen-Bradley MicroLogix, SLC 500, and PLC-5 platforms via DH-485, RS-232 DF1, and DH+ protocols. It can display data from PowerFlex 40, PowerFlex 70, PowerFlex 523, and PowerFlex 525 variable frequency drives when those drives are monitored through the connected PLC. It also integrates with 1769 CompactLogix systems via RS-232 DF1.

Q3: What is the recommended replacement or upgrade path for the 2711-B6C5? For applications requiring color display, higher resolution, or Ethernet/IP connectivity, the Allen-Bradley 2711P-T6C20D (PanelView Plus 6) is the recommended upgrade path. It supports the same PLC platforms via updated communication modules and offers a significantly expanded tag database and remote access capability. NANKMOS maintains stock of both the 2711-B6C5 and compatible PanelView Plus 6 terminals to support phased migration projects.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time? The 12-Month Warranty covers manufacturing defects, communication port failures, display anomalies, and power supply faults identified under normal operating conditions. Units in stock at NANKMOS are available for immediate shipment following outgoing functional testing. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units. Warranty claims are processed directly through NANKMOS with no requirement to engage the original manufacturer's service network.
