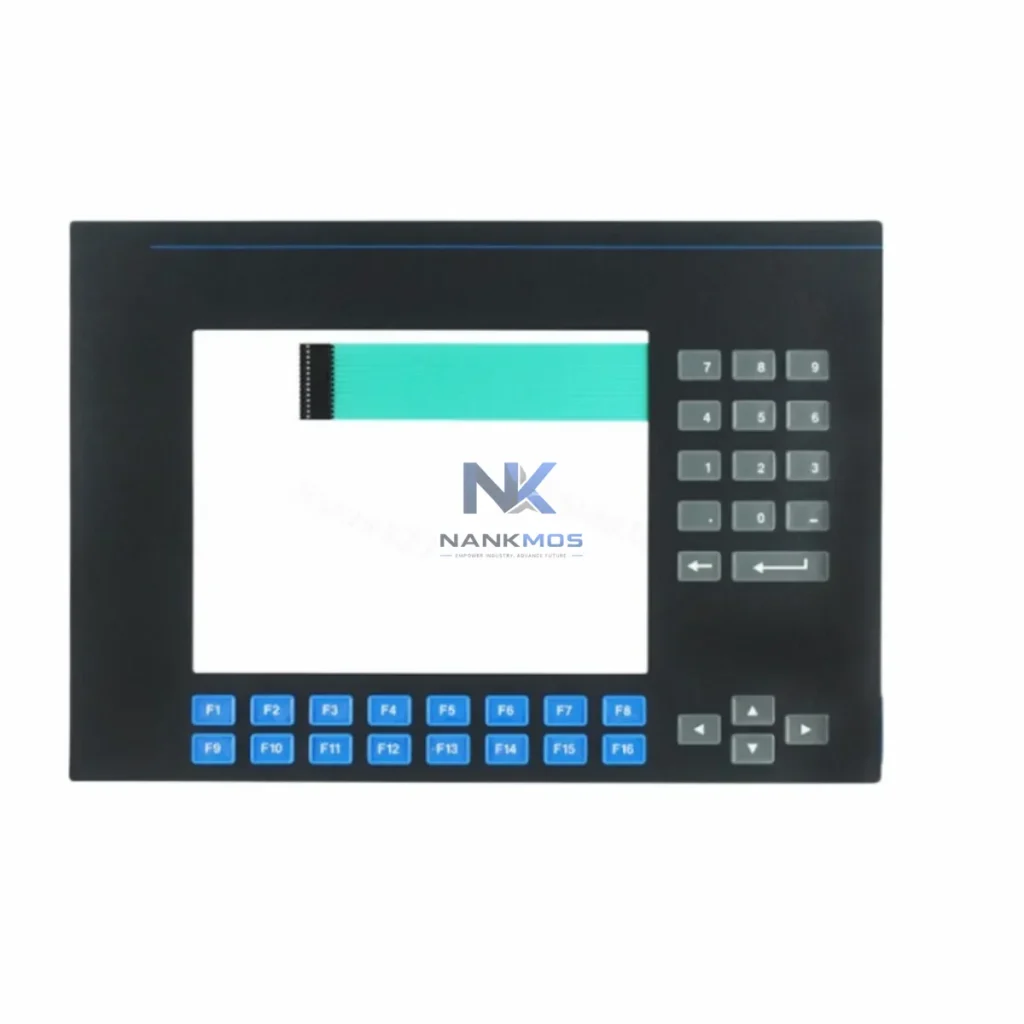

Allen-Bradley 2711-K10G1 HMI Operator Terminal

Product Details

2711-K10G1 Product Description

The Allen-Bradley 2711-K10G1 is a PanelView 550 series operator interface terminal engineered for demanding industrial environments where reliable human-machine communication, real-time data visibility, and seamless network integration are non-negotiable. Supporting DH-485 and RS-232 communication protocols, this HMI terminal serves as a critical node in the smart factory data chain — bridging field-level devices, PLC controllers, remote I/O modules, SCADA systems, and upper-level management platforms into a unified, transparent automation architecture.

In modern smart manufacturing, the ability to visualize process data, respond to alarms, and remotely diagnose equipment status directly from the operator interface is fundamental to production efficiency. The 2711-K10G1 delivers exactly this capability: a robust, panel-mounted display that connects operators to the live pulse of the production line, enabling informed decisions at the machine level while feeding structured data upward through the network hierarchy.

The 2711-K10G1 occupies a pivotal position in the connected factory data flow. At the field level, sensors, actuators, and drive systems — including Allen-Bradley PowerFlex 40 and PowerFlex 70 variable frequency drives — transmit real-time process values through the DH-485 network to the PLC controller layer. Allen-Bradley SLC 500 and MicroLogix 1100 PLCs process this data and expose it as readable tags accessible by the 2711-K10G1 terminal, enabling operators to monitor motor speed, conveyor status, temperature setpoints, and production counters directly from the panel interface.

As data flows upward from the PLC layer, the 2711-K10G1 acts as a local visualization and control node, displaying live process values, alarm states, and operator prompts. Simultaneously, Allen-Bradley 1747-KE DH-485 to RS-232 communication interface modules can bridge the DH-485 segment to broader Ethernet-based SCADA networks, allowing supervisory systems such as Rockwell FactoryTalk View SE to aggregate data from multiple PanelView terminals and PLC nodes across the plant floor.

For remote I/O integration, Allen-Bradley 1746 SLC I/O modules and 1771 PLC-5 remote I/O racks feed discrete and analog signals into the SLC 500 controller, which the 2711-K10G1 then visualizes in real time. This architecture supports complete production line transparency — from individual sensor signals through to enterprise-level dashboards — without requiring protocol conversion at the HMI layer.

Edge gateway devices, such as the Moxa MGate MB3180 or equivalent industrial protocol gateways, can extend the RS-232 port of the 2711-K10G1 into Modbus TCP or EtherNet/IP segments, enabling integration with third-party SCADA platforms, MES systems, and cloud-based data historians. This flexibility makes the 2711-K10G1 a durable investment even as factory networks evolve toward IIoT architectures.

Industrial managed switches — including the Allen-Bradley Stratix 5700 series — provide the Ethernet backbone that connects SCADA servers, engineering workstations, and gateway devices, ensuring low-latency, deterministic data delivery across the plant network. The 2711-K10G1 integrates naturally into this layered architecture, serving as the operator-facing endpoint of a data chain that spans from field sensors to enterprise reporting systems.

Many industrial facilities face persistent challenges with protocol fragmentation, data silos, and limited remote visibility — problems that directly impact production efficiency, maintenance response times, and regulatory compliance. The Allen-Bradley 2711-K10G1 addresses these challenges at the operator interface level, providing a standardized, network-connected display point that consolidates process data from multiple field devices into a single, coherent operator view.

Protocol Unification: By natively supporting DH-485 — the standard communication protocol across the Allen-Bradley SLC 500 and PanelView product families — the 2711-K10G1 eliminates the need for additional protocol converters within the Rockwell Automation ecosystem. For sites requiring integration with non-DH-485 devices, the RS-232 port provides a flexible secondary communication path compatible with a wide range of industrial gateways and serial-to-Ethernet converters.

Breaking Data Silos: In facilities where PLC data, drive status, and sensor readings exist in isolated control islands, the 2711-K10G1 serves as a unifying display layer. By connecting to the DH-485 network, it can access tag data from multiple SLC 500 nodes on the same network segment, presenting a consolidated process view that previously required separate HMI stations or manual data collection.

Remote Monitoring and Alarm Tracking: The 2711-K10G1 supports configurable alarm displays with time-stamped event logging, enabling maintenance teams to trace fault sequences, identify recurring issues, and prioritize corrective actions. When integrated with FactoryTalk View SE or equivalent SCADA platforms via gateway devices, alarm data can be forwarded to remote monitoring dashboards, enabling off-site engineers to diagnose issues without requiring physical presence on the plant floor.

Production Line Transparency: Recipe management, production counter displays, and real-time setpoint visualization give operators and production managers immediate insight into line performance. This transparency supports lean manufacturing initiatives, reduces changeover times, and provides the data foundation for continuous improvement programs.

System Expansion: The DH-485 network supports up to 32 nodes, allowing additional PanelView terminals, SLC 500 PLCs, and communication interface modules to be added as production requirements grow. This scalability protects the initial investment in the 2711-K10G1 and supports phased smart factory upgrades without requiring a complete network redesign.

Q1: What communication protocols does the Allen-Bradley 2711-K10G1 support, and how does this affect SCADA integration? The 2711-K10G1 supports DH-485 and RS-232 protocols natively. DH-485 provides direct connectivity to Allen-Bradley SLC 500 PLCs and other DH-485 network nodes, while the RS-232 port enables connection to serial gateways and protocol converters. For SCADA integration, communication interface modules such as the Allen-Bradley 1747-KE can bridge the DH-485 segment to Ethernet-based SCADA networks, enabling FactoryTalk View SE and similar platforms to access real-time tag data from the 2711-K10G1 and connected PLCs.

Q2: How does the 2711-K10G1 perform in terms of communication latency and network stability? DH-485 is a token-passing network protocol designed for deterministic, low-latency communication in industrial environments. Under normal operating conditions with a properly configured network (correct termination, appropriate baud rate, and node count within the 32-node limit), the 2711-K10G1 delivers stable, predictable communication performance suitable for real-time process monitoring and operator control applications. Network stability is further supported by the robust industrial-grade hardware design of the PanelView 550 platform.

Q3: Can the 2711-K10G1 be integrated into modern IIoT or cloud-connected factory architectures? Yes. While the 2711-K10G1 uses legacy DH-485 and RS-232 protocols, it can be integrated into modern IIoT architectures through industrial protocol gateways that convert DH-485 or RS-232 data to EtherNet/IP, Modbus TCP, or MQTT. Edge gateway devices can aggregate data from the 2711-K10G1 and connected PLCs, forwarding it to cloud-based data historians, MES platforms, or IIoT dashboards. This approach extends the operational life of the 2711-K10G1 within evolving smart factory environments.

Q4: What pre-shipment testing and warranty coverage is provided for the 2711-K10G1? Every Allen-Bradley 2711-K10G1 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify communication interface operation, display functionality, and keypad/touchscreen response prior to dispatch. All units are covered by a 12-Month Warranty against manufacturing defects and operational failures. In-stock inventory ensures prompt order fulfillment with global shipping capability to support urgent maintenance and replacement requirements.
