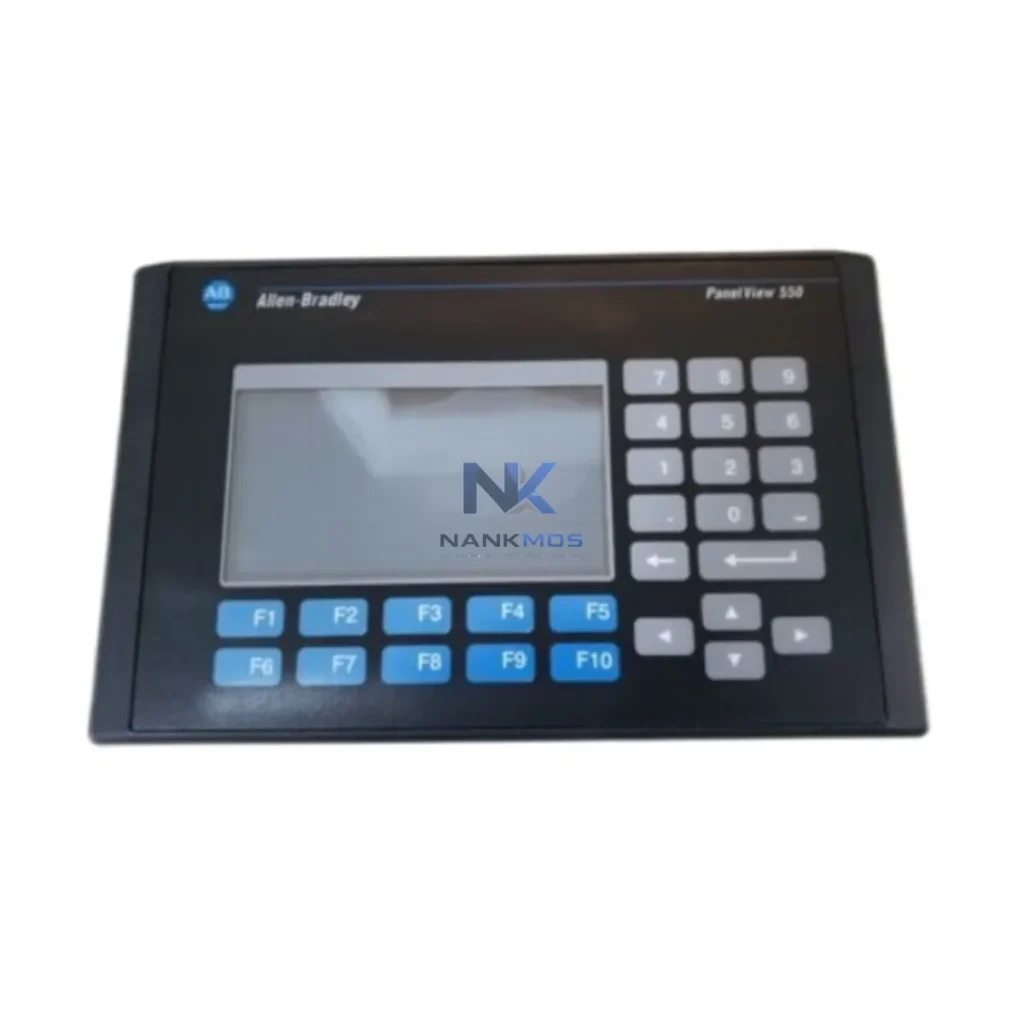

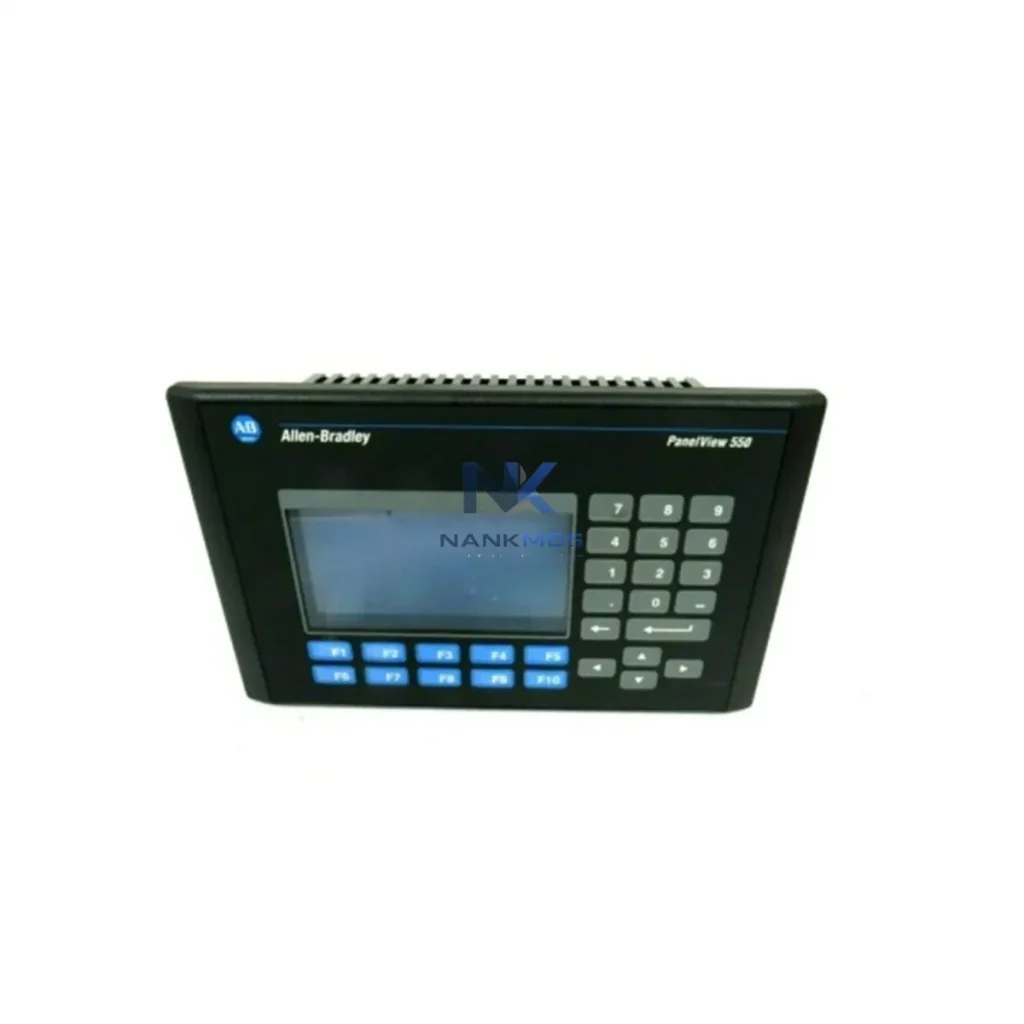

Allen-Bradley 2711-K5A2 HMI Terminal

Product Details

2711-K5A2 Product Description

The Allen-Bradley 2711-K5A2 is a PanelView 550 Human-Machine Interface terminal engineered for industrial data communication across DH-485 and DH+ network architectures. Designed to serve as a critical node in smart factory data chains, this unit bridges field-level operator interaction with upstream PLC controllers, SCADA platforms, and enterprise data systems. Whether deployed in discrete manufacturing, process control, or energy management environments, the 2711-K5A2 delivers reliable real-time visualization and command execution across multi-device automation networks.

In a fully connected smart factory, the 2711-K5A2 operates as the operator-facing gateway within a layered automation architecture. At the field level, sensors and actuators feed real-time process data — temperature, pressure, flow rate, motor speed — into Allen-Bradley SLC 5/04 or SLC 5/05 PLC controllers via hardwired I/O or remote I/O racks. The 2711-K5A2 connects directly to these controllers over the DH-485 network, retrieving live register values and presenting them to operators through its 5.5-inch display interface.

Upstream, the DH-485 segment links to a 1747-KE or 1761-NET-AIC communication adapter, enabling protocol bridging to Ethernet-based SCADA systems such as Rockwell FactoryTalk View or Wonderware InTouch. This gateway function allows the 2711-K5A2 to participate in plant-wide data aggregation without requiring a full network infrastructure upgrade. Alongside the PanelView 550 terminal, Allen-Bradley 1746-BAS Basic Module or 1747-SDN DeviceNet Scanner modules can extend the network reach to additional field devices, including variable frequency drives, smart sensors, and distributed I/O blocks.

For facilities running mixed-generation equipment, the 2711-K5A2 pairs effectively with 1747-AIC Advanced Interface Converters to maintain signal integrity across longer DH-485 cable runs. In energy management applications, the terminal interfaces with PowerMonitor 500 or PowerMonitor 1000 units, pulling real-time kWh, power factor, and demand data directly into the operator display. This enables shift supervisors to monitor energy consumption at the machine level without leaving the production floor.

Remote diagnostic capability is achieved by integrating the 2711-K5A2 within a FactoryTalk Diagnostics-enabled network. Alarm states, fault codes, and communication errors logged by the PanelView terminal are forwarded to the SCADA historian, where maintenance teams can review event timelines, identify recurring faults, and schedule predictive maintenance interventions. When paired with a 1783-US5T Stratix 2000 unmanaged switch or a 1783-BMS10CGL Stratix 5700 managed switch at the Ethernet backbone layer, the overall network achieves the redundancy and segmentation required for continuous production environments.

Data visualization is further enhanced when the 2711-K5A2 is deployed alongside FactoryTalk Historian SE, which archives time-stamped process values for trend analysis, OEE reporting, and regulatory compliance documentation. The complete data chain — from field sensor through PLC, across DH-485 to the PanelView terminal, and upward to SCADA and MES — represents a fully traceable, auditable smart factory data flow that supports both real-time decision-making and long-term operational intelligence.

Many industrial facilities operating legacy Allen-Bradley PLC-5 or SLC 500 platforms face persistent data visibility challenges: protocol fragmentation between DH-485 field networks and modern Ethernet-based SCADA systems, isolated operator stations that cannot share alarm data with central monitoring rooms, and production lines where machine status is invisible to plant managers until a fault causes downtime.

The 2711-K5A2 directly addresses these gaps. Its native DH-485 connectivity eliminates the need for third-party protocol converters when integrating with SLC 500 or MicroLogix controllers, reducing network complexity and potential failure points. Alarm acknowledgment and setpoint adjustment can be performed locally at the terminal, with all events simultaneously logged to the connected SCADA historian — closing the loop between field operators and remote engineering teams.

For facilities expanding their automation footprint, the PanelView 550 platform supports incremental scaling: additional 2711-K5A2 terminals can be added to the DH-485 network without reconfiguring the PLC program, enabling production line extensions or new machine integrations with minimal engineering overhead. Remote diagnostic access via FactoryTalk Remote Access or VPN-connected SCADA workstations allows off-site engineers to review terminal status, update display configurations, and diagnose communication faults without dispatching field technicians — reducing mean time to repair and supporting lean maintenance strategies.

Q1: What communication protocols does the Allen-Bradley 2711-K5A2 support, and which PLCs are compatible? The 2711-K5A2 supports DH-485 and DH+ (Data Highway Plus) protocols, making it natively compatible with Allen-Bradley SLC 500 series (SLC 5/01 through SLC 5/05), MicroLogix 1000/1100/1500, and PLC-5 family controllers. RS-232 serial connectivity is also available for point-to-point programming and configuration via RSLinx or PanelBuilder 32 software.

Q2: How does the 2711-K5A2 integrate with modern SCADA and MES systems? Integration with Ethernet-based SCADA platforms is achieved through protocol gateway devices such as the 1747-KE or 1761-NET-AIC, which bridge DH-485 to EtherNet/IP. Once bridged, FactoryTalk View SE, Wonderware, or Ignition SCADA can poll the connected PLC data tables in real time, enabling centralized monitoring, alarm management, and historian archiving without replacing the existing PLC infrastructure.

Q3: What is the network transmission reliability of the DH-485 segment in high-noise industrial environments? DH-485 is a token-passing, multi-drop network designed for industrial environments with moderate electromagnetic interference. Maximum cable length is 1,219 meters (4,000 feet) at 19.2 Kbps, supporting up to 32 nodes per segment. For high-noise environments, shielded twisted-pair cable and proper grounding per Rockwell Automation wiring guidelines are recommended. The 1747-AIC Advanced Interface Converter provides additional signal conditioning for extended runs.

Q4: Does the 2711-K5A2 come with a warranty, and what pre-shipment testing is performed? Yes. Every 2711-K5A2 unit supplied by NANKMOS includes a 12-Month Warranty covering hardware defects and communication failures. Prior to shipment, each unit undergoes functional verification including power-on testing, DH-485 communication link validation, display integrity check, and keypad response testing. Units are shipped with protective packaging to prevent transit damage. In-stock units typically ship within 1–3 business days of order confirmation.
