Allen-Bradley 2711-K5A2X HMI Operator Interface

Product Details

2711-K5A2X Product Description

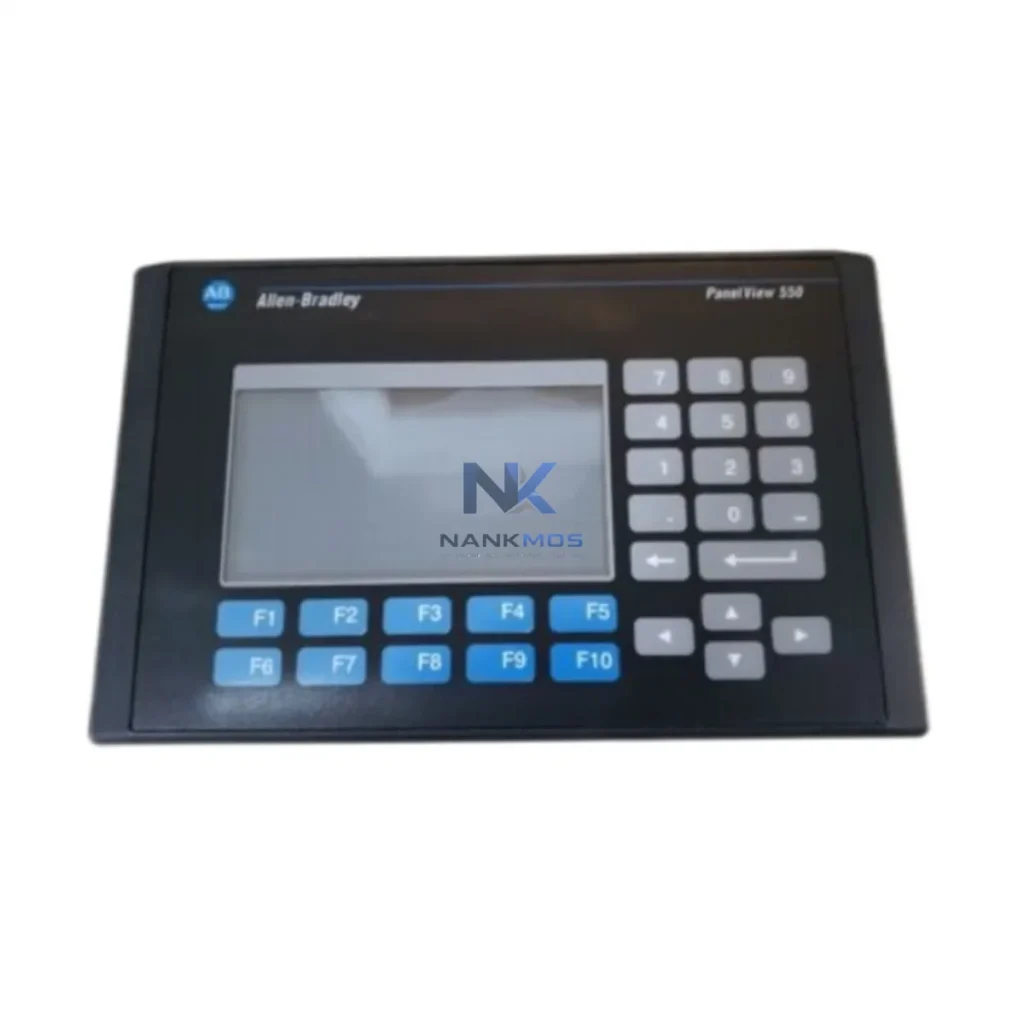

The Allen-Bradley 2711-K5A2X is a PanelView 550 operator interface terminal engineered for energy-conscious industrial environments where real-time visibility, load management, and production line efficiency are non-negotiable. As a field-proven HMI within the Rockwell Automation ecosystem, the 2711-K5A2X delivers a reliable operator touchpoint that bridges machine-level control with plant-wide energy optimization strategies — reducing unnecessary energy draw, minimizing thermal load on control panels, and enabling operators to respond to process deviations before they escalate into costly downtime.

Designed for integration with Allen-Bradley PLC platforms including the MicroLogix 1100 and SLC 500 series, the 2711-K5A2X communicates over DH-485 and RS-232 protocols, making it a natural fit for legacy and mid-range automation architectures that require a dependable, low-overhead operator interface. Its 5.5-inch monochrome display provides clear process visualization without the power overhead of larger color panel systems, contributing directly to reduced panel energy consumption in continuous-duty production environments.

In a fully integrated energy-aware production cell, the 2711-K5A2X serves as the operator's primary window into the energy and process state of the line. When paired with an Allen-Bradley MicroLogix 1400 PLC handling discrete I/O logic and sequencing, the HMI surfaces real-time data on motor run states, drive fault conditions, and energy alarm thresholds — enabling operators to act on inefficiencies the moment they appear rather than discovering them during post-shift energy audits.

For motor-driven loads, the 2711-K5A2X integrates naturally with PowerFlex 40 and PowerFlex 400 variable frequency drives via the connected PLC, allowing operators to monitor drive output frequency, motor load percentage, and fault codes directly from the panel face. This closed-loop visibility between the HMI, PLC, and VFD is fundamental to reducing energy waste caused by motors running at full speed under partial load — a common source of avoidable energy consumption in conveyor, pump, and fan applications.

Power monitoring data from a PowerMonitor 500 or similar energy metering module can be surfaced through the PLC and displayed on the 2711-K5A2X, giving operators a consolidated view of real-time kW demand, power factor, and cumulative energy consumption without requiring a separate SCADA workstation for routine monitoring tasks. This reduces the cognitive load on operators while keeping energy data actionable at the machine level.

On the I/O side, 1769 CompactLogix I/O modules feeding discrete and analog signals into the control system provide the 2711-K5A2X with the process data it needs to display accurate equipment states — whether a motor is running, a valve is open, or a thermal sensor has exceeded its setpoint. This integration ensures that the HMI is not simply a display device but an active participant in the energy management loop, alerting operators to conditions that drive unnecessary energy consumption such as heaters cycling against open doors or pumps running against closed valves.

For facilities running Ethernet-connected architectures, the 2711-K5A2X can coexist within a broader control network where ControlLogix L6x or L7x processors manage high-speed motion and energy-intensive servo axes via Kinetix 6500 servo drives. While the PanelView 550 itself operates on legacy serial protocols, its role in the energy strategy remains significant: it provides local operator control at the machine level, reducing the need for centralized SCADA intervention for routine adjustments and thereby lowering network overhead and response latency in time-sensitive production scenarios.

Production lines that operate without adequate operator visibility at the machine level are prone to energy inefficiencies that accumulate silently over shifts and weeks. The 2711-K5A2X addresses this by placing critical process and energy-related information directly in front of the operator at the point of control. When a conveyor motor is drawing excessive current due to a mechanical binding condition, or when a heating element is cycling more frequently than expected due to a sensor drift, the HMI's alarm and status display capabilities allow operators to identify and respond to these conditions in real time — before they translate into wasted energy, thermal stress on components, or unplanned downtime.

In batch and discrete manufacturing environments, the 2711-K5A2X supports production line rhythm optimization by providing clear start/stop, mode selection, and recipe navigation interfaces that reduce operator-induced cycle time variability. Consistent cycle times directly reduce the energy cost per unit produced, as machines spend less time in transitional states — accelerating, decelerating, or idling — and more time operating at their designed efficiency point.

Predictive maintenance strategies also benefit from the HMI's role in the control architecture. By displaying accumulated run-hour counters, fault history logs, and process trend data sourced from the PLC, the 2711-K5A2X gives maintenance teams the visibility they need to schedule interventions before equipment degradation leads to increased energy draw or catastrophic failure. A motor running with worn bearings, for example, will draw measurably more current than a healthy unit — a condition that can be flagged through PLC logic and surfaced on the HMI before it becomes a replacement event.

Every 2711-K5A2X unit supplied by NANKMOS is tested and verified prior to shipment, with in-stock availability supporting fast deployment into active production environments. The included 12-month warranty reflects confidence in the unit's operational integrity and provides procurement teams with the assurance needed to specify refurbished and surplus automation components as part of a cost-effective, energy-optimized capital equipment strategy.

Q1: How does the 2711-K5A2X contribute to energy savings on a production line? The 2711-K5A2X reduces energy waste by giving operators real-time visibility into equipment states, alarm conditions, and process deviations at the machine level. By enabling faster operator response to inefficient operating conditions — such as motors running under no-load, heaters cycling against open enclosures, or drives operating in fault-recovery mode — the HMI helps minimize the duration and frequency of energy-intensive abnormal states. When integrated with a PLC and VFD system, it forms a closed-loop operator interface that supports continuous energy performance monitoring without requiring dedicated SCADA access for routine tasks.

Q2: Which PLC and drive systems is the 2711-K5A2X compatible with? The 2711-K5A2X is designed for use with Allen-Bradley MicroLogix 1000, MicroLogix 1100, SLC 500, and PLC-5 series controllers via DH-485 and RS-232 communication. It is commonly deployed alongside PowerFlex 40 and PowerFlex 400 drives in motor control applications where the PLC serves as the intermediary between the HMI and the drive. For facilities considering migration to newer platforms, the PanelView 550 can serve as a cost-effective interim operator interface while ControlLogix or CompactLogix infrastructure is phased in.

Q3: Can the 2711-K5A2X replace a failed PanelView 550 unit without reprogramming? In most cases, yes. The 2711-K5A2X is a direct form-factor replacement for other PanelView 550 terminals with matching communication and power supply configurations. Application files created in PanelBuilder 32 can be transferred to the replacement unit via memory card or serial upload, minimizing reprogramming effort and reducing line downtime during the swap. It is recommended to verify the communication protocol and power supply variant of the original unit before ordering to ensure a drop-in fit.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment? Every 2711-K5A2X supplied by NANKMOS undergoes functional testing prior to shipment, including display verification, keypad response, and communication port integrity checks. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair support. In-stock availability means that warranty replacements and new deployments can be fulfilled without extended lead times, supporting production continuity for facilities that cannot tolerate prolonged equipment downtime.
