Allen-Bradley 2711-K6C1 HMI Operator Interface

Product Details

2711-K6C1 Product Description

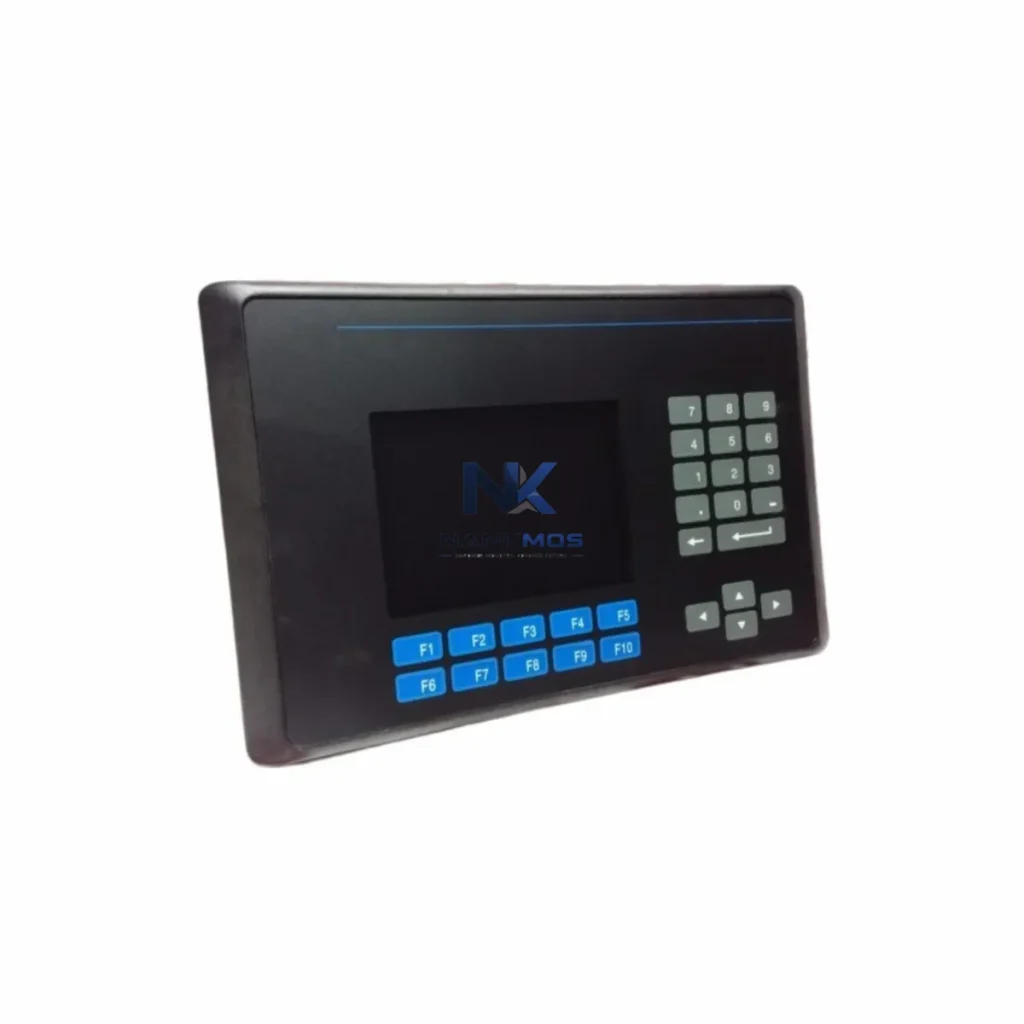

The Allen-Bradley 2711-K6C1 PanelView 600 is a field-proven human-machine interface terminal engineered for demanding industrial network environments. Built around the DH-485 communication protocol, this compact HMI serves as a critical data bridge between field-level devices and supervisory control systems, enabling real-time visualization, alarm management, and remote diagnostics across the full automation data chain. Whether deployed in discrete manufacturing, process control, or utility management, the 2711-K6C1 delivers reliable operator interaction at the edge of the control network — where data originates and decisions are made.

In a modern smart factory architecture, the 2711-K6C1 connects directly to Allen-Bradley SLC 500 and MicroLogix PLC families via the DH-485 network, providing seamless tag-based data exchange without the need for additional protocol converters. Operators gain live access to process variables, setpoints, and equipment status, while the HMI simultaneously feeds structured data upstream to SCADA platforms such as FactoryTalk View SE and Wonderware InTouch. This bidirectional data flow — from sensor signal through PLC logic to HMI visualization and SCADA aggregation — forms the backbone of transparent, connected production.

The 2711-K6C1 sits at the intersection of field instrumentation and supervisory intelligence. In a typical smart factory deployment, the data chain begins at the sensor layer — pressure transmitters, flow meters, and proximity switches feed analog and digital signals into remote I/O modules such as the Allen-Bradley 1746 SLC I/O rack. These signals are processed by an SLC 5/03 or SLC 5/04 PLC, which executes ladder logic and generates real-time process values. The 2711-K6C1 connects to this PLC via the DH-485 multi-drop network, pulling live tag data and presenting it to operators through its 6-inch display with configurable screens, trend graphs, and alarm banners.

Upstream from the HMI, a FactoryTalk Gateway or a dedicated industrial Ethernet switch — such as the Stratix 2000 or Stratix 5700 managed switch — bridges the DH-485 segment to the plant-wide Ethernet backbone. This gateway function enables SCADA servers running FactoryTalk View SE to aggregate data from multiple 2711-K6C1 terminals and associated PLCs across the facility. Simultaneously, MicroLogix 1100 controllers on adjacent production lines communicate over the same DH-485 segment, sharing network bandwidth efficiently through the protocol's token-passing architecture.

For drive and motion integration, Allen-Bradley PowerFlex 40 and PowerFlex 400 variable frequency drives can be monitored and controlled through the PLC, with speed references, fault codes, and energy consumption data surfaced on the 2711-K6C1 display. This eliminates the need for operators to physically inspect drive panels, reducing response time to fault conditions from minutes to seconds. Where additional remote I/O capacity is required, the 1747-ASB Remote I/O Adapter extends the SLC rack architecture across longer distances, maintaining data integrity across the DH-485 segment.

Edge intelligence is further enhanced when the 2711-K6C1 network is paired with a ProSoft Technology MVI46-MNET Modbus TCP/IP communication module installed in the SLC rack. This combination allows legacy Modbus RTU devices — including third-party sensors, energy meters, and flow computers — to be integrated into the Allen-Bradley control architecture without replacing existing field hardware. The result is a unified data namespace accessible from the HMI and SCADA layers, supporting real-time monitoring, historical trending, and KPI dashboards across heterogeneous device populations.

Industrial sites running mixed-generation equipment frequently encounter protocol fragmentation — where DH-485 segments, Modbus RTU loops, and Ethernet/IP networks operate as isolated data islands. The 2711-K6C1, when deployed as part of a structured Allen-Bradley control architecture, addresses this challenge by providing a standardized operator interface that consolidates process visibility across protocol boundaries. Operators no longer need to navigate multiple standalone displays or interpret raw PLC indicator lights; all critical process states are presented on a single, configurable HMI screen.

Remote monitoring and diagnostics represent another persistent gap in aging automation infrastructure. With the 2711-K6C1 connected to a SCADA-enabled network, maintenance engineers can access alarm histories, trend data, and equipment status from a central control room or remote workstation — without requiring physical presence at the machine. Alarm acknowledgment workflows, time-stamped event logs, and configurable alert thresholds reduce unplanned downtime and support root-cause analysis after process deviations.

Production line transparency is further improved through the HMI's data logging capability, which captures process variables at configurable intervals and stores them for upload to historian databases. This data feeds OEE (Overall Equipment Effectiveness) calculations, shift reports, and predictive maintenance models — transforming raw sensor signals into actionable manufacturing intelligence. System expansion is straightforward: additional PanelView terminals, PLC nodes, and I/O modules can be added to the DH-485 network up to the protocol's 32-node limit, supporting phased capacity growth without architectural redesign.

Q1: What is the maximum network length and node count for the DH-485 segment used by the 2711-K6C1? The DH-485 network supports up to 32 nodes (addresses 0–31) and a maximum cable length of 1,219 meters (4,000 feet) using shielded twisted-pair cable. Baud rates are selectable at 1,200, 2,400, 4,800, 9,600, or 19,200 bps. For installations requiring longer distances or higher node counts, a DH-485 to Ethernet/IP gateway such as the 1761-NET-ENI can extend network reach while maintaining protocol compatibility with the 2711-K6C1.

Q2: Is the 2711-K6C1 compatible with FactoryTalk View and modern SCADA platforms? Yes. The 2711-K6C1 is fully compatible with RSView32 and FactoryTalk View ME/SE environments via the DH-485 communication driver. For integration with modern SCADA platforms such as Wonderware InTouch or Ignition, a protocol gateway (e.g., ProSoft MVI56-DFNT or a Kepware KEPServerEX OPC server) bridges the DH-485 data to OPC-DA or OPC-UA, enabling seamless tag subscription and historian connectivity without modifying the existing HMI configuration.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover? Every 2711-K6C1 unit undergoes functional verification prior to shipment, including power-on testing, display integrity check, communication port validation, and keypad/touchscreen response confirmation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped with protective packaging to prevent transit damage, and replacement or repair support is available through our technical team at [email protected].

Q4: Can the 2711-K6C1 be used in high-noise industrial environments, and what are the key installation requirements? The 2711-K6C1 is rated for industrial panel installation with a NEMA 4/4X front-panel rating (IP65 equivalent), making it suitable for environments with dust, coolant splash, and moderate vibration. For reliable DH-485 communication in electrically noisy environments, Rockwell Automation recommends using Belden 3106A or equivalent shielded cable, grounding the shield at one end only, and maintaining physical separation from high-voltage power conductors. Proper termination resistors (150Ω) should be installed at both ends of the DH-485 segment to minimize signal reflections and ensure network stability at higher baud rates.
