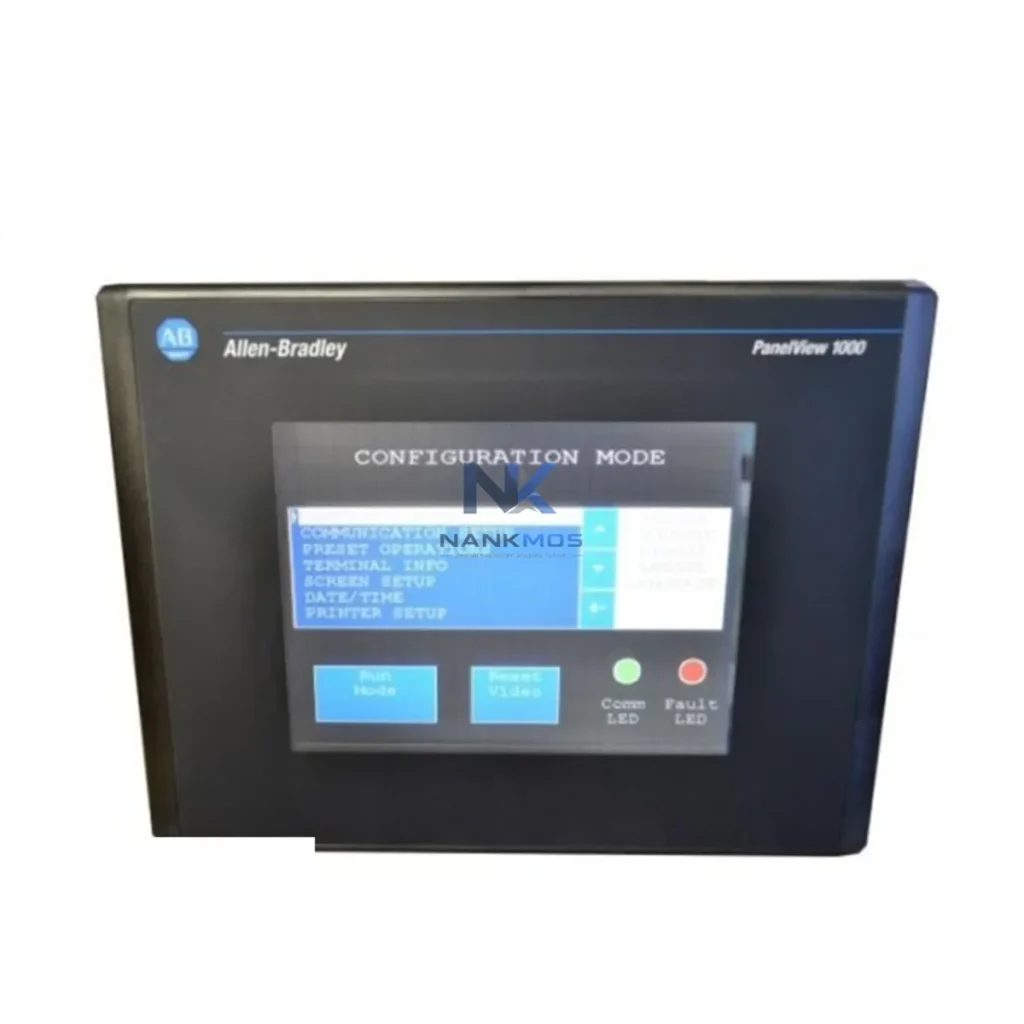

Allen-Bradley 2711-T10C8X HMI Touch Panel

Product Details

2711-T10C8X Product Description

The Allen-Bradley 2711-T10C8X is a PanelView 1000 color touch-screen HMI terminal engineered for seamless integration into industrial data networks. Supporting DH-485 and RS-232 communication protocols, this unit serves as a critical visualization and control node within smart factory architectures — bridging field-level devices, PLC controllers, and supervisory systems into a unified, real-time data environment. Whether deployed in discrete manufacturing, process control, or energy management applications, the 2711-T10C8X delivers reliable operator interface performance with the network connectivity demanded by modern industrial automation.

In a connected smart factory, the Allen-Bradley 2711-T10C8X operates as the operator-facing visualization layer within a multi-tier industrial network. At the field level, sensors, actuators, and I/O modules — such as the Allen-Bradley 1734 POINT I/O or 1746 SLC I/O modules — feed real-time process data upward through the DH-485 network to the PLC controller. The 2711-T10C8X connects directly to Allen-Bradley SLC 500 or MicroLogix controllers via DH-485, reading tag values, setpoints, and alarm states with minimal latency.

Within the control cabinet, the 2711-T10C8X works alongside Allen-Bradley 1747-KE or 1761-NET-AIC communication adapters that extend DH-485 connectivity across longer cable runs or multi-node topologies. As process data flows from the PLC to the HMI, operators gain immediate visibility into production metrics, equipment status, and alarm conditions — enabling rapid response without reliance on centralized SCADA polling cycles.

For facilities integrating SCADA platforms such as Rockwell's FactoryTalk View or third-party systems via OPC-DA gateways, the 2711-T10C8X serves as a local display node that complements supervisory data aggregation. Edge gateways — including devices like the Moxa MGate MB3170 or similar industrial protocol converters — can bridge DH-485 segments to Ethernet-based SCADA backbones, enabling the 2711-T10C8X's connected PLC data to flow into plant-wide historians and MES platforms.

Variable frequency drives such as the Allen-Bradley PowerFlex 40 or PowerFlex 70, when networked via DeviceNet or hardwired analog signals to the SLC 500, expose speed references, current draw, and fault codes that the 2711-T10C8X can display in real time. This closed-loop visibility — from drive output back to the operator panel — is fundamental to energy optimization and predictive maintenance workflows in smart manufacturing environments.

Remote diagnostic capability is achieved by pairing the 2711-T10C8X with Allen-Bradley 1747-UIC USB-to-DH-485 interface cables or 1761-NET-ENI Ethernet-to-serial adapters, allowing maintenance engineers to remotely monitor HMI screen states, PLC register values, and alarm histories through RSLinx Classic or FactoryTalk Diagnostics. This remote access layer reduces unplanned downtime by enabling off-site fault analysis before dispatching field technicians.

For data visualization and reporting, process values captured at the 2711-T10C8X level can be forwarded through the DH-485 network to data acquisition modules or Ethernet gateways, feeding dashboards in FactoryTalk Historian or third-party SCADA systems. This complete data chain — from sensor signal through PLC logic, HMI display, and network gateway to cloud-ready historian — positions the 2711-T10C8X as an indispensable link in the industrial IoT data pipeline.

Many legacy automation sites face persistent challenges: protocol fragmentation between older DH-485 networks and modern Ethernet-based systems, data silos that prevent plant-wide visibility, and limited remote monitoring capability for geographically distributed assets. The Allen-Bradley 2711-T10C8X directly addresses these pain points by providing a proven, protocol-native HMI interface that integrates without modification into existing DH-485 control architectures.

Where protocol unification is required, the 2711-T10C8X pairs with communication gateways that translate DH-485 to EtherNet/IP or Modbus TCP, eliminating data islands between legacy PLC networks and modern SCADA or MES platforms. For production line transparency, the HMI's configurable screen pages allow operators to monitor multiple process zones simultaneously, reducing the blind spots that lead to quality escapes and unplanned stoppages.

Alarm tracking is enhanced through the 2711-T10C8X's alarm banner and history functions, which log fault events with timestamps directly accessible at the operator station. When integrated with remote access adapters, these alarm logs become available to maintenance teams off-site, enabling proactive fault response and reducing mean time to repair. System expansion is straightforward: additional PanelView terminals or communication nodes can be added to the DH-485 multi-drop network without disrupting existing installations, supporting phased smart factory upgrades without capital-intensive infrastructure replacement.

Q1: What communication protocols does the Allen-Bradley 2711-T10C8X support, and are they compatible with modern SCADA systems? The 2711-T10C8X supports DH-485 and RS-232 protocols natively. While these are legacy serial protocols, they remain fully compatible with modern SCADA systems when paired with protocol gateway devices such as the Allen-Bradley 1761-NET-ENI or third-party Ethernet-to-serial converters, enabling integration with EtherNet/IP and OPC-based supervisory platforms.

Q2: How does the 2711-T10C8X perform in terms of network stability and communication latency on a DH-485 multi-drop network? DH-485 is a token-passing network designed for deterministic communication, providing stable, low-latency data exchange between the HMI and connected PLC controllers. On a properly configured DH-485 segment with up to 32 nodes, the 2711-T10C8X maintains reliable polling cycles suitable for real-time operator display and alarm response applications.

Q3: Can the 2711-T10C8X be used for remote diagnostics and off-site monitoring? Yes. By connecting a 1747-UIC USB-to-DH-485 adapter or a 1761-NET-ENI Ethernet interface to the DH-485 network, maintenance engineers can remotely access PLC data and HMI configurations using RSLinx Classic or FactoryTalk Diagnostics software. This enables off-site fault analysis, parameter adjustment, and alarm review without requiring physical presence at the machine.

Q4: What warranty and pre-shipment testing does the 2711-T10C8X come with? Every Allen-Bradley 2711-T10C8X unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes full functional testing prior to dispatch. This includes communication interface verification, display integrity checks, and touch calibration validation, ensuring the unit arrives ready for immediate installation and commissioning.
