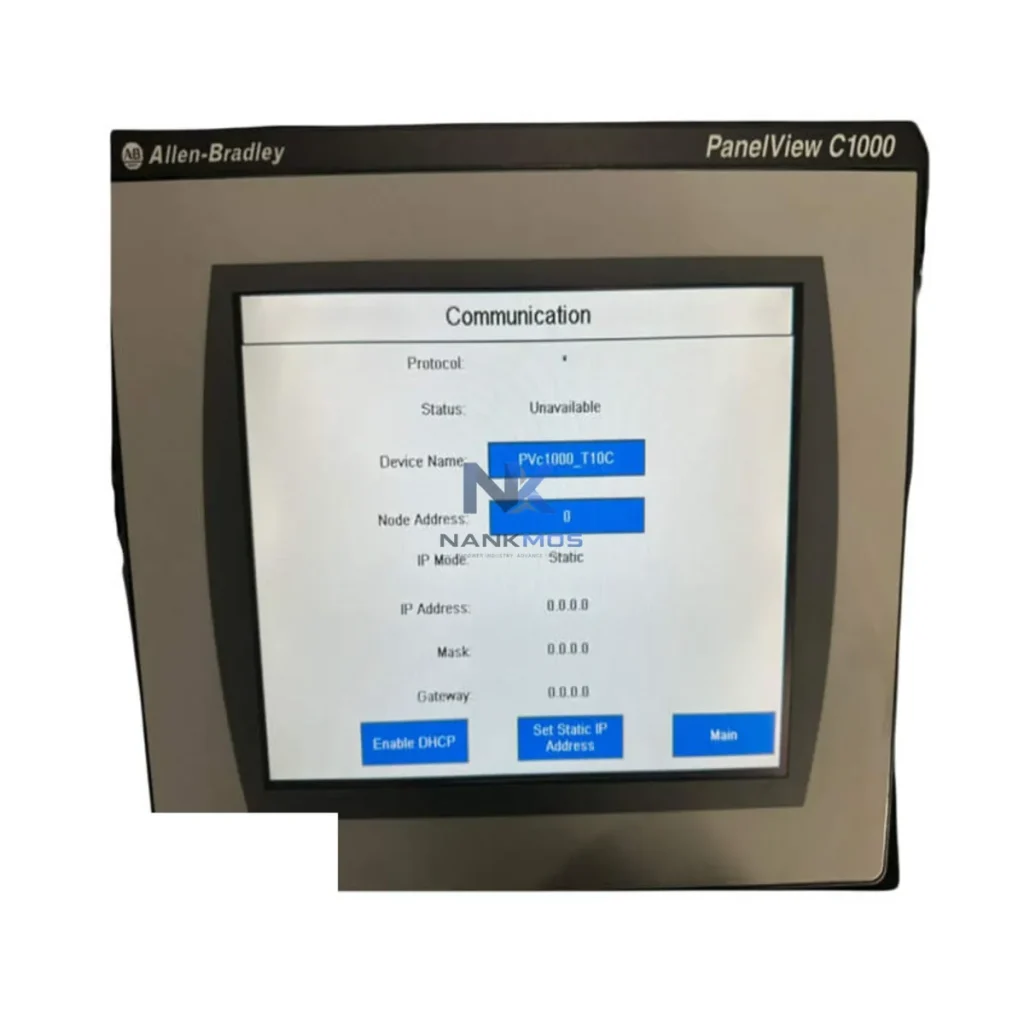

Allen-Bradley 2711C-T10C/B HMI Touchscreen Terminal

Product Details

2711C-T10C/B Product Description

The Allen-Bradley 2711C-T10C/B is a 10-inch color touchscreen HMI from the PanelView C1000 series, engineered to deliver precise operator control, real-time energy visibility, and seamless integration across modern industrial automation architectures. Designed for demanding production environments, this unit bridges the gap between field-level devices and supervisory systems, enabling operators to monitor energy consumption, manage load cycles, and optimize production throughput from a single, intuitive interface.

Built on Rockwell Automation's proven FactoryTalk platform compatibility, the 2711C-T10C/B supports direct communication with Allen-Bradley MicroLogix and CompactLogix PLCs via EtherNet/IP, enabling real-time data exchange for energy-aware control strategies. When paired with a PowerFlex 525 or PowerFlex 755 variable frequency drive, operators can visualize motor speed, torque demand, and energy draw directly on the HMI screen — allowing immediate intervention when load conditions deviate from optimal efficiency targets. This tight integration between the HMI and the drive system eliminates the need for separate monitoring terminals, reducing panel footprint and auxiliary power consumption.

Every unit is sourced from verified inventory channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty, ensuring operational confidence from day one of deployment.

In a fully integrated energy-control architecture, the 2711C-T10C/B serves as the operator's primary window into the energy state of the production line. When connected to a CompactLogix L33ER PLC, the HMI can display live energy tags sourced from a PowerMonitor 5000 power quality meter, giving line supervisors instant access to kWh consumption, power factor, and demand peaks — all without leaving the machine station.

For motor-driven applications, the 2711C-T10C/B pairs naturally with PowerFlex 40 and PowerFlex 70 drives, displaying speed references, output frequency, and fault codes in real time. Operators can initiate controlled ramp-down sequences directly from the touchscreen, reducing inrush current events and thermal stress on motor windings. This capability is particularly valuable in conveyor systems, pump stations, and compressor banks where unmanaged starts contribute disproportionately to peak energy demand.

The HMI also integrates with 1734 POINT I/O and 1756 ControlLogix I/O modules, enabling status feedback from field sensors — including temperature transmitters, current transducers, and proximity switches — to be aggregated and displayed on energy dashboards configured in FactoryTalk View Studio. When a thermal anomaly is detected via a connected temperature sensor or an overload relay trips in the field panel, the 2711C-T10C/B can trigger alarm banners and log the event timestamp, supporting root-cause analysis and predictive maintenance workflows.

For facilities running SCADA oversight, the 2711C-T10C/B can operate as a local HMI node within a broader FactoryTalk SE or Ignition SCADA topology, forwarding operator inputs and alarm acknowledgments upstream while receiving setpoint updates from the control room. This bidirectional data flow ensures that energy optimization strategies defined at the SCADA level — such as demand response curtailment or shift-based load shedding — are immediately actionable at the machine level.

Industrial facilities face mounting pressure to reduce energy costs without sacrificing throughput. The 2711C-T10C/B addresses this challenge by providing operators with the real-time visibility and control authority needed to make energy-conscious decisions at the point of production. By displaying live power consumption data alongside production rate KPIs, the HMI enables operators to identify energy-intensive process steps, correlate energy spikes with specific machine states, and implement corrective actions before inefficiencies compound into measurable cost overruns.

In multi-machine production cells, the 2711C-T10C/B supports staggered startup sequencing — a proven technique for reducing aggregate inrush current and flattening the facility's demand curve. Operators can initiate machine-by-machine startup from the touchscreen, guided by visual cues and interlock status feedback from the connected PLC. This approach can reduce peak demand charges by 10–20% in facilities with multiple large motor loads, delivering tangible savings on monthly utility bills without requiring capital investment in additional power conditioning equipment.

Downtime reduction is equally central to energy efficiency. Every unplanned stop wastes the energy already invested in heating, pressurizing, or accelerating the process to operating conditions. The 2711C-T10C/B's alarm management capabilities — including alarm history logging, frequency analysis, and operator acknowledgment tracking — help maintenance teams identify recurring fault patterns and address root causes before they escalate to line stoppages. Combined with predictive maintenance data from vibration sensors and thermal imagers integrated via the PLC's analog I/O channels, the HMI becomes a frontline tool for extending mean time between failures and maximizing equipment utilization.

All units available through NANKMOS are drawn from tested, verified inventory. Each 2711C-T10C/B undergoes pre-shipment functional verification to confirm display integrity, communication port operation, and power supply stability before dispatch. The included 12-Month Warranty covers hardware defects and provides a clear support pathway, ensuring that procurement teams can specify this unit with confidence in both performance and supply continuity.

Q1: How does the 2711C-T10C/B contribute to energy savings on the production line?The 2711C-T10C/B enables real-time display of energy consumption tags sourced from connected PLCs and power monitoring modules such as the PowerMonitor 5000. By giving operators immediate visibility into load conditions, the HMI supports informed decisions on startup sequencing, load shedding, and drive speed adjustment — all of which reduce unnecessary energy expenditure during production shifts.

Q2: Which PLC and drive systems is the 2711C-T10C/B compatible with?The unit communicates natively with Allen-Bradley MicroLogix, CompactLogix, and ControlLogix PLCs via EtherNet/IP, DF1, and DH-485 protocols. It is fully compatible with PowerFlex series drives (including PowerFlex 40, 70, 525, and 755) and can display drive status, fault codes, and energy parameters when configured through FactoryTalk View Studio.

Q3: What is the pre-shipment testing process and what does the 12-Month Warranty cover?Every 2711C-T10C/B sourced through NANKMOS undergoes functional pre-shipment testing covering display operation, communication port integrity, and power supply performance. The 12-Month Warranty covers hardware defects identified under normal operating conditions and provides access to technical support for troubleshooting and replacement coordination.

Q4: Is inventory available for immediate shipment, and can the 2711C-T10C/B replace an existing HMI in a legacy system?Yes, the 2711C-T10C/B is maintained in verified stock for prompt dispatch. As a direct member of the PanelView C1000 series, it is a compatible replacement for other C1000-series terminals in existing panel installations. For legacy systems using older PanelView 550 or PanelView 600 terminals, a communication protocol review is recommended to confirm tag mapping compatibility before substitution.
