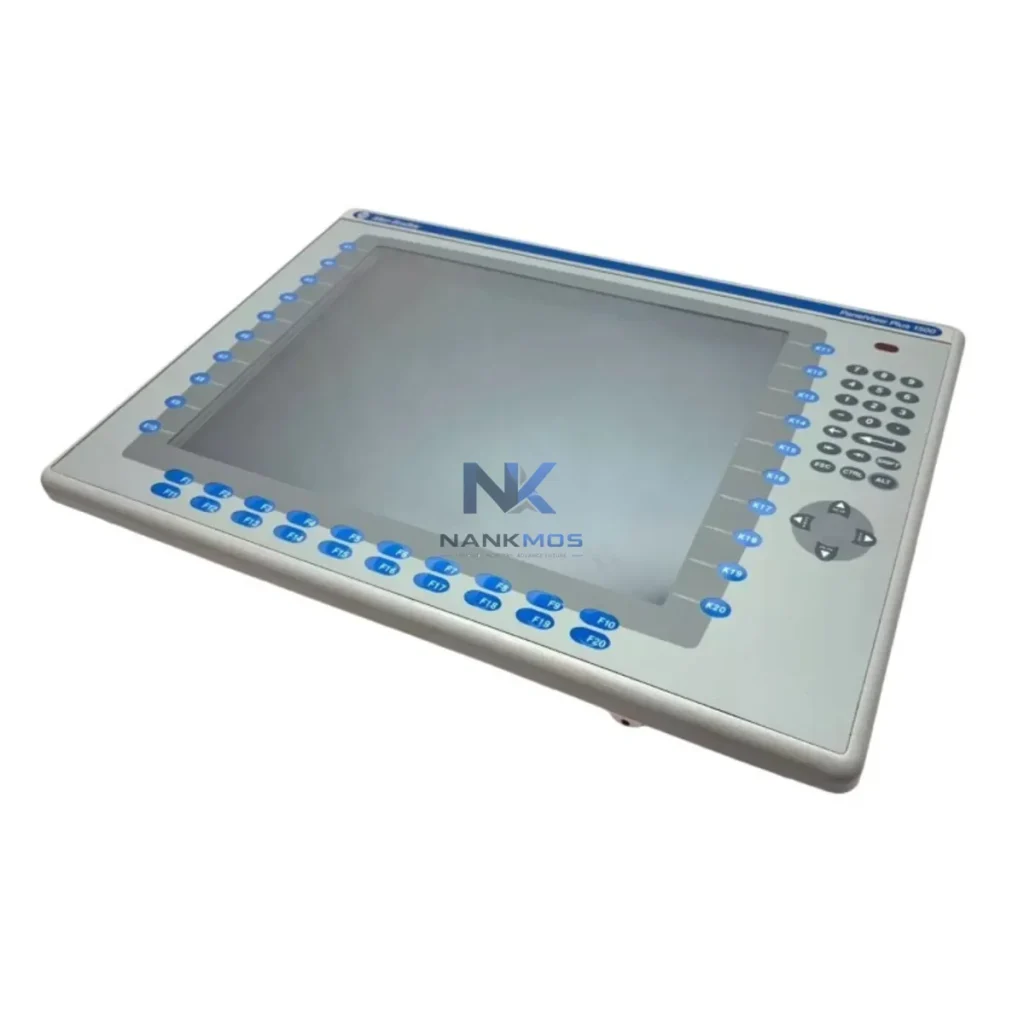

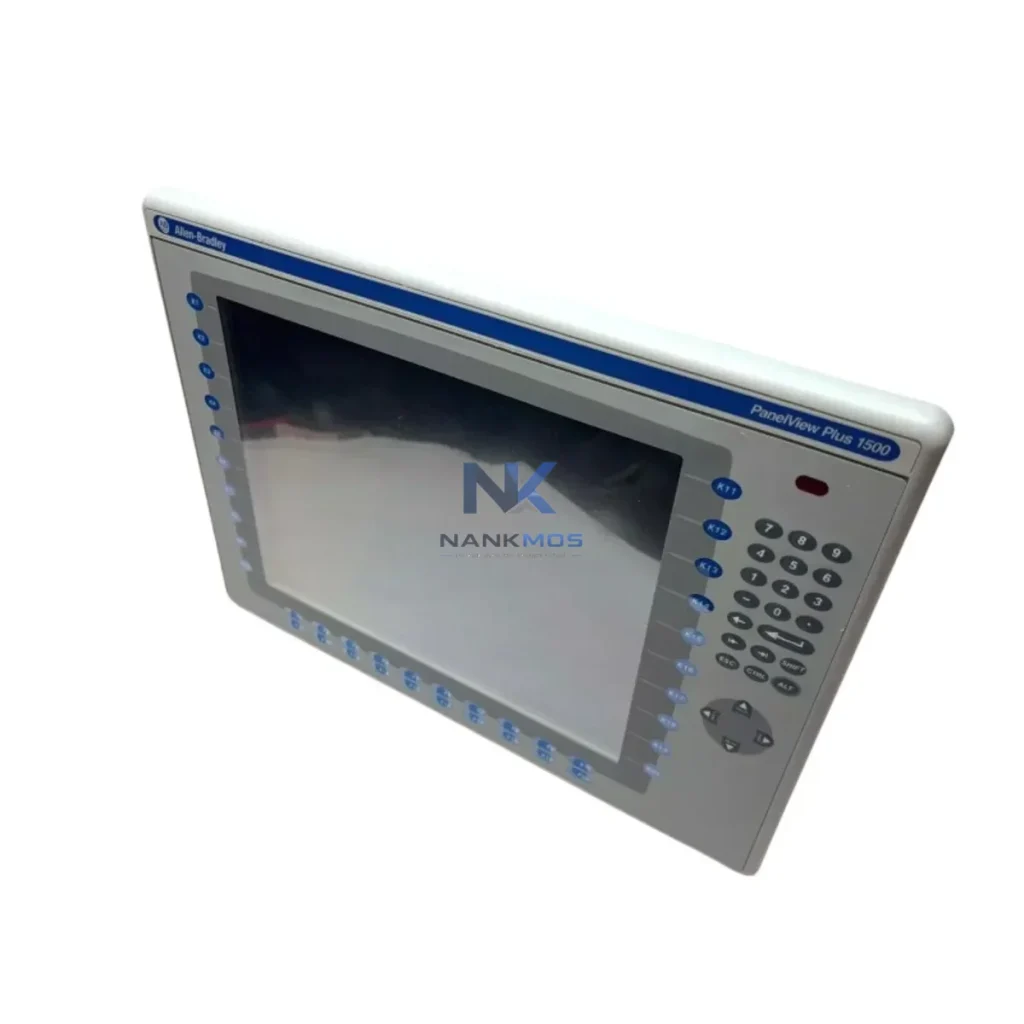

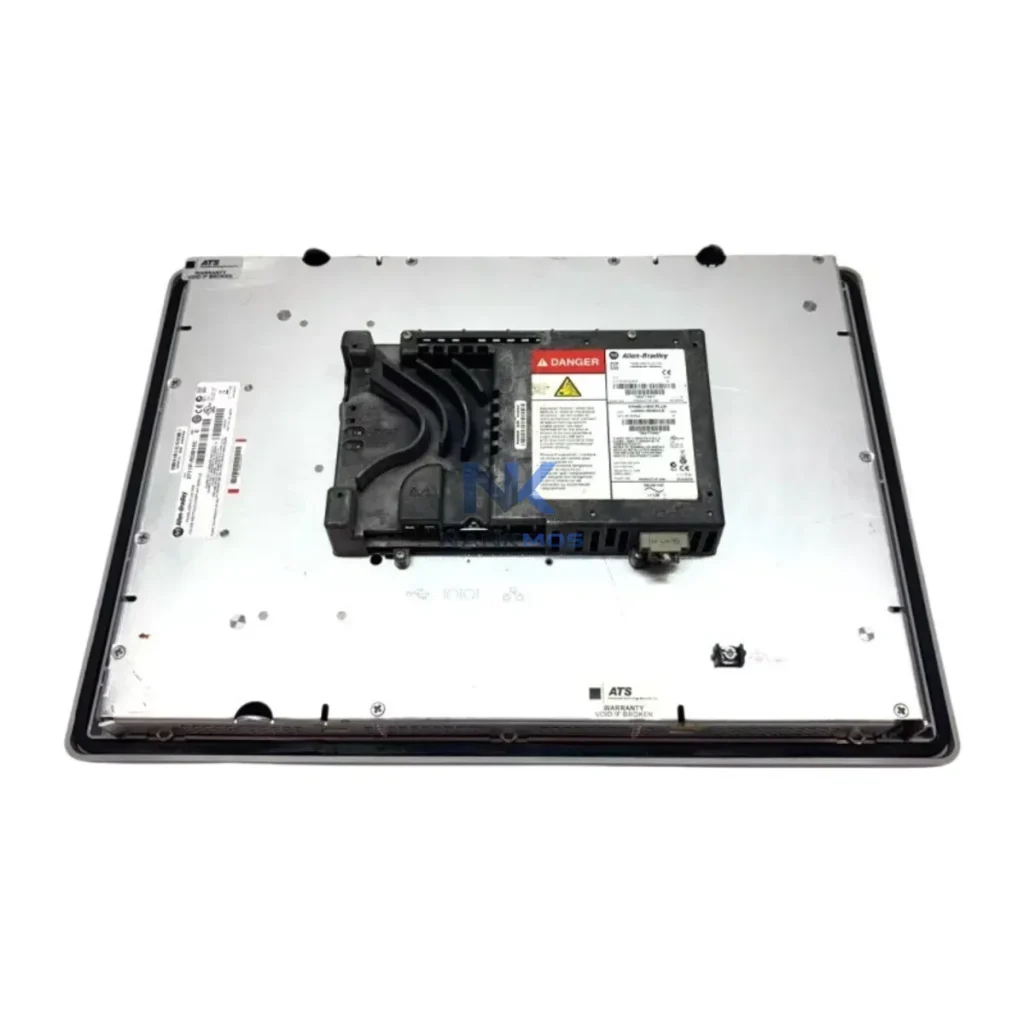

Allen-Bradley 2711P-B15C4A9 HMI Terminal

Product Details

2711P-B15C4A9 Product Description

The Allen-Bradley 2711P-B15C4A9 is a PanelView Plus 1500 Human-Machine Interface terminal engineered for high-demand industrial environments where real-time data visibility, protocol flexibility, and network reliability are non-negotiable. With a 15-inch color touchscreen display and native support for EtherNet/IP, DH+, DF1, and RS-232 communication protocols, this HMI terminal serves as the central visualization and interaction node across the full smart factory data chain — from field-level sensors and actuators through PLC controllers, remote I/O modules, variable frequency drives, and edge gateways, all the way to SCADA platforms and enterprise MES systems.

In modern industrial automation, the HMI is no longer a passive display device. The 2711P-B15C4A9 functions as an active data aggregation and presentation layer, receiving real-time process values from ControlLogix and CompactLogix controllers via EtherNet/IP, rendering live trends, alarm states, and production KPIs, and simultaneously forwarding structured data upstream to FactoryTalk View SE SCADA servers. This bidirectional data flow enables operators to act on process deviations within seconds, reducing unplanned downtime and improving overall equipment effectiveness (OEE) across the production line.

The terminal's robust aluminum front panel and NEMA 4/4X-rated enclosure make it suitable for deployment in harsh environments including petrochemical processing, water treatment facilities, power generation substations, food and beverage lines, and automotive assembly plants. Pre-shipment functional testing is performed on every unit prior to dispatch, ensuring that network communication, touchscreen calibration, and display integrity are validated before the device reaches the installation site.

The 2711P-B15C4A9 is designed to operate at the intersection of operational technology (OT) and information technology (IT), making it a critical node in any smart factory data architecture. A typical deployment begins at the field level, where Allen-Bradley 1734 POINT I/O modules collect discrete and analog signals from proximity sensors, pressure transmitters, and flow meters. These signals are transmitted over EtherNet/IP to a ControlLogix L7x controller residing in a 1756 chassis, where ladder logic and function block programs execute control decisions in real time.

The 2711P-B15C4A9 connects directly to the same EtherNet/IP network segment, polling tag values from the ControlLogix controller at configurable scan rates. Operators interact with process graphics, navigate alarm pages, and initiate setpoint changes through the 15-inch touchscreen — all without requiring a separate engineering workstation on the floor. For legacy equipment integration, the terminal's DH+ port enables direct communication with older SLC 500 and PLC-5 controllers, bridging legacy automation assets into the modern network without costly controller replacements.

Variable frequency drives such as the PowerFlex 525 and PowerFlex 755 are integrated into the same EtherNet/IP fabric, with their speed references, fault codes, and energy consumption data surfaced directly on the HMI display. This eliminates the need for operators to physically inspect drive panels, reducing exposure risk in high-voltage environments. Alarm events generated by the drives are logged with timestamps in the HMI's alarm history buffer and simultaneously forwarded to FactoryTalk View SE for centralized alarm management and shift reporting.

At the network infrastructure layer, Stratix 5700 managed industrial Ethernet switches provide the backbone connectivity between the HMI, controllers, I/O modules, and drives. VLAN segmentation and QoS policies configured on the Stratix switches ensure that time-critical EtherNet/IP traffic is prioritized over general IT traffic, maintaining deterministic communication latency across the control network. For remote access and diagnostics, a Stratix 5900 industrial router or a compatible edge gateway provides secure VPN tunneling, allowing maintenance engineers to remotely connect to the HMI and controller network from off-site locations without compromising network security.

Data collected at the HMI and controller level is aggregated by FactoryTalk Historian, which archives time-series process data for trend analysis, regulatory compliance reporting, and predictive maintenance modeling. The historian data is then visualized through FactoryTalk VantagePoint dashboards, giving plant managers and process engineers a real-time and historical view of production performance, energy consumption, and equipment health — all accessible from standard web browsers without requiring dedicated client software installations.

Many industrial facilities operate with a fragmented automation landscape — a mix of legacy PLCs running proprietary protocols, modern EtherNet/IP-capable controllers, and standalone HMI panels that cannot share data with upstream SCADA or MES systems. The result is data silos: critical process information trapped in isolated devices, invisible to plant management and inaccessible for analysis.

The 2711P-B15C4A9 directly addresses this challenge through its multi-protocol communication architecture. Its simultaneous support for EtherNet/IP and DH+ allows a single HMI terminal to bridge new and legacy controller platforms, presenting unified process data to operators regardless of the underlying controller generation. This eliminates the need for separate HMI panels for each controller type, reducing hardware costs and simplifying operator training.

For facilities implementing remote monitoring and predictive maintenance programs, the 2711P-B15C4A9's integration with FactoryTalk View SE enables alarm notifications to be routed to mobile devices and email systems, ensuring that critical process deviations are communicated to the right personnel immediately — even outside of normal working hours. Remote diagnostic sessions via VPN allow engineers to review HMI alarm logs, inspect controller tag values, and adjust process setpoints without traveling to the plant, significantly reducing mean time to repair (MTTR) for process upsets.

Production line transparency is further enhanced through the HMI's built-in data logging capability, which records operator actions, setpoint changes, and alarm acknowledgments with user ID and timestamp. This audit trail supports quality management system (QMS) requirements and provides the forensic data needed to investigate process deviations and implement corrective actions. As production lines expand, additional HMI terminals and I/O modules can be added to the existing EtherNet/IP network without architectural changes, providing a scalable path for future capacity growth.

Q1: What communication protocols does the Allen-Bradley 2711P-B15C4A9 support, and is it compatible with non-Rockwell controllers? The 2711P-B15C4A9 natively supports EtherNet/IP, DH+, DF1, and RS-232 protocols. It is optimized for Rockwell Automation controllers including ControlLogix, CompactLogix, MicroLogix, SLC 500, and PLC-5 families. While the terminal is designed within the Rockwell ecosystem, RS-232 and DF1 connectivity can be leveraged for integration with select third-party devices. For cross-platform protocol conversion, a dedicated protocol gateway is recommended.

Q2: How is network communication latency managed in EtherNet/IP deployments using this HMI? EtherNet/IP uses a producer-consumer communication model that allows the 2711P-B15C4A9 to subscribe to controller tag data at configurable Requested Packet Intervals (RPI). When deployed on a properly segmented network with managed switches such as the Stratix 5700, communication latency is deterministic and typically sub-10ms for standard process visualization applications. QoS policies on the network infrastructure further prioritize control traffic over non-critical data flows.

Q3: Can the 2711P-B15C4A9 support remote diagnostics and off-site monitoring? Yes. When integrated with FactoryTalk View SE and a secure remote access solution such as the Stratix 5900 router or a compatible industrial VPN gateway, authorized engineers can remotely access HMI screens, review alarm histories, and monitor live process data from any internet-connected location. All remote sessions are authenticated and encrypted, maintaining network security compliance with industrial cybersecurity standards.

Q4: What warranty and pre-shipment testing does the 2711P-B15C4A9 include? Every 2711P-B15C4A9 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional pre-shipment testing covering touchscreen calibration, display integrity, communication port verification, and power supply validation. Units are shipped in anti-static protective packaging with documentation. In-stock units are available for immediate dispatch. For volume procurement inquiries, contact [email protected] or +86 18359268345.
