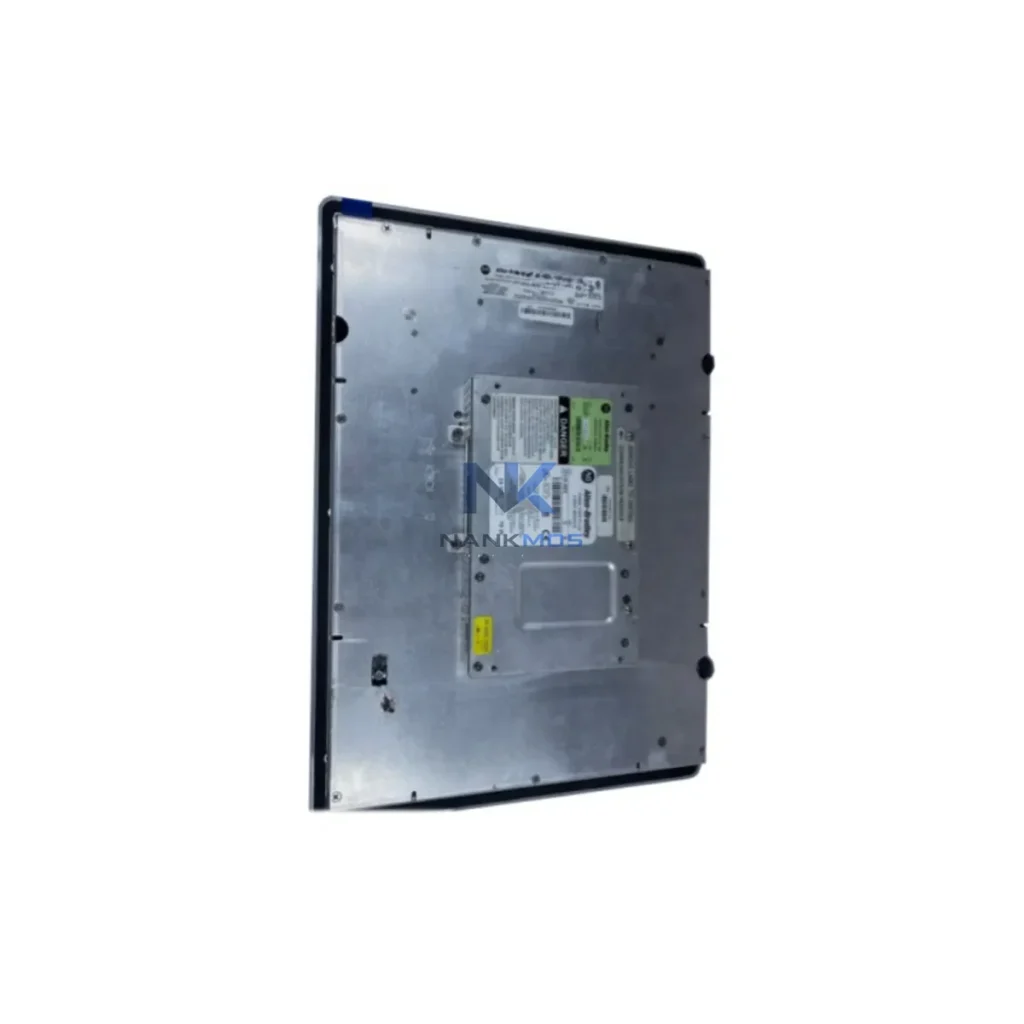

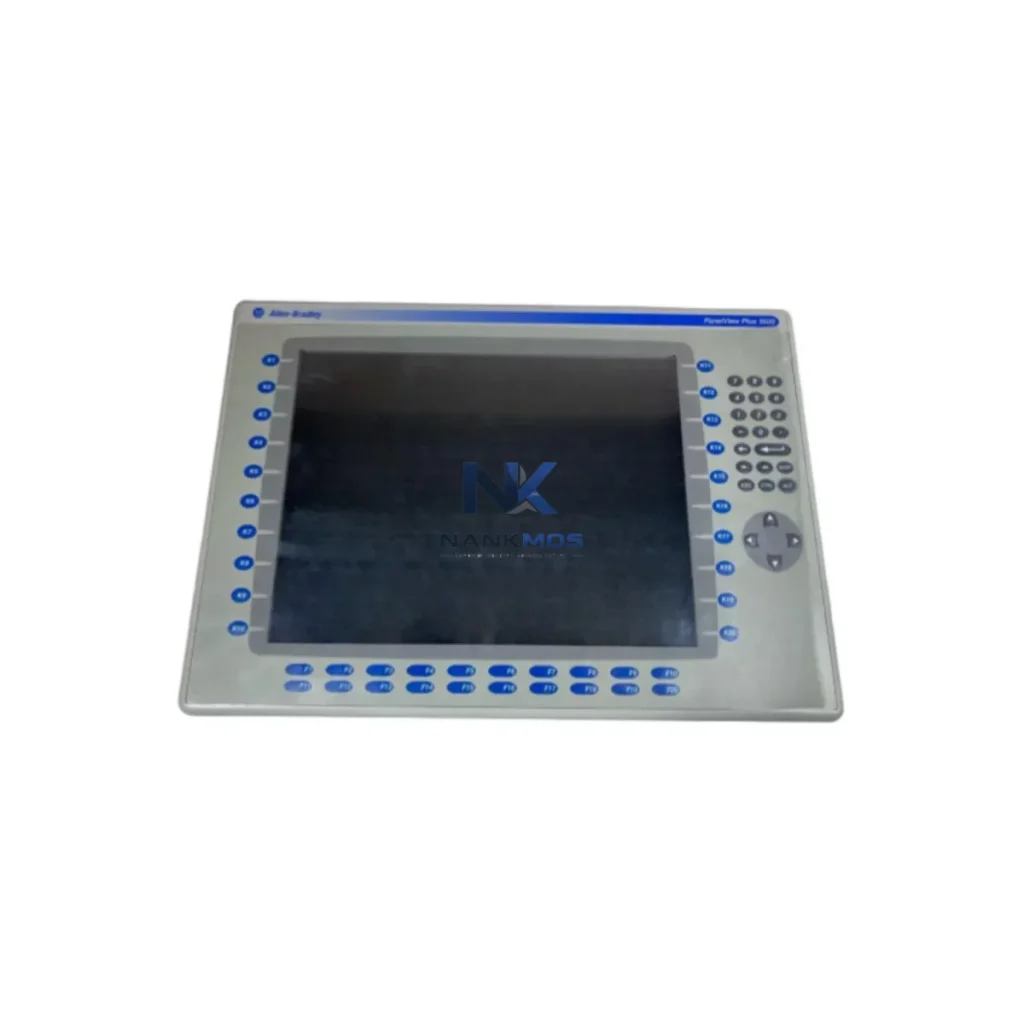

Allen-Bradley 2711P-K15C4D2 HMI Terminal

Product Details

2711P-K15C4D2 Product Description

The Allen-Bradley 2711P-K15C4D2 is a 15-inch color touch-screen HMI terminal from the PanelView Plus 6 series, engineered by Rockwell Automation for seamless integration into modern industrial control architectures. Designed to serve as the primary operator interface layer within ControlLogix, CompactLogix, and GuardLogix automation platforms, this terminal delivers real-time visualization, alarm management, and process diagnostics across manufacturing, power generation, petrochemical, water treatment, mining, and marine propulsion environments. Its native EtherNet/IP communication capability ensures deterministic data exchange with the control layer, while its robust industrial enclosure rating supports deployment in demanding panel and cabinet installations.

In a fully layered automation architecture, the 2711P-K15C4D2 occupies the HMI layer — bridging operator intent with controller execution. It communicates directly with ControlLogix 1756-L series CPUs and CompactLogix 1769-L series processors via EtherNet/IP, enabling live tag browsing, recipe management, trend logging, and alarm acknowledgment without additional middleware. The terminal's high-resolution display and configurable screen layouts allow engineers to design intuitive operator interfaces that reflect the actual process topology, reducing response time during fault conditions and improving overall system transparency.

System consistency is further reinforced through the terminal's compatibility with Rockwell's FactoryTalk View ME software, which provides a unified development environment for HMI application design, version control, and remote diagnostics. When deployed alongside 1756-EN2T EtherNet/IP communication modules, the 2711P-K15C4D2 participates in a high-availability network topology that supports redundant controller configurations, ensuring uninterrupted operator visibility even during controller switchover events. This makes it a preferred choice for critical process applications where HMI availability directly impacts production continuity.

At the I/O layer, the terminal's tag-based architecture allows direct binding to distributed I/O modules such as the 1734 POINT I/O series and 1756 ControlLogix I/O modules, eliminating the need for manual address mapping and reducing commissioning time. Engineers can configure analog input displays, discrete status indicators, and motor drive feedback screens that pull live data from PowerFlex 755 and PowerFlex 525 variable frequency drives connected on the same EtherNet/IP network. This cross-layer data visibility accelerates fault isolation and supports predictive maintenance workflows.

For power layer integration, the 2711P-K15C4D2 operates on a 24 VDC supply, compatible with standard 1606-XLP series power supplies commonly deployed in ControlLogix and CompactLogix panel builds. Its low power consumption profile allows it to share a common DC bus with other panel components without requiring a dedicated power circuit, simplifying cabinet design and reducing wiring complexity. The terminal's internal battery-backed clock and non-volatile memory ensure that alarm logs, recipe data, and configuration settings are preserved through power interruptions.

Communication layer stability is a defining strength of the 2711P-K15C4D2. Its dual EtherNet/IP ports support device-level ring (DLR) topology, enabling the terminal to participate in a self-healing network that automatically reroutes communication traffic around a single point of failure. When integrated with Stratix 5700 or Stratix 2000 managed industrial Ethernet switches, the terminal benefits from IGMP snooping, QoS prioritization, and VLAN segmentation — capabilities that protect HMI traffic from interference by higher-bandwidth SCADA or historian data flows on the same network infrastructure.

In redundant architecture designs, the 2711P-K15C4D2 can be configured to monitor both primary and secondary ControlLogix controllers simultaneously, displaying controller status, redundancy state, and switchover history on dedicated diagnostic screens. This integration with 1756-RM2 redundancy modules provides operators with real-time visibility into the health of the redundant control pair, enabling proactive intervention before a fault condition escalates to an unplanned shutdown.

Maintenance and long-term serviceability are addressed through the terminal's modular hardware design. The display assembly, backlight, and communication modules are field-replaceable, minimizing downtime during scheduled maintenance intervals. Spare parts availability is supported through NANKMOS's in-stock inventory program, ensuring that replacement components can be sourced and shipped without extended lead times. All units supplied by NANKMOS are pre-shipment tested against Rockwell Automation factory specifications and covered by a 12-Month Warranty, providing documented assurance of functional integrity prior to installation.

The 2711P-K15C4D2 achieves its full operational value when deployed as part of a cohesive Rockwell Automation control platform. In a typical ControlLogix architecture, the terminal interfaces with a 1756-L85E ControlLogix CPU as the primary controller, with a 1756-RM2 redundancy module providing hot-standby failover capability. The 1756-EN2T EtherNet/IP bridge module connects the ControlLogix backplane to the plant network, while 1734 POINT I/O modules handle distributed field signal acquisition at remote I/O drops.

Drive integration is managed through PowerFlex 755 AC drives for high-power motor applications and PowerFlex 525 drives for compact variable speed control, both communicating via EtherNet/IP and presenting live speed, torque, and fault data directly on the 2711P-K15C4D2 operator screens. Network infrastructure is provided by Stratix 5700 managed Ethernet switches, which enforce QoS policies that prioritize HMI and controller traffic over background data flows.

For safety-critical applications, the terminal operates alongside GuardLogix 1756-L8S safety controllers and 1791DS CompactBlock Guard I/O modules, displaying safety zone status and SIL-rated interlock states on dedicated operator screens. Power distribution is handled by 1606-XLP480E power supplies, which provide regulated 24 VDC to both the HMI terminal and the I/O subsystem from a common panel bus. This integrated platform approach ensures that the 2711P-K15C4D2 functions not as an isolated display device, but as an active participant in the overall control architecture — contributing to system diagnostics, operator efficiency, and long-term maintainability.

Power Generation: In gas turbine and steam turbine control rooms, the 2711P-K15C4D2 provides operators with real-time turbine speed, exhaust temperature, and vibration alarm displays, integrating with Bently Nevada 3500 series monitoring racks via OPC-DA gateways to consolidate machinery protection data on a single operator screen.

Petrochemical & Refining: Deployed in DCS-hybrid architectures, the terminal serves as a local operator station for compressor train control panels, displaying suction/discharge pressure, flow rates, and anti-surge valve positions sourced from ControlLogix controllers managing the compressor sequence logic.

Water & Wastewater Treatment: In SCADA-integrated water treatment facilities, the 2711P-K15C4D2 provides pump station operators with lift station level trends, pump runtime hours, and alarm history logs, reducing the need for SCADA workstation access during routine field operations.

Mining & Mineral Processing: On conveyor drive control panels, the terminal displays belt speed, motor current, and thermal overload status for multiple drive zones simultaneously, enabling maintenance technicians to identify developing faults before they result in unplanned conveyor stoppages.

Marine Propulsion & Offshore: In vessel automation systems, the terminal integrates with CompactLogix controllers managing thruster control, ballast pump sequencing, and engine room auxiliary systems, providing bridge operators and engine room personnel with a unified process view across multiple control domains.

Packaging & Discrete Manufacturing: On high-speed packaging lines, the 2711P-K15C4D2 supports recipe-driven format changeovers, displaying target parameters, actual values, and deviation alerts for each packaging station, reducing changeover time and improving first-pass quality rates.

Q1: Is the 2711P-K15C4D2 compatible with both ControlLogix and CompactLogix controllers in the same EtherNet/IP network? Yes. The 2711P-K15C4D2 communicates natively with both ControlLogix 1756-L series and CompactLogix 1769-L series controllers via EtherNet/IP using tag-based addressing in FactoryTalk View ME. A single HMI application can simultaneously display data from multiple controllers on the same network, making it suitable for multi-controller architectures where different process areas are managed by separate CPUs. No additional communication drivers or protocol converters are required for this configuration.

Q2: Can the 2711P-K15C4D2 be integrated into a redundant controller architecture, and how does it handle controller switchover? Yes. When paired with a 1756-RM2 redundancy module and a redundant ControlLogix controller pair, the 2711P-K15C4D2 maintains continuous communication with the active controller and automatically reconnects to the new primary controller following a switchover event. FactoryTalk View ME supports redundancy-aware communication configurations that minimize display disruption during switchover, typically restoring full tag communication within seconds. Operators can also configure dedicated status displays that show the current redundancy state, last switchover timestamp, and controller health diagnostics.

Q3: What warranty and supply assurance does NANKMOS provide for the 2711P-K15C4D2, and how are units validated before shipment? All 2711P-K15C4D2 units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional testing that verifies display operation, touch screen calibration, EtherNet/IP communication port integrity, and power supply performance. Units are held in climate-controlled in-stock inventory to ensure rapid order fulfillment without extended lead times. Documentation including test records and warranty certificates is available upon request. For procurement inquiries, contact NANKMOS at [email protected] or +86 18359268345.
