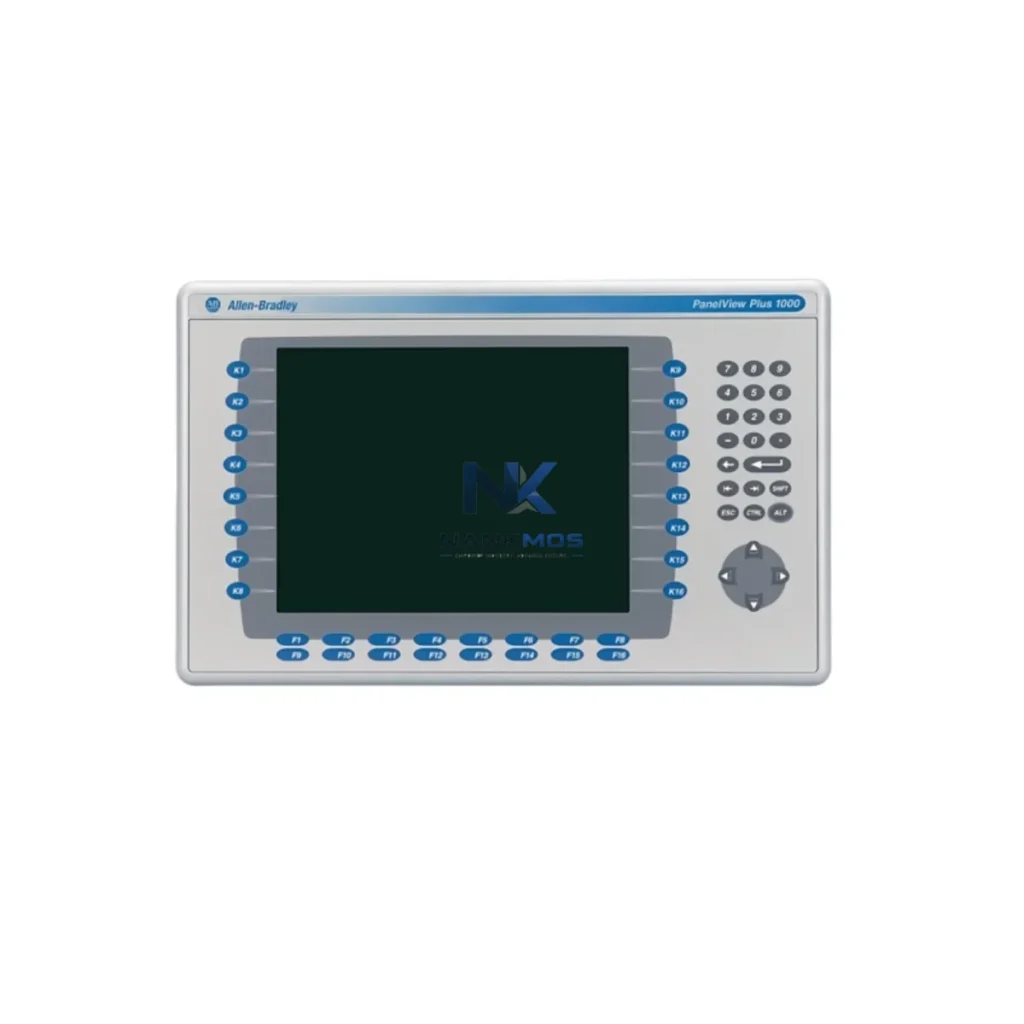

Allen-Bradley 2711P-RDB10C/B HMI Display Module

Product Details

2711P-RDB10C/B Product Description

The Allen-Bradley 2711P-RDB10C/B is a PanelView Plus replacement display module engineered for energy-aware industrial environments. Designed to integrate seamlessly into Rockwell Automation control architectures, this HMI display unit delivers real-time operator visibility into drive states, power consumption metrics, and production line throughput — enabling plant engineers to identify and eliminate inefficiencies at the machine level. Whether deployed in discrete manufacturing, process control, or utilities management, the 2711P-RDB10C/B serves as the critical human-machine interface that bridges operator intent with energy-optimized machine execution.

In a fully integrated Rockwell Automation environment, the 2711P-RDB10C/B operates as the visualization layer for a layered energy management strategy. At the control core, a ControlLogix L7x PLC or CompactLogix 5380 controller executes the logic that governs machine states, load sequencing, and energy-saving interlocks. The HMI display surfaces this logic to operators in real time, allowing immediate intervention when energy thresholds are exceeded.

Connected via EtherNet/IP to a PowerFlex 755 variable frequency drive or PowerFlex 525 AC drive, the 2711P-RDB10C/B can display live motor speed, torque demand, and drive fault codes — giving operators the data they need to reduce unnecessary motor run-time and avoid peak-demand energy spikes. When paired with a PowerMonitor 5000 power quality meter, the HMI can present real-time kW, kVAR, and power factor readings directly on the operator screen, enabling load management decisions without requiring a separate SCADA workstation.

For I/O-intensive lines, the 2711P-RDB10C/B integrates with Point I/O 1734 modules and FLEX I/O 1794 adapters to display discrete and analog field device states — including temperature sensors, pressure transmitters, and flow meters — that are critical for identifying thermal overload conditions and preventing energy waste from runaway processes. The display module also supports alarm visualization tied to IO-Link master modules, enabling predictive maintenance alerts before a device failure causes unplanned downtime and associated energy losses from restart cycles.

In facilities running FactoryTalk View ME or FactoryTalk Energy Manager, the 2711P-RDB10C/B serves as the front-end display for energy KPI dashboards, shift-based consumption reports, and OEE (Overall Equipment Effectiveness) metrics. This positions the HMI not merely as an operator interface, but as an active node in the plant's energy intelligence network.

Production line energy waste most commonly originates from three sources: motors running at full speed when partial speed suffices, equipment left energized during idle periods, and delayed operator response to fault or alarm conditions. The 2711P-RDB10C/B directly addresses all three by providing operators with clear, real-time visibility into machine states and energy consumption at the point of control.

When integrated with a PowerFlex 755 drive controlling a conveyor or pump motor, the HMI can display current draw and speed setpoint side-by-side, allowing operators to confirm that the drive is operating in its optimal efficiency band. Alarm pages configured in FactoryTalk View ME can trigger automatic notifications when a motor's energy consumption deviates from baseline — a leading indicator of mechanical wear, bearing failure, or process imbalance that, if left unaddressed, results in both energy waste and unplanned downtime.

For multi-zone production lines, the 2711P-RDB10C/B supports multi-screen navigation, allowing a single operator to monitor energy states across several machine zones from one panel. This reduces the need for additional operator headcount while ensuring that no zone operates in an unmonitored, energy-inefficient state. Combined with a Stratix 5700 managed Ethernet switch for deterministic network communication, the HMI maintains low-latency data refresh rates even in high-traffic plant networks — ensuring that energy data displayed is always current and actionable.

Thermal load management is another key benefit. By surfacing drive temperature readings and motor thermal model data from the PowerFlex 755 or Kinetix 5500 servo drive, the 2711P-RDB10C/B enables operators to proactively reduce load before thermal protection trips occur — avoiding the energy-intensive restart sequences that follow an unplanned shutdown. This capability is particularly valuable in high-ambient-temperature environments such as foundries, food processing facilities, and outdoor utility substations.

Inventory availability is maintained to support rapid deployment and minimize production downtime. Every 2711P-RDB10C/B unit undergoes functional testing prior to shipment, and all units are covered by a 12-month warranty from the date of purchase. Fast shipping ensures that replacement cycles do not extend planned maintenance windows, keeping production lines running at their optimized energy setpoints.

Q1: How does the 2711P-RDB10C/B contribute to energy savings on a production line? The 2711P-RDB10C/B provides operators with real-time visibility into drive states, motor load, and process alarms. By enabling faster operator response to energy anomalies and supporting integration with power monitoring systems such as the PowerMonitor 5000, it reduces the time that equipment operates outside its efficient range — directly lowering energy consumption per production cycle.

Q2: Which control systems and communication protocols are compatible with this HMI? The 2711P-RDB10C/B is compatible with ControlLogix, CompactLogix, MicroLogix, PLC-5, and SLC 500 platforms via EtherNet/IP, DH+, DH-485, and DF1 serial protocols. It is designed as a direct replacement display for PanelView Plus 1000 terminals and integrates with FactoryTalk View ME application software without requiring application re-development.

Q3: What is the recommended replacement and testing process? The 2711P-RDB10C/B is a field-replaceable display module. Replacement involves removing the existing display assembly from the PanelView Plus 1000 terminal chassis and installing the new module — no software changes are required. All units supplied by NANKMOS are tested for display function, backlight operation, and touch interface response prior to shipment. A 12-month warranty covers any defects identified after installation.

Q4: Is stock available for immediate shipment, and what warranty terms apply? Yes. The 2711P-RDB10C/B is maintained in stock for immediate dispatch. Standard lead time is 1–3 business days for most destinations. All units are covered by a 12-month warranty from the date of shipment. For volume procurement or urgent production-line requirements, contact NANKMOS directly to confirm availability and expedited shipping options.
