Allen-Bradley 2711P-RDT10C HMI Display Module

Product Details

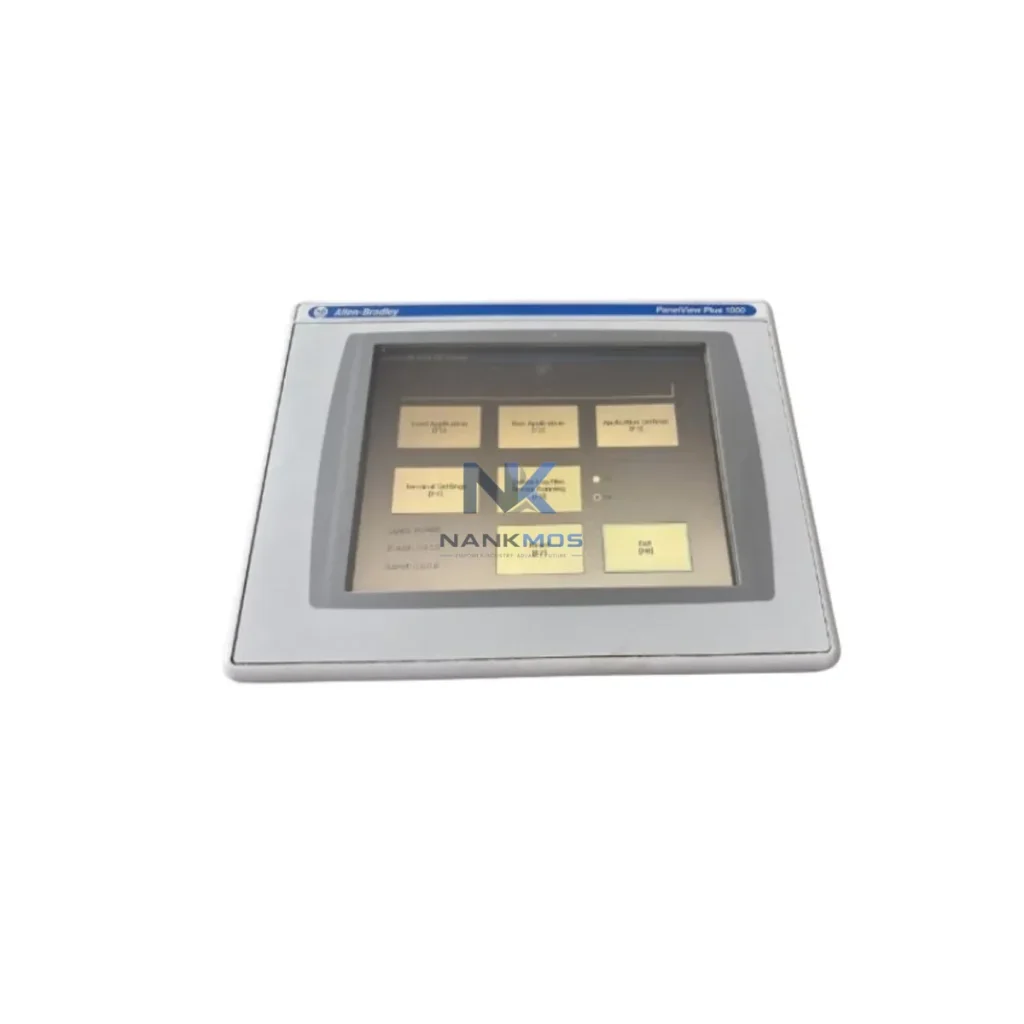

2711P-RDT10C Product Description

The Allen-Bradley 2711P-RDT10C is a 10.4-inch color display module from the PanelView Plus 6 series, engineered to serve as the primary human-machine interface node in complex industrial automation architectures. Designed for seamless integration across EtherNet/IP, DH-485, and DF1 communication protocols, this HMI terminal bridges the gap between field-level devices and upper-level control and monitoring systems, enabling real-time data visualization, alarm management, and remote diagnostics across the full smart factory data chain.

At NANKMOS, the 2711P-RDT10C is held in verified inventory, pre-shipment tested, and backed by a 12-month warranty — ensuring your automation site receives a reliable, production-ready unit with full traceability from order to installation.

In a modern smart factory, the 2711P-RDT10C functions as the central visualization and interaction node within a layered industrial network. The data flow begins at the field level, where sensors, proximity switches, and I/O modules — such as those in the Allen-Bradley 1734 POINT I/O series — continuously capture process variables including temperature, pressure, flow rate, and motor speed. These signals are transmitted via EtherNet/IP to a ControlLogix L7x or CompactLogix L3x PLC controller, where ladder logic and function block programs execute real-time control decisions.

The 2711P-RDT10C connects directly to the ControlLogix backplane network or via an EtherNet/IP switch — such as a Stratix 5700 managed industrial Ethernet switch — to receive live tag data from the controller. Operators interact with the HMI to monitor production KPIs, acknowledge alarms, and adjust setpoints without interrupting the control loop. When legacy equipment communicates over DH-485 or DF1 serial protocols, a 1761-NET-AIC or 1747-KE communication interface module bridges the older network segment to the PanelView Plus 6 terminal, preserving backward compatibility across mixed-generation automation sites.

At the SCADA and MES layer, FactoryTalk View SE software aggregates data from multiple 2711P-RDT10C terminals distributed across production lines, enabling plant-wide visibility from a centralized server. Historian modules log time-stamped process data for trend analysis, OEE calculation, and regulatory compliance reporting. For remote diagnostics, FactoryTalk Remote Access or a dedicated industrial edge gateway — such as the Moxa MGate MB3480 or a Cisco IE3400 industrial router — tunnels secure VPN connections to the HMI network, allowing engineers to monitor alarms, review event logs, and push configuration updates without physical site access.

Variable frequency drives (VFDs) such as the PowerFlex 525 or PowerFlex 755 report speed, torque, and fault status back through EtherNet/IP to the ControlLogix controller, with drive status visualized directly on the 2711P-RDT10C operator screen. In conveyor, packaging, and assembly line applications, the HMI displays real-time throughput counters, reject rates, and downtime events, enabling operators to respond immediately to process deviations. When integrated with a Rockwell Automation GuardLogix safety controller, the 2711P-RDT10C can display safety zone status and E-stop event logs, supporting both productivity and compliance objectives.

For distributed remote I/O architectures, the 1734 POINT I/O or 1756 ControlLogix I/O modules extend the data acquisition network to remote field cabinets, with all I/O status visible on the HMI dashboard. Power quality monitoring modules and 24VDC industrial power supplies — such as the Allen-Bradley 1606-XLP series — feed system health data into the network, ensuring that power anomalies are captured and alarmed before they cause unplanned downtime. The complete data chain — from sensor signal to HMI visualization to SCADA historian — is enabled by the 2711P-RDT10C's robust EtherNet/IP connectivity and its native integration with the Rockwell Automation software ecosystem.

Protocol Fragmentation: Many industrial sites operate mixed networks where legacy DH-485 or DF1 serial devices coexist with modern EtherNet/IP infrastructure. The 2711P-RDT10C supports both protocol families natively, and when paired with a 1761-NET-AIC communication adapter, it bridges serial and Ethernet segments without requiring a separate protocol converter, eliminating data silos between old and new equipment generations.

Data Islands and Production Transparency: Isolated machines that report only locally — with no upward data path to SCADA or MES — create blind spots in production monitoring. By connecting the 2711P-RDT10C to the plant EtherNet/IP backbone and configuring FactoryTalk View SE data servers, every machine's status, alarm history, and production count becomes visible at the supervisory level, transforming isolated equipment into networked production assets.

Remote Monitoring and Alarm Traceability: Without remote access capability, fault diagnosis requires physical presence on the plant floor, increasing mean time to repair (MTTR). The 2711P-RDT10C's network connectivity enables remote alarm acknowledgment, event log retrieval, and screen mirroring via FactoryTalk Remote Access, allowing maintenance engineers to diagnose faults and prepare corrective actions before arriving on site.

System Scalability: As production capacity grows, additional HMI terminals, I/O modules, and controller nodes can be added to the EtherNet/IP network without architectural redesign. The 2711P-RDT10C's standard Ethernet interface ensures it remains compatible with expanded network topologies, new controller generations, and future SCADA platform upgrades, protecting the capital investment in the HMI infrastructure.

Q1: What communication protocols does the 2711P-RDT10C support, and is it compatible with non-Rockwell PLCs? The 2711P-RDT10C natively supports EtherNet/IP, DH-485, and DF1 protocols, making it fully compatible with ControlLogix, CompactLogix, MicroLogix, and SLC 500 controllers. For non-Rockwell PLCs, third-party EtherNet/IP drivers or OPC-UA gateway modules can be used to bridge the HMI to Siemens, Mitsubishi, or Omron controllers, though native integration is optimized for the Rockwell Automation ecosystem.

Q2: How does the 2711P-RDT10C perform in terms of network latency and real-time data refresh? Over a properly configured EtherNet/IP network with a managed industrial switch such as the Stratix 5700, the 2711P-RDT10C achieves tag update rates suitable for real-time process monitoring, typically in the range of 100–500 ms depending on tag count and network load. For time-critical alarm display, the HMI's alarm buffer and event queue ensure no alarm events are lost even during brief network interruptions.

Q3: Can the 2711P-RDT10C be accessed and diagnosed remotely without on-site presence? Yes. When the HMI is connected to a plant EtherNet/IP network with a secure remote access solution — such as FactoryTalk Remote Access or an industrial VPN router — authorized engineers can view live screens, retrieve alarm logs, and update application files remotely. This capability significantly reduces MTTR and supports predictive maintenance workflows in distributed manufacturing environments.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2711P-RDT10C? Every 2711P-RDT10C unit shipped by NANKMOS undergoes pre-shipment functional testing to verify display operation, communication port integrity, and firmware version. Units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware fault within the warranty period, NANKMOS provides replacement or repair support. Stock availability is maintained for rapid dispatch to minimize production downtime for our customers.
