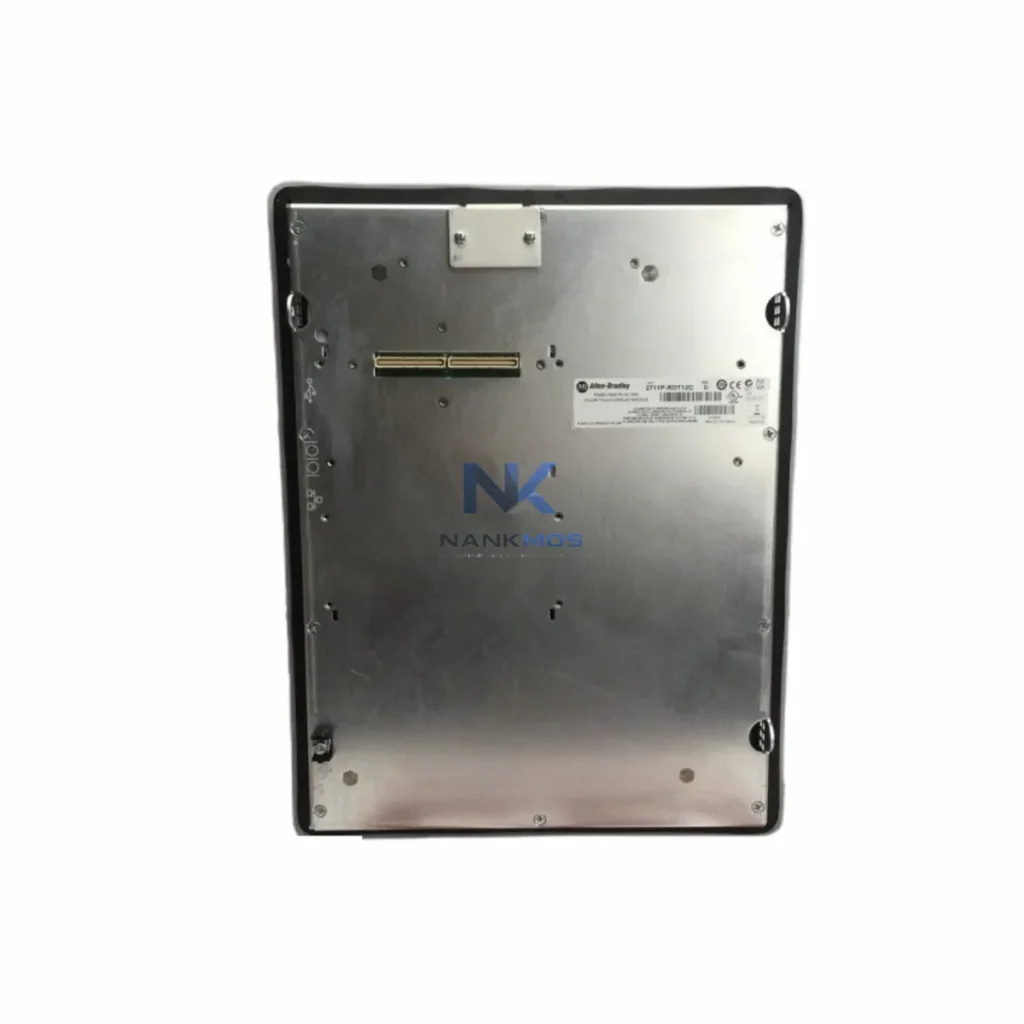

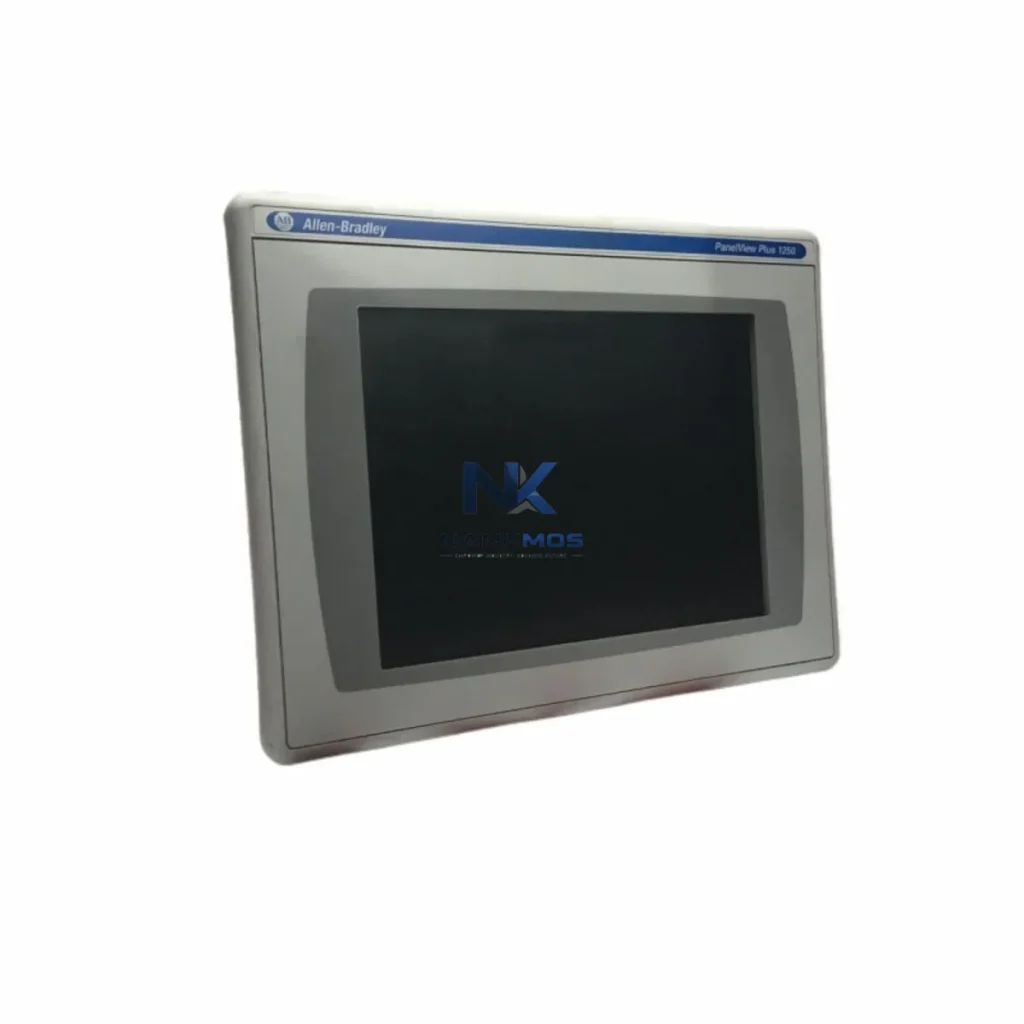

Allen-Bradley 2711P-RDT12C HMI Touch Screen

Product Details

2711P-RDT12C Product Description

The Allen-Bradley 2711P-RDT12C is a 12-inch widescreen HMI terminal from the PanelView Plus 6 series, engineered to serve as the central visualization and control interface in energy-conscious industrial automation environments. Designed for demanding production floors, this unit delivers real-time process visibility, operator-driven load management, and seamless integration with energy monitoring architectures — making it a critical node in any smart production line seeking to reduce unnecessary energy consumption and maximize equipment utilization.

In modern industrial facilities, the HMI is no longer a passive display — it is an active participant in energy governance. The 2711P-RDT12C enables operators to monitor drive states, visualize power draw trends, and respond to load anomalies before they escalate into costly downtime or thermal overload events. By surfacing real-time data from connected field devices, this terminal helps production teams make informed decisions that directly reduce idle energy consumption and improve overall line efficiency.

The 2711P-RDT12C is purpose-built to operate as the human interface layer within a layered energy control architecture. When paired with an Allen-Bradley ControlLogix L7x or CompactLogix L3x PLC, the terminal reads real-time tag data — including motor current draw, drive output frequency, and thermal status — and presents it to operators in configurable screen layouts. This tight integration with the PLC layer ensures that energy-relevant process variables are always visible, enabling proactive load management rather than reactive fault response.

On the drive side, the 2711P-RDT12C communicates seamlessly with PowerFlex 525 and PowerFlex 755 variable frequency drives via EtherNet/IP. Operators can monitor drive efficiency ratios, view speed reference versus actual speed deviations, and trigger controlled ramp-down sequences directly from the HMI — reducing mechanical stress and eliminating the energy spikes associated with abrupt motor starts and stops. This capability is especially valuable in conveyor systems, pump stations, and compressor banks where load cycling directly impacts energy bills.

For power quality and energy metering, the 2711P-RDT12C integrates with Allen-Bradley PowerMonitor 5000 energy monitoring modules via EtherNet/IP tags exposed through the ControlLogix backplane. Operators can view kWh consumption per production zone, track power factor trends, and identify high-draw equipment before it triggers demand charges. When combined with a Stratix 5700 managed Ethernet switch for network segmentation, the HMI maintains deterministic communication latency even in high-traffic plant networks.

The terminal also supports I/O status visualization from POINT I/O and 1734 AENT adapter modules, giving operators a consolidated view of field device states — including sensor feedback from photoelectric and proximity sensors — without requiring separate diagnostic tools. This consolidated visibility reduces the time technicians spend walking the floor to diagnose faults, directly improving equipment utilization rates. Integration with a FactoryTalk View SE SCADA server further extends the terminal's role, allowing it to serve as a local operator station within a plant-wide energy management system.

Production lines lose energy in three primary ways: idle equipment left running, undetected load imbalances, and delayed fault response. The 2711P-RDT12C addresses all three. Its alarm and event management system can be configured to alert operators when a motor draws above its rated current for more than a defined interval — a reliable early indicator of mechanical binding, bearing wear, or process overload. Early intervention based on these alerts prevents both energy waste and unplanned downtime.

The terminal's trend display capability allows production engineers to overlay energy consumption data against production output metrics, making it straightforward to identify shifts where energy intensity per unit produced is abnormally high. This data-driven approach to energy optimization supports continuous improvement initiatives without requiring additional instrumentation investment. When integrated with a Kinetix 5700 servo drive system for precision motion axes, the 2711P-RDT12C can display regenerative energy recovery status, helping engineers quantify the energy returned to the DC bus during deceleration phases.

Thermal load management is another area where the 2711P-RDT12C delivers measurable value. By displaying cabinet temperature readings from 1732E ArmorBlock I/O modules or dedicated temperature sensors, the HMI enables operators to identify enclosures running hot before thermal protection devices trip. Reducing thermal events not only protects equipment but also lowers the energy consumed by cooling systems — a compounding efficiency gain that accumulates over multi-shift operations.

Line throughput stability — often called production rhythm or takt time adherence — is directly supported by the 2711P-RDT12C's ability to display cycle time data and equipment state transitions in real time. When operators can see exactly where a line is losing pace, they can intervene quickly, preventing the energy-intensive catch-up cycles that occur when downstream buffers run empty. Over a full production shift, this visibility translates into measurable reductions in peak demand and total energy consumption per unit produced.

Q1: How does the 2711P-RDT12C contribute to measurable energy savings on a production line? The 2711P-RDT12C reduces energy waste by giving operators real-time visibility into motor load, drive efficiency, and equipment state. By enabling faster response to load anomalies and idle equipment, facilities typically see reductions in unnecessary runtime and peak demand events. When integrated with PowerMonitor 5000 energy modules, the terminal can display zone-level kWh data, supporting targeted energy reduction programs.

Q2: Which control systems and communication protocols does the 2711P-RDT12C support? The terminal supports EtherNet/IP, DH-485, DF1, and DeviceNet protocols, making it compatible with the full Allen-Bradley PLC portfolio including ControlLogix, CompactLogix, MicroLogix, and SLC 500 platforms. It also integrates with FactoryTalk View SE for SCADA-level connectivity and supports tag-based communication with PowerFlex drives and PowerMonitor energy modules.

Q3: Can the 2711P-RDT12C replace an older PanelView Plus terminal without hardware modifications? In most cases, yes. The 2711P-RDT12C is form-factor compatible with earlier PanelView Plus 6 terminals of the same display size. Application files developed in FactoryTalk View ME can typically be migrated with minimal rework. It is recommended to verify the panel cutout dimensions and communication card configuration before installation to ensure a direct replacement.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment? Every 2711P-RDT12C unit is functionally tested prior to shipment, covering display integrity, touch input response, communication port operation, and power supply stability. The 12-month warranty covers hardware defects under normal operating conditions. Units are shipped with protective packaging to prevent transit damage, and inventory is maintained in stock for prompt fulfillment to minimize production line downtime.
