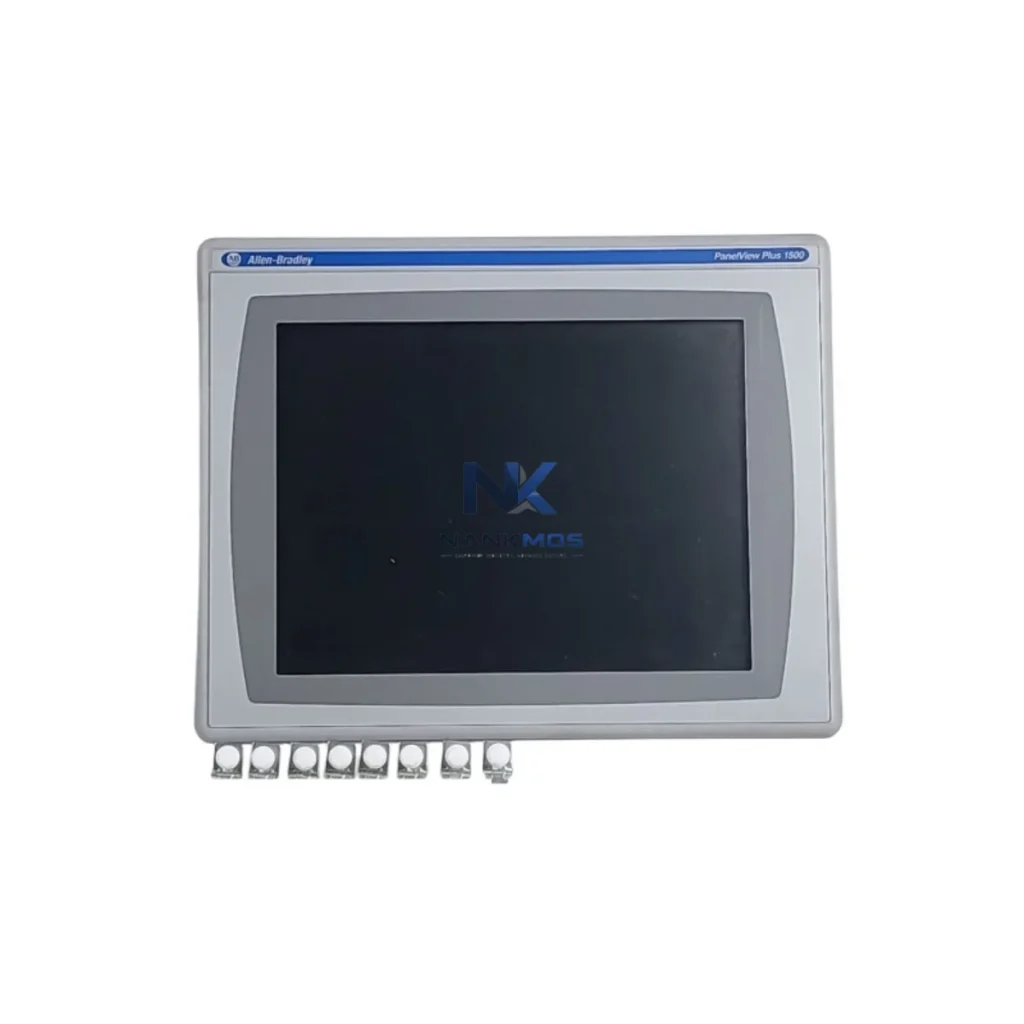

Allen-Bradley 2711P-RDT15C SER C HMI Terminal

Product Details

2711P-RDT15C SER C Product Description

The Allen-Bradley 2711P-RDT15C SER C is a 15-inch widescreen touch terminal from the PanelView Plus 6 family, engineered for seamless integration into Rockwell Automation control architectures. As a high-resolution operator interface, it bridges the HMI layer with the control, I/O, communications, and execution layers of modern industrial automation systems. Whether deployed in discrete manufacturing, process control, or critical infrastructure, the 2711P-RDT15C SER C delivers the visualization clarity, system responsiveness, and long-term reliability that demanding control environments require.

In a fully integrated automation platform, the HMI layer does not operate in isolation. The 2711P-RDT15C SER C is designed to communicate directly with Logix-family controllers — including the ControlLogix 1756-L85E and CompactLogix 5380 — over EtherNet/IP, enabling real-time tag browsing, alarm management, and process visualization without additional protocol conversion. This direct controller-to-HMI integration eliminates latency at the operator interface level and ensures that control decisions are reflected immediately on screen, supporting faster operator response and reducing the risk of process deviation.

The 2711P-RDT15C SER C achieves its full operational value when deployed as part of a cohesive, multi-layer automation architecture. At the control layer, it interfaces natively with the 1756-L85E ControlLogix CPU and 5069-L380ERM CompactLogix 5380 controllers via EtherNet/IP, enabling tag-based communication that eliminates the need for driver mapping or intermediate OPC servers in most standard configurations. This direct integration reduces engineering overhead during commissioning and simplifies long-term maintenance by keeping the control and visualization layers tightly coupled.

At the I/O layer, the terminal's real-time display capabilities complement digital and analog I/O modules such as the 1756-IB32 ControlLogix digital input module and 1756-OF8 analog output module, allowing operators to monitor field signal states, setpoints, and process variables directly from the HMI without requiring separate SCADA infrastructure. When the system includes communication gateways — such as the 1783-ETAP EtherNet/IP tap or 1756-EN2T EtherNet/IP communication module — the 2711P-RDT15C SER C can be integrated into ring or linear EtherNet/IP topologies with Device Level Ring (DLR) support, enhancing network redundancy and fault tolerance at the communications layer.

Power integrity is a foundational requirement for HMI reliability. The 2711P-RDT15C SER C operates on a 24V DC supply, making it compatible with standard panel power architectures using the 1606-XLP95E power supply or equivalent Rockwell-rated DC power sources. Proper power conditioning at the panel level — including surge suppression and UPS backup — ensures that the HMI remains operational during transient grid events, protecting both the operator interface and the underlying process data.

In systems requiring advanced diagnostics and remote monitoring, the 2711P-RDT15C SER C integrates with FactoryTalk Diagnostics and FactoryTalk AssetCentre platforms, enabling centralized audit trail management, alarm history archiving, and remote application deployment. This capability is particularly valuable in multi-panel installations where maintaining version consistency across HMI terminals is critical for regulatory compliance and operational standardization.

For applications requiring redundant control, the terminal supports connection to redundant ControlLogix chassis configurations using the 1756-RM2 redundancy module, ensuring that HMI visualization remains uninterrupted during controller switchover events. At the execution layer, the HMI's ability to display drive status from PowerFlex 755 variable frequency drives and valve position feedback from field actuators provides operators with a complete view of the process without requiring additional visualization hardware.

The 2711P-RDT15C SER C is deployed across a broad spectrum of industrial sectors where operator interface reliability and system integration depth are non-negotiable requirements.

In discrete manufacturing and automotive assembly, the terminal serves as the primary operator interface for robotic cell controllers, conveyor management systems, and quality inspection stations. Its 15-inch widescreen display provides sufficient screen real estate for multi-zone process overviews, alarm banners, and trend displays simultaneously, reducing operator navigation time and improving response to process anomalies.

In power generation and electrical substation environments, the 2711P-RDT15C SER C is used to monitor protection relay status, breaker positions, and load distribution across switchgear panels. Its NEMA 4X-rated front panel makes it suitable for installation in outdoor enclosures or wash-down environments where ingress protection is mandatory.

In oil, gas, and petrochemical processing, the terminal integrates with safety instrumented systems (SIS) and distributed control systems (DCS) via EtherNet/IP gateways, providing operators with real-time visibility into pressure, temperature, and flow parameters across process trains. Its compatibility with FactoryTalk View ME alarm management features supports ISA-18.2 alarm rationalization requirements common in regulated process industries.

In water and wastewater treatment facilities, the HMI is deployed at pump stations, filtration control panels, and chemical dosing skids, where its sealed front panel and wide operating temperature range ensure reliable operation in humid, chemically aggressive environments. Integration with CompactLogix controllers and 1783-series managed switches enables remote diagnostics and SCADA connectivity over fiber or cellular backhaul networks.

In mining, metals, and materials processing, the 2711P-RDT15C SER C is used in crusher control rooms, conveyor drive panels, and smelter process control stations. Its robust construction and compatibility with Rockwell's Integrated Architecture platform make it a preferred choice for greenfield and brownfield modernization projects where standardization on a single control platform reduces spare parts inventory complexity and training overhead.

Q1: Is the 2711P-RDT15C SER C compatible with both ControlLogix and CompactLogix platforms, and does the Series C revision affect software compatibility? Yes. The 2711P-RDT15C SER C is fully compatible with the entire Logix controller family — including ControlLogix 1756-series, CompactLogix 5370 and 5380 series, and MicroLogix platforms — via EtherNet/IP using FactoryTalk View ME. The Series C (SER C) designation reflects a hardware revision that improves thermal management and display backlight longevity compared to earlier revisions. Existing FactoryTalk View ME application files (.MER) developed for earlier Series revisions are fully compatible with SER C hardware without modification, ensuring a smooth upgrade path in existing installations.

Q2: What are the network architecture requirements for integrating the 2711P-RDT15C SER C into a redundant EtherNet/IP ring topology? The 2711P-RDT15C SER C supports Device Level Ring (DLR) topology when connected through DLR-capable managed switches such as the 1783-BMS10CGL Stratix 5700. In a DLR ring, the HMI terminal connects as a ring supervisor or ring node depending on network design. For redundant controller architectures using the 1756-RM2 redundancy module, the HMI maintains its EtherNet/IP connection to the active controller chassis automatically during switchover, with typical failover times under 300ms — transparent to the operator interface. Proper VLAN segmentation between the HMI network and the controller backplane network is recommended to prevent broadcast storms from affecting HMI responsiveness.

Q3: What warranty coverage and pre-shipment testing does NANKMOS provide for the 2711P-RDT15C SER C, and what is the typical lead time for global orders? NANKMOS provides a 12-Month Warranty on all 2711P-RDT15C SER C units, covering hardware defects, display panel integrity, and communication port functionality. Every unit undergoes a full pre-shipment functional test — including power-on verification, touch calibration, EtherNet/IP communication check, and display uniformity inspection — before dispatch. Global shipping is available with typical lead times of 3–7 business days for stocked units. For urgent maintenance requirements or unplanned downtime scenarios, expedited shipping options are available. Contact [email protected] or +86 18359268345 for availability confirmation and order processing.
