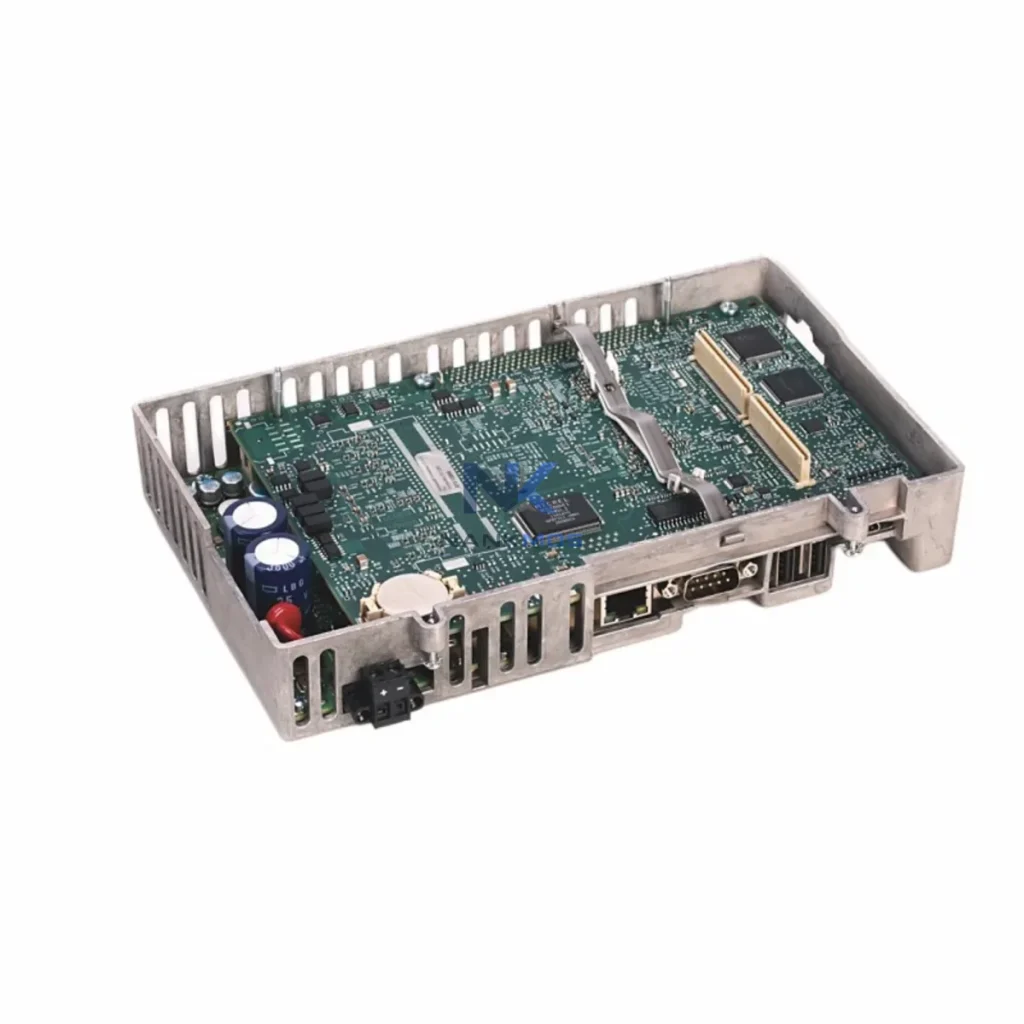

Allen-Bradley 2711P-RP9DK HMI Logic Module

Product Details

2711P-RP9DK Product Description

The Allen-Bradley 2711P-RP9DK is a high-performance HMI Logic Module engineered for the PanelView Plus 6 terminal family, delivering seamless operator interface capability within Rockwell Automation's integrated control architecture. Designed to serve as the computational and communication core of the PanelView Plus 6 platform, the 2711P-RP9DK enables deterministic HMI execution, real-time data visualization, and robust operator interaction across demanding industrial environments. Its architecture-ready design ensures consistent performance whether deployed in discrete manufacturing, process control, or hybrid automation systems.

Within a complete automation architecture, the 2711P-RP9DK occupies the HMI layer — bridging the control layer and the operator interface layer with precision. It communicates natively with ControlLogix and CompactLogix controllers via EtherNet/IP, enabling tag-based data exchange without intermediate protocol conversion. This direct integration eliminates latency at the HMI-to-controller boundary, ensuring that operator commands and system status updates are reflected in real time across the control loop.

System architects deploying the 2711P-RP9DK benefit from its compatibility with the broader PanelView Plus 6 hardware ecosystem. The module slots directly into PanelView Plus 6 terminals such as the 2711P-T10C21D8S and 2711P-T12W21D8S, sharing the same chassis backplane and power architecture. This modularity allows field replacement of the logic module without disturbing the terminal housing, display assembly, or field wiring — a critical advantage in high-availability production environments where downtime must be minimized.

At the control layer, the 2711P-RP9DK integrates with 1756-L8x ControlLogix CPUs and 1769-L3x CompactLogix controllers through structured EtherNet/IP connections. The module supports RSLinx Classic and FactoryTalk Linx communication stacks, enabling seamless tag browsing, online editing, and remote diagnostics from the engineering workstation. For distributed I/O architectures, the HMI logic module can display real-time status from 1734 POINT I/O modules, 1756 ControlLogix I/O, and 1769 Compact I/O racks — providing operators with a unified view of the entire I/O layer without requiring separate SCADA infrastructure.

Communication stability is a defining characteristic of the 2711P-RP9DK. The module supports dual-port EtherNet/IP with Device Level Ring (DLR) topology capability, enabling network redundancy at the device level. In ring-topology deployments, a single cable fault does not interrupt HMI communication — the network self-heals within milliseconds, maintaining operator visibility and control continuity. This capability is particularly valuable in power distribution, water treatment, and petrochemical applications where HMI availability is a safety-critical requirement.

For power architecture integration, the 2711P-RP9DK operates within the PanelView Plus 6 terminal's internal power management system, which accepts 24V DC input from industrial power supplies such as the 1606-XLP series. The module's low power consumption profile supports compact control cabinet designs, reducing thermal load and simplifying UPS sizing for uninterruptible operation. In redundant power configurations, the terminal can be paired with 1606-XLP redundant power modules to eliminate single points of failure at the power layer.

Diagnostic efficiency is enhanced through the module's integration with FactoryTalk View ME software. Alarm management, trend displays, and diagnostic faceplates can be configured to surface real-time data from connected controllers, I/O modules, and network devices. The 2711P-RP9DK supports FactoryTalk Alarms and Events, enabling centralized alarm logging and acknowledgment workflows that reduce operator response time and improve incident traceability. For maintenance teams, the module's diagnostic screens can display controller fault codes, I/O module status, and network health indicators — consolidating troubleshooting information at the operator station.

Modular deployment is a core strength of the 2711P-RP9DK architecture. In multi-panel installations, multiple PanelView Plus 6 terminals equipped with 2711P-RP9DK modules can be networked to share a common FactoryTalk View ME application, enabling synchronized operator interfaces across geographically distributed control stations. This architecture supports large-scale manufacturing lines, multi-zone process plants, and campus-wide utility systems where consistent HMI behavior across all operator stations is essential for operational discipline.

Long-term maintenance efficiency is supported by the module's field-replaceable design and broad spare parts availability. The 2711P-RP9DK is stocked as a standalone replacement module, allowing maintenance teams to restore HMI functionality without procuring a complete terminal assembly. Compatibility with existing PanelView Plus 6 application files means that replacement modules can be commissioned rapidly — restoring full operator interface capability with minimal engineering intervention. All units supplied by NANKMOS undergo pre-shipment functional testing and are covered by a 12-Month Warranty, ensuring confidence in long-term deployment reliability.

The 2711P-RP9DK achieves its full architectural value when deployed within a cohesive Rockwell Automation control platform. At the control layer, it interfaces directly with the 1756-L85E ControlLogix CPU and 1769-L33ER CompactLogix controller, leveraging EtherNet/IP tag-based communication for deterministic data exchange. The 1756-EN2T EtherNet/IP communication module provides the network bridge between the ControlLogix backplane and the plant EtherNet/IP network, ensuring that the HMI logic module receives controller data with minimal scan-cycle latency.

At the I/O layer, the 2711P-RP9DK displays real-time status from 1734-IB8 POINT I/O digital input modules and 1756-OF8 ControlLogix analog output modules, enabling operators to monitor field device states and process variables directly from the HMI screen. For distributed I/O architectures, the 1734-AENT POINT I/O EtherNet/IP adapter connects remote I/O racks to the same EtherNet/IP network, extending the HMI's visibility to field devices located outside the main control cabinet.

Power architecture integrity is maintained through the 1606-XLP72E power supply, which provides stable 24V DC to the PanelView Plus 6 terminal and associated control cabinet components. In high-availability installations, the 1606-XLSRED10 redundant power module eliminates single-point power failures, ensuring continuous HMI operation during power supply maintenance or fault events.

For communication layer redundancy, the 2711P-RP9DK's DLR capability pairs with 1783-ETAP EtherNet/IP taps to form a resilient ring topology, providing automatic network recovery in the event of a cable fault. Industrial-grade 1783-US8T Stratix 2000 unmanaged switches support linear and star topologies in cost-sensitive installations where DLR is not required.

At the protection layer, the 1492-SP1C100 circuit breaker and 700-HLT22Z24 relay modules provide overcurrent protection and signal isolation for the control cabinet, safeguarding the HMI terminal and associated control hardware from electrical faults. Signal integrity at the field interface is maintained through 1492-AIFM8-F-5 analog interface modules, which condition field signals before they reach the I/O layer.

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 2711P-RP9DK serves as the primary operator interface for multi-zone assembly lines controlled by ControlLogix systems. Operators use the PanelView Plus 6 terminal to monitor conveyor speeds, robotic cell status, and quality inspection results in real time, enabling rapid response to production anomalies without leaving the workstation.

Power Distribution & Utilities: In electrical substations and power distribution centers, the 2711P-RP9DK provides operators with real-time visibility into switchgear status, feeder load levels, and protection relay states. Its DLR-capable EtherNet/IP communication ensures HMI availability even during network maintenance, supporting continuous monitoring of critical power infrastructure.

Petrochemical & Refinery Process Control: In continuous process environments, the 2711P-RP9DK integrates with ControlLogix process controllers to display real-time process variables including temperature, pressure, flow rate, and level. FactoryTalk Alarms and Events integration enables operators to acknowledge and log process alarms directly from the HMI terminal, supporting regulatory compliance and incident investigation workflows.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 2711P-RP9DK to monitor pump station status, chemical dosing systems, and filtration process variables. The module's robust operating temperature range and IP65-rated terminal housing support installation in outdoor pump stations and harsh treatment environments.

Mining & Mineral Processing: In mining conveyor systems and mineral processing plants, the 2711P-RP9DK provides operators with real-time visibility into crusher load, conveyor belt speed, and material flow rates. Its compatibility with ControlLogix safety controllers enables integration with safety instrumented systems, supporting safe operation of high-energy mining equipment.

Q1: Is the 2711P-RP9DK compatible with existing PanelView Plus 6 terminals already installed in the field?A: Yes. The 2711P-RP9DK is designed as a field-replaceable logic module for the PanelView Plus 6 terminal family. It is compatible with all 2711P-series terminals that accept the RP9DK form factor. Existing FactoryTalk View ME application files are retained on the terminal's storage media and are fully compatible with the replacement module, enabling rapid commissioning without application re-engineering.

Q2: What controller platforms and communication protocols does the 2711P-RP9DK support for system integration?A: The 2711P-RP9DK communicates via EtherNet/IP and supports direct tag-based connections to ControlLogix (1756-L8x series) and CompactLogix (1769-L3x series) controllers using RSLinx Classic or FactoryTalk Linx. It also supports DF1 and DH-485 legacy protocols through optional communication adapters, enabling integration with older PLC-5 and SLC 500 control systems in brownfield upgrade projects.

Q3: What warranty and supply assurance does NANKMOS provide for the 2711P-RP9DK?A: All 2711P-RP9DK units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify communication, display interface, and power management performance before dispatch. NANKMOS maintains in-stock inventory of the 2711P-RP9DK to support urgent maintenance requirements, with expedited global shipping available for critical production environments.
