Allen-Bradley 2711R-T4T HMI Terminal

Product Details

2711R-T4T Product Description

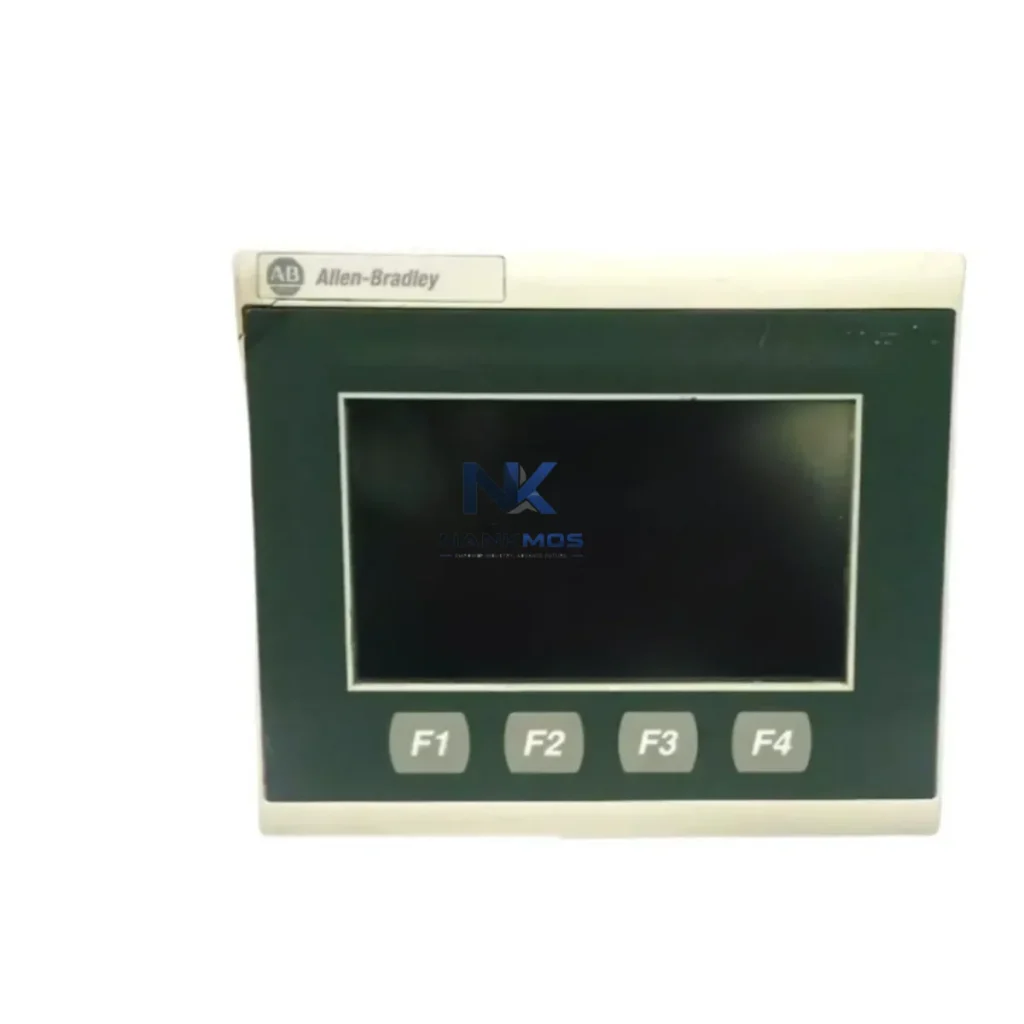

The Allen-Bradley 2711R-T4T is a compact, operator-interface terminal from the PanelView 800 series, engineered by Rockwell Automation to serve as the human-machine interface layer within distributed and centralized industrial control architectures. Designed for seamless contextual integration with ControlLogix and CompactLogix platforms, the 2711R-T4T delivers reliable visualization, operator input, and real-time process feedback across a wide range of industrial environments. Its 4-inch resistive touch screen, combined with native EtherNet/IP communication capability, positions it as a scalable HMI node within multi-tier automation systems where signal consistency, diagnostic efficiency, and long-term maintainability are paramount.

In modern industrial control system design, the HMI layer is not an isolated component — it is a critical integration point that bridges the operator environment with the control layer, I/O subsystems, communication networks, and field devices. The 2711R-T4T fulfills this role with a compact form factor suitable for panel-door mounting, making it ideal for machine-level control cabinets, skid-mounted automation units, and distributed operator stations across large-scale process facilities. Its architecture-ready design ensures that system engineers can deploy it as part of a standardized HMI strategy without compromising on communication reliability or visualization performance.

From a system architecture perspective, the 2711R-T4T operates at the HMI layer while maintaining tight coupling with the control layer through EtherNet/IP. This communication protocol enables direct tag-based data exchange with Allen-Bradley 1769-L30ER CompactLogix controllers and 1756-L85E ControlLogix processors, eliminating the need for intermediate protocol converters in most standard machine architectures. The result is a leaner, more deterministic control loop with reduced latency between operator commands and controller response — a critical requirement in high-speed packaging lines, conveyor systems, and precision assembly applications.

At the I/O layer, the 2711R-T4T complements Allen-Bradley 1734 POINT I/O modules and 1769 Compact I/O expansion racks by providing operators with direct visibility into field-level signal states. When integrated with a 1756-EN2T EtherNet/IP communication module at the backplane level, the HMI can display real-time analog and digital I/O values, alarm states, and process variables without additional middleware. This tight I/O-to-HMI integration reduces commissioning time and simplifies fault diagnosis during both initial startup and ongoing maintenance cycles.

For applications requiring redundancy and high availability, the 2711R-T4T can be deployed alongside a 1756-RM2 ControlLogix redundancy module architecture, where the HMI maintains continuous communication with the active controller while the standby controller remains synchronized. This configuration is particularly valuable in power generation, water treatment, and petrochemical process control systems where unplanned downtime carries significant operational and safety consequences. The HMI's ability to maintain session continuity during controller switchover events ensures that operators retain full situational awareness throughout redundancy transitions.

At the power layer, the 2711R-T4T operates on a 24V DC supply, making it directly compatible with Allen-Bradley 1606-XLP power supplies commonly used in ControlLogix and CompactLogix panel builds. This voltage compatibility simplifies panel design by allowing the HMI to share the same DC bus as the controller and I/O subsystems, reducing the number of discrete power supply units required and improving overall panel efficiency. Proper power rail design, including surge protection and voltage regulation, is recommended to ensure long-term HMI reliability in electrically noisy industrial environments.

The communication layer of the 2711R-T4T supports EtherNet/IP as its primary network interface, enabling integration with managed industrial Ethernet switches such as the Allen-Bradley Stratix 5700 series. Within a ring or star topology network, the HMI participates as a standard EtherNet/IP node, benefiting from IGMP snooping, VLAN segmentation, and QoS prioritization features available on managed switches. This network-level integration ensures that HMI traffic does not compete with controller-to-controller or controller-to-drive communication, maintaining deterministic network performance across the entire automation platform.

In execution-layer applications, the 2711R-T4T interfaces with Allen-Bradley PowerFlex 525 and PowerFlex 755 variable frequency drives through the EtherNet/IP network, providing operators with direct drive status visualization, speed reference adjustment, and fault acknowledgment capabilities from the HMI screen. This drive-to-HMI integration eliminates the need for dedicated drive keypads in many machine configurations, centralizing operator interaction and reducing panel complexity. For servo-driven axes, the HMI can similarly interface with Kinetix 5500 servo drives through the same EtherNet/IP backbone, providing a unified operator interface across mixed drive architectures.

From a maintenance and diagnostic perspective, the 2711R-T4T supports alarm management, trend displays, and data logging functions that enable maintenance teams to identify developing faults before they escalate into unplanned downtime events. When combined with Rockwell Automation's FactoryTalk View ME software, the HMI can display historical trend data, alarm frequency reports, and equipment runtime statistics — providing the diagnostic depth required for predictive maintenance programs in manufacturing, mining, and marine propulsion applications. All units supplied by NANKMOS are pre-shipment tested and backed by a 12-Month Warranty, ensuring that replacement HMI terminals arrive ready for immediate integration into existing control architectures.

The 2711R-T4T is designed to operate as a cohesive element within a fully integrated Rockwell Automation control platform. At the control layer, it communicates directly with the Allen-Bradley 1769-L30ER CompactLogix controller and the 1756-L85E ControlLogix processor via EtherNet/IP, enabling tag-based data exchange without protocol translation overhead. The HMI shares the same network infrastructure as the 1756-EN2T EtherNet/IP communication module, which manages backplane-level data routing within the ControlLogix chassis.

At the I/O layer, the 2711R-T4T provides operator visibility into signals managed by Allen-Bradley 1734 POINT I/O modules and 1769 Compact I/O expansion racks, displaying real-time digital and analog field values on its touch interface. Power for the HMI is sourced from the same Allen-Bradley 1606-XLP 24V DC power supply rail used by the controller and I/O subsystems, simplifying panel wiring and reducing component count.

Network infrastructure is provided by the Allen-Bradley Stratix 5700 managed industrial Ethernet switch, which segments HMI traffic from controller-to-drive and controller-to-controller communication using VLAN and QoS configurations. At the execution layer, the HMI interfaces with PowerFlex 525 and PowerFlex 755 variable frequency drives, as well as Kinetix 5500 servo drives, providing centralized operator control over speed references, torque limits, and drive fault acknowledgment. For redundancy-critical applications, the 2711R-T4T is deployed alongside the 1756-RM2 ControlLogix Redundancy Module, maintaining HMI session continuity during controller switchover events.

Manufacturing & Assembly: In automotive and electronics assembly lines, the 2711R-T4T serves as the primary operator interface for CompactLogix-controlled conveyor and pick-and-place systems. Its compact 4-inch form factor fits standard panel-door cutouts, and its EtherNet/IP connectivity enables real-time production count, cycle time, and fault status visualization without dedicated SCADA workstations at the machine level.

Power Generation & Utilities: In gas turbine auxiliary systems and substation automation panels, the 2711R-T4T provides operators with direct access to ControlLogix-managed protection relay status, breaker control sequences, and load monitoring data. Its NEMA 4-rated front panel makes it suitable for outdoor switchgear enclosures and harsh electrical environments.

Petrochemical & Oil and Gas: In wellhead control panels and pipeline pump stations, the 2711R-T4T integrates with CompactLogix safety controllers to display process pressure, flow rate, and valve position data. Its 24V DC power compatibility allows direct integration with hazardous-area panel power systems without additional voltage conversion.

Water & Wastewater Treatment: In distributed pump station control panels, the 2711R-T4T provides local operator interface capability for CompactLogix-controlled lift stations and filtration systems, reducing the need for full SCADA terminal deployment at remote sites. Its EtherNet/IP connectivity allows integration with plant-wide historian systems for long-term process data archiving.

Mining & Metals: In conveyor drive control panels and crusher automation systems, the 2711R-T4T interfaces with PowerFlex 755 drives and ControlLogix controllers to provide operators with real-time belt speed, motor current, and fault status data. Its resistive touch screen operates reliably with gloved hands, a critical usability requirement in mining environments.

Marine Propulsion & Shipboard Automation: In engine room automation panels and thruster control systems, the 2711R-T4T provides compact HMI capability for CompactLogix-managed propulsion and auxiliary systems. Its wide operating temperature range and vibration tolerance make it suitable for shipboard panel installations subject to mechanical shock and thermal cycling.

Q1: Is the 2711R-T4T compatible with both ControlLogix and CompactLogix controllers, and does it require a separate communication module? The 2711R-T4T communicates natively via EtherNet/IP and is directly compatible with both ControlLogix (1756 series) and CompactLogix (1769 series) controllers without requiring a separate communication module. The HMI connects to the controller through a standard managed or unmanaged Ethernet switch, and tag-based data exchange is configured through Rockwell Automation's Connected Components Workbench (CCW) software. No protocol gateway or intermediate converter is required for standard EtherNet/IP architectures.

Q2: Can the 2711R-T4T be integrated into a redundant ControlLogix architecture, and how does it handle controller switchover events? Yes. In a 1756-RM2 ControlLogix redundancy architecture, the 2711R-T4T maintains its EtherNet/IP connection to the active controller and automatically re-establishes communication with the newly promoted primary controller following a switchover event. The switchover process is transparent to the HMI application, and operator screens remain active throughout the transition. This behavior is inherent to the EtherNet/IP protocol stack and does not require special HMI application configuration.

Q3: What warranty and supply assurance does NANKMOS provide for the 2711R-T4T, and is pre-shipment testing included? All 2711R-T4T units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify power-up, display operation, touch input response, and EtherNet/IP communication capability before dispatch. In-stock inventory is maintained to support urgent replacement requirements, and global shipping is available with lead times confirmed at the time of order. For volume procurement or long-term supply agreements, contact NANKMOS directly to discuss inventory reservation and scheduled delivery options.
