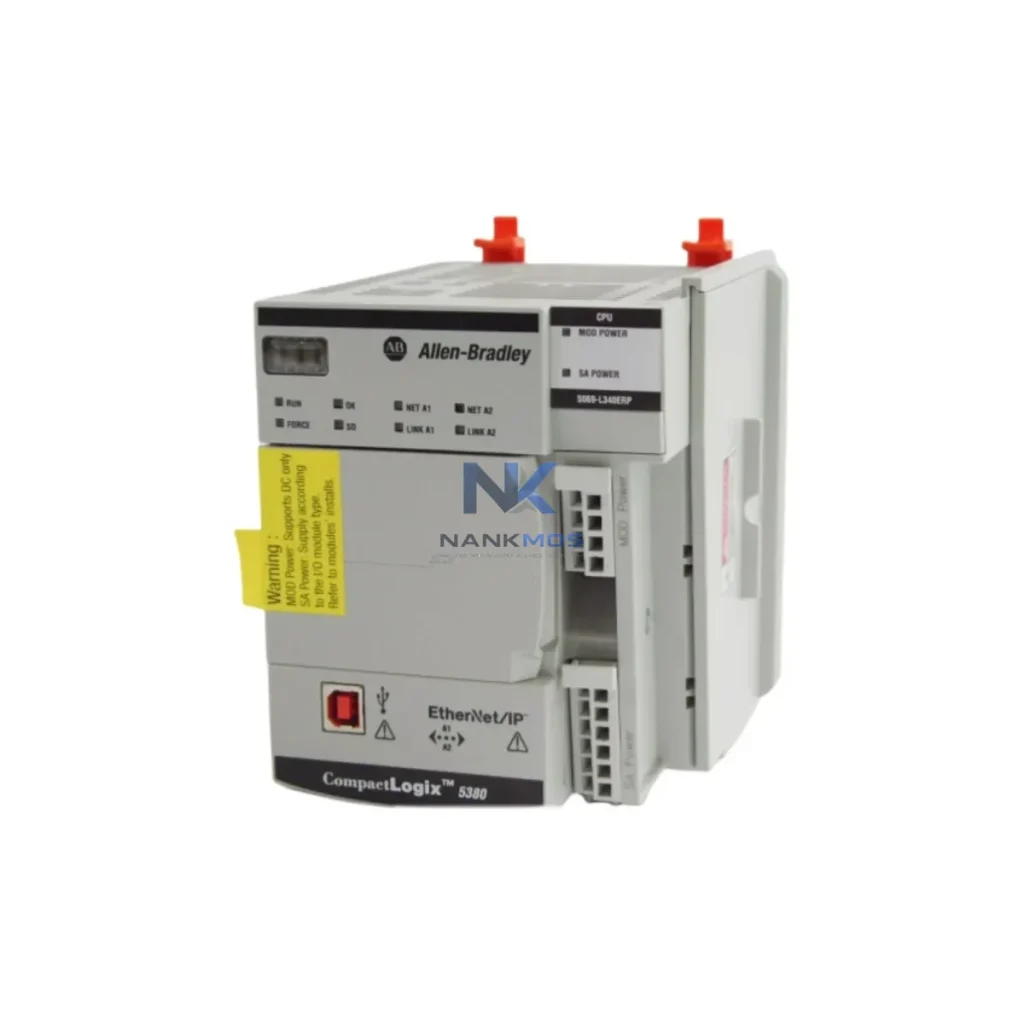

Allen-Bradley 5069-L340ERP PLC Controller

Product Details

5069-L340ERP Product Description

The Allen-Bradley 5069-L340ERP is a high-performance CompactLogix 5380 series programmable logic controller engineered for demanding industrial network environments. Designed to serve as the central intelligence node in smart factory architectures, the 5069-L340ERP integrates native EtherNet/IP communication with deterministic real-time control, enabling seamless data flow between field devices, distributed I/O, HMI panels, SCADA platforms, and enterprise-level MES or ERP systems. Whether deployed in discrete manufacturing, process automation, or hybrid production lines, this controller delivers the protocol depth, network stability, and diagnostic transparency that modern Industry 4.0 operations demand.

At its core, the 5069-L340ERP supports dual EtherNet/IP ports with Device Level Ring (DLR) topology, providing network redundancy that eliminates single points of failure across the automation backbone. This architecture is critical in high-availability environments such as automotive assembly, pharmaceutical batch processing, and continuous chemical production, where unplanned downtime translates directly into production loss. The controller's embedded switch functionality allows ring-based network designs without additional managed switches, reducing infrastructure cost while improving fault recovery time to sub-milliseconds.

Signal acquisition begins at the field level, where the 5069-L340ERP communicates with 5069 Compact I/O modules — including digital input/output, analog signal, and specialty function modules — over the high-speed Compact I/O backplane. Analog sensors, proximity switches, pressure transmitters, and temperature transducers feed real-time process values directly into the controller's tag database. These values are then made available across the EtherNet/IP network to upstream systems without protocol conversion overhead, preserving signal fidelity from sensor to SCADA.

For installations requiring integration with legacy serial devices or third-party fieldbus networks, the 5069-L340ERP pairs naturally with communication gateways such as the 1783-ETAP EtherNet/IP tap module or ProSoft Technology MVI56E series protocol bridges, enabling Modbus RTU, PROFIBUS DP, and DeviceNet devices to participate in the unified EtherNet/IP data fabric. This protocol bridging capability is essential in brownfield upgrades where existing instrumentation cannot be replaced but must be connected to modern SCADA or cloud analytics platforms.

The controller's integration with Rockwell Automation's FactoryTalk View SE SCADA and FactoryTalk Historian platforms enables real-time data visualization, trend logging, and alarm management across the entire production network. Operators at HMI stations — including PanelView Plus 7 and PanelView 5510 terminals — receive live process data with sub-100ms update rates, supporting rapid decision-making on the plant floor. Remote engineers can access the same data through FactoryTalk Remote Access or VPN-secured connections, enabling off-site diagnostics without physical presence at the machine.

Variable frequency drives such as the PowerFlex 525 and PowerFlex 755 connect to the 5069-L340ERP via EtherNet/IP, delivering closed-loop speed and torque control with full parameter visibility in the controller's tag database. Drive fault codes, energy consumption data, and runtime hours are logged automatically, supporting predictive maintenance workflows and reducing unplanned motor failures. This drive-controller integration is a foundational element of smart factory energy optimization strategies.

Edge computing nodes and industrial IoT gateways — such as the Cisco IE 4000 series industrial Ethernet switch or Moxa EDS managed switches — provide the network infrastructure layer that connects the 5069-L340ERP to cloud analytics platforms. MQTT or OPC-UA data publishing from the controller's tag database enables integration with AWS IoT, Microsoft Azure IoT Hub, or on-premise historian systems, completing the data chain from field sensor to enterprise dashboard. This connectivity architecture supports digital twin modeling, OEE calculation, and AI-driven process optimization at scale.

Every 5069-L340ERP unit supplied by NANKMOS is pre-shipment tested against Rockwell Automation factory specifications, verifying communication port integrity, memory allocation, firmware version, and I/O backplane communication before dispatch. Units are held in climate-controlled inventory and shipped with full documentation. A 12-month warranty covers all hardware defects, with technical support available for configuration, network commissioning, and SCADA integration queries.

In a fully connected smart factory deployment, the 5069-L340ERP operates as the primary control and data aggregation node across multiple automation layers. At the field level, 5069-IB16 digital input modules and 5069-OF8 analog output modules extend the controller's reach to sensors, actuators, and process instruments mounted on the machine frame. These Compact I/O modules communicate over the high-speed backplane at scan rates below 1ms, ensuring that process variables — pressure, flow, temperature, position — are captured with the resolution required for closed-loop control.

Distributed remote I/O panels, equipped with 1734 POINT I/O adapters or 1738 ArmorPOINT I/O modules, extend the network to remote machine sections or adjacent production cells over EtherNet/IP. The controller manages these distributed nodes with the same determinism as local I/O, maintaining synchronization across the entire production line. Where legacy Modbus RTU instruments remain in service, a ProSoft MVI56E-MNET gateway bridges the serial data stream into the EtherNet/IP fabric, making legacy sensor data available in the controller's tag database without hardware replacement.

At the supervisory layer, FactoryTalk View SE running on a plant-floor server aggregates tag data from the 5069-L340ERP and presents it on PanelView Plus 7 operator terminals distributed across the production floor. Alarm conditions — motor overcurrent, pressure deviation, communication timeout — are logged with timestamps and operator acknowledgment records, supporting regulatory compliance and root-cause analysis. FactoryTalk Historian captures high-resolution trend data for OEE reporting and process optimization analysis.

Industrial network infrastructure — Stratix 5700 managed Ethernet switches and Cisco IE 4000 series switches — provides the physical layer that connects controllers, drives, I/O nodes, and SCADA servers in a segmented, VLAN-structured network. Network segmentation isolates control traffic from IT traffic, reducing latency and protecting automation systems from cybersecurity threats originating on the corporate network. The DLR topology of the 5069-L340ERP ensures that a single cable fault does not interrupt production, with automatic ring recovery completing in under 3ms.

At the edge, an industrial IoT gateway — such as a Moxa UC-8112 or Advantech WISE-5000 series — collects OPC-UA data published by the 5069-L340ERP and forwards it to cloud analytics platforms. This data pipeline supports digital twin synchronization, AI-driven anomaly detection, and remote KPI dashboards accessible to plant managers and process engineers regardless of physical location. The complete data chain — from field sensor through PLC, SCADA, edge gateway, and cloud — is fully operational with the 5069-L340ERP as the control core.

Many industrial sites operate with fragmented automation architectures — islands of control where PLCs, drives, and instruments use incompatible protocols, preventing unified data visibility. The 5069-L340ERP addresses this directly through its native EtherNet/IP implementation and compatibility with protocol gateway solutions. Sites running mixed Modbus, PROFIBUS, and EtherNet/IP networks can consolidate data into a single tag database managed by the CompactLogix 5380, eliminating the manual data reconciliation that previously required dedicated integration engineers.

Remote monitoring gaps — where plant managers lack real-time visibility into production KPIs, alarm states, or equipment health — are resolved through the controller's integration with FactoryTalk Remote Access and OPC-UA publishing. Engineers can connect to the running controller from any location, view live tag values, modify parameters within authorized limits, and capture diagnostic snapshots without dispatching field technicians. This capability is particularly valuable for multi-site operations where a single engineering team supports production facilities across multiple geographic locations.

Production line transparency — knowing exactly which station caused a stoppage, which alarm triggered first, and how long recovery took — is achieved through FactoryTalk Historian's millisecond-resolution event logging. The 5069-L340ERP's alarm and event infrastructure captures fault sequences with the precision needed to distinguish root causes from cascading effects, reducing mean time to repair and supporting continuous improvement programs. Scalability is built into the CompactLogix 5380 architecture: additional I/O modules, motion axes, and network nodes can be added without replacing the controller, protecting the capital investment as production requirements evolve.

Q: What network topologies does the 5069-L340ERP support, and how does DLR improve network reliability?A: The 5069-L340ERP supports linear, star, and Device Level Ring (DLR) EtherNet/IP topologies. DLR provides automatic fault recovery in under 3ms when a cable break or node failure occurs, ensuring that production continues without operator intervention. This makes it suitable for high-availability applications where network interruption is not acceptable.

Q: Can the 5069-L340ERP integrate with non-EtherNet/IP devices such as Modbus RTU instruments or PROFIBUS sensors?A: Yes. While the controller's native protocol is EtherNet/IP, it integrates with Modbus RTU, PROFIBUS DP, and other fieldbus devices through protocol gateway modules such as the ProSoft MVI56E series or third-party EtherNet/IP-to-serial bridges. These gateways present legacy device data as standard EtherNet/IP tags, making them fully accessible to SCADA, HMI, and historian systems.

Q: How does remote diagnostics work with the 5069-L340ERP, and what tools are required?A: Remote diagnostics are performed using Studio 5000 Logix Designer connected via FactoryTalk Remote Access or a VPN-secured EtherNet/IP connection. Engineers can go online with the running controller, monitor tag values in real time, capture controller diagnostics, and upload/download program changes within authorized security levels. No additional hardware is required beyond the existing network infrastructure.

Q: What warranty and pre-shipment testing does NANKMOS provide for the 5069-L340ERP?A: Every 5069-L340ERP supplied by NANKMOS carries a 12-month warranty covering hardware defects under normal operating conditions. Prior to shipment, each unit undergoes functional testing including communication port verification, firmware validation, and memory integrity checks. Units are dispatched from in-stock inventory with full documentation, supporting rapid deployment and minimizing project lead times.
