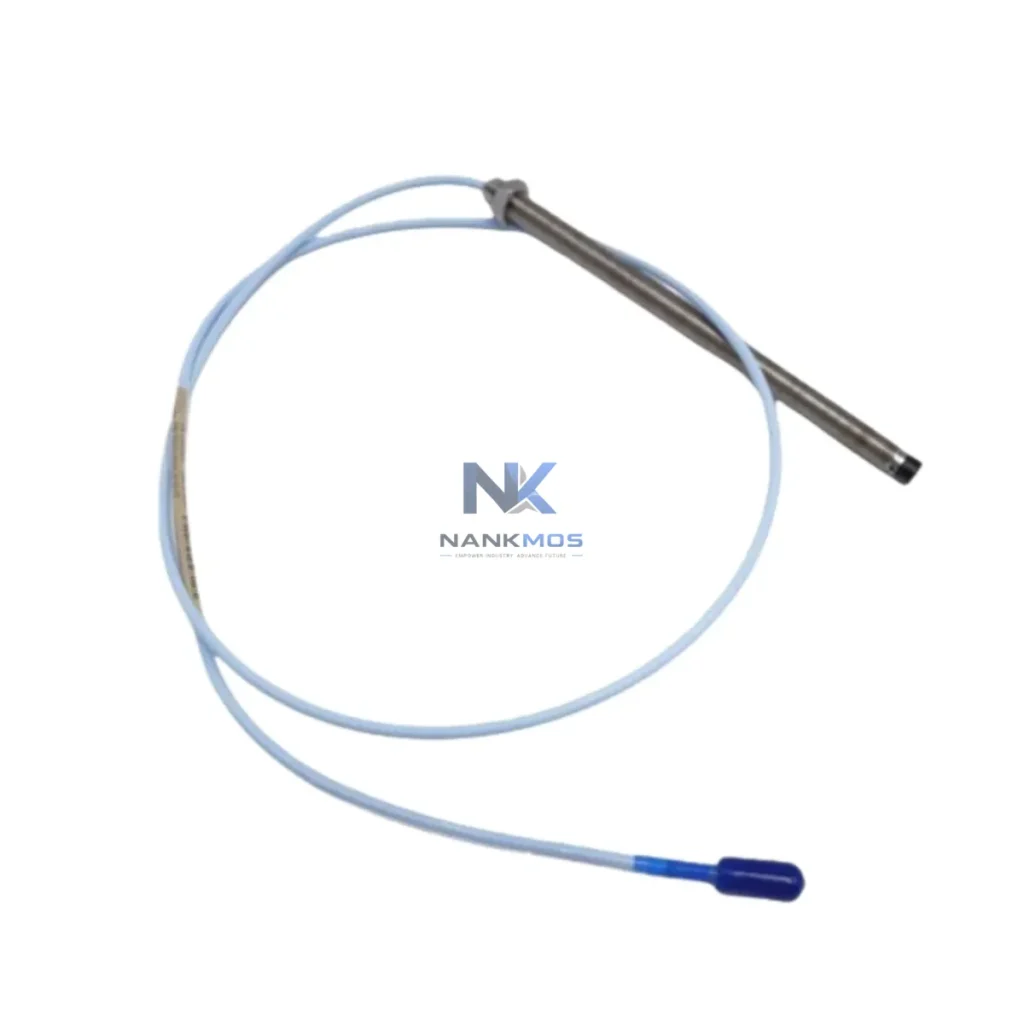

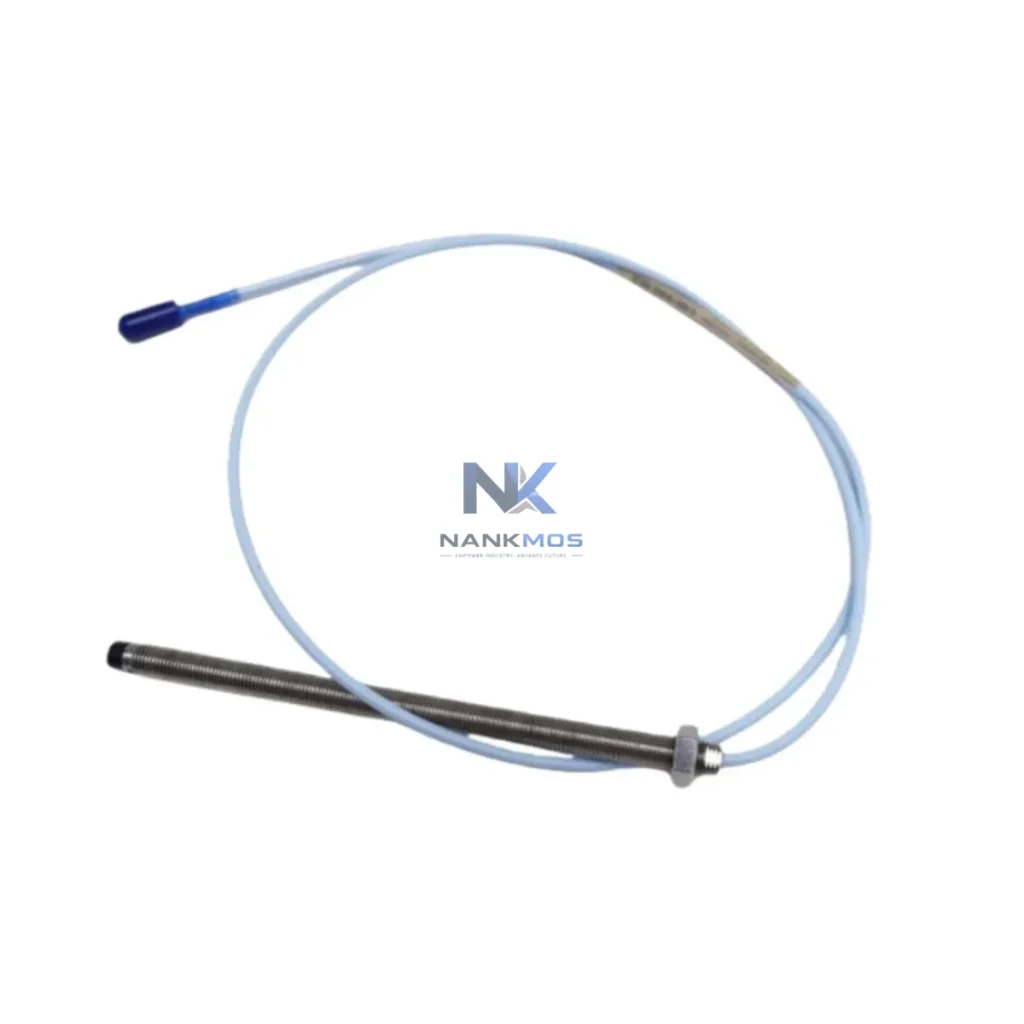

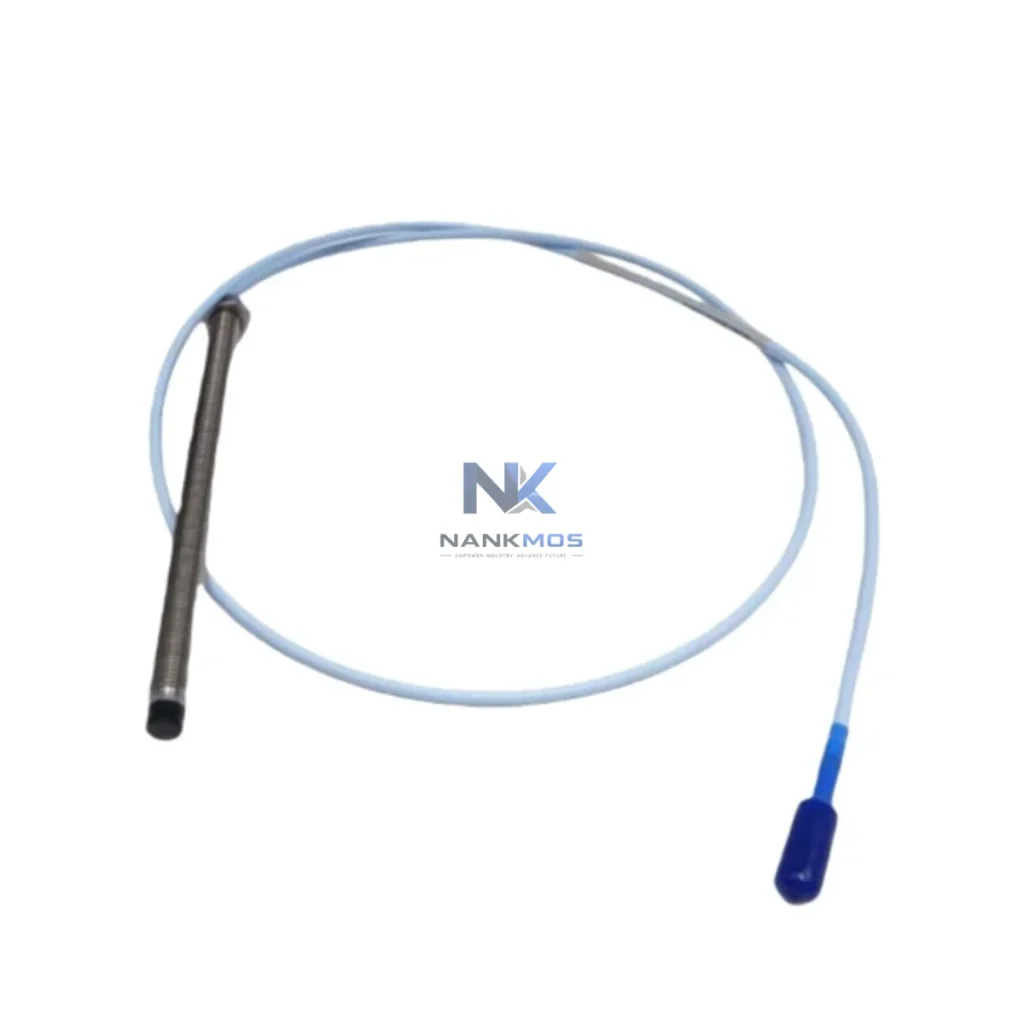

Bently Nevada 330101-00-66-20-02-CN Proximity Probe

Product Details

330101-00-66-20-02-CN Product Description

The Bently Nevada 330101-00-66-20-02-CN is a high-precision eddy-current proximity probe engineered for seamless deployment within the 3300 XL machinery protection architecture. Designed to deliver continuous, non-contact displacement measurement of rotating shaft position, this probe serves as the primary sensing element in a layered industrial control system — feeding real-time vibration, eccentricity, and radial position data upward through the signal chain to the 3300 XL proximitor driver, the 3500 monitoring rack, and ultimately to the plant-level DCS or SCADA platform. Its role is not limited to signal acquisition; it is a foundational node in a fully integrated automation architecture that spans the control layer, I/O layer, communication layer, protection layer, and maintenance layer.

With a cable length of 2.0 m (66 inches) and a standard 5 mm tip diameter, the 330101-00-66-20-02-CN is matched to the Bently Nevada 3300 XL Proximitor system, ensuring calibrated sensitivity and linear output across the full measurement gap range. The -CN suffix designates the connector configuration for direct mating with 3300 XL extension cables and proximitor inputs, eliminating signal degradation at the interface. This system-matched design is critical in high-availability installations where signal integrity directly affects machinery protection decisions, trip setpoints, and alarm thresholds managed by the 3500/22M transient data interface or the 3500/42M Proximitor Seismic Monitor module.

In a complete rotating equipment monitoring architecture, the 330101-00-66-20-02-CN operates in conjunction with the Bently Nevada 3300 XL Proximitor driver, which conditions the raw eddy-current signal into a calibrated DC voltage output. This output is then routed to the 3500 rack backplane, where modules such as the 3500/40M Proximitor Seismic Monitor or the 3500/42M process the displacement data for alarm and trip logic. The 3500 rack communicates upstream via Modbus TCP, PROFIBUS DP, or OPC-UA gateway modules — enabling full Contextual Integration with plant historians, condition monitoring platforms such as System 1 Evolution, and distributed control systems from Emerson, Honeywell, ABB, or Siemens. This communication architecture ensures that vibration and position data from the 330101-00-66-20-02-CN probe is not siloed at the field level but is fully visible across the enterprise automation hierarchy.

Redundancy is a core design consideration in critical rotating equipment applications. The 330101-00-66-20-02-CN supports dual-probe configurations on a single shaft journal, enabling XY radial vibration measurement per API 670 requirements. Paired with a second 330101-series probe at 90 degrees, the system provides full orbital analysis capability, which is essential for turbines, compressors, pumps, and motors in power generation, petrochemical, and oil and gas facilities. The 3500 rack's redundant power supply modules — such as the 3500/15 Power Supply — ensure that probe signal conditioning remains uninterrupted even during power module maintenance or failure events, supporting continuous protection without process shutdown.

From an engineering integration perspective, the 330101-00-66-20-02-CN is designed for straightforward installation and commissioning. The probe tip is mounted in a drilled and tapped bracket positioned at the specified gap distance from the shaft surface, typically 1.0 mm to 2.0 mm for standard 5 mm probes. The extension cable — such as the Bently Nevada 330130-045-00-CN or 330130-080-00-CN — connects the probe to the proximitor driver mounted in the junction box or directly at the 3300 XL Proximitor housing. Gap voltage verification using a digital multimeter confirms correct installation before system commissioning. This straightforward calibration process reduces field engineering time and supports rapid deployment in both greenfield installations and retrofit upgrades of legacy monitoring systems.

Long-term maintenance efficiency is significantly enhanced by the modular architecture of the 3300 XL and 3500 systems. The 330101-00-66-20-02-CN probe can be replaced in the field without disturbing the extension cable or proximitor driver, minimizing downtime during scheduled maintenance windows. Spare probe inventory management is simplified by the standardized connector and cable length designation, allowing maintenance teams to maintain a single SKU for multiple measurement points across a facility. This modularity, combined with the probe's robust stainless-steel construction and resistance to oil, moisture, and high-temperature environments, supports the long-term reliability requirements of continuous process industries.

All units supplied by NANKMOS are in-stock, pre-shipment tested against Bently Nevada factory specifications, and covered by a 12-Month Warranty. Each probe undergoes gap sensitivity verification, output linearity check, and connector integrity inspection before dispatch. Fast international shipping is available to support urgent maintenance requirements and unplanned outage scenarios.

The 330101-00-66-20-02-CN proximity probe is most effective when deployed as part of a fully coordinated Bently Nevada monitoring architecture. At the signal conditioning layer, the Bently Nevada 3300 XL Proximitor (330180-X1-05) receives the raw eddy-current signal and outputs a calibrated -24 VDC gap voltage and AC vibration signal. This signal is routed to the 3500 rack backplane, where the 3500/42M Proximitor Seismic Monitor processes radial vibration and position data. The 3500/15 Power Supply provides redundant 24 VDC to all rack modules, ensuring uninterrupted monitoring during power events.

At the communication layer, the 3500/92 Communication Gateway bridges the 3500 rack to plant Ethernet networks via Modbus TCP or OPC-UA, enabling data flow to Emerson System 1 Evolution condition monitoring software or third-party SCADA platforms. For facilities using PROFIBUS DP, the 3500/93 PROFIBUS Interface Module provides direct integration with Siemens S7-300/S7-400 PLCs or ABB AC800M DCS controllers. At the HMI layer, operator workstations running System 1 Evolution display real-time orbital plots, trend data, and alarm states derived from the 330101-00-66-20-02-CN probe measurements.

In multi-shaft installations, the Bently Nevada 330130-series extension cables route probe signals from machine casings to junction boxes, maintaining signal integrity over distances up to 9.0 m. The 3500/22M Transient Data Interface captures high-speed waveform data during startup and shutdown events, providing the engineering team with detailed runup and coastdown analysis. For facilities requiring keyphasor reference signals, the Bently Nevada 330105-series keyphasor probe integrates with the same 3300 XL architecture, enabling phase-referenced vibration analysis and balance correction workflows.

Power Generation: In gas turbine and steam turbine installations, the 330101-00-66-20-02-CN monitors journal bearing radial vibration and shaft position at compressor, turbine, and generator sections. The probe feeds the 3500 rack protection system, which enforces API 670 trip setpoints to prevent catastrophic bearing failure during load transients or startup events.

Petrochemical and Oil & Gas: Centrifugal compressors and process pumps in refinery and upstream facilities rely on continuous proximity probe monitoring to detect rotor instability, oil whirl, and surge precursors. The 330101-00-66-20-02-CN, integrated with the 3500/42M monitor and System 1 Evolution, provides the early warning data required for condition-based maintenance programs, reducing unplanned shutdowns and extending mean time between overhauls.

Water Treatment and Utilities: Large vertical pump motors and blower trains in municipal water treatment plants use proximity probes to monitor shaft eccentricity and bearing wear. The 3300 XL architecture's low-power design and compact proximitor housing are well suited to the distributed installation requirements of pump station environments.

Mining and Minerals Processing: Ball mills, SAG mills, and crusher drives in mining operations subject rotating equipment to high shock and vibration loads. The 330101-00-66-20-02-CN's robust stainless-steel construction and oil-resistant cable jacket maintain measurement accuracy in these demanding environments, supporting continuous protection of high-value drive trains.

Marine Propulsion: Shipboard propulsion systems and auxiliary machinery — including main engines, reduction gearboxes, and shaft generators — require compact, vibration-resistant monitoring solutions. The 3300 XL proximity probe system meets marine classification society requirements and integrates with vessel automation systems via Modbus TCP gateways.

Q1: Is the 330101-00-66-20-02-CN compatible with both the 3300 XL and legacy 3300 series proximitor drivers? The 330101-00-66-20-02-CN is optimized for the 3300 XL Proximitor system. While the probe tip and cable are physically similar to legacy 3300 series components, the -CN connector designation and calibration curve are matched to the 3300 XL driver. Use with legacy 3300 series proximitors may require recalibration and gap voltage verification. NANKMOS recommends confirming the proximitor model before ordering to ensure full system compatibility.

Q2: Can this probe be used in a redundant dual-probe XY configuration per API 670? Yes. The 330101-00-66-20-02-CN is fully compatible with API 670 dual-probe XY radial vibration configurations. Two probes are mounted at 90 degrees at each journal bearing location, with each probe connected to a separate channel on the 3500/42M or 3500/40M monitor module. The 3500 rack's channel-pair processing enables full orbital analysis, Bode plots, and shaft centerline tracking. This configuration is standard practice for critical rotating equipment in power generation, petrochemical, and oil and gas applications.

Q3: What warranty and supply assurance does NANKMOS provide for the 330101-00-66-20-02-CN? All 330101-00-66-20-02-CN units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and performance deviations from Bently Nevada factory specifications. Each unit is pre-shipment tested — including gap sensitivity verification, output linearity check, and connector integrity inspection — before dispatch. NANKMOS maintains in-stock inventory of the 330101-00-66-20-02-CN and related 3300 XL components to support urgent maintenance requirements and planned outage schedules. Fast international shipping is available with full documentation support.
