Bently Nevada 330130-045-00-CN Proximitor Extension Cable

Product Details

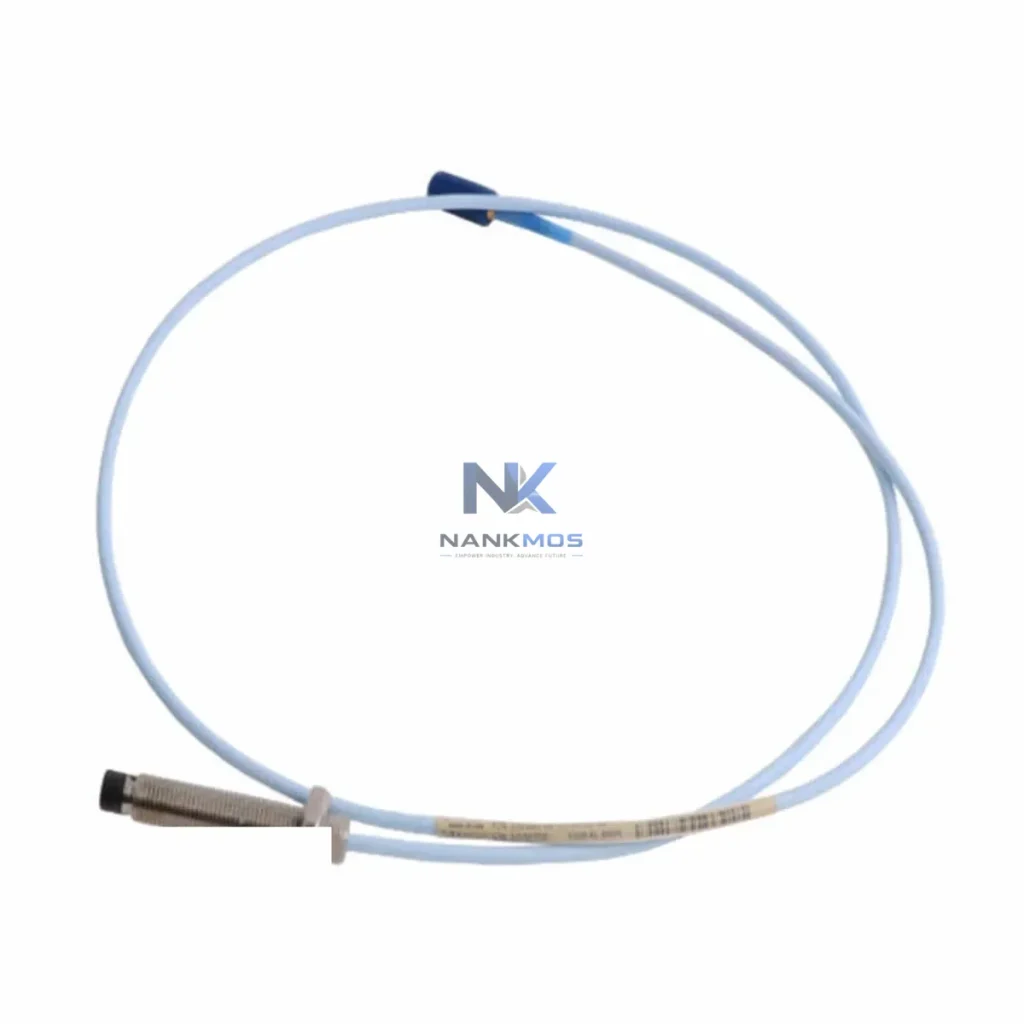

330130-045-00-CN Product Description

The Bently Nevada 330130-045-00-CN is a precision-engineered Proximitor Extension Cable designed to bridge the critical signal path between eddy-current proximity probes and Bently Nevada 3500 Series monitoring rack modules. In modern smart factory environments where continuous vibration data is essential for predictive maintenance, this extension cable forms the backbone of a reliable industrial data link — carrying raw displacement and phase signals from rotating machinery directly into the plant's condition monitoring network. Its shielded coaxial construction ensures signal integrity across distances up to 9 metres (45-foot), making it the preferred interconnect for turbines, compressors, pumps, and motor-driven equipment operating under demanding industrial conditions.

Within a connected factory architecture, the 330130-045-00-CN operates as the first physical layer of the vibration data chain. Proximity probe signals travel through this cable into the Bently Nevada 3500/42M Proximitor I/O Module, where raw gap voltage is conditioned and converted into engineering-unit displacement values. These values are then transmitted via the 3500 System TDI (Transient Data Interface) over Ethernet to a System 1 condition monitoring platform — Bently Nevada's SCADA-level software for real-time vibration trending, alarm management, and remote diagnostics. The seamless handoff from physical cable to digital network is what makes the 330130-045-00-CN indispensable in any IIoT-enabled rotating equipment monitoring strategy.

A complete smart factory vibration monitoring loop begins the moment a proximity probe detects shaft displacement. The 330130-045-00-CN extension cable carries that analog signal — typically a –24 VDC gap voltage proportional to shaft position — from the field-mounted probe to the Bently Nevada 3500/42M Proximitor I/O Module housed in the 3500 monitoring rack. The rack's backplane then routes conditioned data to the 3500/22M Transient Data Interface (TDI), which packages vibration waveforms and steady-state values for Ethernet transmission.

At the network layer, the TDI communicates with the Bently Nevada System 1 Evolution software server, acting as the plant's central SCADA node for rotating equipment health. Operators viewing the System 1 HMI dashboards can monitor real-time 1X/2X vibration vectors, Bode plots, and orbit displays without leaving the control room. Simultaneously, alarm thresholds configured in the 3500/20 Rack Interface Module trigger relay outputs that integrate with the plant DCS — such as a Honeywell Experion PKS or ABB 800xA — ensuring that critical vibration alarms propagate to the plant-wide alarm management system within milliseconds.

For facilities deploying edge computing, the vibration data stream can be routed through an industrial edge gateway (such as a Moxa MGate or Advantech WISE series) running OPC-UA or Modbus TCP bridging, enabling integration with cloud-based analytics platforms and digital twin environments. The 330130-045-00-CN thus sits at the origin of a data chain that spans from the physical probe tip all the way to enterprise-level asset performance management (APM) dashboards.

In multi-machine installations, the 330130-045-00-CN is typically deployed alongside Bently Nevada 330180 Proximitor Sensors, 330500 Proximity Probes, and 330130-080-00-CN extension cables of varying lengths to accommodate different machine train geometries. The modular nature of the 3500 rack system — incorporating 3500/15 Power Supply Modules and 3500/32 4-Channel Relay Modules — means that adding new measurement points requires only additional probe-cable-module sets, with no disruption to the existing network infrastructure.

Protocol Fragmentation: Many older plants run a mix of 4–20 mA analog loops, HART, Modbus RTU, and proprietary Bently Nevada protocols side by side. The 330130-045-00-CN preserves the native analog signal fidelity required by the 3500 rack, while downstream protocol converters and OPC-UA gateways handle the translation to plant-wide digital networks — eliminating the data gaps that arise when incompatible signal types are forced through unsuitable interfaces.

Data Silos and Remote Monitoring: Without a reliable physical signal path, vibration data never reaches the historian or SCADA layer. By ensuring low-noise, shielded signal transmission from probe to rack, the 330130-045-00-CN guarantees that the System 1 platform receives clean, continuous data streams — enabling remote diagnostics from any networked workstation and eliminating the need for technicians to physically access hazardous machinery areas for routine checks.

Production Transparency and Alarm Traceability: Integrated with the 3500 rack's relay outputs and the plant DCS, vibration alarms triggered by data flowing through the 330130-045-00-CN are time-stamped and logged in the historian, providing a complete audit trail for root-cause analysis. This transparency is critical for ISO 55000 asset management compliance and for meeting insurance and regulatory requirements in power generation, oil & gas, and petrochemical facilities.

System Scalability: The 330130 series cables are available in multiple lengths (5 ft, 9 ft, 25 ft, 45 ft, 80 ft) and connector configurations, allowing engineers to scale the monitoring network as new machines are added to the plant without redesigning the signal architecture. Each new measurement point simply requires a matched probe, extension cable, and 3500 I/O module — a plug-and-play expansion model that supports phased smart factory rollouts.

Q1: Does the 330130-045-00-CN introduce signal delay or latency in the vibration monitoring loop? A: No. As a passive coaxial extension cable, the 330130-045-00-CN introduces no active processing delay. Signal propagation through the cable is effectively instantaneous relative to the sampling rates of the 3500 rack modules (typically 20 kHz or higher), ensuring that real-time vibration data reaches the monitoring system without any latency penalty.

Q2: Is the 330130-045-00-CN compatible with third-party proximity probe systems or only Bently Nevada hardware? A: The 330130-045-00-CN is engineered specifically for the Bently Nevada 3300 and 3500 Series Proximitor systems and uses the proprietary connector and impedance specifications of those platforms. While the coaxial signal format is broadly similar to other eddy-current systems, full compatibility and performance guarantees apply only when used with matched Bently Nevada probes, Proximitors, and rack modules.

Q3: How does this cable support remote diagnostics and predictive maintenance strategies? A: By delivering a clean, uninterrupted analog signal to the 3500 rack, the 330130-045-00-CN enables the System 1 platform to continuously trend vibration amplitude, phase, and frequency data. Anomaly detection algorithms running in System 1 can identify early-stage bearing wear, rotor imbalance, or misalignment weeks before failure — allowing maintenance teams to schedule interventions remotely, reducing unplanned downtime and extending machine life.

Q4: What warranty and quality assurance does NANKMOS provide for the 330130-045-00-CN? A: Every 330130-045-00-CN supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify connector integrity, cable continuity, and shielding effectiveness. Stock is available for immediate dispatch, and our technical team can provide documentation, test reports, and application support for system integration projects.
