330752-80-CN Product Description

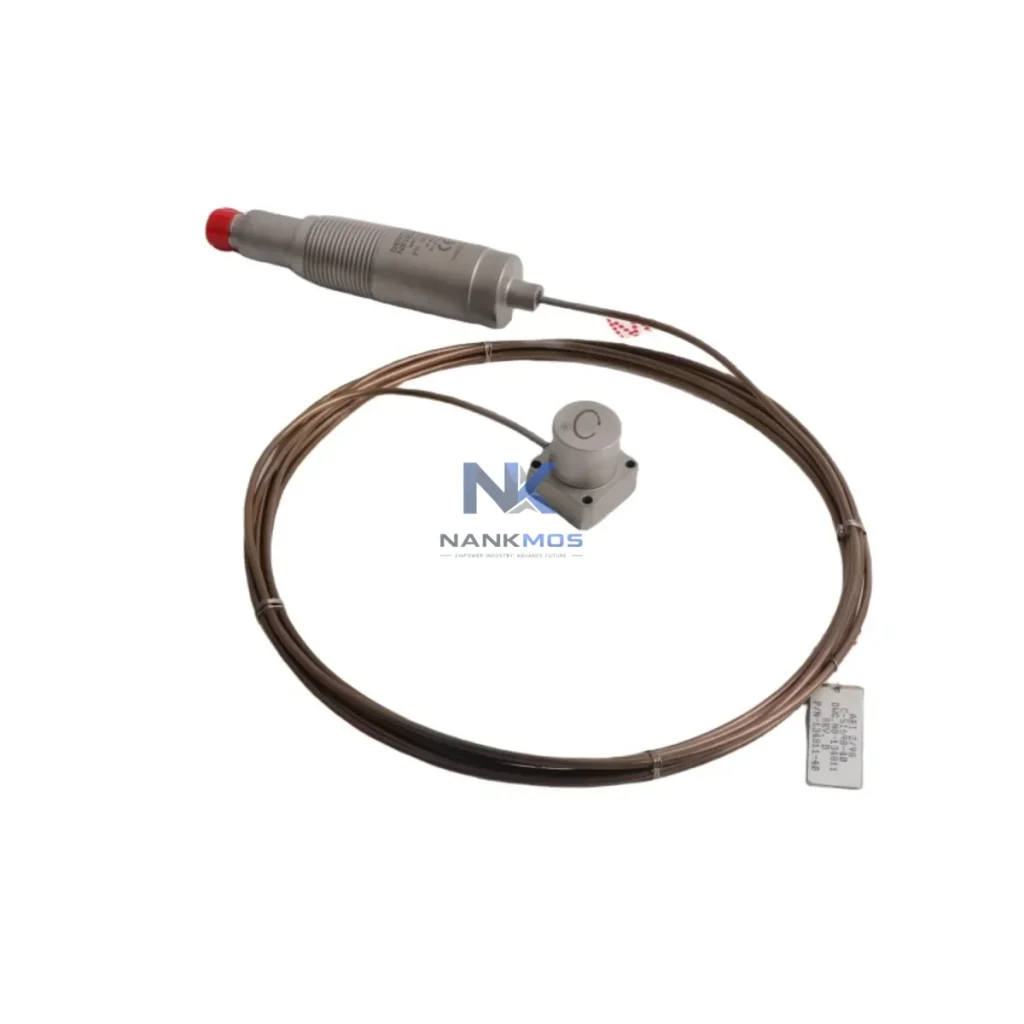

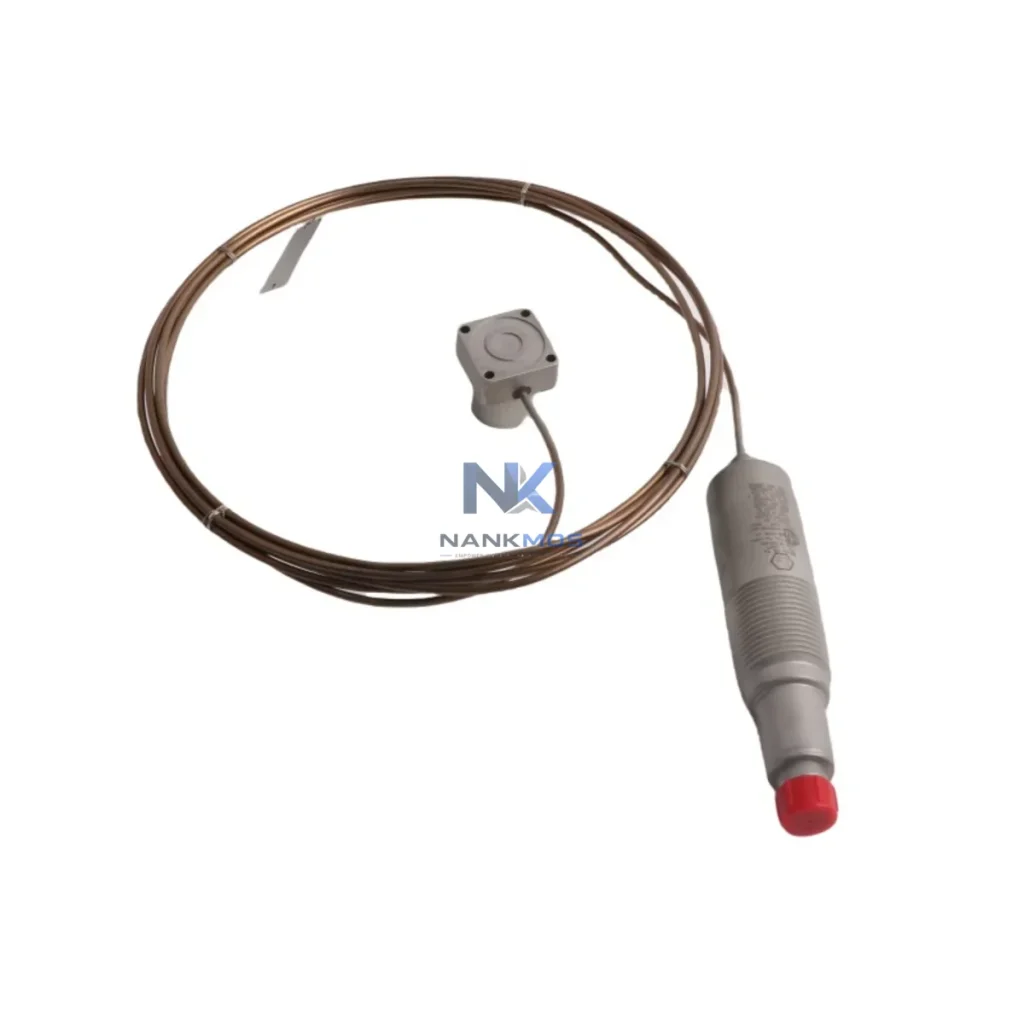

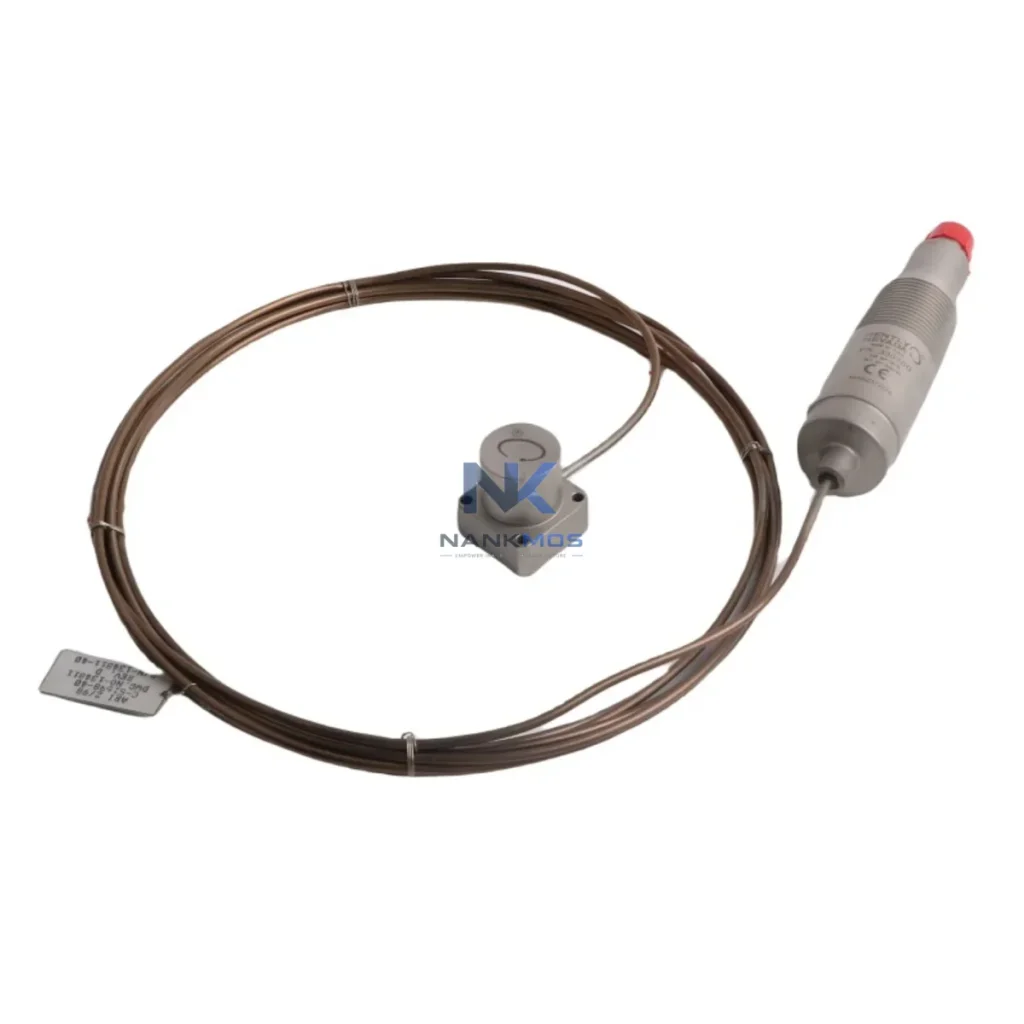

The Bently Nevada 330752-080-CN-00 is a factory-matched interconnection cable engineered for the 3300 Series eddy-current proximity measurement system. Within a complete rotating machinery protection and monitoring architecture, this cable serves as the precision signal conduit between the proximity transducer and the Proximitor sensor driver — a role that is deceptively simple in description but critical in practice. Signal fidelity at this layer directly determines the accuracy of gap voltage, vibration amplitude, and phase reference data delivered to the monitoring rack, the control system, and ultimately the plant historian or SCADA platform.

Modern industrial control architectures are built on layered interdependence. The 330752-080-CN-00 operates at the field instrumentation layer, bridging the transducer mounted on the machine casing to the Proximitor driver housed in the junction box or marshalling cabinet. From there, conditioned 4–20 mA or voltage signals propagate upward through the I/O layer — typically a Bently Nevada 3500 Series monitoring rack equipped with modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/25 keyphasor module — before reaching the communication layer where Modbus RTU, Modbus TCP/IP, or OPC-UA gateways relay real-time machinery health data to the DCS or PLC supervisory layer.

The 330752-080-CN-00 interconnection cable is not a standalone component — it is a precision link within a tightly integrated automation platform. Understanding its role requires mapping the full signal chain and the modules it connects across system layers:

Field / Transducer Layer: The cable mates directly with Bently Nevada 3300 XL 8mm or 3300 XL 11mm proximity probes. These probes generate a continuous eddy-current field that responds to rotor surface displacement, providing the raw analog signal that the entire protection chain depends upon. Probe tip clearance, cable routing, and connector integrity at this layer are the primary determinants of measurement quality.

Signal Conditioning Layer: The Proximitor driver — such as the Bently Nevada 3300 RAM Proximitor or the 3300 XL Proximitor — receives the raw transducer signal via the 330752-080-CN-00 and converts it into a calibrated DC voltage proportional to the gap between probe tip and rotor surface. This conditioned output is the engineering unit signal used by all downstream monitoring and control systems.

Monitoring Rack Layer: Conditioned signals feed into the Bently Nevada 3500 Series monitoring rack. Relevant modules include the 3500/42M Proximitor/Seismic Monitor for radial vibration and position, the 3500/46M for hydro turbine monitoring, and the 3500/25 Keyphasor Module for phase reference and speed measurement. The rack's backplane distributes power and communication across all installed I/O modules.

Communication Layer: The 3500 rack communicates machinery health data via the 3500/92 Communication Gateway, supporting Modbus RTU, Modbus TCP/IP, and OPC-UA protocols. This gateway bridges the field instrumentation layer to the plant DCS, SCADA historian, or asset management platform — enabling real-time trending, alarm management, and predictive maintenance workflows.

Power Layer: Rack power is supplied by the 3500/15 Power Supply Module, with optional redundant power configurations ensuring continuous monitoring even during single-supply failures. Field junction boxes housing the Proximitor drivers are typically powered from the same 24 VDC instrument bus, maintaining a unified power architecture across the measurement chain.

HMI / Supervisory Layer: Operator visibility is delivered through plant DCS workstations or dedicated machinery management software such as Bently Nevada System 1, which aggregates vibration, position, and speed data from multiple 3500 racks into a unified asset health dashboard. Alarm setpoints, trend analysis, and event logs are managed at this layer.

Protection / Relay Layer: The 3500 rack's relay output modules — such as the 3500/32 Relay Module — execute trip and alarm logic based on the conditioned signals originating from the 330752-080-CN-00 cable chain. Relay outputs connect to turbine trip solenoids, compressor shutdown circuits, or DCS digital inputs, completing the protection loop from field sensor to final control element.

Power Generation (Steam & Gas Turbines): In combined-cycle and simple-cycle power plants, the 330752-080-CN-00 is deployed on high-speed turbine shafts where radial vibration and differential expansion monitoring are mandatory for safe operation. The cable's factory-terminated connectors eliminate field-crimping errors that can introduce signal noise at critical measurement points. Paired with the 3500/42M and System 1 software, the complete chain supports continuous online monitoring per API 670 requirements.

Petrochemical & Refinery Compressor Trains: Centrifugal and reciprocating compressors in ethylene, ammonia, and LNG facilities require continuous shaft position and vibration monitoring. The 330752-080-CN-00 provides the reliable signal path needed for thrust position measurement on compressor shafts, where even minor cable degradation can cause false trips or missed alarms — both of which carry significant process and safety consequences.

Oil & Gas Upstream & Midstream: Pipeline compressor stations and offshore platform rotating equipment operate in harsh environments with wide temperature swings and high vibration backgrounds. The 330752-080-CN-00's rated operating range of –40 °C to +85 °C and its robust coaxial construction make it suitable for both onshore and offshore field installations.

Water Treatment & Pumping Stations: Large centrifugal pumps in municipal water infrastructure increasingly incorporate proximity-based shaft monitoring to detect bearing wear and rotor imbalance before catastrophic failure. The 3300 Series system, anchored by the 330752-080-CN-00 cable, provides the measurement foundation for condition-based maintenance programs at these facilities.

Mining & Minerals Processing: Ball mills, SAG mills, and large fan drives in mining operations benefit from continuous vibration monitoring. The 330752-080-CN-00 supports deployment in dusty, high-vibration environments where cable integrity is frequently challenged by mechanical stress and thermal cycling.

Marine Propulsion & Shipboard Machinery: Main propulsion shafts, auxiliary turbines, and diesel generator sets on commercial vessels and naval platforms use 3300 Series proximity systems for shaft monitoring. The cable's compact form factor and reliable termination suit the space-constrained installations typical of marine machinery spaces.

Q1: Is the 330752-080-CN-00 directly compatible with all 3300 Series Proximitor drivers, and does it require any field calibration after installation? The 330752-080-CN-00 is factory-matched to the 3300 Series eddy-current system and is compatible with 3300 XL 8mm and 11mm proximity probes paired with their corresponding 3300 Series Proximitor drivers. No field calibration of the cable itself is required — the system calibration is performed at the Proximitor driver level using the standard gap voltage vs. distance curve documented in the Bently Nevada installation manual. Ensure that total cable length (probe cable + extension cable) does not exceed the system's specified maximum to maintain calibration accuracy.

Q2: Can this cable be used in a redundant monitoring architecture, and how does it integrate with the 3500 Series rack's redundancy features? Yes. In redundant proximity measurement configurations, two complete transducer chains — each including a probe, interconnection cable (330752-080-CN-00), and Proximitor driver — are installed at the same measurement plane. The 3500 rack's voting logic, configured via the 3500/42M or equivalent monitor module, selects the valid signal or executes a 2-of-3 voting scheme depending on the protection philosophy. The cable itself is passive and introduces no active redundancy complexity; its role is to maintain signal integrity in each independent measurement leg.

Q3: What is the warranty coverage, lead time, and pre-shipment testing standard for the 330752-080-CN-00? All 330752-080-CN-00 cables supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and electrical performance. Units are pre-shipment tested for connector continuity, insulation resistance, and coaxial impedance before dispatch. In-stock units are available for immediate shipment; lead time for in-stock orders is typically 3–7 business days depending on destination. For bulk procurement or project-specific requirements, contact [email protected] or +86 18359268345 for availability confirmation and volume pricing.
