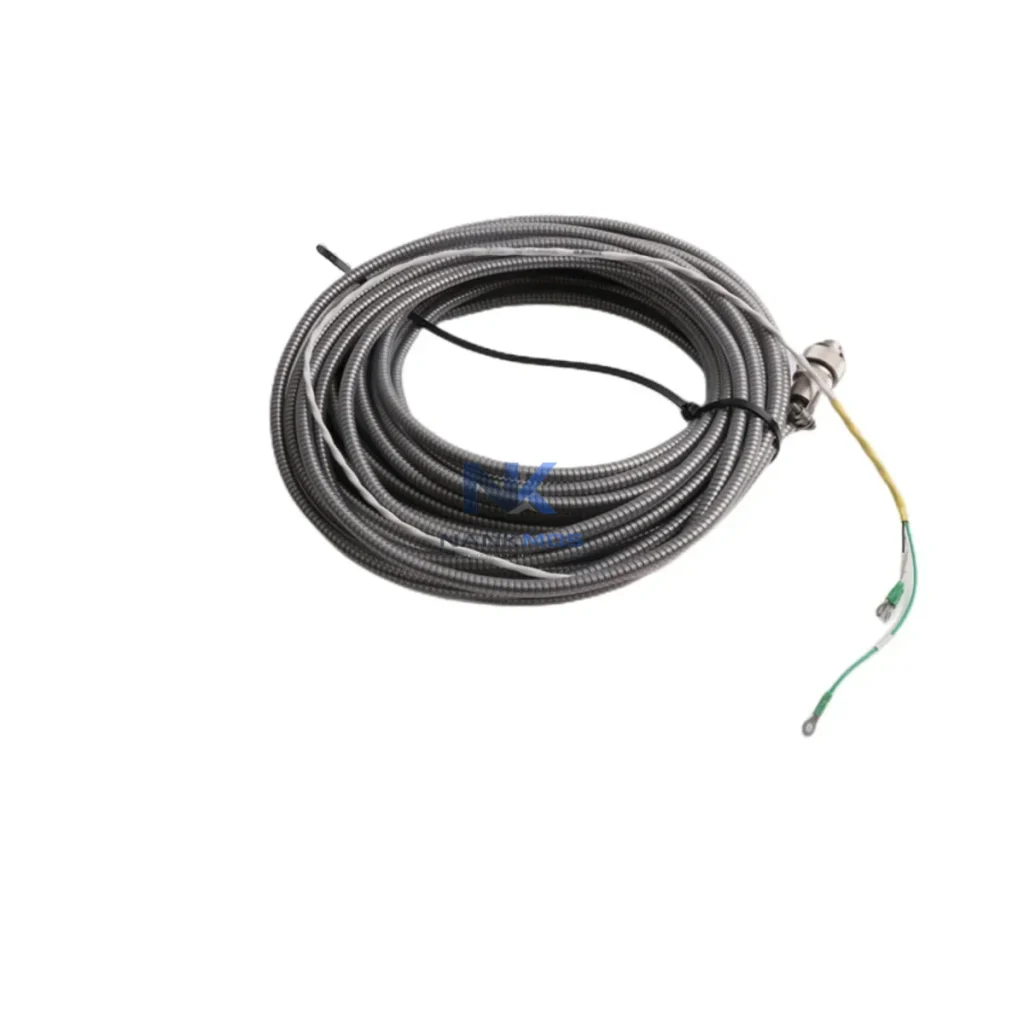

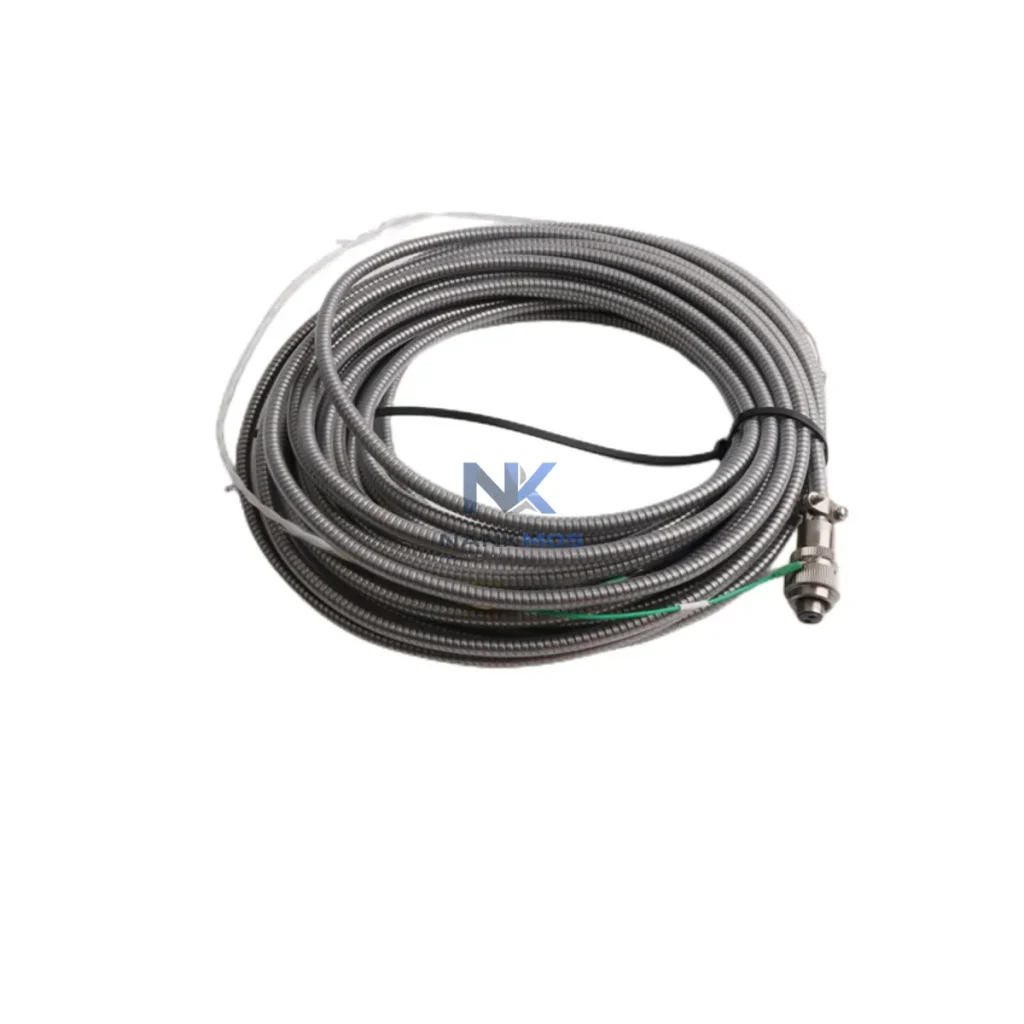

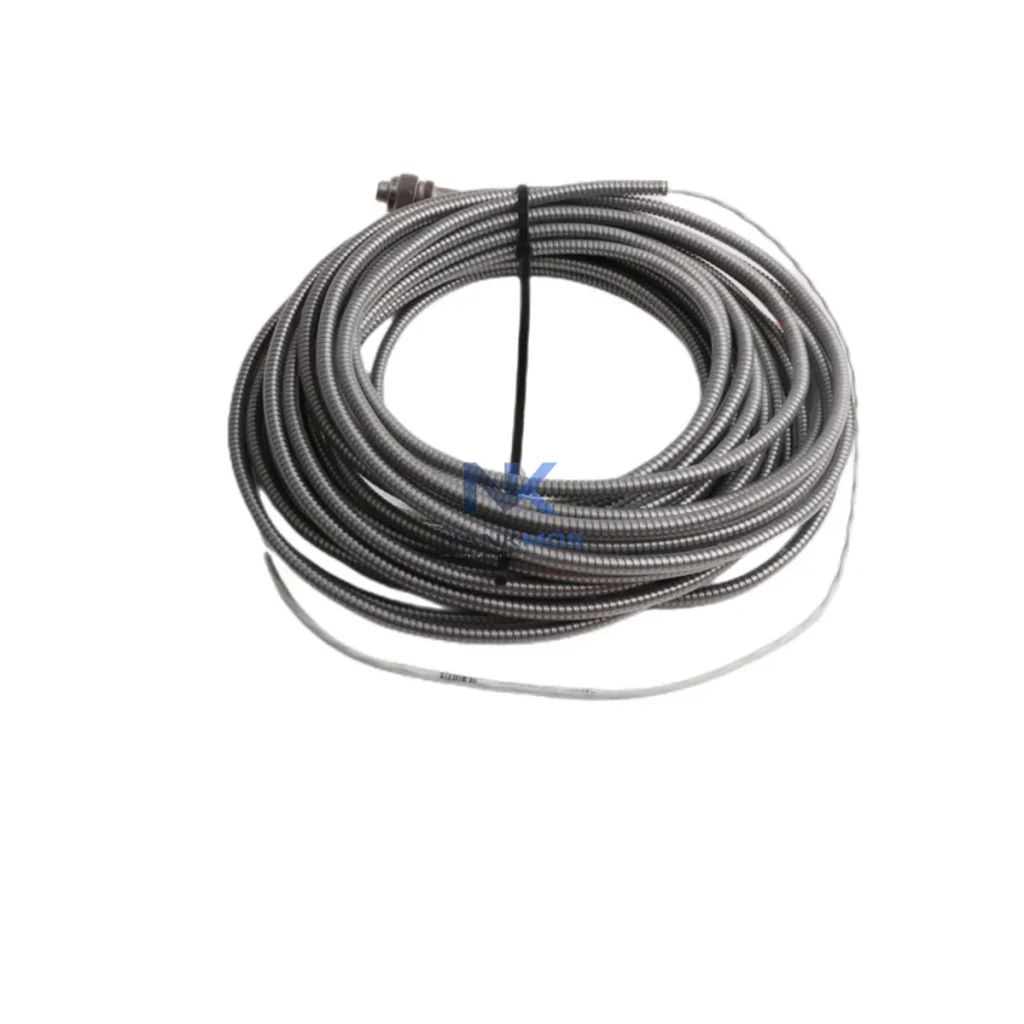

Bently Nevada 84661-50 Interconnect Cable

Product Details

84661-50 Product Description

The Bently Nevada 84661-50 is a precision-engineered interconnect cable purpose-built for the 3500 Series Machinery Protection System platform. Within a complete industrial automation architecture, this cable serves as the critical signal-path link between field-mounted transducers and the 3500 rack-based monitoring modules, ensuring low-noise, high-integrity transmission of vibration, position, and dynamic process data from rotating machinery to the control and protection layer. Its role is not merely passive connectivity — it is a structural element of the measurement chain that directly determines the accuracy, repeatability, and reliability of the entire condition monitoring system.

In modern industrial control architectures, signal integrity at the field level is the foundation upon which all higher-layer decisions are made. The 84661-50 is designed to maintain shielded, impedance-matched signal paths that resist electromagnetic interference from adjacent power cables, variable frequency drives, and high-current switching equipment commonly found in turbine halls, compressor stations, and rotating machinery enclosures. By preserving signal fidelity from sensor to rack, this cable ensures that the 3500/20 Rack Interface Module, 3500/40M Proximitor/Seismic Monitor, and 3500/42M Proximitor/Seismic Monitor receive clean, uncontaminated data for threshold comparison, alarm generation, and trip relay actuation.

The 84661-50 interconnect cable is most effectively deployed as part of a fully integrated Bently Nevada 3500 Series architecture. At the rack level, the 3500/05 Power Supply Module provides regulated DC power to all monitoring cards, while the 3500/20 Rack Interface Module manages system-level communication, configuration, and data aggregation across the chassis. The 84661-50 cable routes field transducer signals — typically from Bently Nevada 330100 Series Proximity Probes and 330130 Proximitor Sensors — into the rack's I/O layer, where modules such as the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor perform real-time signal conditioning, gap voltage measurement, and dynamic amplitude analysis.

For axial position and differential expansion monitoring, the cable supports integration with the 3500/45 Position Monitor, ensuring that shaft displacement data is transmitted without ground loop interference or common-mode noise. In redundant protection architectures, the 84661-50 is paired with the 3500/32 4-Channel Relay Module, which receives processed alarm and trip signals from the monitoring cards and actuates hardwired shutdown circuits to turbine trip solenoids, compressor anti-surge valves, or motor protection relays.

At the communication layer, the 3500 rack's 3500/92 Communication Gateway Module aggregates all channel data and transmits it upstream to the plant DCS or SCADA platform via Modbus/TCP or OPC-DA, enabling integration with GE Mark VIe Turbine Control Systems or third-party process historians. The 84661-50 cable's shielding architecture is specifically designed to maintain signal integrity in environments where these communication backbones and high-voltage power distribution systems share the same cable trays or junction enclosures.

For installations requiring local operator visibility, the 3500 system integrates with Bently Nevada System 1 Software running on industrial workstations, providing real-time trending, alarm management, and historical waveform analysis. The 84661-50 cable ensures that the raw transducer data feeding this software layer is free from cable-induced artifacts, preserving the diagnostic value of spectrum analysis and orbit plots used by rotating equipment engineers during commissioning and routine condition monitoring reviews.

Power Generation — Gas and Steam Turbines: In combined-cycle power plants, the 84661-50 interconnect cable routes vibration and eccentricity signals from journal bearing proximity probes on gas turbine shafts and steam turbine LP/HP rotors to the 3500 rack installed in the turbine control room MCC. The cable's shielded construction prevents interference from generator excitation systems and high-voltage bus bars, ensuring that the protection system receives accurate shaft vibration data for trip-level decisions during startup, load ramp, and emergency shutdown sequences.

Oil and Gas — Centrifugal Compressors: On offshore platforms and onshore gas processing facilities, the 84661-50 supports continuous monitoring of centrifugal compressor trains, routing radial vibration, axial thrust, and speed signals from field-mounted sensors through hazardous-area junction boxes to the 3500 rack in the safe-area control room. The cable's impedance characteristics are matched to the 330100 Series Proximitor system, maintaining the 200 mV/mil sensitivity calibration required for accurate gap measurement and alarm setpoint compliance.

Petrochemical — Reactor Agitators and Pumps: In refinery and petrochemical plant applications, the 84661-50 is used to monitor critical agitator drives, boiler feed pumps, and cooling water pumps. The cable connects field sensors to the 3500 rack, enabling the plant's condition monitoring program to detect early-stage bearing defects, rotor imbalance, and misalignment before they escalate to unplanned shutdowns, supporting the facility's predictive maintenance and reliability-centered maintenance strategies.

Mining and Minerals Processing — Mill Drives: Large SAG mills, ball mills, and conveyor drive systems in mining operations generate significant electromagnetic noise from variable speed drives and high-current motor starters. The 84661-50's shielding architecture maintains signal integrity in these environments, ensuring that the 3500 monitoring system can reliably detect gearbox vibration anomalies and pinion bearing defects without false alarms caused by cable-induced noise.

Marine and Offshore — Propulsion and Auxiliary Machinery: On LNG carriers and FPSO vessels, the 84661-50 supports vibration monitoring of main propulsion turbines, auxiliary generators, and cargo pump drives. The cable's construction meets the mechanical robustness requirements of marine installations, where vibration, humidity, and salt-air exposure demand reliable long-term signal path performance across extended voyage cycles.

Q1: Is the 84661-50 compatible with all 3500 Series monitoring modules, and does it support both radial vibration and axial position measurement channels? A: Yes. The 84661-50 is designed as a universal interconnect cable for the Bently Nevada 3500 Series platform, compatible with the full range of 3500 monitoring modules including the 3500/40M, 3500/42M, 3500/45, and 3500/46M. It supports both dynamic (radial vibration, seismic) and static (axial position, differential expansion) signal channels, provided the field transducer and Proximitor sensor are correctly matched to the target monitoring module. Cable routing should follow Bently Nevada installation guidelines to maintain shield continuity and minimize ground loop risk across the measurement chain.

Q2: What are the installation and commissioning requirements for the 84661-50 in a new 3500 rack deployment, and how does it affect system calibration? A: During installation, the 84661-50 should be routed in dedicated instrument cable trays, physically separated from power cables by a minimum of 300 mm or as specified by the site's electrical installation standard. Shield termination must follow the single-point grounding scheme recommended in the 3500 Series Installation Manual — shield drain wires should be terminated at the rack end only, with the field end left floating, to prevent ground loops. After installation, each channel should be verified for correct gap voltage (typically –10 VDC ±0.5 V for 330100 Series probes at nominal gap) before the monitoring system is placed in service. The 12-Month Warranty covers cable manufacturing defects; any signal anomalies identified during commissioning that are attributable to cable integrity should be reported before the system is handed over to operations.

Q3: What is the lead time and warranty coverage for the 84661-50, and is long-term spare parts availability assured for multi-year maintenance contracts? A: The 84661-50 is maintained in stock for immediate dispatch, with pre-shipment functional testing performed on each unit to verify shield continuity, insulation resistance, and connector integrity. The 12-Month Warranty covers all manufacturing defects and signal integrity performance from the date of shipment. For facilities operating under long-term maintenance contracts or multi-year reliability programs, we recommend establishing a consignment stock arrangement to ensure cable availability for planned outages and emergency replacements without lead-time risk. Contact [email protected] or +86 18359268345 to discuss volume pricing, consignment terms, and multi-year supply agreements.
