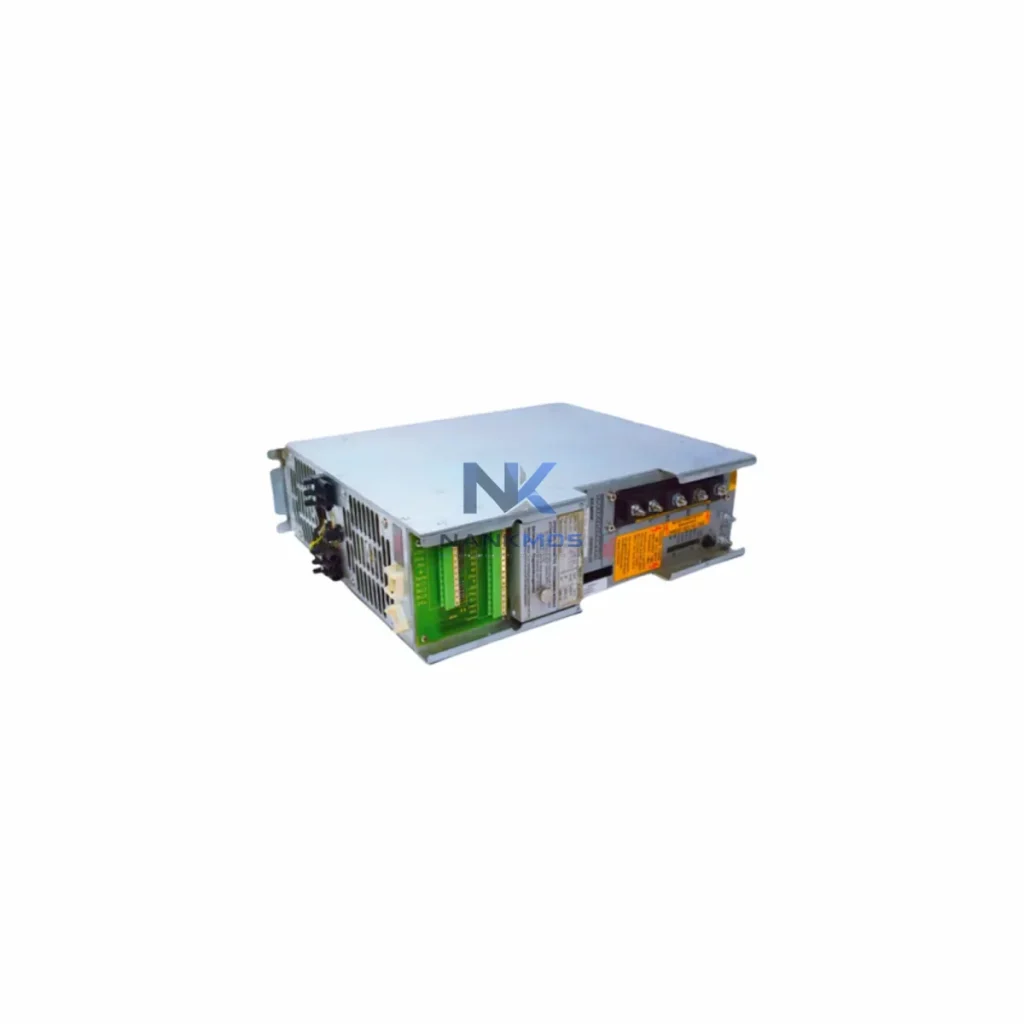

Bosch Rexroth TDM1.2-30-300-W1 AC Servo Drive

Product Details

TDM1.2-30-300-W1 Product Description

The Bosch Rexroth TDM1.2-30-300-W1 is a high-performance AC servo drive module engineered for the DIAX02 drive platform, delivering deterministic real-time motion control through the SERCOS (Serial Real-time Communication System) fiber-optic network interface. Designed for demanding industrial automation environments, this drive module serves as a critical data link node between field-level servo axes and upper-level control architectures — including PLC controllers, SCADA systems, HMI panels, and motion controllers — enabling seamless, high-speed data exchange across the full automation hierarchy.

In modern smart factory deployments, the TDM1.2-30-300-W1 functions as more than a servo amplifier. It is an active participant in the plant-wide data flow chain: receiving cyclic position, velocity, and torque commands from the SERCOS master controller, executing real-time closed-loop servo regulation, and simultaneously reporting drive status, fault codes, thermal conditions, and axis diagnostics back upstream — all within microsecond-level cycle times. This bidirectional data transparency is the foundation of connected factory operation.

With a continuous output current rating of 30 A and a peak capability suited to 300 W-class servo motor loads, the TDM1.2-30-300-W1 is well-matched to precision axis applications including CNC machine tools, packaging lines, assembly robots, and high-speed pick-and-place systems where both motion accuracy and network reliability are non-negotiable.

The TDM1.2-30-300-W1 operates at the heart of a layered industrial data architecture. At the field level, servo motors and encoders feed real-time position and speed feedback directly into the drive's closed-loop regulation engine. The drive then communicates this processed data upstream via the SERCOS fiber-optic ring to the motion controller or CNC kernel — typically a Rexroth CLMS01.1 or CSH01.1C control section — which aggregates axis data and coordinates multi-axis interpolation.

Above the motion layer, a Rexroth BTA20 or IndraControl L45 PLC controller handles logic sequencing, I/O coordination, and supervisory commands. Remote I/O modules such as the Rexroth Inline I/O system or third-party PROFIBUS DP remote I/O racks extend digital and analog signal reach to sensors, proximity switches, and actuators distributed across the machine cell. These I/O nodes report back through the PLC, which in turn synchronises with the SERCOS master to coordinate drive commands with machine state.

For plant-wide visibility, a PROFIBUS-to-SERCOS gateway or an OPC-UA server module bridges the SERCOS drive network to the factory SCADA layer — platforms such as Siemens WinCC, Ignition SCADA, or Wonderware — enabling operators to monitor axis positions, drive temperatures, current loads, and fault histories from centralised HMI workstations or mobile dashboards. Alarm events generated by the TDM1.2-30-300-W1 (overcurrent, encoder fault, communication timeout) are propagated in real time to the SCADA alarm management system, triggering automated notifications and maintenance workflows.

At the edge, an industrial edge gateway — such as a Rexroth ctrlX CORE or a third-party IIoT gateway running MQTT or OPC-UA — can subscribe to drive data streams and forward aggregated metrics to cloud analytics platforms for predictive maintenance modelling, OEE calculation, and energy consumption tracking. Variable frequency drives (VFDs) on auxiliary axes, such as Rexroth EFC series drives controlling conveyor or pump motors, share the same supervisory network layer, enabling unified energy management across the production cell.

Industrial managed switches — for example, Hirschmann MICE or Phoenix Contact FL SWITCH series — provide the Ethernet backbone that interconnects PLC controllers, HMI panels, SCADA servers, and edge gateways, while the SERCOS fiber ring operates as a dedicated, deterministic motion bus isolated from general IT traffic. This dual-network architecture ensures that servo motion data is never subject to Ethernet congestion, maintaining sub-millisecond cycle integrity even in high-node-count systems.

Power supply integrity for the DIAX02 system is maintained by Rexroth HVR or HVE power supply modules, which provide the DC bus voltage to the TDM1.2-30-300-W1 and companion drive modules. Coordinated DC bus sharing across multiple TDM drives reduces regenerative braking energy waste and stabilises bus voltage during rapid deceleration cycles — a key efficiency feature in multi-axis servo systems.

Protocol Fragmentation: Many legacy automation sites operate mixed-protocol environments where SERCOS servo drives, PROFIBUS PLCs, Modbus RTU sensors, and Ethernet/IP HMI panels coexist without a unified data path. The TDM1.2-30-300-W1, when paired with an appropriate SERCOS master and protocol gateway, resolves this fragmentation by providing a standardised, deterministic interface at the drive level — allowing upper-layer systems to access servo data through a single, normalised data model regardless of the underlying field bus diversity.

Data Silos and Production Transparency: In sites where servo drive data is trapped at the machine level and never surfaced to MES or SCADA, operators lack real-time visibility into axis performance, cycle counts, and fault trends. The SERCOS network interface of the TDM1.2-30-300-W1 enables structured data extraction — position errors, following errors, motor temperatures, and drive load percentages — that can be routed to OPC-UA servers and visualised on plant dashboards, eliminating the data silo problem and enabling data-driven production decisions.

Remote Diagnostics and Unplanned Downtime: Without remote diagnostic capability, servo drive faults require on-site engineer intervention, extending mean time to repair (MTTR). The TDM1.2-30-300-W1's SERCOS diagnostic parameter set (IDN-based fault codes, operating hours, thermal history) can be polled remotely via the SCADA or edge gateway layer, enabling maintenance teams to diagnose faults, pre-stage replacement parts, and plan interventions before dispatching field engineers — significantly reducing unplanned downtime.

System Scalability: As production lines expand, adding new servo axes to an existing SERCOS ring is straightforward — the TDM1.2-30-300-W1 joins the ring topology without requiring rewiring of existing nodes. This plug-and-extend architecture supports phased capacity expansion without disrupting live production, making it a future-proof investment for growing smart factory deployments.

Q1: What communication cycle time does the TDM1.2-30-300-W1 support on a SERCOS network?The TDM1.2-30-300-W1 supports SERCOS cycle times configurable from 0.25 ms to 65 ms, depending on the number of nodes on the ring and the master controller settings. For high-performance CNC and multi-axis interpolation applications, cycle times of 0.5 ms or 1 ms are typical, ensuring deterministic, jitter-free servo command delivery across all axes simultaneously.

Q2: Can the TDM1.2-30-300-W1 integrate with SCADA systems that use OPC-UA or PROFIBUS?Yes, via a SERCOS-to-PROFIBUS or SERCOS-to-OPC-UA gateway module. The drive itself communicates natively over SERCOS; however, Rexroth and third-party gateway solutions translate SERCOS IDN parameter data into PROFIBUS DP data records or OPC-UA nodes, making drive status, axis positions, and fault codes accessible to any SCADA or MES platform that supports these protocols. This enables full integration with Siemens WinCC, Ignition, Wonderware, and similar systems.

Q3: How is network stability maintained in a SERCOS ring with multiple TDM drives?SERCOS fiber-optic rings are inherently immune to electromagnetic interference (EMI), which is a significant advantage in servo drive environments with high-frequency switching noise. The ring topology also provides fault detection: if a node fails or a fiber link is broken, the SERCOS master detects the interruption within one communication cycle and can isolate the fault. Each TDM1.2-30-300-W1 unit undergoes factory communication testing prior to shipment, and NANKMOS performs additional functional verification before dispatch to ensure network interface integrity.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?All TDM1.2-30-300-W1 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects, communication interface failures, and drive module malfunctions under normal operating conditions. In-stock units are available for dispatch within 3–5 business days. For urgent requirements, expedited shipping options are available — contact our team at [email protected] or +86 18359268345 to confirm current stock levels and lead times.
