Emerson KJ3242X1-BA1 12P2471X052

Product Details

KJ3242X1-BA1 12P2471X052 Product Description

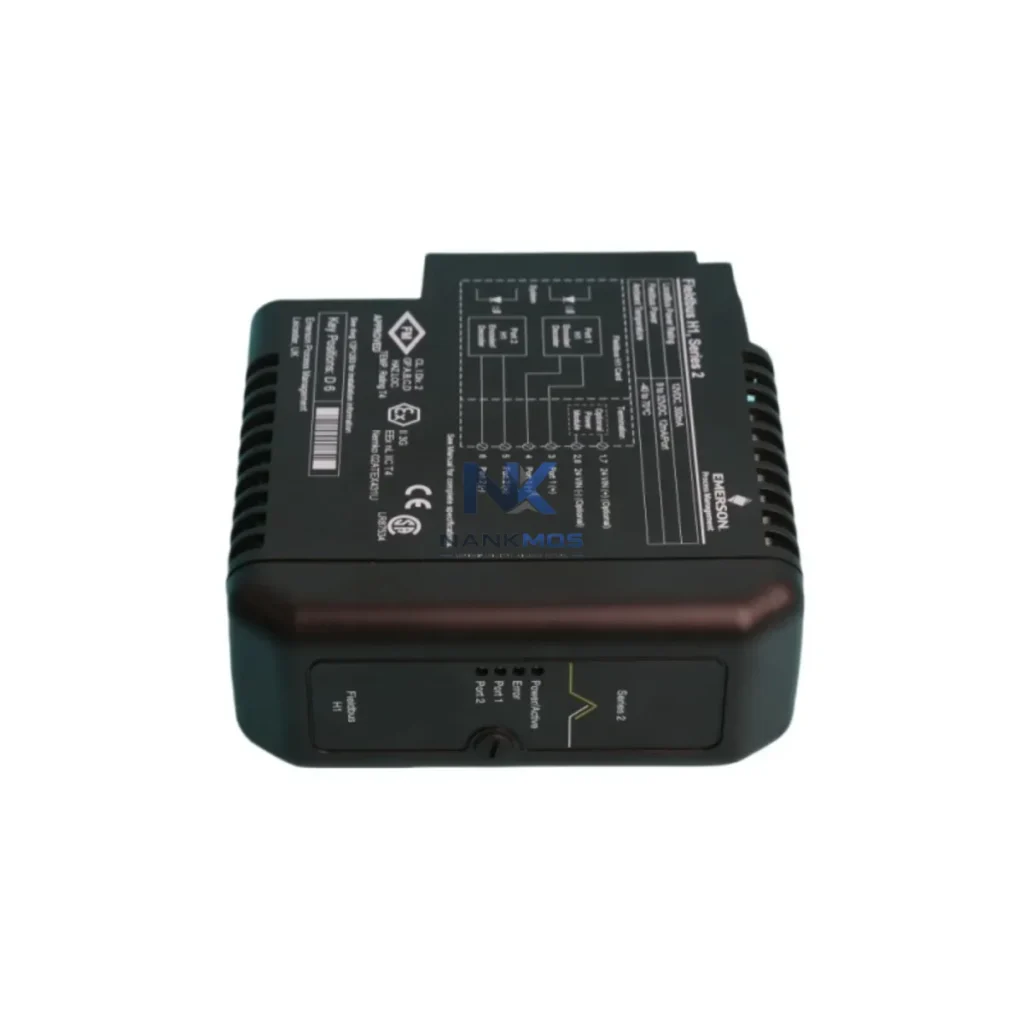

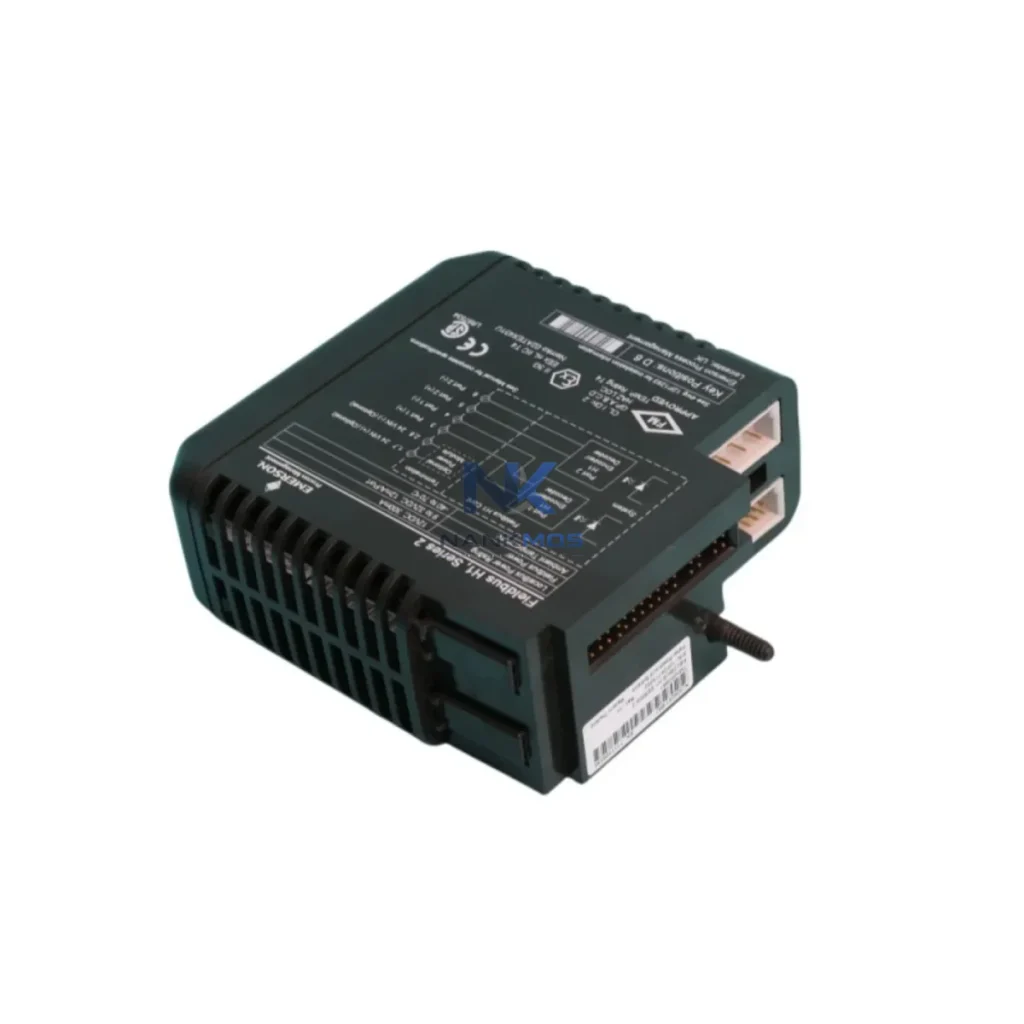

The Emerson KJ3242X1-BA1 12P2471X052 is a high-performance FOUNDATION Fieldbus H1 interface card engineered for the Emerson DeltaV Distributed Control System (DCS). Designed to serve as the critical communication backbone between field instrumentation and the upper-level control architecture, this module enables seamless, deterministic data exchange across complex industrial environments. Whether deployed in oil and gas processing, chemical manufacturing, pharmaceutical production, or advanced smart factory automation, the KJ3242X1-BA1 12P2471X052 delivers the protocol integrity, network stability, and real-time data throughput that modern industrial operations demand.

In a modern smart factory, data integrity across every node of the automation hierarchy is non-negotiable. The KJ3242X1-BA1 12P2471X052 sits at the heart of this architecture, bridging field-level instrumentation with the DeltaV DCS controller layer through a robust FOUNDATION Fieldbus H1 segment. This is not merely a passive interface — it is an active participant in the plant's data chain, enabling bidirectional communication between intelligent field devices and the supervisory control layer.

At the field level, HART-enabled pressure transmitters, temperature sensors, and flow meters connect through FF-H1 segment wiring managed by the KJ3242X1-BA1. These devices transmit live process variables — pressure readings, temperature gradients, flow rates — directly into the DeltaV controller via the Fieldbus card, eliminating the analog signal degradation common in legacy 4–20 mA loops. Paired with the Emerson KJ3221X1-BA1 analog input card and the KJ3001X1-BA1 DeltaV controller module, the KJ3242X1-BA1 forms a tightly integrated I/O subsystem capable of handling hundreds of field device parameters simultaneously.

Moving up the data chain, the DeltaV DCS aggregates real-time process data from the KJ3242X1-BA1 and routes it to the plant's SCADA layer. Integration with Emerson DeltaV Operate HMI software allows operators to visualize live field data, configure alarm thresholds, and initiate remote diagnostic routines — all from a centralized workstation. For facilities running multi-vendor environments, the KJ3242X1-BA1's compliance with IEC 61158 ensures interoperability with third-party FF-H1 devices from manufacturers such as Yokogawa, ABB, and Endress+Hauser, making it a versatile gateway component in heterogeneous control networks.

In distributed plant architectures, the KJ3242X1-BA1 works alongside Emerson RX3i remote I/O modules and DeltaV SIS Safety Instrumented System controllers to maintain data continuity across geographically separated process units. Edge gateway devices — such as the Emerson Edge Gateway EG-2500 — can aggregate FF-H1 segment data from multiple KJ3242X1-BA1 cards and forward consolidated datasets to cloud-based analytics platforms or enterprise MES/ERP systems via OPC-UA or MQTT protocols. This enables plant managers to perform cross-site performance benchmarking, predictive maintenance scheduling, and energy consumption analysis without interrupting live production.

Variable frequency drives (VFDs) and motor control centers integrated into the DeltaV network via Emerson Control Techniques VFD modules also benefit from the KJ3242X1-BA1's high-fidelity data path. Motor speed references, torque feedback, and fault codes are transmitted in real time through the Fieldbus segment, allowing the DeltaV controller to implement closed-loop speed regulation and automated fault recovery sequences. When combined with Emerson AMS Device Manager software, the KJ3242X1-BA1 enables full field device health monitoring — tracking valve positions, sensor drift, and actuator wear — and generates predictive maintenance alerts before equipment failures impact production continuity.

For facilities requiring network redundancy, the KJ3242X1-BA1 supports segment redundancy configurations when paired with the Emerson KJ3242X1-BB1 redundant Fieldbus card, ensuring zero-downtime failover in the event of a primary segment fault. Industrial Ethernet switches — such as the Hirschmann RS20 managed switch — provide the backbone network infrastructure that connects DeltaV workstations, remote I/O panels, and SCADA servers within the plant's control network, while the KJ3242X1-BA1 handles the last-mile FF-H1 field device connectivity.

Protocol Fragmentation: Many industrial sites operate a mix of legacy HART devices, Profibus DP instruments, and modern FF-H1 field devices — creating protocol islands that prevent unified data visibility. The KJ3242X1-BA1 12P2471X052 resolves this by providing a dedicated, standards-compliant FF-H1 interface within the DeltaV DCS, allowing FF-H1 devices to communicate natively without protocol conversion overhead. When combined with Emerson's Smart Wireless Gateway or a Profibus-to-FF protocol bridge, the KJ3242X1-BA1 can serve as the anchor point for a unified field device network.

Data Silos and Production Transparency: In facilities where field data is trapped within isolated control loops, the KJ3242X1-BA1 enables full data extraction from FF-H1 devices — including secondary variables, device diagnostics, and calibration status — and makes this information available to DeltaV Operate HMI, AMS Device Manager, and upstream SCADA/MES systems. This transforms previously invisible field device data into actionable production intelligence, supporting real-time OEE tracking and production line transparency.

Remote Monitoring and Alarm Management: Unplanned shutdowns caused by undetected field device failures are a persistent challenge in process industries. The KJ3242X1-BA1 supports FOUNDATION Fieldbus function block execution within field devices, enabling on-device alarm generation and direct alarm reporting to the DeltaV controller — reducing alarm response latency compared to traditional polling-based systems. Remote diagnostic access via DeltaV Remote Client allows maintenance engineers to interrogate field device health, review alarm histories, and perform configuration changes without physical site visits.

System Scalability: As production capacity expands, the KJ3242X1-BA1 supports incremental FF-H1 segment expansion by adding new field devices to existing segments (up to 16 devices per H1 segment) or deploying additional KJ3242X1-BA1 cards within the DeltaV carrier. This modular scalability ensures that the control system can grow alongside the facility without requiring wholesale infrastructure replacement.

Q1: What communication protocol does the Emerson KJ3242X1-BA1 12P2471X052 support, and is it compatible with third-party FF-H1 devices? The KJ3242X1-BA1 12P2471X052 supports FOUNDATION Fieldbus H1 (FF-H1) protocol, compliant with IEC 61158 and IEC 61784 standards. It is fully interoperable with any FF-H1 certified field device, including instruments from Yokogawa, ABB, Endress+Hauser, and Siemens, provided they carry FF-H1 certification. Interoperability testing is recommended for non-certified third-party devices.

Q2: How does the KJ3242X1-BA1 support remote diagnostics and predictive maintenance in a DeltaV DCS environment? When integrated with Emerson AMS Device Manager, the KJ3242X1-BA1 enables continuous field device health monitoring, including sensor drift detection, valve signature analysis, and actuator wear tracking. Diagnostic alerts are surfaced in real time through DeltaV Operate HMI and can be forwarded to SCADA or MES systems via OPC-UA. Remote diagnostic sessions can be initiated from DeltaV Remote Client without interrupting live process control.

Q3: What is the network transmission speed and latency profile of the KJ3242X1-BA1 on an FF-H1 segment? The KJ3242X1-BA1 operates at the standard FF-H1 transmission rate of 31.25 kbit/s. FOUNDATION Fieldbus H1 uses a deterministic, scheduled communication model (Link Active Scheduler) that guarantees fixed-cycle data delivery with predictable latency — typically sub-100ms for scheduled process variable updates. This deterministic behavior makes it suitable for closed-loop control applications where timing consistency is critical.

Q4: Does the KJ3242X1-BA1 12P2471X052 come with a warranty, and what pre-shipment testing is performed? Yes. All KJ3242X1-BA1 12P2471X052 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify FF-H1 communication integrity, power supply performance, and firmware version compatibility with DeltaV DCS. Units are shipped with appropriate anti-static packaging and documentation. For RFQ, lead time, and technical support, contact [email protected] or call +86 18359268345.
