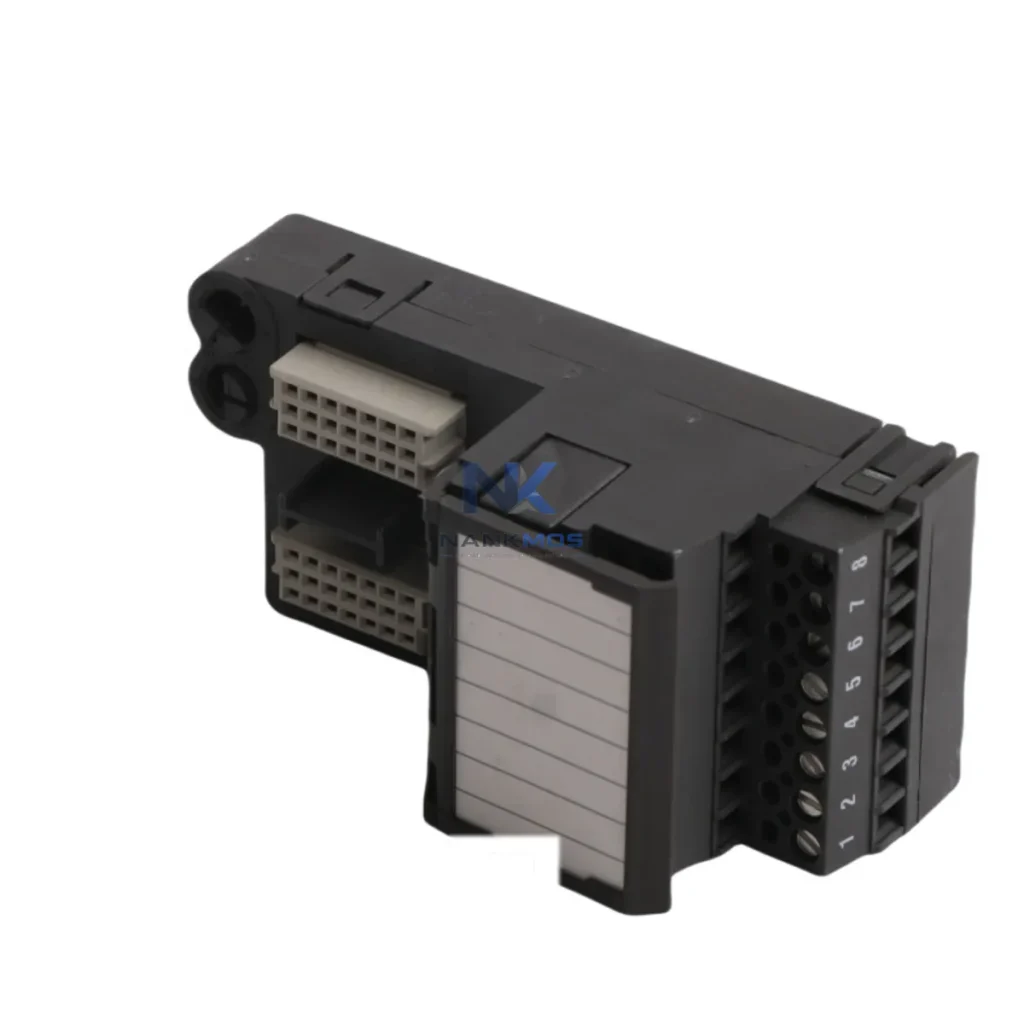

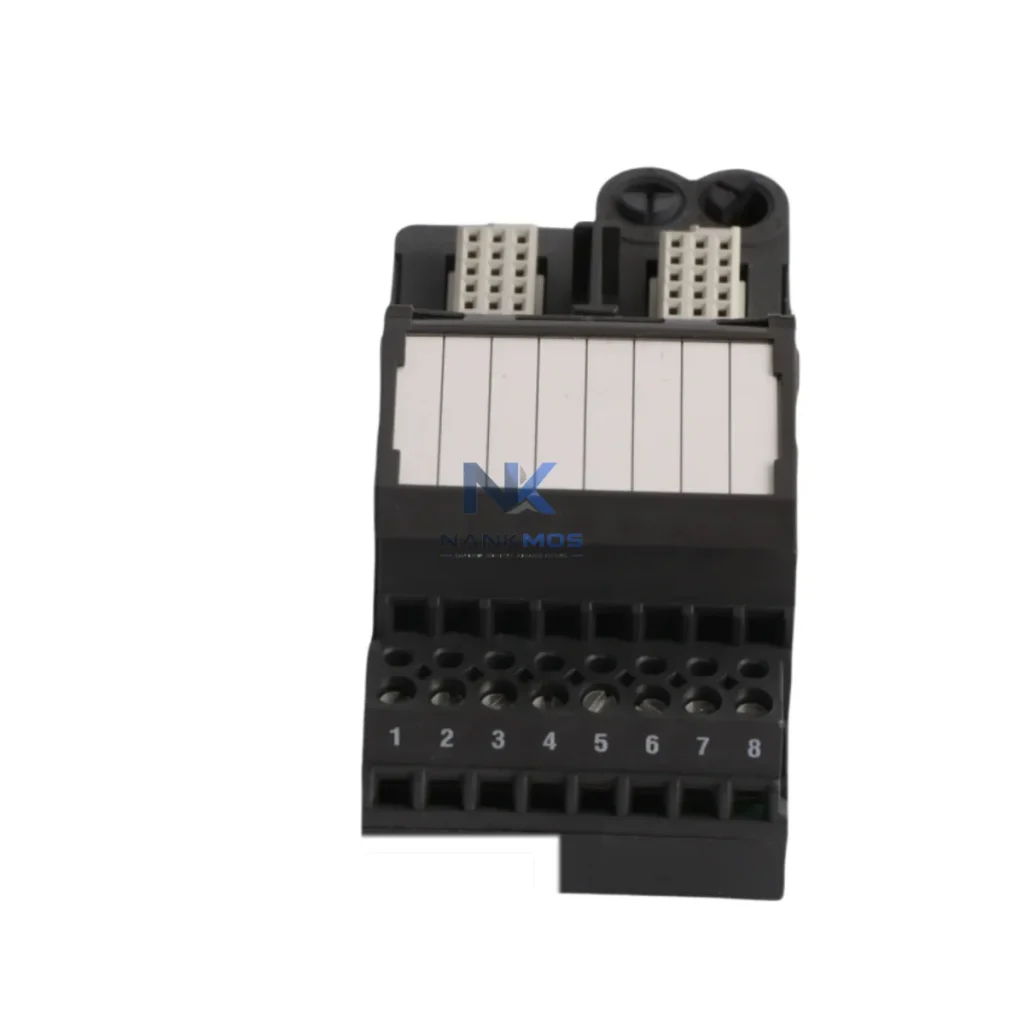

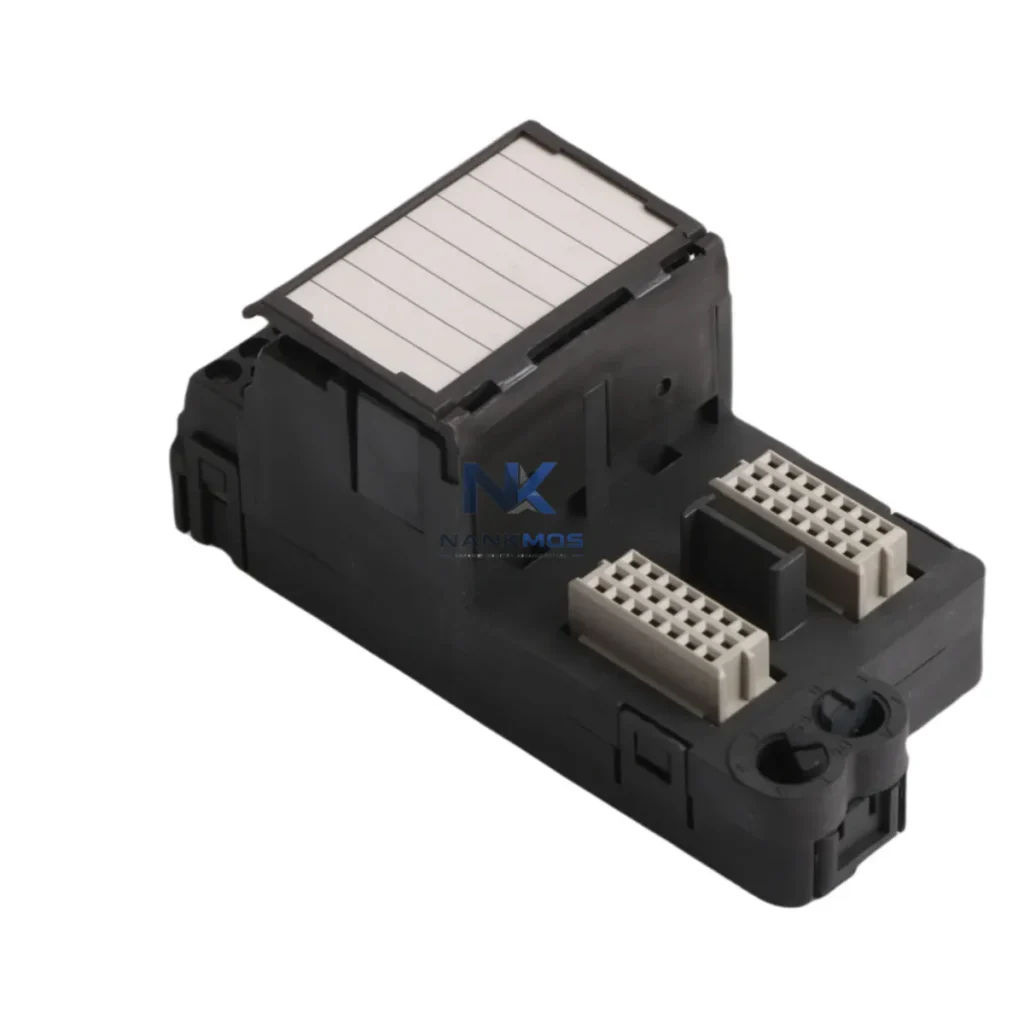

Emerson KJ3242X1-FA1 12P2575X032 DCS Terminal Block

Product Details

KJ3242X1-FA1 12P2575X032 Product Description

The Emerson KJ3242X1-FA1 12P2575X032 is a precision-engineered H1 Foundation Fieldbus Terminal Block designed for seamless integration within the Emerson DeltaV Distributed Control System (DCS) architecture. As a critical interface component at the field wiring layer, this terminal block bridges the gap between the DeltaV controller subsystem and field-mounted instrumentation, ensuring deterministic signal transmission, robust electrical isolation, and long-term wiring integrity across demanding industrial environments.

In modern process automation architectures, the terminal block layer is far more than a passive connection point. The KJ3242X1-FA1 12P2575X032 is engineered to support the full signal chain from field devices — including HART-enabled transmitters, Foundation Fieldbus instruments, and analog sensors — through to the DeltaV I/O subsystem. Its 12-position configuration supports high-density field wiring layouts, reducing panel footprint while maintaining full accessibility for commissioning, loop testing, and maintenance activities.

The KJ3242X1-FA1 12P2575X032 is designed to operate as a native component within the broader Emerson DeltaV automation platform, where system consistency and contextual integration across all layers are essential for reliable process control. At the controller layer, DeltaV MD or MQ controllers manage process logic and communicate with I/O subsystems via the DeltaV control network. The terminal block serves as the physical termination point for field cables arriving from Foundation Fieldbus segments, connecting directly to DeltaV H1 Fieldbus Interface Cards such as the KJ3221X1-BA1 or KJ3221X1-CA1, which manage segment power conditioning and device communication scheduling.

Within the marshalling cabinet, the KJ3242X1-FA1 12P2575X032 works alongside DeltaV CHARM I/O modules and Electronic Marshalling (EM) baseplates to enable flexible, software-defined signal routing without the need for traditional hardwired marshalling. This dramatically reduces engineering time during project execution and simplifies loop modifications during plant expansions or process reconfigurations. The terminal block's 12-position layout aligns with standard DeltaV cabinet designs, supporting structured cable management and clear loop identification.

At the power layer, DeltaV Power Supplies and dedicated Fieldbus Segment Power Conditioners provide stable, filtered DC power to the H1 segment, ensuring that all connected field devices — including Emerson Rosemount 3051 pressure transmitters, Fisher FIELDVUE digital valve controllers, and Micro Motion Coriolis flow meters — receive consistent bus voltage within the 9–32 VDC operating range. The terminal block's wiring architecture supports proper segment topology, including trunk-and-spur configurations with appropriate termination resistors at both ends of the fieldbus segment.

For redundancy-critical applications, the KJ3242X1-FA1 12P2575X032 supports integration with DeltaV Redundant H1 Interface configurations, where dual fieldbus cards share a common segment through the terminal block wiring infrastructure. This redundancy model ensures continuous process visibility and control even during card-level failures, supporting the high-availability requirements of refinery, LNG, and power generation applications. The terminal block's robust screw-clamp terminations maintain connection integrity under vibration and thermal cycling conditions common in these environments.

At the diagnostics and maintenance layer, the terminal block facilitates loop-level access for portable HART communicators and fieldbus diagnostic tools such as the Emerson AMS Device Manager and 375/475 Field Communicator. Technicians can perform live device interrogation, calibration verification, and predictive maintenance checks without interrupting process operations, directly supporting the plant's reliability-centered maintenance strategy. Integration with DeltaV Operate HMI provides real-time alarm annunciation and device health dashboards, closing the loop between field-level diagnostics and control room visibility.

The Emerson KJ3242X1-FA1 12P2575X032 H1 Terminal Block is deployed across a wide range of process industries where Foundation Fieldbus communication and DeltaV DCS architecture are the standard of practice. In oil and gas upstream and midstream facilities, this terminal block supports wellhead control panels, separator skids, and compressor station automation, where reliable field wiring termination is critical for continuous production monitoring. In petrochemical and refinery applications, it serves as the wiring backbone for distillation column instrumentation, reactor temperature and pressure loops, and safety-critical shutdown systems integrated with DeltaV SIS Safety Instrumented Systems.

In power generation plants — including combined-cycle gas turbine facilities and coal-fired boiler systems — the terminal block supports boiler drum level control, turbine speed and load monitoring, and emissions compliance instrumentation. Its compatibility with the DeltaV platform's redundant architecture ensures that critical control loops remain operational during planned maintenance windows. In water and wastewater treatment facilities, the KJ3242X1-FA1 12P2575X032 enables precise flow, pH, turbidity, and dissolved oxygen measurement loops, supporting regulatory compliance and process optimization across municipal and industrial water systems.

For mining and minerals processing applications, including flotation cell control, crusher automation, and tailings management, the terminal block's robust construction and DIN rail mounting ensure reliable performance in dusty, high-vibration environments. In pharmaceutical and food and beverage manufacturing, where GMP compliance and process traceability are mandatory, the DeltaV-integrated terminal block supports validated control loops with full audit trail capability through DeltaV's batch management and electronic records infrastructure.

Q1: Is the KJ3242X1-FA1 12P2575X032 compatible with both legacy DeltaV S-series and current DeltaV v14/v15 systems? Yes. The KJ3242X1-FA1 12P2575X032 H1 Terminal Block is designed for use within the Emerson DeltaV ecosystem and is compatible across DeltaV system versions that support Foundation Fieldbus H1 I/O. For specific firmware and hardware revision compatibility, cross-reference the DeltaV Hardware Reference Manual or consult the Emerson Global Support Network. All units supplied by NANKMOS are pre-shipment tested and verified against published Emerson hardware specifications.

Q2: Can this terminal block support mixed HART and Foundation Fieldbus wiring in the same cabinet? The KJ3242X1-FA1 12P2575X032 is specifically designed for Foundation Fieldbus H1 segment termination within the DeltaV I/O architecture. HART signal termination is handled by separate DeltaV HART I/O terminal blocks and CHARM modules. In a mixed-protocol cabinet, both terminal block types can coexist on the same DIN rail structure, with clear labeling and physical separation maintained per IEC 61158 and ISA-5.1 wiring standards. NANKMOS can advise on cabinet layout and component selection for mixed-protocol marshalling designs.

Q3: What warranty and supply assurance does NANKMOS provide for this component? All Emerson KJ3242X1-FA1 12P2575X032 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify terminal integrity, isolation resistance, and dimensional compliance with DeltaV cabinet installation requirements. NANKMOS maintains in-stock inventory of this and related DeltaV H1 fieldbus components to support urgent project timelines, plant turnarounds, and emergency replacement scenarios. Long-term supply agreements and volume procurement options are available for EPC contractors and end-user maintenance programs.
