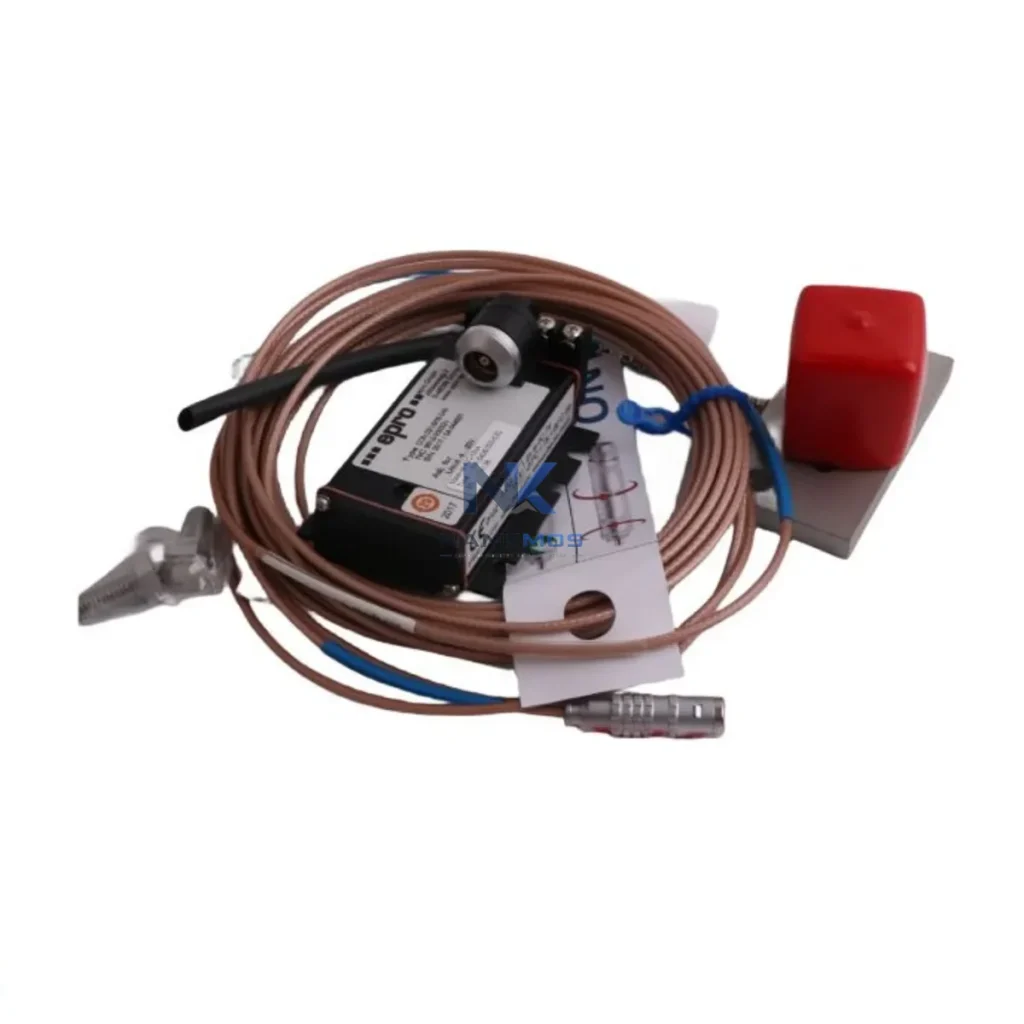

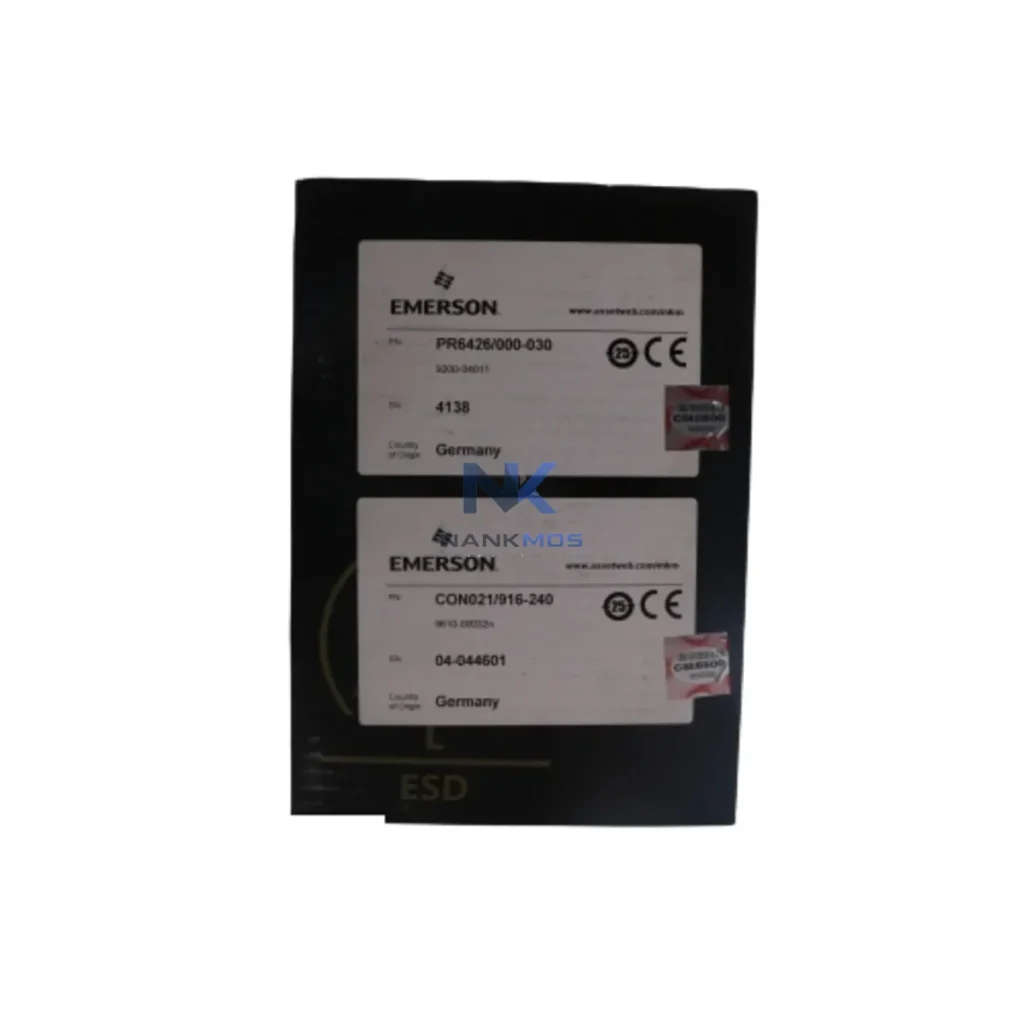

Emerson PR6426/000-030 CON021/916-120 Eddy Current Sensor

Product Details

PR6426/000-030 CON021/916-120 Product Description

The Emerson PR6426/000-030 CON021/916-120 eddy current sensor is not a standalone component — it is a precision front-end element within a layered Bently Nevada 3500 machinery protection architecture. Understanding its role requires examining how it interacts with every tier of the control and monitoring system.

At the sensing layer, the PR6426/000-030 probe measures shaft radial vibration, axial position, and differential expansion with sub-micron resolution. The CON021/916-120 extension cable assembly connects the probe to the driver, maintaining signal integrity across the full cable run. The driver conditions the raw eddy current signal into a calibrated –24 VDC analog output, which feeds directly into the Bently Nevada 3500/40M Proximitor I/O Module or the 3500/42M Proximitor I/O Module — the dedicated signal-processing cards within the 3500 rack system. These modules digitize the analog signal and pass structured vibration data to the 3500/01 Rack Interface Module, which manages communication between the rack and the plant DCS or safety system.

At the control layer, the 3500 rack communicates via Modbus TCP, OPC-DA, or hardwired relay outputs to upstream controllers such as the Emerson DeltaV DCS or third-party PLCs. In plants running Emerson's broader automation ecosystem, the PR6426 sensor data integrates seamlessly with AMS Device Manager for predictive maintenance analytics, enabling condition-based maintenance scheduling rather than fixed-interval overhauls. This contextual integration between the sensor, the 3500 rack, and the asset management platform is what transforms raw vibration data into actionable machinery health intelligence.

At the power layer, the Bently Nevada 3500 rack requires a dedicated 3500/15 Power Supply Module — typically deployed in redundant pairs — to ensure uninterrupted sensor excitation and signal conditioning. Power redundancy at this layer directly protects the integrity of the PR6426 measurement chain: a power interruption that disrupts the –24 VDC driver supply will immediately affect sensor output and trigger false alarms or missed trips in the protection system.

At the communication layer, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant Ethernet networks, enabling real-time vibration data streaming to SCADA, historian, and remote monitoring platforms. In offshore and power generation applications, this gateway supports redundant network paths, ensuring that PR6426 sensor data reaches the control room even during partial network failures.

At the protection and relay layer, the 3500 system's relay output modules — such as the 3500/32 4-Channel Relay Module — translate PR6426 vibration alarm thresholds into hardwired trip signals to turbine trip solenoids, compressor anti-surge valves, or motor protection relays. This direct hardware interlock path ensures that machinery protection remains active even if the DCS communication link is interrupted.

At the HMI and diagnostics layer, operators interact with PR6426 sensor data through the Bently Nevada System 1 Software platform, which provides real-time vibration waveform display, trend analysis, and alarm management. System 1 integrates with the 3500 rack via the communication gateway, delivering a unified view of all monitored machines across the plant. For field engineers, the Bently Nevada TK-3 Portable Vibration Analyzer provides on-site verification of PR6426 sensor output, allowing calibration checks and signal validation without removing the sensor from service.

At the maintenance and lifecycle layer, the PR6426/000-030 CON021/916-120 assembly is designed for in-situ replacement without disturbing the machine casing. The modular probe-extension-driver architecture means that a damaged extension cable can be replaced independently of the probe, reducing maintenance downtime and spare parts cost. All units supplied by NANKMOS are pre-shipment tested against Bently Nevada factory specifications and covered by a 12-Month Warranty, ensuring that replacement components perform identically to OEM-installed sensors from day one.

Power Generation (Gas and Steam Turbines): The PR6426/000-030 is a standard sensor for shaft radial vibration monitoring on gas turbines and steam turbines in power plants. Installed in the bearing housings of GE Frame 7, Siemens SGT, or Mitsubishi H-25 turbines, the sensor provides continuous shaft orbit data to the Bently Nevada 3500 protection system. Trip setpoints are configured to protect against oil whirl, oil whip, and unbalance conditions that could cause catastrophic bearing failure. The 12-Month Warranty ensures that replacement sensors maintain protection system integrity throughout the annual maintenance cycle.

Petrochemical and Refinery Compressor Trains: In centrifugal and reciprocating compressor trains, the PR6426 sensor monitors shaft position and vibration at each bearing location. Paired with the 3500/40M I/O module and the 3500/92 communication gateway, the sensor data feeds into anti-surge control logic and compressor performance monitoring systems. Contextual Integration with the plant DCS allows compressor operators to correlate vibration trends with process variables such as suction pressure, discharge temperature, and flow rate — enabling early detection of surge precursors and fouling conditions.

Water and Wastewater Treatment Pump Stations: Large centrifugal pumps in water treatment facilities use PR6426 sensors to monitor impeller shaft vibration and detect cavitation, bearing wear, and hydraulic instability. The low-maintenance, IP67-rated probe design is well-suited to the humid, chemically aggressive environments typical of pump station installations. Integration with SCADA systems via the 3500 communication gateway enables remote vibration monitoring without on-site personnel.

Mining and Mineral Processing: Ball mills, SAG mills, and conveyor drive motors in mining operations generate high vibration levels that accelerate bearing wear. The PR6426 sensor, mounted in proximity to the mill trunnion bearings, provides early warning of bearing deterioration before catastrophic failure occurs. The rugged probe construction and wide operating temperature range make it suitable for the harsh environmental conditions of open-pit and underground mining operations.

Marine and Offshore Propulsion Systems: Shipboard propulsion turbines and offshore platform gas compression systems require continuous vibration monitoring to comply with classification society requirements (DNV, Lloyd's Register, ABS). The PR6426/000-030 CON021/916-120 assembly meets the environmental and EMC requirements for marine installations, and its compatibility with the Bently Nevada 3500 system — which holds multiple marine type approvals — simplifies classification society documentation.

Q1: Is the PR6426/000-030 CON021/916-120 directly compatible with the Bently Nevada 3500/40M and 3500/42M I/O modules without additional signal conditioning? Yes. The PR6426/000-030 probe, CON021/916-120 extension cable, and the associated driver form a complete, calibrated sensor system that outputs a standard –24 VDC bias signal compatible with the 3500/40M Proximitor I/O Module and 3500/42M Proximitor I/O Module. No additional signal conditioning is required. The driver gain and scale factor are factory-set to match the 3500 rack's input specifications. When replacing an existing sensor assembly, verify that the replacement driver's scale factor (typically 7.87 V/mm or 200 mV/mil) matches the configuration stored in the 3500 rack's I/O module to avoid calibration errors.

Q2: Can the PR6426/000-030 CON021/916-120 be used in a redundant sensor configuration within the Bently Nevada 3500 architecture? Yes. The Bently Nevada 3500 system supports redundant sensor inputs for critical machinery protection applications. Two PR6426/000-030 CON021/916-120 assemblies can be installed at the same bearing location — one connected to the primary I/O channel and one to the redundant channel — with the 3500 rack configured to vote between the two signals. This 1oo2 (one-out-of-two) or 2oo2 voting configuration is commonly used in API 670-compliant machinery protection systems for turbines and compressors where a single sensor failure must not cause a spurious trip or a missed trip. NANKMOS maintains stock of matched PR6426 assemblies to support redundant installation projects.

Q3: What is the recommended maintenance and recalibration interval for the PR6426/000-030 CON021/916-120, and how does the 12-Month Warranty support long-term maintenance planning? Emerson Bently Nevada recommends verifying sensor system calibration during each planned maintenance outage, typically annually for turbines and compressors in continuous service. The calibration check involves measuring the driver output voltage at a known gap distance and comparing it to the factory scale factor. If the output deviates by more than ±1% of full scale, the sensor assembly should be replaced. The NANKMOS 12-Month Warranty covers manufacturing defects and performance deviations from factory specifications for 12 months from the date of shipment. All units are pre-shipment tested against Bently Nevada calibration standards, and test records are available upon request. For plants operating on annual turnaround cycles, NANKMOS recommends purchasing replacement assemblies in advance to ensure availability at the time of the planned outage.
