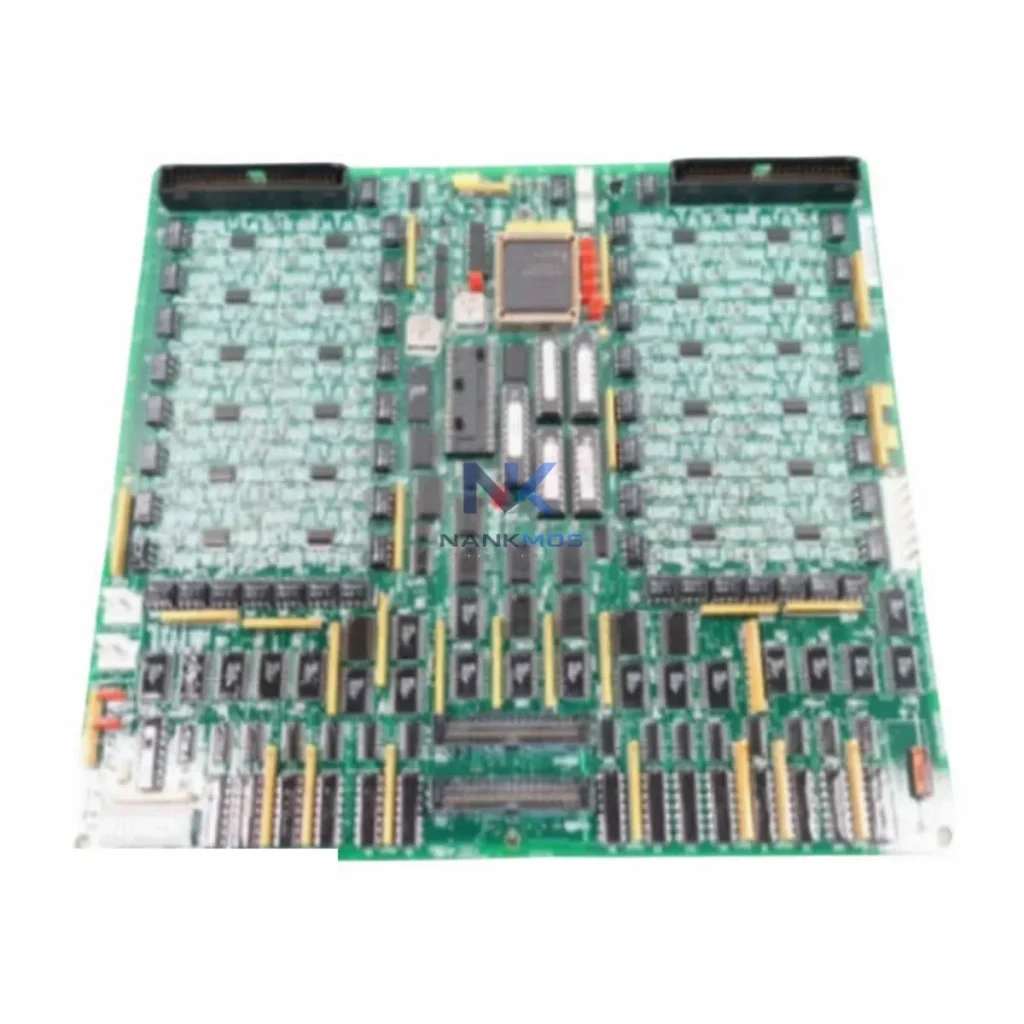

GE DS200TCDA-HBHD Turbine Control Module

Product Details

DS200TCDA-HBHD Product Description

The GE DS200TCDAG1BHD is a turbine control analog driver board engineered for deployment within GE's DS200 series Mark VI Turbine Control System. Designed to operate as a precision signal conditioning and analog output driver within the Mark VI control platform, this module occupies a critical role in the layered control architecture that governs gas turbine, steam turbine, and combined-cycle power generation assets. Its integration into the DS200 backplane ensures deterministic signal delivery, synchronized I/O scanning, and seamless coordination with the broader Mark VI supervisory and protection layers.

In modern turbine control architectures, the DS200TCDAG1BHD functions as the analog driver interface between the Mark VI controller core and the physical actuators, servo valves, and positioning systems that regulate fuel flow, inlet guide vanes, and exhaust bypass dampers. The module's analog output channels provide high-resolution, low-latency command signals that directly influence turbine speed, load ramp rates, and combustion stability. This level of signal fidelity is essential in applications where millisecond-level response times determine whether a turbine remains within its operational envelope or trips on protective limits.

From a system architecture perspective, the DS200TCDAG1BHD is not a standalone component — it is a contextually integrated element within a multi-layer control hierarchy. Its upstream dependencies include the DS200TCQAG1B or DS200TCQCG1B turbine control processor boards, which issue setpoint commands via the VME backplane. Its downstream outputs interface directly with servo amplifiers and electro-hydraulic actuators. Lateral coordination occurs with I/O boards such as the DS200IOCAG1B and DS200IOCBG1B, which handle discrete and analog input acquisition, and with the DS200TCPSG1B power supply board that maintains regulated DC rails across the entire Mark VI chassis.

Signal integrity across the DS200TCDAG1BHD's output channels is maintained through on-board digital-to-analog conversion circuitry with hardware-level fault detection. Any deviation from expected output range triggers a diagnostic flag that propagates to the Mark VI HMI — typically a Cimplicity-based operator workstation — enabling maintenance personnel to isolate the fault without interrupting turbine operation in redundant configurations. This diagnostic transparency is a cornerstone of GE's Mark VI design philosophy and directly reduces mean time to repair (MTTR) in field service scenarios.

Redundancy is a defining characteristic of the DS200 platform, and the DS200TCDAG1BHD is designed to participate in TMR (Triple Modular Redundancy) and dual-redundant configurations. In TMR deployments, three DS200TCDAG1BHD boards operate in parallel, with the Mark VI voting logic continuously comparing outputs and isolating any board that deviates beyond tolerance. This architecture ensures that a single board failure does not result in a turbine trip, which is critical in baseload power generation where unplanned outages carry significant financial and grid-stability consequences.

For engineering teams executing control system upgrades, the DS200TCDAG1BHD supports direct replacement within existing Mark VI chassis without requiring backplane modifications, provided the firmware revision of the replacement board is compatible with the installed Mark VI software version. Compatibility verification should be performed against the GE Mark VI Application Manual (GEH-6421) and the site-specific I/O configuration files. NANKMOS supplies tested units with full functional verification prior to shipment, reducing commissioning risk and accelerating return-to-service timelines.

The DS200TCDAG1BHD achieves its full operational value only when considered within the complete Mark VI turbine control platform. At the control layer, the DS200TCQAG1B and DS200TCQCG1B turbine control processor boards serve as the computational core, executing the turbine control application software and issuing analog setpoints to the DS200TCDAG1BHD via the VME backplane. These processor boards run GE's proprietary control block language and interface with the site SCADA or DCS via the DS200TCPSG1B power supply module, which distributes regulated +5 VDC and ±15 VDC rails to all boards in the chassis.

At the I/O layer, the DS200IOCAG1B and DS200IOCBG1B I/O controller boards manage discrete input acquisition from proximity sensors, limit switches, and thermocouple inputs, feeding real-time process data back to the processor boards. The DS200TCDAG1BHD's analog outputs are complemented by the DS200TCRAG1B relay output board, which handles discrete actuator commands for solenoid valves, breaker trip coils, and alarm annunciators. Together, these boards form the complete I/O layer of the Mark VI architecture.

Communication integrity is maintained through the DS200TCPAG1B communication processor board, which manages IONet Ethernet connectivity between the Mark VI controller and the Cimplicity HMI workstations. For sites requiring integration with plant-level DCS platforms such as ABB System 800xA or Honeywell Experion PKS, the Mark VI's IONet gateway capability enables OPC-DA/UA data exchange without disrupting the real-time control loop. The DS200SDCIG1B servo driver card works in close coordination with the DS200TCDAG1BHD to translate analog command signals into precise hydraulic actuator positioning for inlet guide vane and fuel control valve applications.

In redundant architectures, the DS200TCDAG1BHD is installed in sets of three (TMR) or two (dual-redundant), with the Mark VI voting logic continuously monitoring output agreement. The DS200TCEAG1B expander board extends the I/O capacity of the chassis for large turbine applications with extensive sensor and actuator counts. Across all these components, the DS200 backplane provides the high-speed, deterministic communication fabric that ensures synchronized operation and sub-millisecond response to control setpoint changes.

The DS200TCDAG1BHD is deployed across a broad spectrum of industrial power generation and process control environments. In gas turbine power plants, the module drives the fuel control valve servo amplifiers that regulate natural gas or liquid fuel flow to the combustion chambers, directly controlling turbine speed during startup, load ramp, and frequency response events. In steam turbine applications, the module provides analog positioning commands to the governor valve actuators that control steam admission and turbine speed under varying grid load conditions.

In combined-cycle power plants, the DS200TCDAG1BHD operates within a coordinated control architecture that manages both the gas turbine and the heat recovery steam generator (HRSG) bypass damper actuators, ensuring smooth load transitions and exhaust temperature control. In petrochemical and refinery applications, the module is used in compressor train control systems where precise analog output to anti-surge valve actuators prevents compressor surge events that could damage rotating equipment.

In offshore and marine applications, the DS200TCDAG1BHD's robust design and TMR redundancy capability make it suitable for platform power generation turbines where unplanned shutdowns carry significant safety and operational consequences. In industrial cogeneration facilities, the module supports coordinated control of back-pressure steam turbines that simultaneously generate electricity and supply process steam to manufacturing operations. Across all these applications, the module's 12-Month Warranty and NANKMOS's tested, ready-to-ship inventory policy ensure that replacement units can be deployed rapidly to minimize production downtime.

Q1: Is the DS200TCDAG1BHD compatible with all Mark VI chassis configurations, and what verification steps are required before installation? The DS200TCDAG1BHD is designed for the DS200 series Mark VI chassis and is compatible with standard TMR and simplex configurations. Before installation, verify that the board's firmware revision matches the Mark VI software version installed at the site by consulting the GE Mark VI Application Manual (GEH-6421) and the site I/O configuration files. NANKMOS supplies units with documented firmware versions and functional test records to support pre-installation compatibility verification.

Q2: How does the DS200TCDAG1BHD support long-term maintenance and what diagnostic tools are available for field troubleshooting? The DS200TCDAG1BHD incorporates hardware-level fault detection that propagates diagnostic alarms to the Mark VI HMI in real time, enabling maintenance personnel to identify analog output faults without interrupting turbine operation in redundant configurations. GE's Toolbox software provides board-level diagnostic access, including output channel verification and fault history logging. NANKMOS's 12-Month Warranty covers functional defects identified during the warranty period, and our technical team provides pre-shipment test documentation to support baseline commissioning verification.

Q3: What is NANKMOS's inventory and supply chain policy for the DS200TCDAG1BHD, and how quickly can replacement units be shipped for emergency maintenance scenarios? NANKMOS maintains in-stock inventory of the DS200TCDAG1BHD with all units functionally tested and verified prior to listing. For emergency maintenance scenarios, expedited shipping is available to minimize turbine downtime. Each unit is supplied with a 12-Month Warranty and pre-shipment test documentation. For urgent requirements, contact NANKMOS directly at [email protected] or +86 18359268345 to confirm stock availability and arrange priority dispatch.
