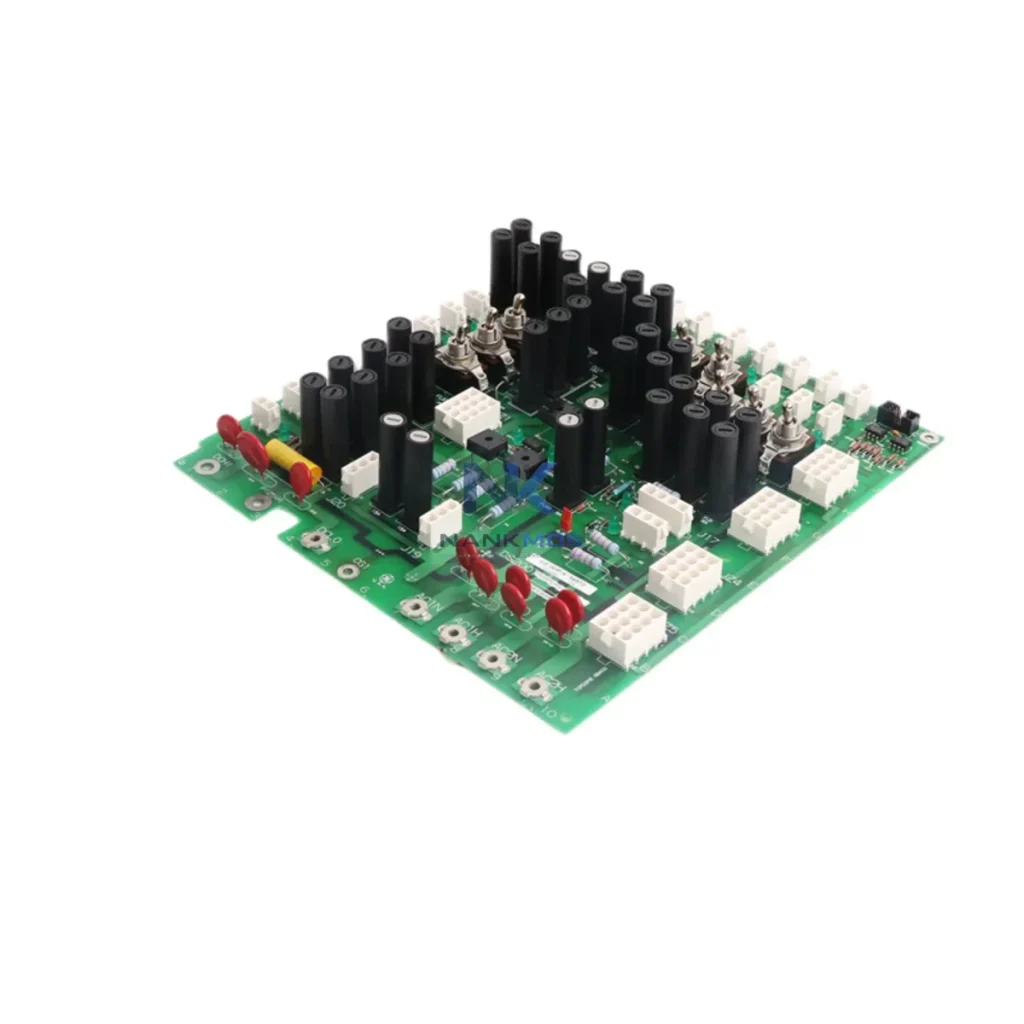

GE DS200TCDAG1ADA Digital I/O Board

Product Details

DS200TCDAG1ADA Product Description

The GE DS200TCDAG1ADA is a high-integrity Digital I/O Board engineered for the GE Mark VI turbine control platform, delivering deterministic signal acquisition, real-time data transmission, and seamless integration across industrial automation networks. Designed for power generation, oil & gas, and heavy process industries, this module serves as a critical node in the smart factory data chain — bridging field-level I/O signals with supervisory control, SCADA systems, and enterprise data layers. With in-stock availability, pre-shipment functional testing, and a 12-month warranty, the DS200TCDAG1ADA is a dependable choice for both OEM integration and MRO replacement projects.

In a modern smart factory or power plant automation architecture, the DS200TCDAG1ADA occupies a foundational role in the field-to-cloud data pipeline. At the field level, discrete sensors — including proximity switches, limit switches, pressure contacts, and valve position feedback devices — feed digital signals directly into the DS200TCDAG1ADA's input channels. These signals are conditioned, debounced, and transmitted across the Mark VI I/O bus to the central controller rack, where the GE DS200TCQAF1BHF (Quad I/O module) and GE DS200TCQBF1BHF coordinate multi-channel signal aggregation for turbine sequencing logic.

The Mark VI controller — typically a GE DS200TCPSG1AGA Power Supply Board paired with a GE DS200TCEAG1BHF Ethernet Communication Board — processes the digital I/O data and routes it upstream via the IONet Ethernet backbone. This backbone connects to the plant's SCADA layer, where GE Cimplicity HMI workstations visualize real-time turbine status, alarm states, and interlock conditions. For sites running OSIsoft PI or similar historians, the Mark VI controller's OPC-UA interface enables continuous time-series data archiving, supporting trend analysis, predictive maintenance, and regulatory compliance reporting.

At the network transport layer, industrial managed switches — such as those from the Hirschmann MACH or Cisco IE 4000 series — provide VLAN segmentation between the control network and the plant information network, ensuring that real-time I/O data from the DS200TCDAG1ADA reaches the SCADA server with deterministic latency. For remote sites or unmanned substations, an edge gateway device (such as a Moxa MGate MB3480 or equivalent Modbus/DNP3 gateway) can bridge the Mark VI serial data link to IP-based SCADA infrastructure, enabling remote diagnostics and alarm forwarding without on-site personnel.

On the output side, the DS200TCDAG1ADA drives relay-based digital outputs to actuators, solenoid valves, motor starters, and annunciator panels. These outputs are interlocked with the turbine's protective relay logic — coordinating with GE DS200TCCBG1BHF (Contact Input Board) and GE DS200TCRAG1AHF (Relay Output Board) modules to form a complete protective I/O matrix. The result is a tightly integrated digital control loop where every field event — from a valve open/close command to a vibration trip signal — is captured, transmitted, logged, and acted upon within milliseconds.

For variable-speed drive integration, the DS200TCDAG1ADA's digital outputs can interface with GE Drive systems or third-party VFDs via hardwired run/stop and fault-reset signals, while the drive's status feedback (running, faulted, at-speed) returns as digital inputs to the Mark VI controller. This bidirectional digital handshake ensures that the SCADA operator always has an accurate, real-time view of drive status without relying on polling-based communication that could introduce latency in critical interlock scenarios.

Protocol Fragmentation: Many legacy power plant and process automation sites operate with a mix of proprietary control platforms — GE Mark V, Mark VI, Emerson Ovation, ABB Symphony, and Siemens T3000 — each with its own I/O bus and communication protocol. The DS200TCDAG1ADA, operating natively within the Mark VI ecosystem, eliminates the need for protocol conversion at the field I/O level. When cross-platform integration is required, the Mark VI controller's OPC-UA server acts as the normalization layer, presenting standardized data objects to any SCADA or MES system regardless of the underlying field bus.

Data Silos and Visibility Gaps: In sites where field I/O data never reaches the historian or SCADA layer — due to unsupported legacy boards or failed communication modules — the DS200TCDAG1ADA restores data continuity. Replacing a failed or obsolete I/O board with a tested DS200TCDAG1ADA unit immediately re-establishes the data link between field devices and the control system, closing the visibility gap and restoring alarm tracking, trend logging, and interlock monitoring.

Remote Monitoring and Diagnostics: For unmanned or remotely operated facilities, the DS200TCDAG1ADA's integration with the Mark VI IONet backbone enables remote diagnostic access via the GE ToolboxST configuration tool. Maintenance engineers can remotely inspect I/O channel status, verify signal integrity, review fault logs, and perform forced I/O tests without dispatching field personnel — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency and Alarm Management: By feeding structured digital I/O data into the SCADA alarm management system, the DS200TCDAG1ADA supports ISA-18.2-compliant alarm rationalization. Each digital input channel can be mapped to a named alarm tag with configurable priority, deadband, and suppression logic — ensuring that operators receive actionable, context-rich alerts rather than undifferentiated alarm floods during process upsets.

System Expansion: The Mark VI rack architecture supports hot-swap module replacement and incremental I/O expansion. Adding a DS200TCDAG1ADA to an existing rack increases the available digital I/O count without requiring controller downtime, making it an efficient path for capacity expansion in growing automation projects.

Q1: What communication protocols does the GE DS200TCDAG1ADA support, and how does it integrate with third-party SCADA systems? The DS200TCDAG1ADA communicates natively over the GE Mark VI I/O bus and IONet Ethernet backbone. Integration with third-party SCADA systems (Wonderware, Ignition, OSIsoft PI, Honeywell Experion) is achieved via the Mark VI controller's OPC-DA or OPC-UA server interface, which exposes all I/O channel data as standard OPC tags accessible to any compliant SCADA client.

Q2: How does the DS200TCDAG1ADA perform in terms of communication latency and network stability in critical turbine control applications? The DS200TCDAG1ADA operates on the deterministic Mark VI I/O bus, which is designed for sub-millisecond scan cycle performance in turbine protection and sequencing applications. The IONet Ethernet backbone uses managed switch infrastructure with QoS prioritization to ensure that I/O data packets are delivered with consistent, bounded latency — meeting the real-time requirements of turbine trip and interlock logic.

Q3: Can the DS200TCDAG1ADA be used for remote diagnostics, and what tools are required? Yes. Remote diagnostics are supported via GE ToolboxST, which connects to the Mark VI controller over the IONet Ethernet network. Through ToolboxST, engineers can monitor individual I/O channel states, review diagnostic fault codes, perform forced I/O operations for commissioning, and export event logs — all without physical access to the control cabinet. For sites with firewall-separated networks, a secure remote access solution (VPN or GE's ServiceLink) is recommended.

Q4: What warranty and pre-shipment testing does the DS200TCDAG1ADA include? Every DS200TCDAG1ADA unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm I/O channel integrity, backplane communication, and power rail stability. In-stock units are available for immediate shipment to support urgent MRO and project timelines.
