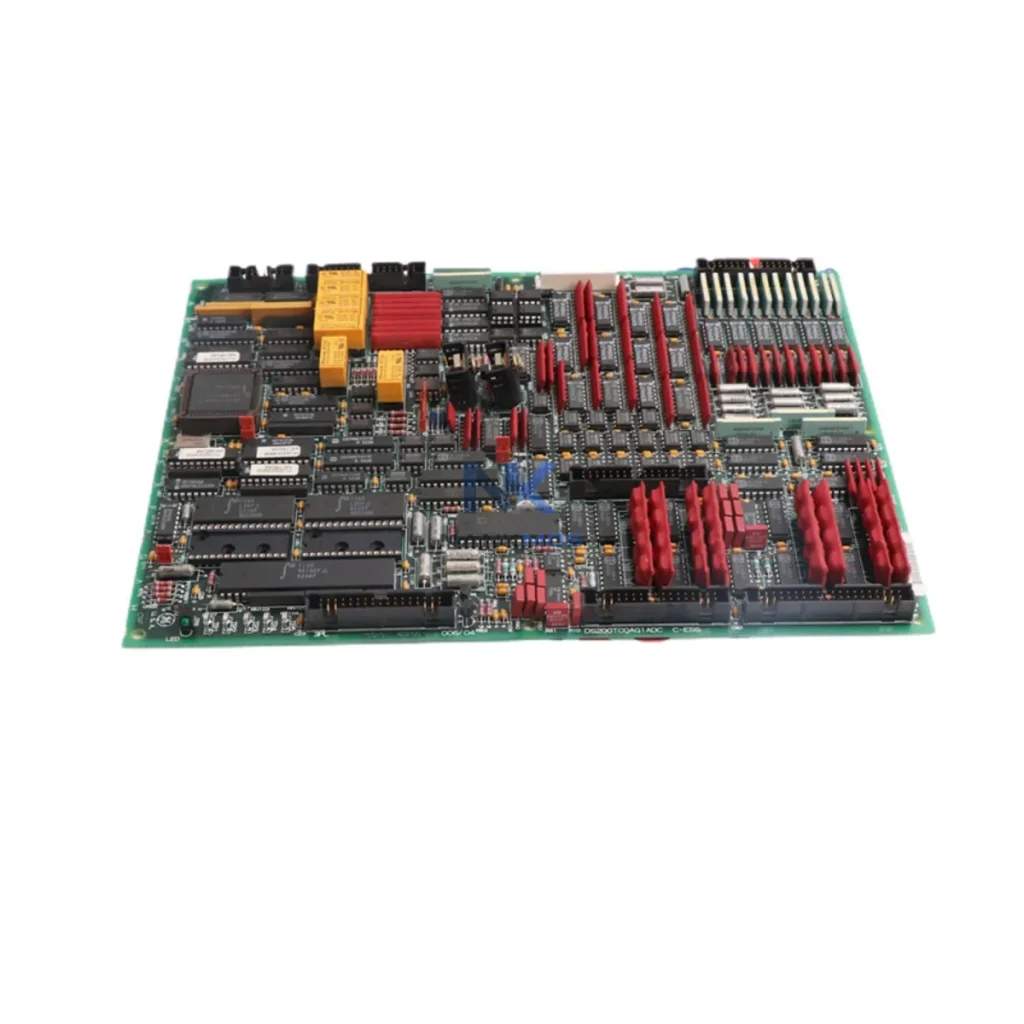

GE DS200TCQRG1RFC Relay Output Board

Product Details

DS200TCQRG1RFC Product Description

The GE DS200TCQRG1RFC is a relay output board engineered for seamless integration within the GE DS200 distributed control system (DCS) architecture. Designed to deliver deterministic switching performance across demanding industrial environments, this module occupies a critical role at the interface between the control layer and field-level actuators. Its relay output channels provide galvanically isolated switching paths that protect upstream logic controllers from voltage transients, inductive kickback, and ground loop interference — ensuring signal integrity across the full automation hierarchy.

Within a complete DS200 control platform, the DS200TCQRG1RFC operates in close coordination with CPU modules such as the DS200SDCIG2AEB and DS200TCDAG1AOB, which handle process logic execution and analog I/O conditioning respectively. The relay outputs driven by this board connect directly to field devices including motor starters, solenoid valves, and contactor coils, forming the execution layer of the control architecture. Power distribution to the DS200 rack is typically managed by the DS200TCPSG1A power supply module, which provides regulated DC rails to all I/O boards including the DS200TCQRG1RFC, ensuring stable operation under variable load conditions.

System architects integrating the DS200TCQRG1RFC into a redundant control topology will find it compatible with the DS200 backplane bus, allowing hot-standby configurations when paired with redundant CPU modules. Communication between the DS200 rack and supervisory SCADA or DCS hosts is routed through gateway modules such as the DS200TCQAG1BHF or compatible Modbus/PROFIBUS interface cards, maintaining real-time status reporting of relay output states. This communication transparency is essential for predictive maintenance workflows, enabling operators to monitor contact wear cycles and schedule preventive replacement before field failures occur.

For installations requiring expanded I/O density, the DS200TCQRG1RFC can coexist on the same backplane with analog input modules like the DS200TCQAG1BHF and digital input boards, supporting mixed I/O architectures without additional interface hardware. Terminal block assemblies compatible with the DS200 series simplify field wiring, reducing commissioning time and minimizing the risk of wiring errors during initial startup or module replacement. The board's compact form factor and standardized connector pinout ensure drop-in replacement compatibility, a critical advantage for brownfield retrofit projects where minimizing downtime is paramount.

In process industries including petrochemical, power generation, water treatment, and metals processing, the DS200TCQRG1RFC supports safety-critical switching functions such as emergency shutdown relay actuation, pump start/stop sequencing, and valve position confirmation. Its relay contacts are rated for both AC and DC load switching, providing application flexibility across diverse field device types. The module's industrial-grade construction meets the environmental requirements of control room and marshalling cabinet installations, with tolerance for the temperature cycling, humidity variation, and vibration levels typical of heavy industrial facilities.

NANKMOS maintains verified in-stock inventory of the DS200TCQRG1RFC, with each unit subjected to functional output testing prior to shipment. All units are covered by a 12-Month Warranty, providing assurance of operational reliability from the moment of installation. Global logistics support ensures rapid delivery to project sites across Asia, Europe, the Americas, and the Middle East, minimizing procurement lead times for both planned capital projects and emergency replacement scenarios.

The DS200TCQRG1RFC achieves its full performance potential when deployed as part of a cohesive DS200 automation platform. At the control layer, the DS200SDCIG2AEB servo drive control board and DS200TCDAG1AOB analog output module provide the logic execution and signal conditioning backbone that drives relay output commands to the DS200TCQRG1RFC. The DS200TCPSG1A power supply module anchors the power layer, delivering stable regulated DC voltage to all rack-mounted I/O boards and ensuring that relay coil energization remains consistent under varying system loads.

At the communications layer, the DS200TCQAG1BHF interface module bridges the DS200 backplane to supervisory networks, enabling real-time relay status feedback to DCS operators. For installations requiring fieldbus connectivity, PROFIBUS DP or Modbus RTU gateway modules extend the DS200 platform's reach to third-party field devices and remote I/O stations. The DS200TCEAG1BHF Ethernet interface card further extends supervisory visibility, supporting OPC-UA or Modbus TCP integration with plant-level SCADA systems.

At the I/O layer, the DS200TCQRG1RFC coexists with DS200TCQAG1BHF analog input boards and DS200TCDAH1BHF digital input modules on the same backplane, enabling mixed I/O architectures that consolidate control of both discrete and analog field devices within a single rack. Terminal block assemblies and marshalling panels compatible with the DS200 connector standard simplify field wiring and support structured cable management practices. For redundancy-critical applications, pairing the DS200TCQRG1RFC with a redundant CPU module and a DS200TCQRG1RFD spare board ensures uninterrupted relay output availability during planned maintenance windows.

Power Generation: In gas turbine and steam turbine control systems, the DS200TCQRG1RFC drives relay outputs for fuel valve actuation, lube oil pump start/stop sequencing, and emergency trip relay circuits. Its galvanic isolation protects the DS200 CPU from high-voltage transients generated by turbine auxiliary systems.

Petrochemical & Refining: Process safety systems in refinery units rely on relay output boards to actuate emergency shutdown valves and interlock circuits. The DS200TCQRG1RFC's dry contact outputs interface directly with SIL-rated solenoid valve drivers, supporting IEC 61511 functional safety architectures.

Water & Wastewater Treatment: Municipal water treatment facilities use DS200-based DCS platforms to manage pump station sequencing, chemical dosing valve control, and UV disinfection system interlocks. The DS200TCQRG1RFC provides the reliable relay switching required for these continuous-duty applications.

Metals & Mining: In smelting and ore processing facilities, the DS200TCQRG1RFC supports conveyor drive start/stop control, furnace burner management relay circuits, and cooling system pump sequencing — all within the harsh electromagnetic environment typical of heavy industrial sites.

Marine & Offshore: Offshore platform control systems and marine vessel automation platforms utilize DS200 architecture for machinery control. The DS200TCQRG1RFC's robust construction and wide operating temperature range support reliable relay switching in the vibration and humidity conditions of marine installations.

Q1: Is the DS200TCQRG1RFC compatible with all DS200 series backplanes and CPU modules? The DS200TCQRG1RFC is designed for the GE DS200 series rack and backplane architecture. It is compatible with DS200 CPU modules including the DS200SDCIG2AEB and DS200TCDAG1AOB families. For specific slot assignment and backplane revision compatibility, consult the GE DS200 hardware configuration guide or contact NANKMOS technical support for application-specific verification.

Q2: What commissioning steps are required when installing the DS200TCQRG1RFC as a replacement module? Replacement installation follows a structured procedure: power down the DS200 rack, remove the existing relay output board, seat the DS200TCQRG1RFC in the correct backplane slot, restore power, and verify relay output channel assignments in the DCS configuration tool. NANKMOS ships each unit with functional output testing completed, reducing on-site commissioning time. Configuration parameters are retained in the DS200 CPU, so no relay output re-mapping is typically required for like-for-like replacements.

Q3: What warranty and long-term supply support does NANKMOS provide for the DS200TCQRG1RFC? All DS200TCQRG1RFC units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. NANKMOS maintains ongoing inventory of DS200 series modules to support both planned maintenance programs and emergency replacement requirements. For long-term maintenance contracts or multi-unit procurement, contact NANKMOS at [email protected] or +86 18359268345 to discuss supply agreements and technical support arrangements.
